GE Profile PCF23RGW Manuel

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Dimensions and Installation Information (in inches)

Overall

Dimensions

Height to top of hinge (in.) A 69-1/4

Height to top of case (in.) B 68-3/4

Case depth without door (in.) C†23-7/8

Case depth less door handle (in.) D†26-3/4

Case depth with door handle (in.) E†29-3/16

Depth with fresh food door open 90° (in.) F†45-9/16

Width (in.) G 35-3/4

Width with door open 90° inc. door handle (in.) H 41

Air

Clearances

Each side (in.) 1/8

Top (in.) 1

Back (in.) 1/2

†Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 14-3/16" on freezer

side to remove bin.

Clearance required to remove fresh food full-size pan without

disassembling is 18-15/16".

Allow additional space for any necessary leveling adjustments.

"94 SxS Refer

Front View

Top View

PCF23RGW

GE Profile™Counter-Depth 23.2 Cu. Ft. Side-by-Side Refrigerator

Specification Created 2/07 210240

Listed by

Underwriters

Laboratories

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

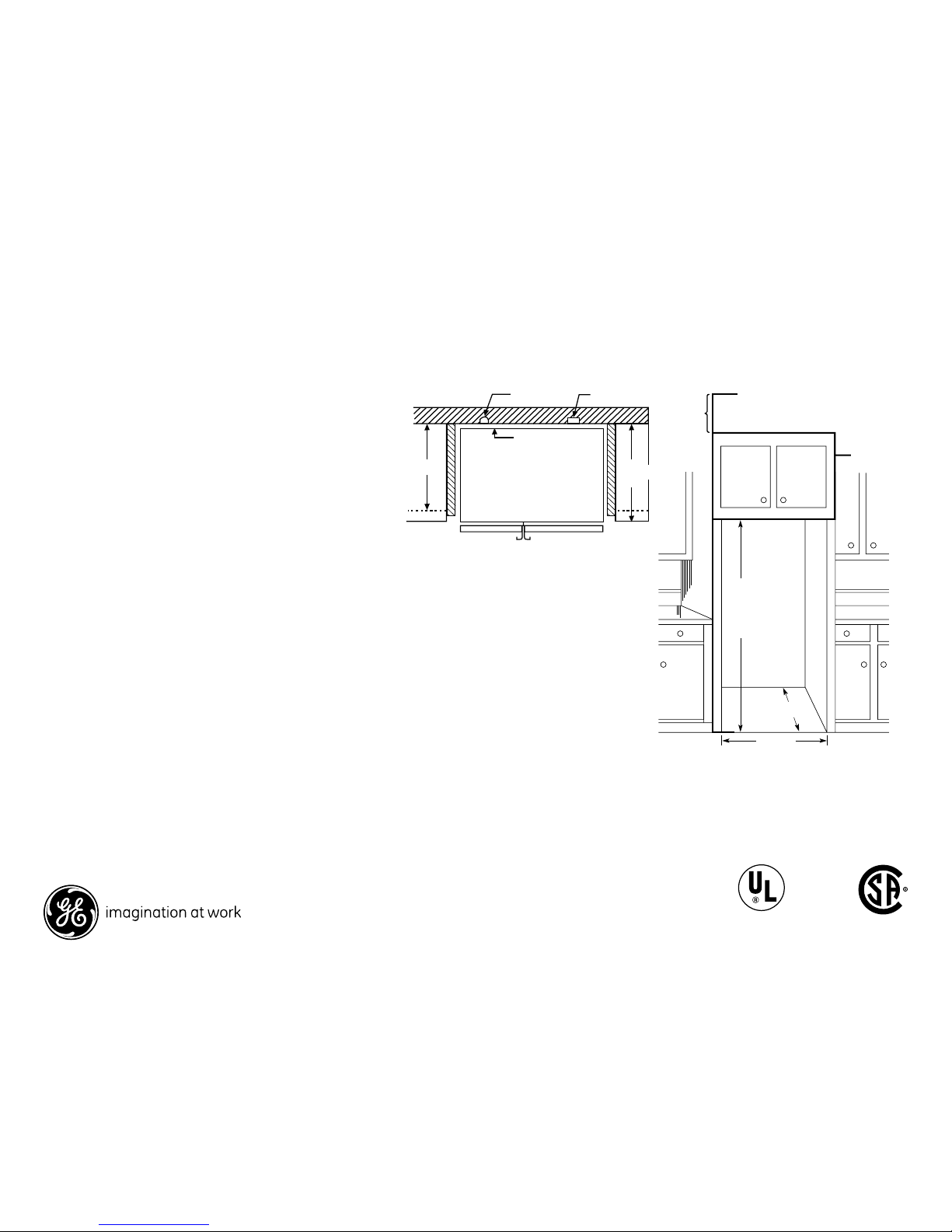

Installation Tips to Maximize the Built-In Look

• All wall/floor molding should be removed prior to installation.

• Water recess on rear wall recommended to prevent water

line damage. 48" minimum length, 1/4" diameter water

line tubing recommended.

• When possible, recess both copper water line and electrical

outlet. (See local codes)

• Front and rear leveling legs are adjustable for the built-in look.

(See owner’s manual)

*The rough-in dimensions of 70-1/4”/72-1/4” are minimum and

measured from the finished floor to top of opening (or the

underside of the overhead cabinets) For Models with Trim Kit: If

frameless style cabinets are planned for above the refrigerator,

you may need to consider adding a maximum of 1/4” (70-1/2”)

to height of opening for 23 cu. ft. models and 1/8” (72-3/8”) for

25 cu. ft. models to allow additional clearance between cabinet

doors and top of refrigerator trim when cabinet doors are in

open position.

25"

Counter

Top

ElectricalWater

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

ElectricalWater

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

FOR 21 CUBIC FOOT MODELS

FOR 24 CUBIC FOOT MODELS

Fig 2A eps

8' Ceiling

13" to 14"

Cabinet

12"

Soffit

36-1/8"

24-1/2"

*The rough-in dimensions of 70-1/4"/72-1/4" are minimum and measured from

the finished floor to top of opening (or the underside of the overhead cabinets).

For Models with Trim Kit: If frameless style cabinets are planned for above the

refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to

height of opening for 23 cu. ft. models and 1/8" (72-3/8") for 25 cu. ft. models

to allow additional clearance between cabinet doors and top of refrigerator trim

when cabinet doors are in open position.

Collar Trim In. w/ceiling

70-1/4"*

23 cu. ft. models

72-1/4"*

25 cu. ft. models

PCF23RGW

GE Profile™Counter-Depth 23.2 Cu. Ft. Side-by-Side Refrigerator

Specification Created 2/07 210240

Listed by

Underwriters

Laboratories

Dimensions and Installation Information (in inches)

PSF23RGWWW

PSF23RGWBB

PSF26RGWWW

PSF26RGWBB

HOME

HELP

WATER

CRUSHED

LOCK CUBED

Hold3for Seconds

SELECTAMOUNT

BACK ENTER

NEWSETTING

SELECTTYPE

2CUPS

PCF23RGW

GE Profile™Counter-Depth 23.2 Cu. Ft. Side-by-Side Refrigerator

Features and Benefits

• Counter-Depth Configuration - Offers a built-in look by fitting almost completely flush with

surrounding cabinetry and blending in with décor

• High-Gloss Finish with Hidden Hinge, Center and Top Bevel - Offers a smooth surface with

contoured doors and a concealed hinge

• ClimateKeeper2™System - Keeps food garden fresh longer, while protecting ice from odor

transfer, with its unique dual-evaporator system

• Color LCD Controls with Touch Screen - Makes it easy to control all the functions of the

refrigerator with just a touch

• QuickFreeze Setting - Provides faster, fresher freezing to maintain the flavor and quality of meats

• Integrated Dispenser with LED Lighting, PreciseFill & UltraFlow100 - Illuminates the dispenser

and pours water in accurate increments or up to 100 ounces per minute

• Electronic Beverage Center - Keeps beverages and treats icy cold and easily accessible

• CustomCool™Technology - Chills in minutes, thaws in hours and keeps foods fresher, longer

• Slide 'n Store™Freezer Basket - Offers easy access and flexible storage

• Quick Ice™Option - Makes ice up to 50% faster than normal settings-ideal for entertaining

• TurboCool™Setting - "Revs up" the refrigerator, cooling it quickly after frequent door openings

• Integrated Ice™System - Frees up valuable freezer space; It tilts down, providing easy access

to bulk ice

• GE Water Plus Filtration System - Delivers clean, great-tasting water and ice through the

LightTouch! Dispenser with indicator light

• Model PCF23RGWWW - White on white

• Model PCF23RGWBB - Black on black

Specification Created 2/07 210240
