GE Profile CustomStyle PSI23MGR Manuel

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

Listed by

Underwriters

Laboratories

Overall

Dimensions

Height to top of hinge (in.) A 69-1/4*

Height to top of case (in.) B 68-3/4

Case depth without door (in.) C†23-7/8

Case depth less door handle (in.) D†26-3/4

Case depth with door handle (in.) E†29-1/5

Depth with fresh food door open 90° (in.) F†45-4/7

Width (in.) G 35-3/4

Width with door open 90° inc. door handle (in.) H 40

Air

Clearances

Each side (in.) 1/8

Top (in.) 1

Back (in.) 1/2

* Height to top of door trim (in.): 70-1/4

† Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 13-15/16" on

freezer side to remove bin.

Clearance required to remove fresh food full-size pan without

disassembling is 18-5/8".

Allow additional space for any necessary leveling adjustments.

Specification Revised 7/05

Dimensions and Installation Information (in inches)

210288

"94 SxS Refer

Front View

Top View

PSI23MGR

GE Profile CustomStyle™ 22.6 Cu. Ft. Side-By-Side Refrigerator

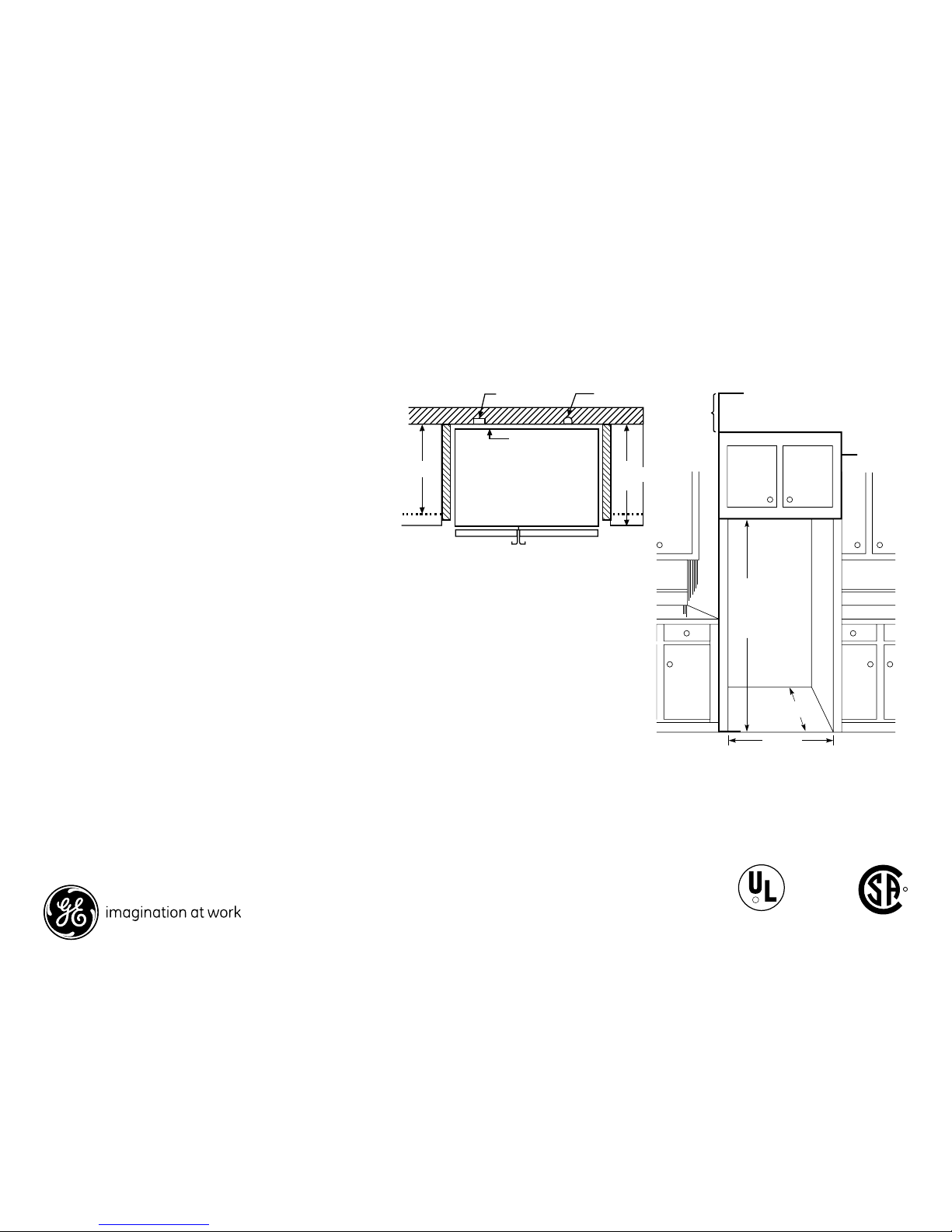

Rough-In Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

8' Ceiling

13" to 14"

Cabinet

12"

Soffit

36-1/8"

24-1/2"

*The rough-in dimensions of 70-1/4"/72-1/4" are minimum and measured from

the finished floor to top of opening (or the underside of the overhead cabinets).

For Models with Trim Kit: If frameless style cabinets are planned for above the

refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to

height of opening for 23 cu. ft. models and 1/8" (72-3/8") for 25 cu. ft. models

to allow additional clearance between cabinet doors and top of refrigerator trim

when cabinet doors are in open position.

Collar Trim In. w/ceiling

70-1/4"*

23 cu. ft. models

72-1/4"*

25 cu. ft. models

Listed by

Underwriters

Laboratories

25"

Counter

Top

ElectricalWater

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

ElectricalWater

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

FOR 21 CUBIC FOOT MODELS

FOR 24 CUBIC FOOT MODELS

Fig 2A eps

Installation Tips to Maximize the Built-In Look

• All wall/floor molding should be removed prior to installation.

• Water recess on rear wall recommended to prevent water

line damage. 48" minimum length, 1/4" diameter water

line tubing recommended.

• When possible, recess both copper water line and electrical

outlet. (See local codes)

• Front and rear leveling legs are adjustable for the built-in look.

(See owner’s manual)

• If optional collar trim kit is to be used or anticipated, see collar

trim installation for different rough-in dimensions

**The rough-in dimensions of 70-1/4"/72-1/4" are minimum and

measured from the finished floor to top of opening (or the

underside of the overhead cabinets). For Models with Trim Kit:

If frameless style cabinets are planned for above the refrigerator,

you may need to consider adding a maximum of 1/4" (70-1/2")

to height of opening for 23 cu. ft. models and 1/8" (72-3/8”) for

25 cu. ft. models to allow for additional clearance between the

cabinet doors and the top of refrigerator trim when the cabinet

doors are in open position.

210288

Specification Revised 7/05

PSI23MGR

GE Profile CustomStyle™ 22.6 Cu. Ft. Side-By-Side Refrigerator

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

Listed by

Underwriters

Laboratories

Specification Revised 7/05 210288

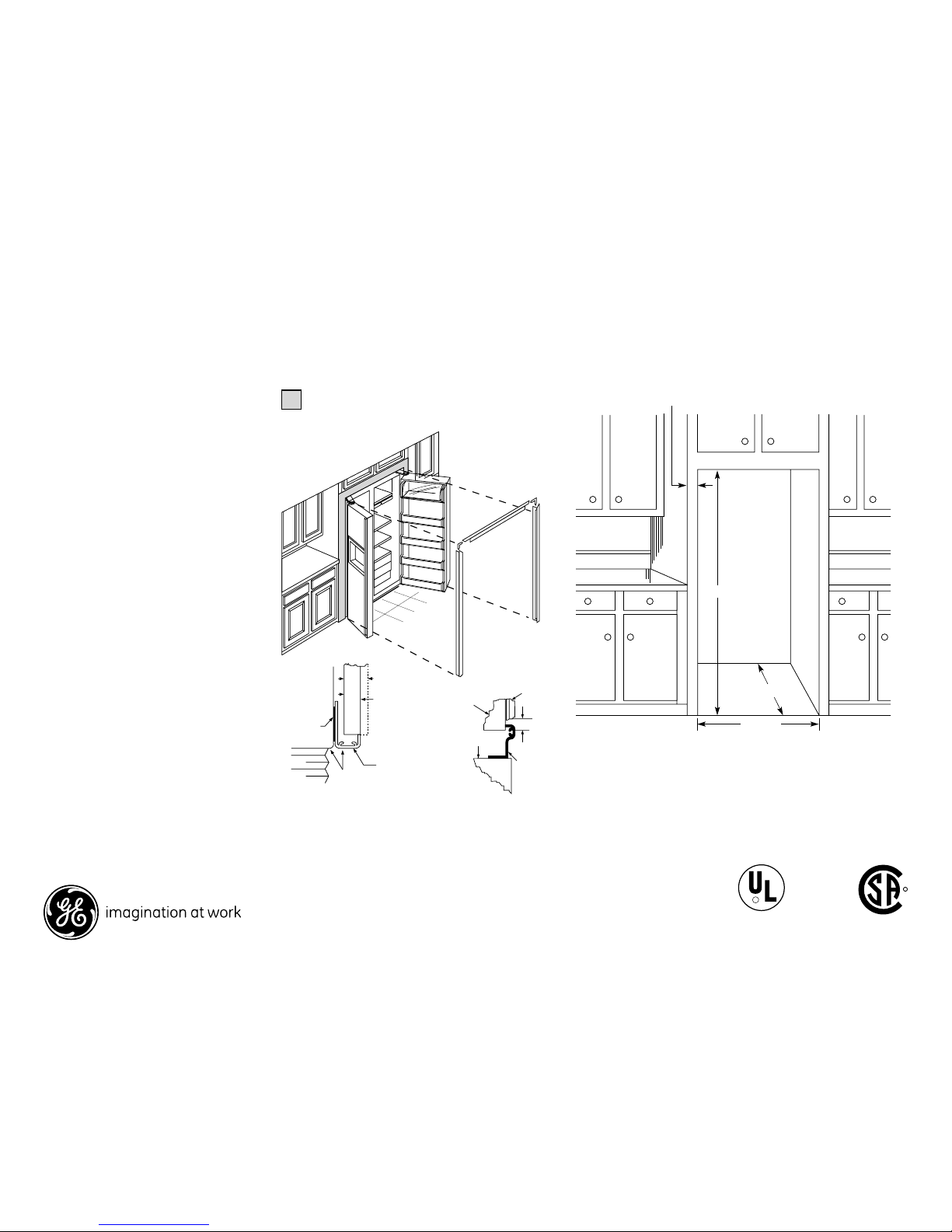

Collar Trim Installation

An enclosure is required to match up to the

trim, see Typical Installation. To obtain the

most integrated look, the cabinet or soffit

above the refrigerator should extend out

to the same depth as the side panels. The

refrigerator opening must have minimum

dimensions of 70-1/4" high x 36-1/8" wide

x 24-1/2" deep as shown at right. If there is

an overhead cabinet, allow 1" for cabinet

door clearance with the top trim piece so

the cabinet doors can be opened without

hitting the top trim. If 1/2" side panels are

used, then side trim and panel will be even.

If 3/4" side panels are used, then some of

the side panel will extend beyond the trim

and must be finished.

IMPORTANT: Before finalizing specifications

for your GE Profile CustomStyle Refrigerator,

please NOTE:

• A minimum of 36-1/8" is required for

refrigerator installation with collar

• Be sure to allow for 1/2" or 3/4" side

panels in addition to the 36-1/8"

minimum.

Typical Installation

Shaded areas represent front surfaces of side panels and

overhead cabinet or soffit that contacts trim.

Refer collar trim install

70-1/4"*

36-1/8"

24-1/2"*

1/2" minimum

*The rough-in dimension of 70-1/4" is minimum and is measured from the

finished floor to top of opening (or the underside of the overhead cabinets).

For Models with Trim Kit: If frameless style cabinets are planned for above the

refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to

height of opening to allow additional clearance between cabinet doors and

top of refrigerator trim when cabinet doors are in open position.

Collar Trim Installation Art

Rough-In Dimensions and Installation Information (in inches)

Magnetic

Tape

3/4" Cabinet

Side Panel

1/2" Cabinet

Side Panel

Side trim must be installed

flush with the gasket contact

surface on the case.

Refrigerator

Case

Side TrimDoor Gasket

Overhead

Cabinet

Door

Top Trim

Case

PSI23MGR

GE Profile CustomStyle™ 22.6 Cu. Ft. Side-By-Side Refrigerator

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

Listed by

Underwriters

Laboratories

Order your own custom wood panels to match cabinetry

or other decor.

Panels up to 1/4" thick will fit door frame with no special

preparation. Add filler behind material thinner than 1/4"

for proper fit.

Weight Limits: Total weight of panels (i.e., both freezer

panels)—Fresh Food = 38 lbs., Freezer = 28 lbs.

NOTE: Panels up to 3/4” will require special routing area

around handles. Dimensions may vary depending on

depth of panel.

IMPORTANT: Before finalizing specifications for your

GE Profile CustomStyle Refrigerator, please NOTE:

• A minimum of 36-1/8" is required for refrigerator

installation with collar

• Be sure to allow for 1/2" or 3/4" side panels in addition

to the 36-1/8" minimum.

Specification Revised 7/05 210288

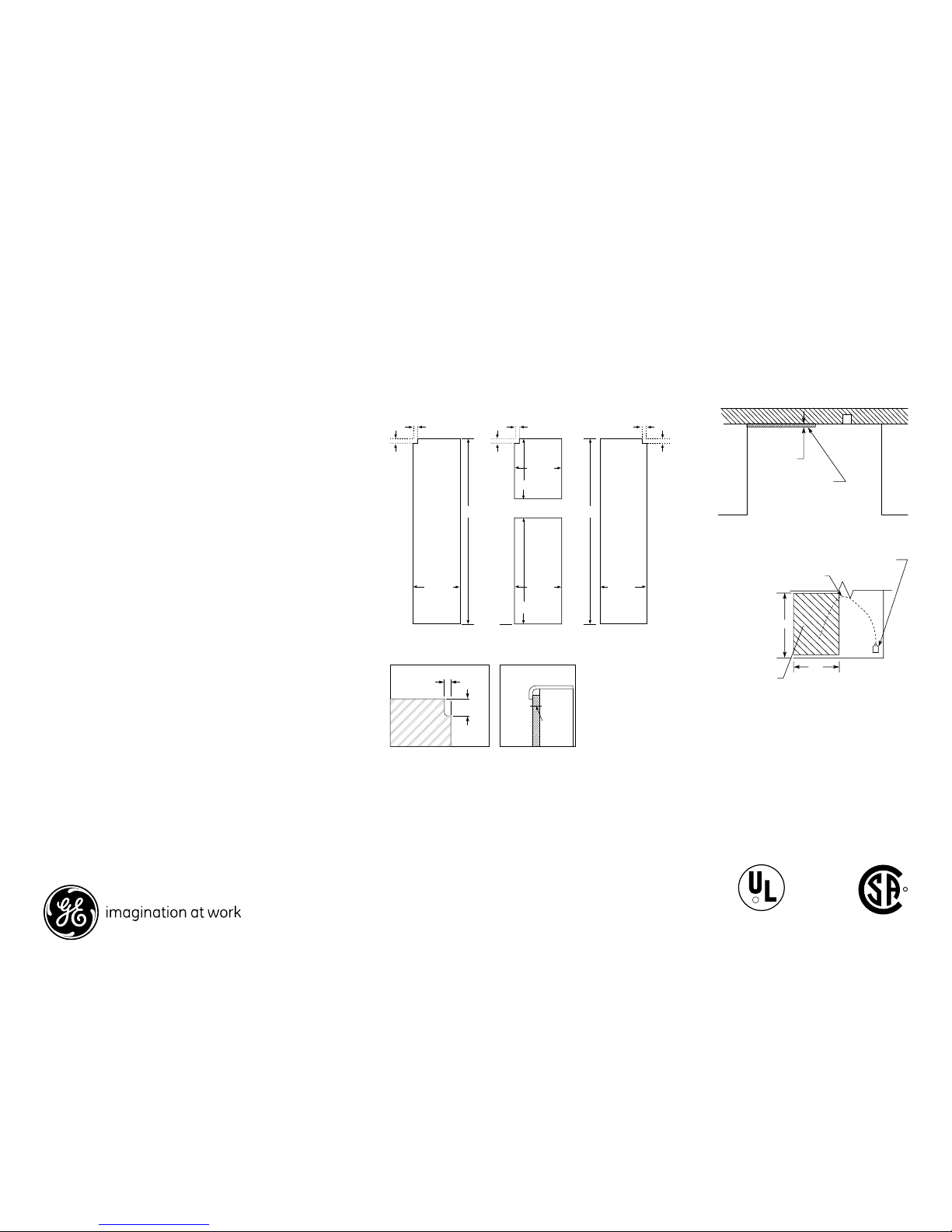

Door Panel Dimensions and Installation Information (in inches)

Installation of Water Outlets

Freezer Panel

without Dispenser

Freezer Panel

with Dispenser

Fresh Food

Panel

(Fresh Food panel shown)

Notch required at top

corner as noted.

Detail C

Freezer Panel

Without Dispenser

Freezer Panel

With Dispenser

Fresh Food

Panel

Cut

out

1/8 1/8

14-15/32 14-15/32

14-15/32

33-5/8

17-7/8

19-15/32

5/16

Cut

out

Cut

out 1/8

5/16 5/16

FRONT

67-9/32 67-9/32

FRONT FRONT

Alternate

water

line location

through floor

1/2"

Water hook-up

on the refrigerator

Recommended water line

location using recess

in rear wall

Recommended

single loop of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

Alternate

water

line location

through floor

1/2"

Recommended water line

location using recess

in rear wall

Recommended single loop

of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

Top View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

In.of water & Electric Ot. Art

Alternate

water

line location

through floor

1/2"

Water hook-up

on the refrigerator

Recommended water line

location using recess

in rear wall

Recommended

single loop of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

Alternate

water

line location

through floor

1/2"

Recommended water line

location using recess

in rear wall

Recommended single loop

of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

Top View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

In.of water & Electric Ot. Art

5/16"

1/8"

Dr. Panel Dim. Detail C

1/4" Max.

Panels 1/4" thick

or less

Dr. Panel Dim. Panel 1/4 Thick

PSI23MGR

GE Profile CustomStyle™ 22.6 Cu. Ft. Side-By-Side Refrigerator

PSI23PGR

PSI23NGP

PSI23MGP

WATER

CRUSHED

CUBEDCLOCK SET

LIGHT

DOOR ALARM

RESET WATER FILTER

HOLD 3 SEC.

LOCK CONTROL

HOLD 3 SEC.

Arctica

210288

Specification Revised 7/05

Features and Benefits

• CustomStyleTM Configuration - Offers a built-in look without the built-in expense

• ClimateKeeperTM System - Best Temperature Management System You Can Buy!

• Upfront, Electronic Touch Temperature Controls with Digital Temperature Display -

Precise and easy to use, taking the guesswork out of setting accurate temperatures

• Integrated IceTM System - Frees up valuable freezer space. It tilts down, providing easy access

to bulk ice

• Tall LightTouch! Dispenser - Delivers chilled water cubed ice or crushed ice at the slightest touch

• Integrated Shelf Support System - Provides strong, yet flexible support

• FrostGuardTM Technology - Protects frozen items from freezer burn by monitoring door openings

and defrosting only when needed

• Adjustable Slide-Out, Spillproof Glass Shelves - Shelves slide out, spills stay put

• QuickIceTM Option - Makes ice up to 50% faster than normal settings-ideal for entertaining

• TurboCoolTM Setting - “Revs up” the refrigerator, cooling it quickly after frequent door openings

• GE SmartWaterTM Plus Filtration System - Delivers clean, great-tasting water and ice through the

LightTouch! Dispenser with indicator light

• In-the-Door Beverage Rack - Conveniently located inside the refrigerator door to increase flexibility

and to free up valuable shelf space

• ClearLookTM Gallon Door Bins - Holds gallon-size containers with style and ease

• Model PSI23MGRWV - White on white

• Model PSI23MGRCV - Bisque on bisque

• Model PSI23MGRBV - Black on black

PSI23MGR

GE Profile CustomStyle™ 22.6 Cu. Ft. Side-By-Side Refrigerator

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels GE Réfrigérateur

GE SIDE-BY-SIDE REFRIRATOR 22 Instructions originales

GE PFH28 series Instructions originales

GE GE Profile Performance CustomStyle... Manuel utilisateur

GE GTH18DBPARCC and Mode d'emploi

GE PFIC1NFYCWV and Mode d'emploi

GE PSC21MGM Comment utiliser

GE GSS23LGT Manuel

GE GFSS6KEXSS - r 25.8 cu. Ft. Refrigerator Manuel

GE GSE25ESHBSS Mode d'emploi

GE GPE12 Instructions originales

GE Refrigerator Manuel utilisateur

GE Profile PSS26MGT Manuel

GE GSH22JSXSS - Appliances 22.0 cu. ft.... Manuel

GE GTL17JBWBS - CleanSteel 16.6 cu. Ft. Top-Freezer... Manuel

GE GE Profile Arctica PSC23NGN Instructions d'utilisation

GE Profile PSF26RGW Manuel utilisateur

GE GSHL5KGXLS - CleanSteel 25.4 cu. Ft.... Instructions de montage

GE TFJ20JR Manuel utilisateur

GE MTS18GT Mode d'emploi

GE GTL12HBDBS Instructions de montage

GE 6 Cubic Foot Mode d'emploi

GE GTH20JBBBB Manuel

GE Profile PSH25PSWSS Manuel

GE Profile 26 Series Mode d'emploi

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
