GE Profile CustomStyle PSC23PSTSS Manuel

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

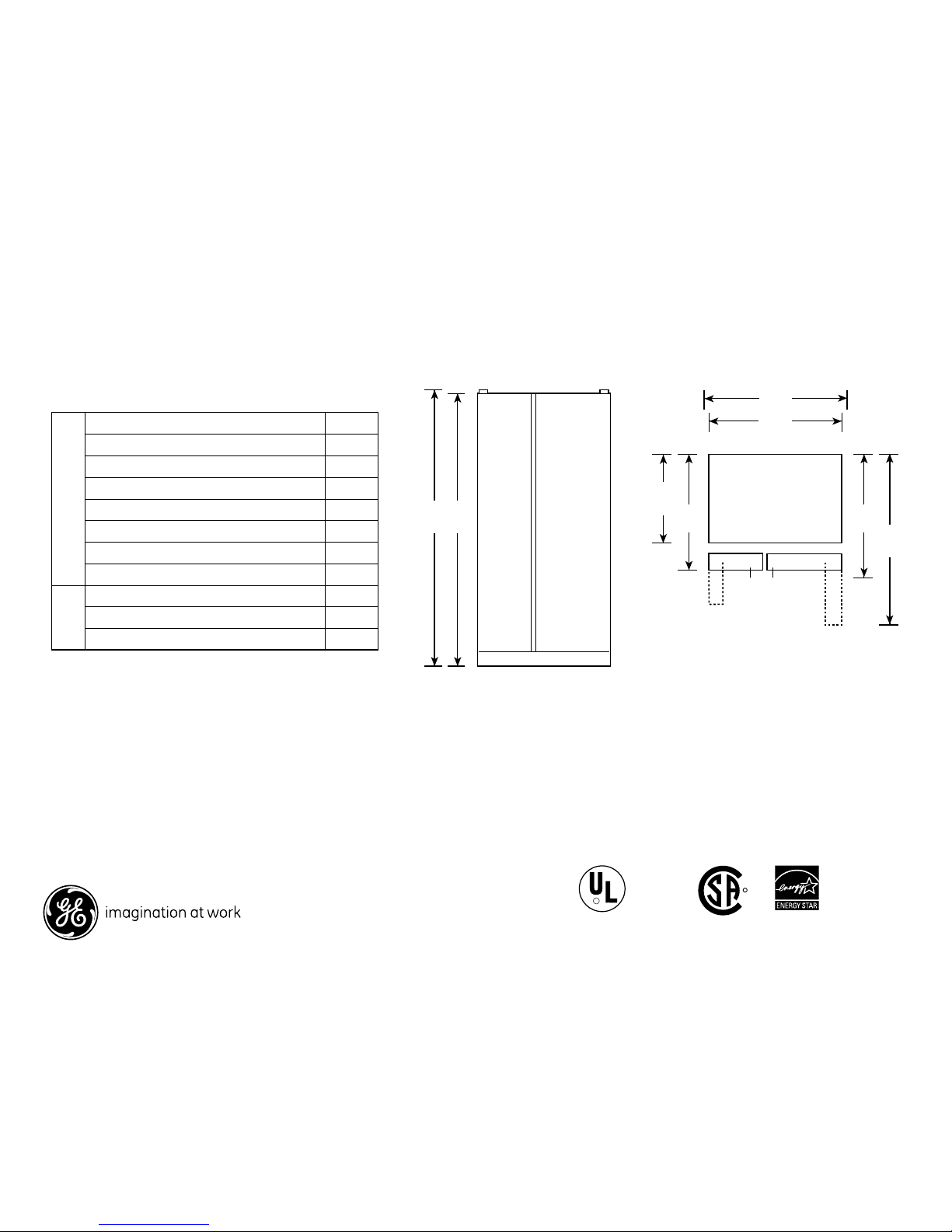

Dimensions and Installation Information

Overall

Dimensions

Height to top of hinge (in.) A 69-1/4

Height to top of case (in.) B 68-3/4

Case depth without door (in.) C†23-7/8

Case depth less door handle (in.) D†26-3/4

Case depth with door handle (in.) E†29-3/16

Depth with fresh food door open 90° (in.) F†45-9/16

Width (in.) G 35-3/4

Width with door open 90° inc. door handle (in.) H 41-5/16

Air

Clearances

Each side (in.) 1/8

Top (in.) 1

Back (in.) 1/2

† Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 14-3/16" on freezer

side to remove bin.

Clearance required to remove fresh food full-size pan without

disassembling is 18-15/16".

Allow additional space for any necessary leveling adjustments.

"94 SxS Refer

Front View

Top View

Dimension and installation information are shown in inches.

PSC23PST

GE Profile CustomStyle™ ENERGY STAR® 22.6 Cu. Ft. Stainless Side-by-Side Refrigerator with

Integrated Dispenser

Listed by

Underwriters

Laboratories

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

Specification Created 12/05 210231

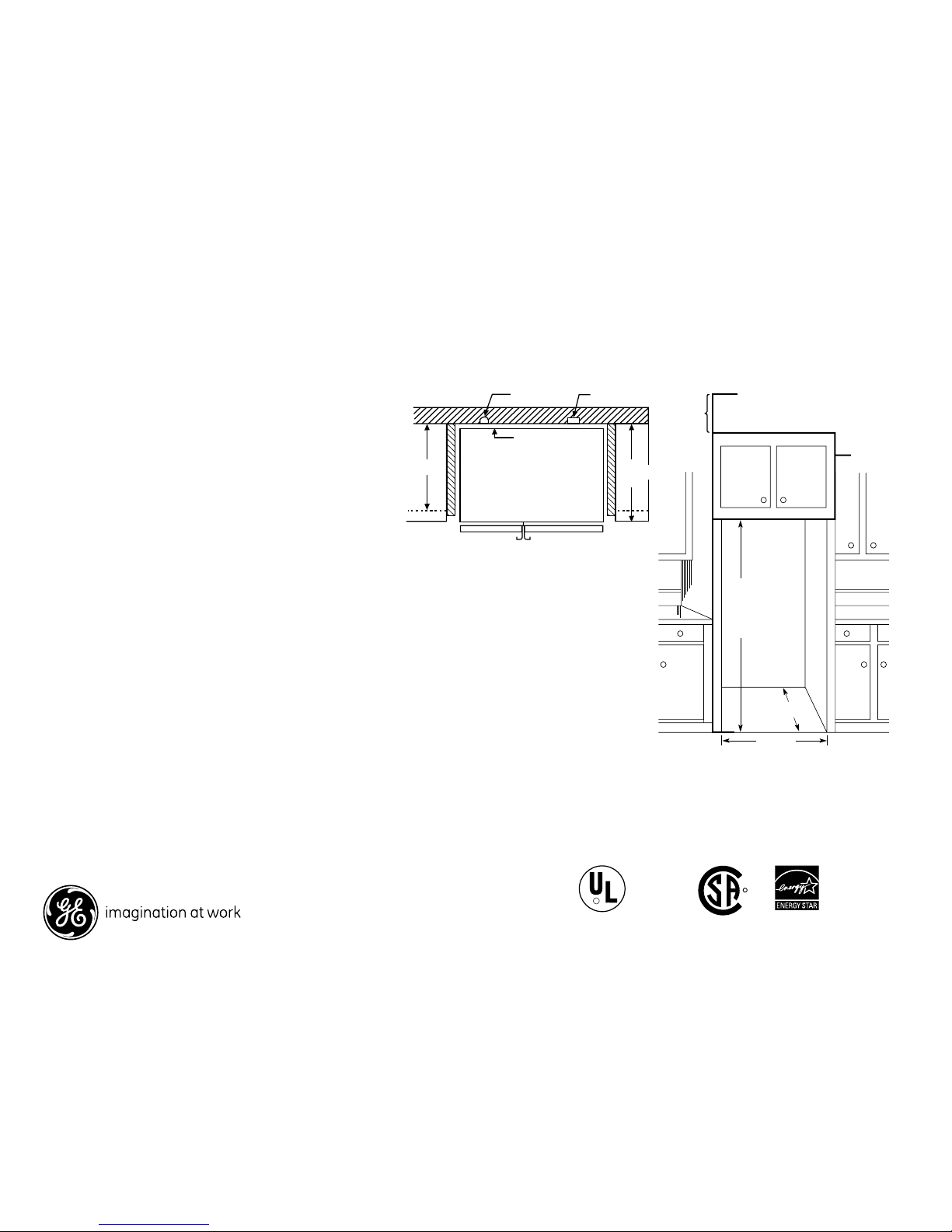

Rough-In Dimensions and Installation Information

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

Installation Tips to Maximize the Built-In Look

• All wall/floor molding should be removed prior to installation.

• Water recess on rear wall recommended to prevent water

line damage. 48" minimum length, 1/4" diameter water

line tubing recommended.

• When possible, recess both copper water line and electrical

outlet. (See local codes)

• Front and rear leveling legs are adjustable for the built-in look.

(See owner’s manual)

* The rough-in dimensions of 70-1/4”/72-1/4” are minimum and

measured from the finished floor to top of opening (or the

underside of the overhead cabinets) For Models with Trim Kit: If

frameless style cabinets are planned for above the refrigerator,

you may need to consider adding a maximum of 1/4” (70-1/2”)

to height of opening for 23 cu. ft. models and 1/8” (72-3/8”) for

25 cu. ft. models to allow additional clearance between cabinet

doors and top of refrigerator trim when cabinet doors are in

open position.

25"

Counter

Top

ElectricalWater

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

ElectricalWater

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

FOR 21 CUBIC FOOT MODELS

FOR 24 CUBIC FOOT MODELS

Fig 2A eps

8' Ceiling

13" to 14"

Cabinet

12"

Soffit

36-1/8"

24-1/2"

*The rough-in dimensions of 70-1/4"/72-1/4" are minimum and measured from

the finished floor to top of opening (or the underside of the overhead cabinets).

For Models with Trim Kit: If frameless style cabinets are planned for above the

refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to

height of opening for 23 cu. ft. models and 1/8" (72-3/8") for 25 cu. ft. models

to allow additional clearance between cabinet doors and top of refrigerator trim

when cabinet doors are in open position.

Collar Trim In. w/ceiling

70-1/4"*

23 cu. ft. models

72-1/4"*

25 cu. ft. models

Dimension and installation information are shown in inches.

PSC23PST

GE Profile CustomStyle™ ENERGY STAR® 22.6 Cu. Ft. Stainless Side-by-Side Refrigerator with

Integrated Dispenser

Listed by

Underwriters

Laboratories

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

Specification Created 12/05 210231

PSC23PSTSS

PSC25PSTSS

DOOR

ALARM

RESET

FILTER

Hold 3 seconds to Reset

LIGHT

WATER

OUNCE

MEASURED FILL

OUNCES

LOCK

Hold 3 seconds

CUPS

CRUSHED CUBED QUICK ICE

CUP

PSC23PST

GE Profile CustomStyle™ ENERGY STAR® 22.6 Cu. Ft. Stainless Side-by-Side Refrigerator with

Integrated Dispenser

Features and Benefits

• CustomStyle™ Configuration - Offers a built-in look without the built-in expense

• Stainless Steel Exterior - Convey a look of utmost polish and sophistication

• ClimateKeeper2™ System - Keeps food garden fresh longer, while protecting ice from odor

transfer, with its unique dual-evaporator system

• PreciseFill technology - Dispenses fresh, filtered water in accurate measurements

• Integrated dispenser with LED lighting - Beveled color-matched design gives the dispenser an

attractive, updated look; LED lighting provides long-lasting illumination

• Electronic Beverage Center - Keeps beverages and treats icy cold and easily accessible

• CustomCool™ Technology - Chills in minutes, thaws in hours and keeps foods fresher, longer

• Electronic controls with actual temperature display - Eliminates guesswork in setting

refrigerator temperatures

• Slide ‘n Store™ Full-Extension Freezer Baskets - Extends 12” to 16” beyond the cabinet,

providing easy loading and unloading

• Quick Ice™ Option - Makes ice up to 50% faster than normal settings-ideal for entertaining

• TurboCool™ Setting - “Revs up” the refrigerator, cooling it quickly after frequent door openings

• Integrated Ice™ System - Frees up valuable freezer space. It tilts down, providing easy access

to bulk ice

• Tilt-Out Freezer Door Bins - Move forward for convenient access

• Model PSC23PSTSS - Stainless steel

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

Specification Created 12/05 210231
