GE Appliances

General Electric Company

Louisville, Kentucky 40225

GE CONFIDENTIAL AND PROPRIETARY INFORMATION – NOT FOR PUBLIC DISCLOSURE

GE Consumer & Industrial

20-in. and 24-in.

Compact Gas Range

Model Introduction

TB 01-06

Training Bulletin

January 2006

INTRODUCTION

GE is producing new 20-in. and 24-in. Compact

Gas Ranges, which are available with a standing

pilot or electronic ignition. They also come

standard with 2 oven racks, recessed lift-up

cooktop, separate lower broiler drawer and

removable oven door. The 4 top burners are rated

at 9,100 BTU (natural gas) and 8,000 BTU (LP).

The oven is rated at 13,000 BTU (natural gas) and

13,000 BTU (LP).

Models:

RGA720EK - 20-in. Electronic Ignition

RGA720PK - 20-in. Standing Pilot

RGA724EK - 24-in. Electronic Ignition

RGA724PK - 24-in. Standing Pilot

SERIAL NUMBER

The model/serial tag is located under the cooktop,

on top of the burner box.

TECHNICAL DATA SHEET

The technical data sheet is located on the back of

the range, near the top.

Technical Data Sheet

– 2 –

MANIFOLD PANEL

There are 8 screws that hold the manifold panel in

place.

4 Screws (Behind the Gas Control Knobs)

4 Screws (Top and Bottom of the Manifold Panel)

SWITCH REMOVAL

1. Prop open the cooktop.

2. Remove the gas control knobs, then remove the

manifold panel.

3. To remove the switch, rotate the switch 15-20

degrees counterclockwise and pull the switch off

the manifold.

Note:

For switches located behind the bracket, the

valve must ﬁrst be removed from the manifold.

All 4 switches come as an assembly.

•

•

TOP BURNER VALVE REMOVAL

1. Remove the switch from the valve. (See Switch

Removal.)

2. For the desired valve, remove the 1/4-in. hex-

head screw on the manifold.

3. Lift burners off the oriﬁces, then locate the

oriﬁce that corresponds to the desired valve.

4. Remove the 3/4-in. hex nut holding the oriﬁce

and tube assembly as shown.

Bracket

– 3 –

5. Push oriﬁce down through burner box and

remove the tube assembly from the range.

6. Use a 1/2-in. wrench to remove the valve from

the gas line.

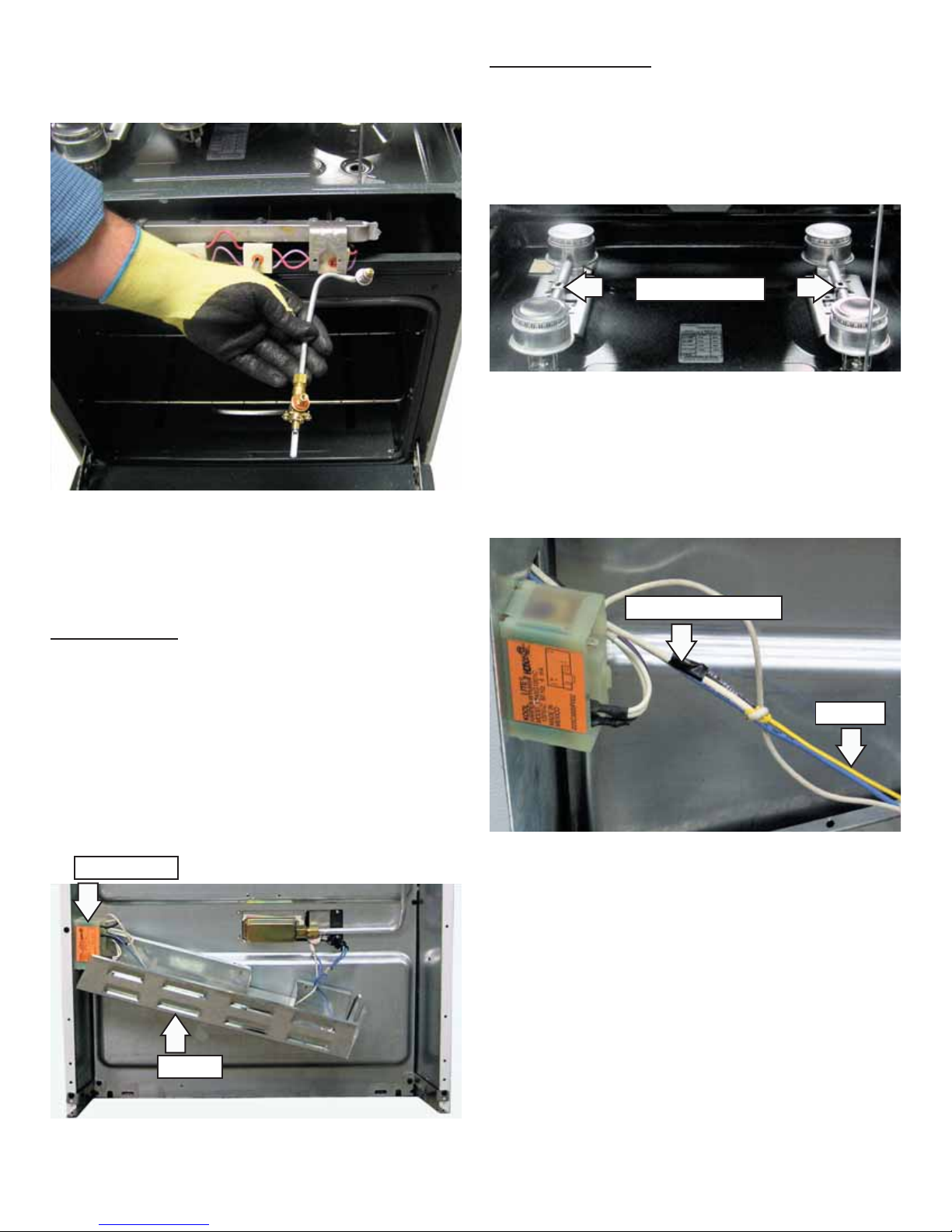

SPARK MODULE

The spark module is located on the back of the

oven, near the bottom. It is protected by a metal

housing. The spark module is mounted with two

tabs, which snap into corresponding slots. To

remove the module, use a ﬂat blade screwdriver to

bend the tabs toward the module body and release

the tab from the slot.

Spark Module

SPARK ELECTRODES

The range has 2 spark electrodes. They have

different part numbers due to wire length. The wires

are held in a retaining clip below the burner box.

The burner box must be removed to route the wires

correctly when replacing an electrode.

Spark Electrodes

When replacing the spark electrodes, tie a string to

the spark electrode wire as shown. From the top of

the range, pull the spark electrode wire up through

the range. Use the string to pull the new spark

electrode wire back through the range.

Spark Electrode Wire

String

Housing

– 4 –

LP CONVERSION

The LP oriﬁces are located in a small pack on the

back of the oven next to the gas regulator. Use a

1/2-in. open end wrench to install the oriﬁces. Turn

the oriﬁce clockwise until snug.

OVEN CAPILLARY

The oven capillary is held in by 2 clips. To remove

the capillary, squeeze both clips at the same time

and gently pull the capillary away from the oven

wall.

OVEN DOOR GASKET

The oven door gasket is held in place by spring

clips. To remove it, place a ﬁnger under the gasket

beside each clip and gently pull straight out.

BROILER DOOR REMOVAL

Open the broiler door and insert a pin into each

door hinge as shown. Remove the 2 Phillips head

screws from each hinge. Slide the drawer off the

hinges.

Capillary

Clip

Screws

Pin

– 5 –

Wiring Diagram

– 6 –

Schematic
