GE JSS28BKBB Manuel

Dimensions and Installation Information

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

All GE ranges are equipped with

an Anti-Tip device. The installation

of this device is an important,

required step in the installation

of the range.

Listed by

Underwriters

Laboratories

JSS28WK/CK/BK

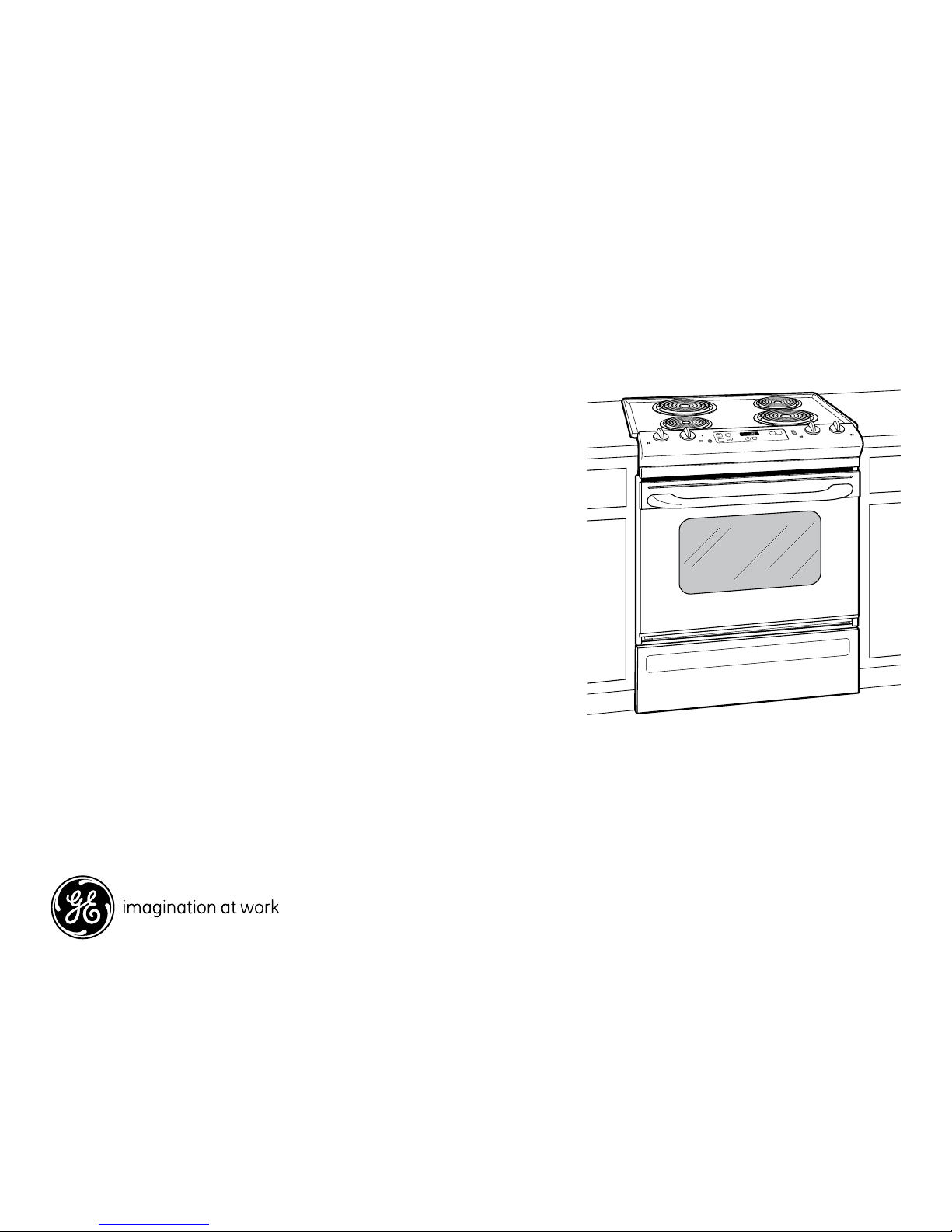

GE®30" Slide-In Electric Range

Dimension and installation information are shown in inches.

Optional Kits

(Available at additional cost)

JXS32 - Backguard

JXS56 - Lower Trim Kit

JXS86 - Vertical Side Trim Kit

JXS77 - Body Sides

Note: To reduce possiblity of scorching of the

side wall adjacent to the heating elements, it is

recommended a minimum of 6” spacing from

adjacent side walls be allowed for possible

extended, high-heat, no-load operation of

heating elements.

Receptacle Location: For all 30” Slide-In Ranges

locally approved flexible service cord or conduit must

be used because terminals are not accessible after

range installation. See shaded area in drawing for

location of electrical outlet box. Recommended outlet

locations allow range to be installed directly against

rear wall.

Note: Cabinets installed adjacent to slide-in ranges

must have an adhesion spec of at least 194.°

Installation Information: Before installing, consult

installation instructions packed with product for

current dimensional data.

KW Rating

240V 10.8

208V 8.1

Specification Revised 9/06

320640

If you are NOT using the

optional Filler or Backguard:

23-3/16

If you are using the optional

Filler or Backguard:

Acceptable

Electrical

Outlet Area

30" Min.

2-7/8"

To Front

Surface Of

Countertop

20-5/8" Door

Clearance

From Front

Surface of

Countertop

31-1/4

35-7/8"–38"

from floor to

countertop

36-1/4

Recommended

6" Min.

From Walls

23-3/16

18" Min.

A/B*

13" Max.

2-1/2

7-1/2

2-1/2

Accessory

Backguard

25-3/4**

*JXS37 is 5-1/4" and JXS32 is 4"

(excluding handle) **Total depth from wall to

front of closed oven door

including handle is 27-13/16.

Acceptable

Electrical

Outlet Area

30" Min.

2-7/8"

To Front

Surface Of

Countertop

20-5/8" Door

Clearance

From Front

Surface of

Countertop

31-1/4

35-7/8"–38"

from floor to

countertop

36-1/4

Recommended

6" Min.

From Walls

23-3/16

18" Min.

A/B*

13" Max.

2-1/2

7-1/2

2-1/2

Accessory

Backguard

25-3/4**

*JXS37 is 5-1/4" and JXS32 is 4"

(excluding handle)

**Total depth from wall to

front of closed oven door

including handle is 27-13/16.

LOHI

LO HI

LOHI

FRONT

REARFRONTREAR

OFF

OVEN

LIGHT

JSS28WK/CKBK

BROIL

TIMECONTROLS

BAKE

START

CLEAR

OFF

CLOCK

KITCHEN

LIGHT

ONOFF

OVENCONTROLS

JSS28WK/CK/BK

GE®30" Slide-In Electric Range

Specification Revised 9/06

320640

Features and Benefits

• Electronic Oven Controls - One-touch electronic pads are easy-to-use and allow for

simple oven operation

• Coil Heating Elements - Provide consistent and even heat on the cooktop with a

plug-in element that is removable for easy cleaning

• Big ClearView™ Window - An extra large clear window makes monitoring the

progress of the food easy

• Frameless Glass Oven Door - Offers an easy-to-clean and stylish design that blends

seamlessly into existing cabinetry

• Dual Element Bake - Alternates the upper broiling element and the lower baking

element for even heating and optimal baking results

• Lift-up Porcelain Cooktop - Makes spills and messes under the cooktop easily

accessible and within reach

• Chrome Drip Bowls - Contain minor spills and are removable for easy cleaning

• Two Oven Racks - Feature a durable construction to help accommodate any size

or type of cookware

• Audible Preheat Signal - Features an audible signal that activates when the oven

has reached the desired cooking temperature

• Interior Oven Light - Supplies light to make viewing the progress of cooking easy

and convenient

• Model JSS28WKWW - White on white (white door and white cooktop)

• Model JSS28CKCC - Bisque on bisque (bisque door and bisque cooktop)

• Model JSS28BKBB - Black on black (black door and black cooktop)
