All GE ranges are equipped with

an Anti-Tip device. The installation

of this device is an important,

required step in the installation

of the range.

Listed by

Underwriters

Laboratories

Dimension and installation information are shown in inches.

JGSP28SEK

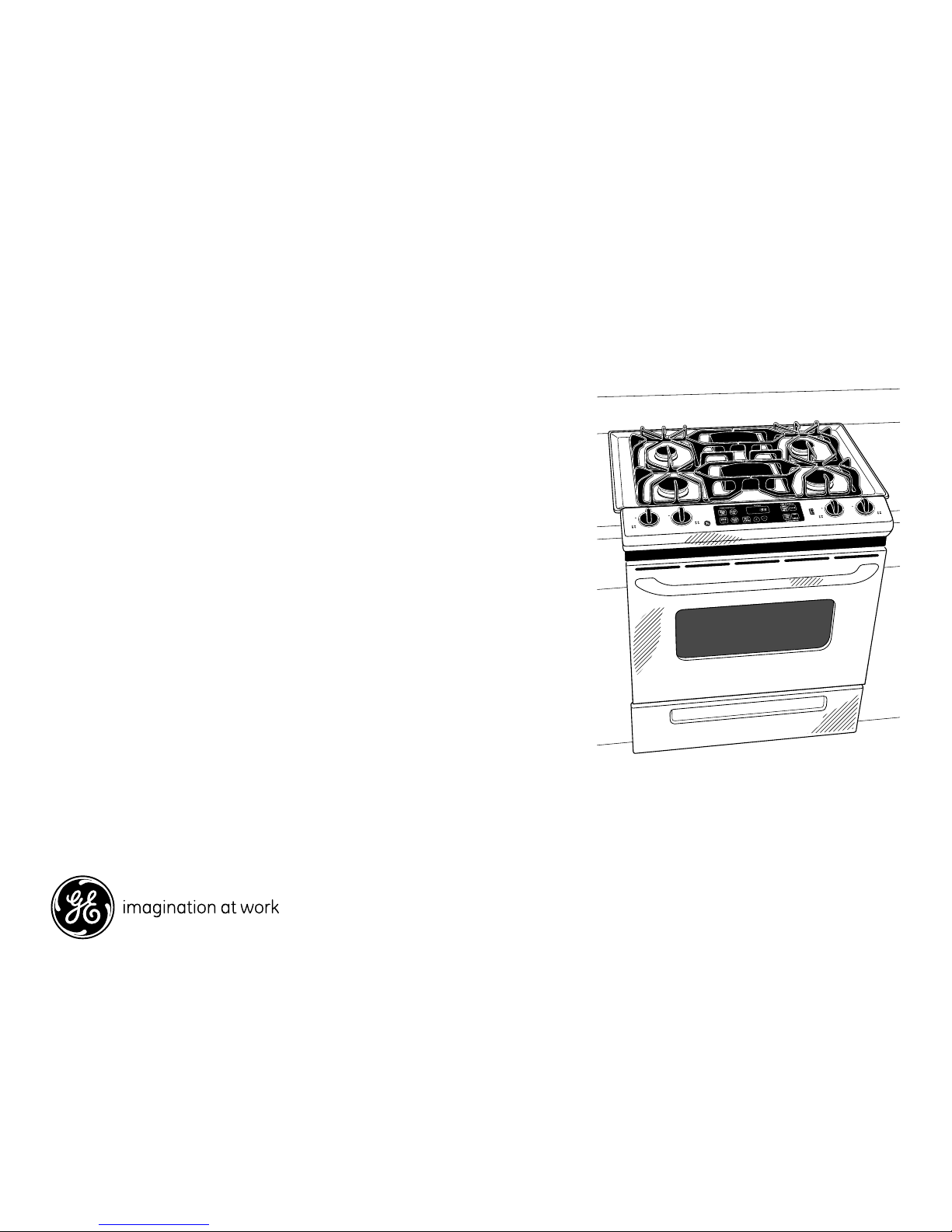

GE® 30" Slide-In Gas Range

Dimensions and Installation Information

2-7/8"

to front

surface of

countertop

20-5/8"

door

clearance

from surface

of countertop

6" Min.

from walls

30" Min.

13" Max.

23-3/16 15"

Min.

1-1/4" Min.

7-1/2

35-7/8"

to 38"

9/16

2-1/2

29-15/16" Min.

30-1/16" Max.

Max. depth of

cord, plug and

recpt. box

4" to prevent

interference

with drawer

Shave raised

edge to clear

31-1/8"wide

control panel

Acceptable

Electrical

Outlet Area

24" Min.

Overall Depth

27-1/2" 31-1/4

If you are NOT using the

optional Filler or Backguard:

23-3/16

If you are using the optional

Filler or Backguard:

Specification Created 11/04

330230

Models are shipped with color-

matched Rear Filler Strip Kit.

Optional Kits For Slide-In

Electric Ranges

(Available at additional cost)

Lower/Side Trim Kits Accessory Backguards

JXS56 - Lower Trim Kit JXS37 - Backguard

JXS86 - Vertical Side Trim Kit JXS77 - Body Sides

Note: To reduce possiblity of scorching of the side wall

adjacent to the heating elements, it is

recommended a minimum of 6” spacing from

adjacent side walls be allowed for possible extended,

high-heat, no-load operation of heating elements.

Receptacle Location: For all 30” Slide-In Ranges locally

approved flexible service cord or conduit must be

used because terminals are not accessible after range

installation. See shaded area in drawing for location of

electrical outlet box. Recommended outlet locations

allow range to be installed directly against rear wall.

Note: Cabinets installed adjacent to slide-in ranges

must have an adhesion spec of at least 194°.

Installation Information: Before installing, consult

installation instructions packed with product for

current dimensional data.

KW Rating

240V 10.8

208V 8.1

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

JGSP28SEK

LITE

REAR

654

LITE

FRONT

654

LITE

FRONT

654

LITE

OVEN

LIGHT

DELAY

START

OFF

REAR

654

Features and Benefits

• Self clean oven - Conveniently cleans the oven cavity without need of scrubbing

• Precise simmer burner - Offers a low setting of 600 BTUs, ensuring more

temperature control for simmering

• High output burner - Provides a powerful burner output for efficient heat-up

and boiling

• Electronic oven controls - One-touch electronic pads are easy-to-use and allow

for simple oven operation

• Continuous grates - Interlocking grates provide a flat, sturdy surface allowing

easy movement of pans between burners

• Two oven racks - Features a durable construction to help accommodate any size

or type of cookware

• Certifed Sabbath mode - Prepared foods can stay warm in accordance with

kosher law

• Big ClearViewTM window - An extra large clear window makes monitoring the

progress of food easy

• Frameless glass oven door - Offers an easy-to-clean and stylish design that blends

seamlessly into existing cabinetry

• Medium cast grates - Constructed from a durable cast iron material for long-lasting

performance and reliability

• Model JGSP28SEKSS - Stainless steel

JGSP28SEK

GE® 30" Slide-In Gas Range

Specification Created 11/04

330230
