GE JCP67YWW Manuel de service
GE Appliances
Created 7/97

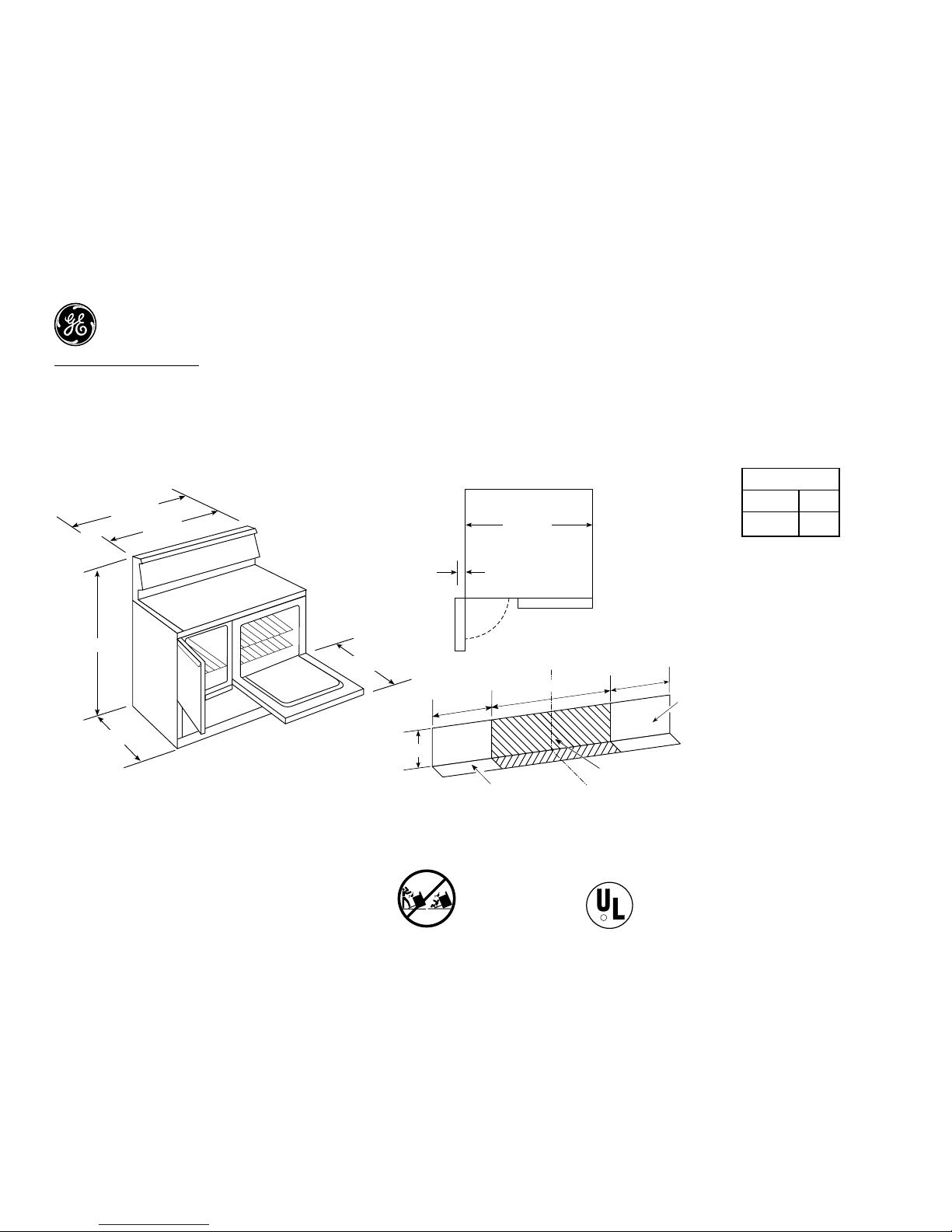

Installation Information (Dimensions in inches)
8-1/2
40-1/8
4
Top View
C
L
7" MAX.
10
10 Wall
Locate outlet
in shaded area
Floor
20
Note: All 40" Ranges conform to
U.L. requirements for 0" spacing
from range to adjacent walls below
countertop. To reduce possibility of
scorching of the side wall adjacent
to the heating elements, it is
recommended a minimum 2"
spacing from adjacent side walls
be allowed for possible extended
high-heat, no-load heating element
operation.
Receptacle Locations: For all
40” Free-Standing Ranges locally
approved flexible service cord or
conduit must be used because
terminals are not accessible after
range installation. See shaded area
in drawing for location of electrical
outlet box. Recommended outlet
locations allow range to be
installed directly against rear wall.
Installation Information: Before
installing, consult installation
instructions packed with product
for current dimensional data.
KW Rating
240V 14.2
208V 10.7
44-1/8**
40-1/8
47-1/4
27-3/8*
18-1/2
10
*Dimension from wall to front of closed
oven door handle.
**Includes required 4" door swing
allowance for side-hinged oven or stor-
age compartment door.

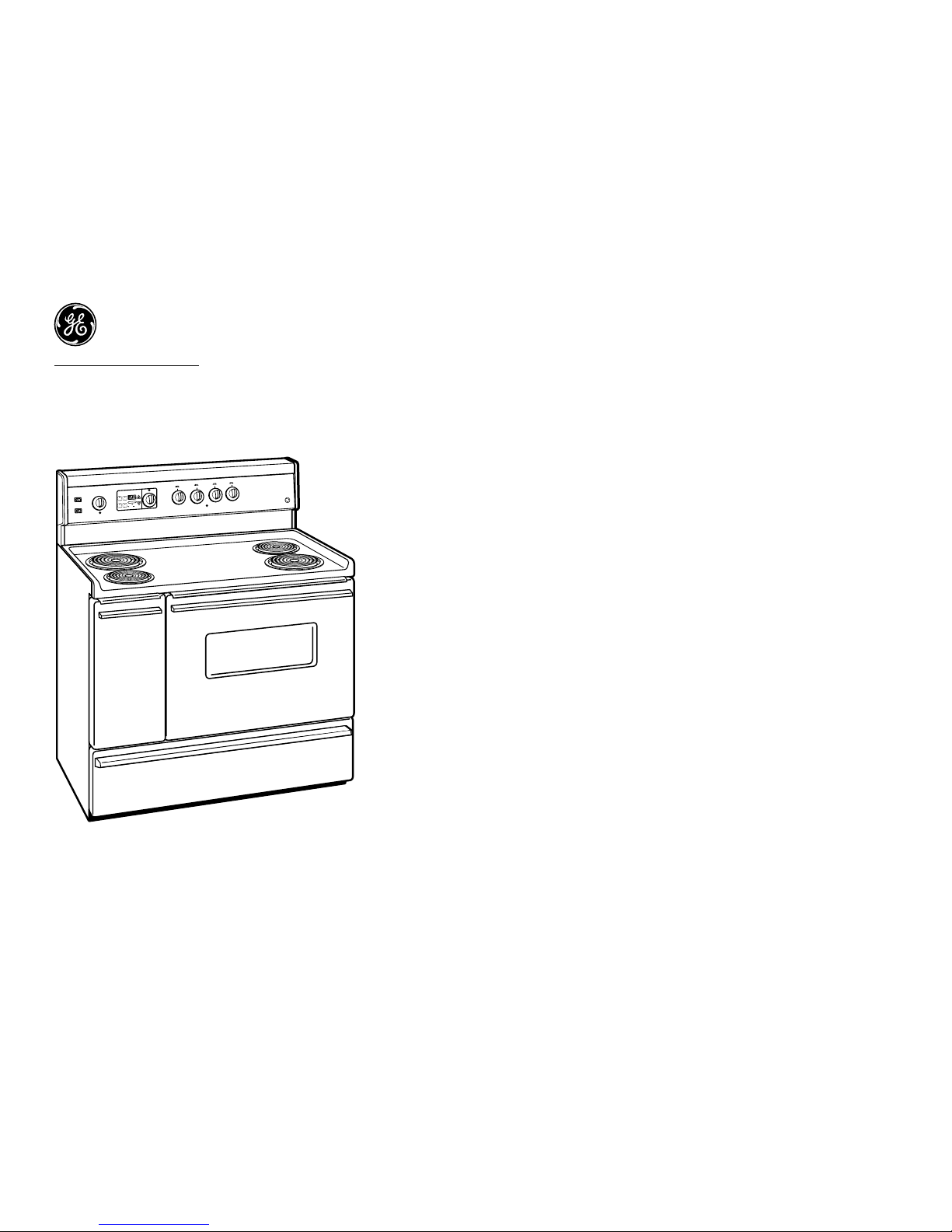

JCP67YWW—40" Free-Standing Electric Range
R
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram,®GE Profile
Performance Series,™GE Profile,™GE,
Hotpoint and RCA appliance questions, call
GE Answer Center®service, 800.626.2000.
GE Appliances
Created 7/97
JCP67YWW—40" Free-Standing Electric Range
O
F
F
W
M
L
O
W
M
E
D
M
E
D
H
I
H
I
O
F
F
W
M
L
O
W
M
E
D
M
E
D
H
I
H
I
O
F
F
W
M
L
O
W
M
E
D
M
E
D
H
I
H
I
O
F
F
W
M
L
O
W
M
E
D
M
E
D
H
I
H
I
SURFACELIGHT
OVENLIGHT
LEFTOVEN RIGHTOVEN
SURFACEUNIT
OVENCONTROL
OVENCYCLE
OVENCONTROL
O
F
F
1
5
0
2
0
0
2
5
0
3
0
0
3
5
0
4
0
0
4
5
0
5
0
0
B
R
O
I
L
O
F
F
1
5
0
2
0
0
2
5
0
3
0
0
3
5
0
4
0
0
4
5
0
5
0
0
B
R
O
I
L
FRONT
TIMECONTROL
REAR FRONT
REAR
COOK
TIME
CLOCK
STOP
TIME
TIMER
LOCKED
START
PREHEAT
Features and Benefits
•White on White Model
• Two 8” and Two 6” Heating Elements
• Chrome Removable One-Piece Drop Bowls
• Self-Cleaning Master Oven
• Standard Clean Companion Oven
• Electronic Clock and Minute Timer
• Automatic Oven Timer (Master Oven)
• 1 Master and 1 Companion Broiler Pan with Grid
• 2 Master and 1 Companion Oven Shelf
• Lift-Off Oven Door with Window on Master Oven
• Companion Oven Door is Side-Hinged
• Full-Width Fluorescent Cooktop Night Light
• Storage Drawer
• Model JCP67YWW—White on White
