GE JB690SFSS Manuel
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
JB690SF
GE®30" Free-Standing Electric Convection Range
Listed by
Underwriters
Laboratories

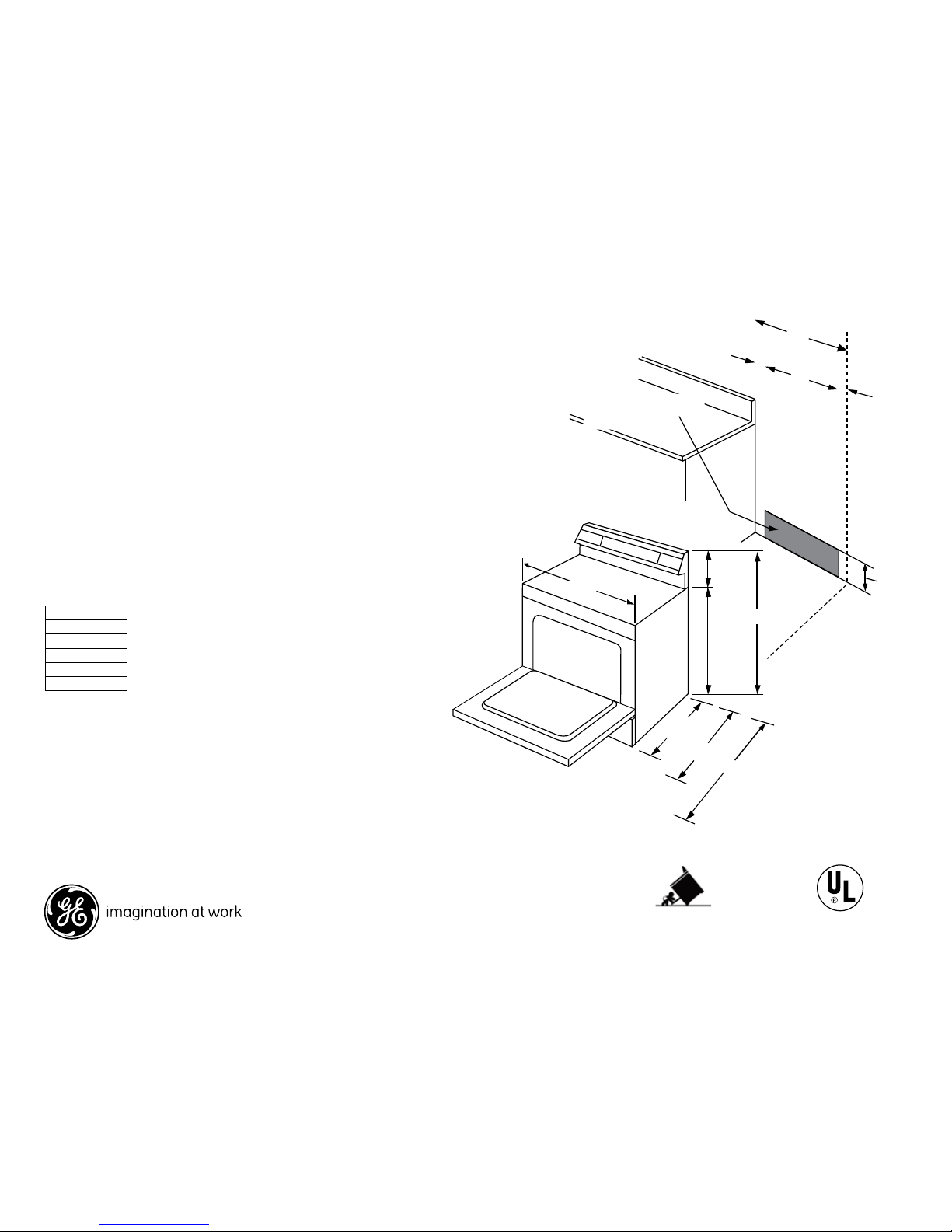

Dimensions and Installation Information (in inches)
For answers to your Monogram®or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000. Specification Revised 7/13 321543
30
25
2-1/2
2-1/2
7-1/2
Acceptable electrical
outlet area
29-7/8
47
11
35-3/4
to
36-1/2
w/o handle
w/handle
47-7/8
28
25-1/2
30" Free-Standing Electric Single Oven
Receptacle Locations
Locally approved flexible service cord or conduit must be used
because terminals are not accessible after range installation.
See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly
against wall.
Note: This appliance has been approved for 0” spacing to
adjacent surfaces above the cooktop. However, a 6” minimum
spacing to surfaces less than 15” above the cooktop and
adjacent cabinet is recommended to reduce exposure to
steam, grease splatter and heat.
Installation Information: Before installing, consult installation
instructions for current dimensional data and additional
requirements.
KW Rating
240V 12.4
208V 9.3
Breaker Size
240V 40 Amps†
208V 40 Amps†
†Note: Check local codes for required breaker size.
JB690SF
GE®30" Free-Standing Electric Convection Range
Features and Benefits
• Convection - Enjoy even baking without turning the pan
• 9"/12" Dual Element - Choose a 9" or 12" heating element
• 6"/9" Power Boil Element - Produces rapid, powerful heat
• Fifth Element Warming Zone - Provides low heat capability for foods
• Self-Clean with Steam Clean Option - Clean your oven the way you want
• Fast Preheat - Make hot meals in a hurry with less time preheating
• Hidden Bake - Make cleanup easy by eliminating hard-to-reach areas
• Black Gloss Oven Interior - Enjoy a clean and sleek appearance
• Model JB690SFSS - Stainless steel
JB690SF
Specification Revised 7/13 321543
