GE Cafe Manuel utilisateur

Copyright General Electric 2011

Dual Cavity Gas, Free Standing Ranges

Café, Profile & GE

JGB870DET

JGB870SET

PGB900DET

PGB900SET

PGB910DET

PGB910SET

PGB915SET

PGB930DET

PGB930SET

PGB935SET

P2B930DET

P2B930SET

PGB980SET

PGB995DET

PGB995SET

CGS990SET

CGS985SET

C2S985SET

CaféProfile & GE

IMPORTANT SAFETY NOTICE

The information in this presentation is intended for use by individuals

possessing adequate backgrounds of electrical, electronic, &

mechanical experience. Any attempt to repair a major appliance may

result in personal injury & property damage. The manufacturer or seller

cannot be responsible for the interpretation of this information, nor can it

assume any liability in connection with its use.

WARNING

To avoid personal injury, disconnect power before servicing this product.

If electrical power is required for diagnosis or test purposes, disconnect

the power immediately after performing the necessary checks.

RECONNECTALL GROUNDING DEVICES

If grounding wires, screws, straps, clips, nuts, or washers used to

complete a path to ground are removed for service, they must be

returned to their original position & properly fastened.

GE Factory Service Employees are required to use safety glasses with

side shields, safety gloves & steel toe shoes for all repairs.

Dyneema®Cut

Resistant Glove

Safety Glasses must be

ANSI Z87.1-2003 compliant

Prescription Safety Glasses

Plano Type Safety Glasses

Steel Toe Work

Boot

Electrically Rated Glove

and Dyneema®Cut

Resistant Glove Keeper

Brazing Glasses

4 /

Copyright General Electric 2011

11/28/2011

5 /

Copyright General Electric 2011

11/28/2011

Mini Manual Profile & GE

Model Tag

The Mini Manual is located in the control panel area on GE & Profile units. Back top left

rear corner on Café models.

The Nomenclature Tag is on the bottom left side front frame of the main oven.

Mini Manual Cafe

6 /

Copyright General Electric 2011

11/28/2011

Cooktop

•Tri-Ring Burner

•Tri-Bridge Burner

•Tri-Bridge Griddle

Café, Profile, and GE Brands

Double Oven

•Upper Oven 2.5 cuft

•Lower Oven 4.0 cuft

•Both Self Clean

2x Lighting

Full Visibility Door (Glass

Liner)

Black Enameled Cavity

New Doors & SS trims

Overview-Product Info

7 /

Copyright General Electric 2011

11/28/2011

9100 btu/h Max.

850 btu/h Min.

5000 btu/h Max.

1000 btu/h Min.

Cooktop Burners

9.1K

9.1K

5.0K

9.5K

5.0K

20/19K

17000 btu/h Max.

3000 btu/h Max.

400 btu/h Min.

•Tri Ring 20K BTUs- Café / 19K Profile

•Tri Bridge 23K BTUs

•New cooktop configurations

•New Griddles / Double-Bridge Griddle

3 Ring = 19/20K BTUs

3 Bridge = 24K BTUs

Overview-Feature Detail

8 /

Copyright General Electric 2011

11/28/2011

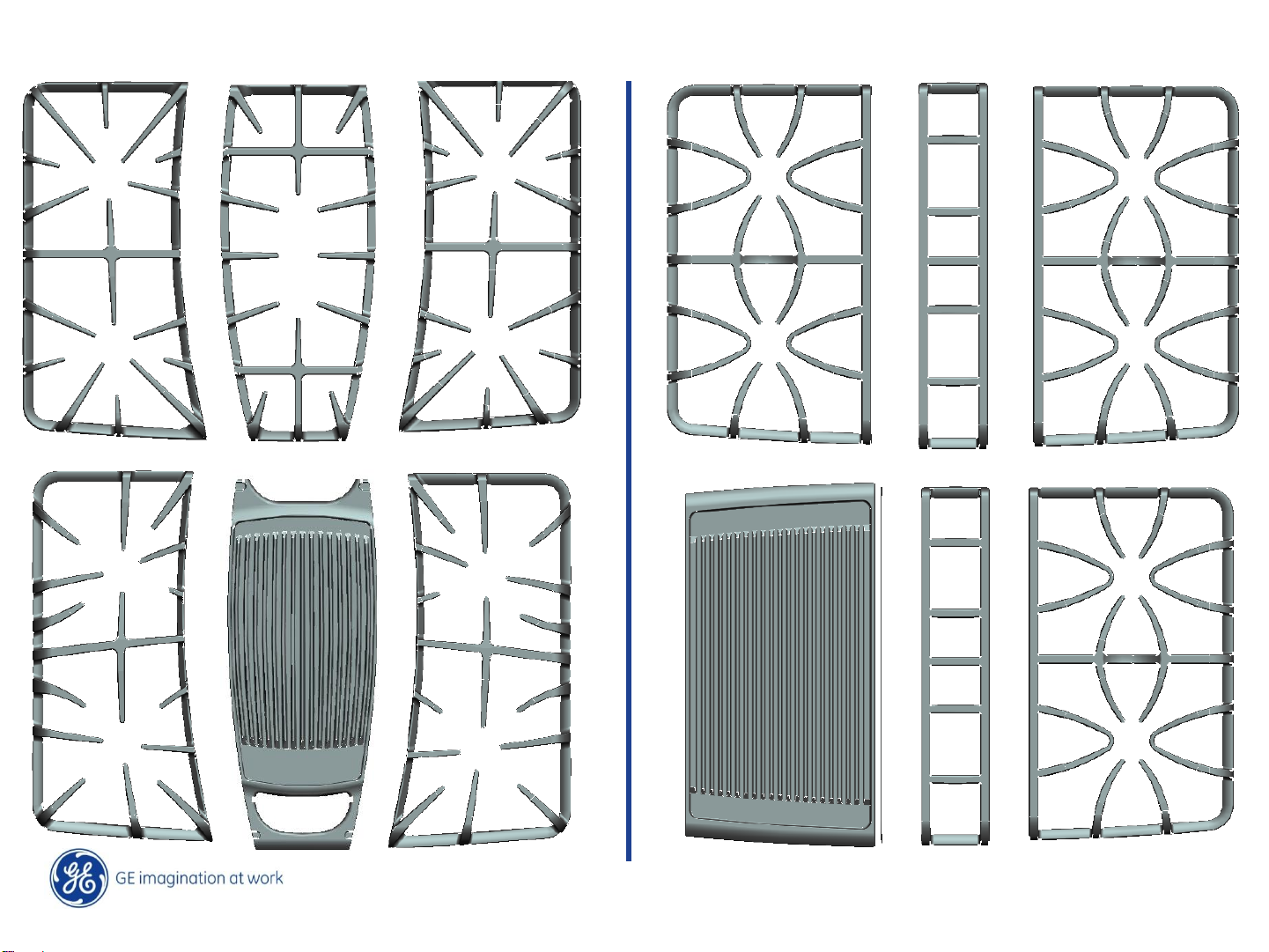

Cooktop Grates & Griddle Designs

9 /

Copyright General Electric 2011

11/28/2011

Note: The center griddle is used without the center grate installed, the Chef griddle is

installed on top of the left grate.

10 /

Copyright General Electric 2011

11/28/2011
