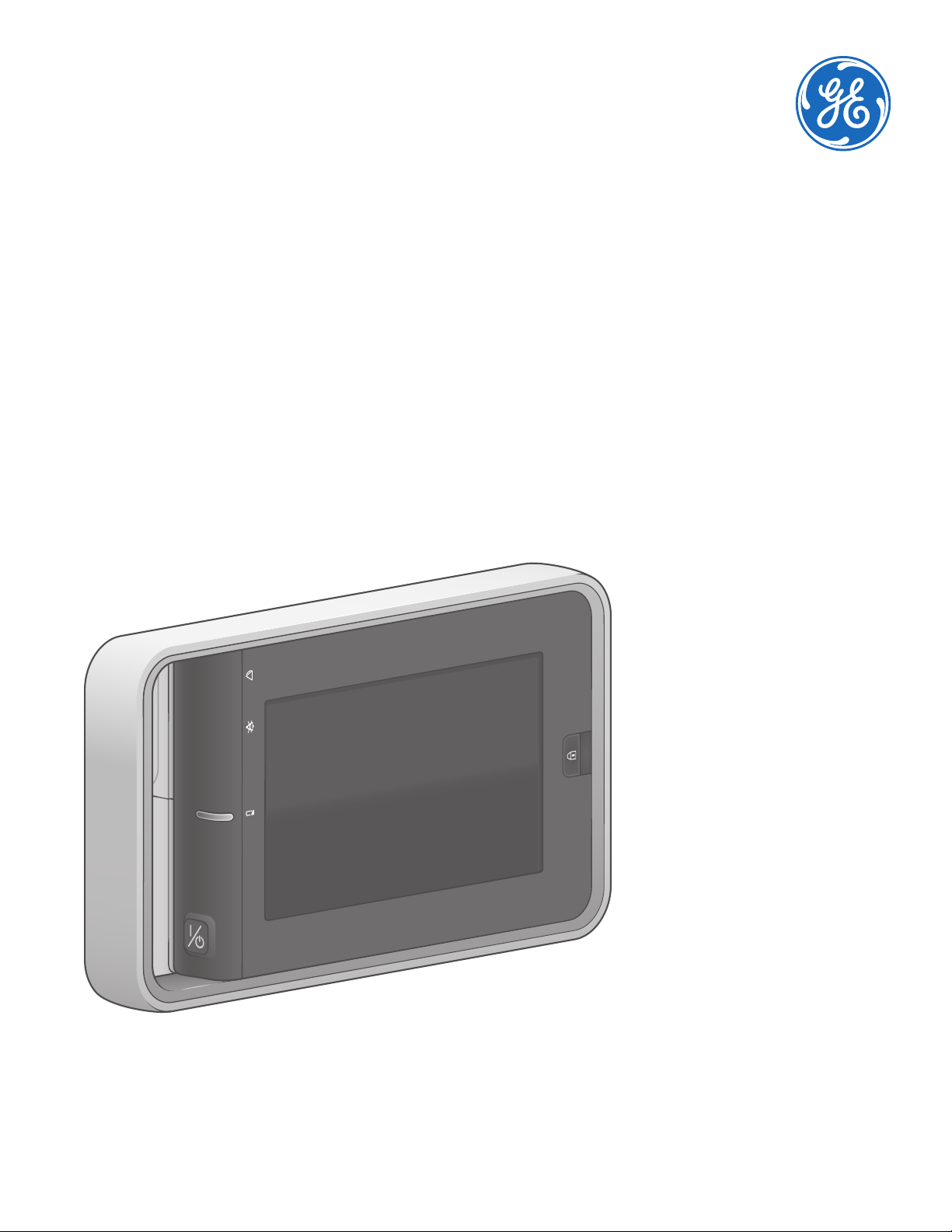

CARESCAPE ONE

Clinical Reference Guide

Software Version 3.0

gehealthcare.com

Notice

The materials contained in this document are intended for educational purposes only. This document does not

establish specications, operating procedures or maintenance methods for any of the products referenced.

Always refer to the ocial written materials (labeling) provided with the product for specications, operating

procedures and maintenance requirements.

iii

CARESCAPE ONE ................................. 1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

CARESCAPE ONE System Components ............2

CARESCAPE ONE Front, Back, and Side Views . . . . . 3

Docking ...........................................4

Turning the CARESCAPE ONE On/O . . . . . . . . . . . . . . 5

Inserting and Removing a Battery..................5

CARESCAPE ONE Monitoring Basics ...............6

Proles ............................................9

Starting Monitoring...............................10

Entering Patient Data.............................11

Resetting a Case / Discharging a Patient . . . . . . . . . . 12

Standby ..........................................13

Alarms ...........................................14

Pausing Alarms ..................................14

Adjusting the Alarm Volume ......................14

Changing an Alarm Limit..........................15

CARESCAPE CO2Measurement ..................16

Trends............................................17

Transport Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Contents

CARESCAPE ONE

Overview

The CARESCAPE ONE (CS ONE) can be used as an accessory to the B850/B650/B450 monitor with version 3.1

software, or as a standalone monitor. As a standalone monitor, the CS ONE provides ECG, ST segment, arrhythmia

detection, impedance respiration, SpO2, non-invasive blood pressure, invasive pressure, temperature, and CO2

airway gas parameter acquisition and monitoring.

The CS ONE includes an integrated display, touchscreen, alarm light, user input buttons, and an audio subsystem.

Realtime physiological parameter measurements and waveforms are displayed on the integrated display. Visual

alarms are conveyed using both the integrated display and alarm light. Audible alarms are conveyed using the

integrated audio subsystem. User input for conguration control and interaction is provided via the touchscreen.

In addition, both a power button and touchscreen lock button are provided.

CARESCAPE ONE • Front View

CARESCAPE ONE System Components

Your system may not include all these components. Consult your local representative for the available components.

1. CARESCAPE ONE

2. CARESCAPE F0 Dock: Provides powered

docking and battery charging for CS ONE.

3. Mini Dock: Provides unpowered docking for

CS ONE.

4. Parameter Dock 1 and Parameter

Dock 5: Allows CARESCAPE Parameters

to be mounted.

5. CARESCAPE Parameters used with CS ONE:

• CARESCAPE ECG

• CARESCAPE Pressure

• CARESCAPE Temperature

• CARESCAPE CO2

• CARESCAPE SpO2

• CARESCAPE SpO2– Masimo

• CARESCAPE SpO2– Nellcor

CARESCAPE ONE Front, Back, and Side Views

Front and Back Views

1. Alarm light area (blue, yellow, or red).

2. Audio alarm paused/o indicator (blue).

3. Battery status indicator (yellow or green).

4. Power on/standby button.

On/standby (yellow): The yellow on/

standby key should be lit when one of the

following occurs:

• The device is connected to an

external power source and the device

is turned o

• The device is booting up or is in standby

On/standby (green): The green on/

standby key indicates the device is ready

for operation.

On/standby (unlit): The unlit on/standby

key indicates there is no power applied to

the device.

5. Screen lock/unlock button.

6. Pull tab for removing the acquisition platform from

the docking mount.

7. Battery door.

8. Docking interface connector to the CARESCAPE

Dock F0 or Mini Dock.

Side View

1. CARESCAPE Parameter connectors.

2. Analog out / Debrillator synchronization connector.

Connect IEC 60601-1 complaint medical devices to

this port only.

3. NIBP hose connector.

Docking

Connecting the CARESCAPE ONE to a Dock

To connect the CS ONE to a dock:

1. Align the CS ONE with the dock rails.

2. Push the CS ONE into the dock until it stops.

You will hear a click when it is fully docked.

Disconnecting the CARESCAPE ONE from a Dock

To disconnect the CS ONE from a dock:

1. Pull the tab out and slide the CS ONE out of the

dock rails.

2. Hold onto the CS ONE to make sure it does not drop

when it comes out.

Click

Back view of the

CARESCAPE ONE

Back view of the

CARESCAPE ONE

Front view of the

CARESCAPE ONE

Front view of the

CARESCAPE ONE

Turning the CARESCAPE ONE On/O

Turning On the CARESCAPE ONE

CS ONE can operate via battery power using its own

battery, or via DC power when connected to a powered

docking station.

1. Ensure all cables are properly connected.

2. Press the on/standby button on the handle side of

the CS ONE. The welcome screen will appear.

Turning O the CARESCAPE ONE

1. Ensure that the patient has been discharged/the

case has ended.

2. Press the on/standby button for approximately

1 second.

The Powering Down window appears to conrm

you want to shut down the CS ONE.

3. Press the on/standby button again within 10

seconds to shut down the CS ONE.

If you do not press the on/standby button again

within 10 seconds, the CS ONE remains on and the

Powering Down window is removed from

the display.

Inserting and Removing

a Battery

Caution: To prevent loss of monitoring, or the

CS ONE from powering down, change the CS ONE

battery when the CS ONE is connected to a powered

CS ONE dock F0.

Inserting a Battery

1. Open the battery door by gently pulling on the

battery door pull tab.

2. Position the battery with the connector end facing

towards the battery slot and insert the battery all

the way into the battery slot.

Removing a Battery

1. Open the battery door by gently pulling on the

battery door pull tab.

2. Pull on the battery cord to remove the battery from

the battery slot.

CARESCAPE ONE Monitoring Basics

CARESCAPE ONE Main Screen Layout

The main screen displays alarms, information, waveforms, parameter windows, and the main menu in

pre-dened areas.

1. Alarm area

2. Information area

3. Waveform area.

4. Upper parameter windows

5. Lower parameter windows

(optional).

6. Main menu area

Information Area

When the Information area of the screen is selected via touch, it opens the Admit/Discharge or Case Setup

menu and provides access to settings related to patient information, standby and prole selections.

The Information area of the screen

displays the following information:

• Patient name (if entered).

The patient name may be

covered by an alarm message

if there are three or more active

alarms.

• Prole name that is being used

for patient monitoring. The

prole name may be covered by

an alarm message if there are

three or more active alarms.

• Patient icon . You can

access the Admit/Discharge or

Case Setup menu by selecting

this icon.

• Battery icon . You can access

the Battery Status menu by

selecting this icon.

• Current time of day.
