GE Profile Spacemaker PVM2170DR Manuel

Dimensions and Installation Information (in inches)

Listed by

Underwriters

Laboratories

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

240277

Specification Revised 10/11

Note: Requires 120V grounded outlet. Electrical receptacle must be

located in cabinet above Spacemaker microwave oven. No additional

wiring, venting or cabinet rebuilding necessary in many cases. Complete

detailed, easy-to-follow installation instructions and convenient full-size

templates are packed with the Spacemaker microwave oven.

Important Information: When installing the Spacemaker microwave

oven over a range, allow minimum of 2” from bottom of Spacemaker

microwave oven to top of range backguard to allow for removal

of light covers.

Installation Information: This information is not intended to be used for

installing unit described. Before installing, consult installation instructions

packed with product/kit for current dimensional data.

PVM2170DR

GE Profile™Spacemaker®2.1 Cu. Ft. Over-the-Range Microwave Oven

Listed by

Underwriters

Laboratories

Optional Accessories (Available at additional cost) Filler Panel Kits

JX52

When replacing a 36" range

hood, this kit fills in the

additional width to provide

a custom built-in appearance.

For installation between

cabinets only; not for

end-of-cabinet installation.

Each kit contains two

3"-wide filler panels.

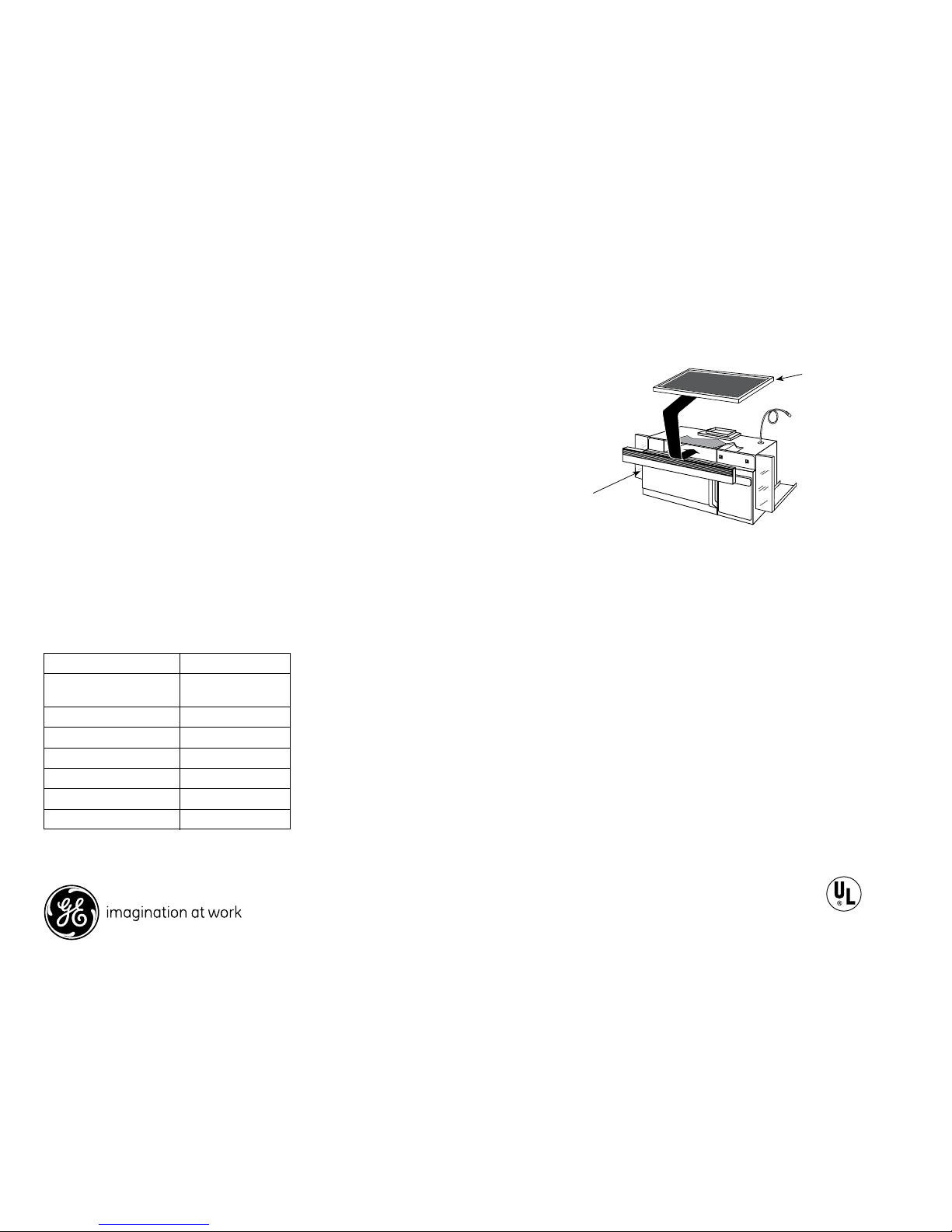

Filter Kits

JX81H–Recirculating

Charcoal Filter Kit

To be used when

the Spacemaker

microwave oven

cannot be vented

to the outside.

Duct Equivalent Feet

A. Rectangular-To-round

Transition Adaptor 5 ft.

B. Wall Cap 40 ft.

C. 90° Elbow 10 ft.

D. 45° Elbow 5 ft.

E. 90° Elbow 25 ft.

F. 45° Elbow 5 ft.

G. Roof Cap 24 ft.

Hood Exhaust Duct: Outside ventilation requires a HOOD EXHAUST DUCT. Read the

following carefully.

Exhaust Connection: The hood exhaust has been designed to mate with a standard

3-1/4" x 10" rectangular duct. If a round duct is required, a rectangular-to-round

transition adaptor must be used. Do not use less than a 6" diameter duct.

Rear Exhaust: If a rear or horizontal exhaust is to be used, care should be taken to

align exhaust with space between studs, or wall should be prepared at the time it

is constructed by leaving enough space between the wall studs to accommodate

exhaust.

Maximum Duct Length: For satisfactory air movement, the total duct length of 3-1/4"

x 10" rectangular or 6" diameter round duct should not exceed 140 equivalent feet.

ELBOWS, TRANSITIONS, WALL AND ROOF CAPS: etc., present additional resistance to

airflow and are equivalent to a section of straight duct which is longer than their

actual physical size. When calculating the total duct length, add the equivalent length

of all transitions and adaptors plus the lengths of all straight duct sections. The chart

below shows the approximate feet of equivalent length of some typical ducts.

240277

Specification Revised 10/11

PVM2170DR

GE Profile™Spacemaker®2.1 Cu. Ft. Over-the-Range Microwave Oven

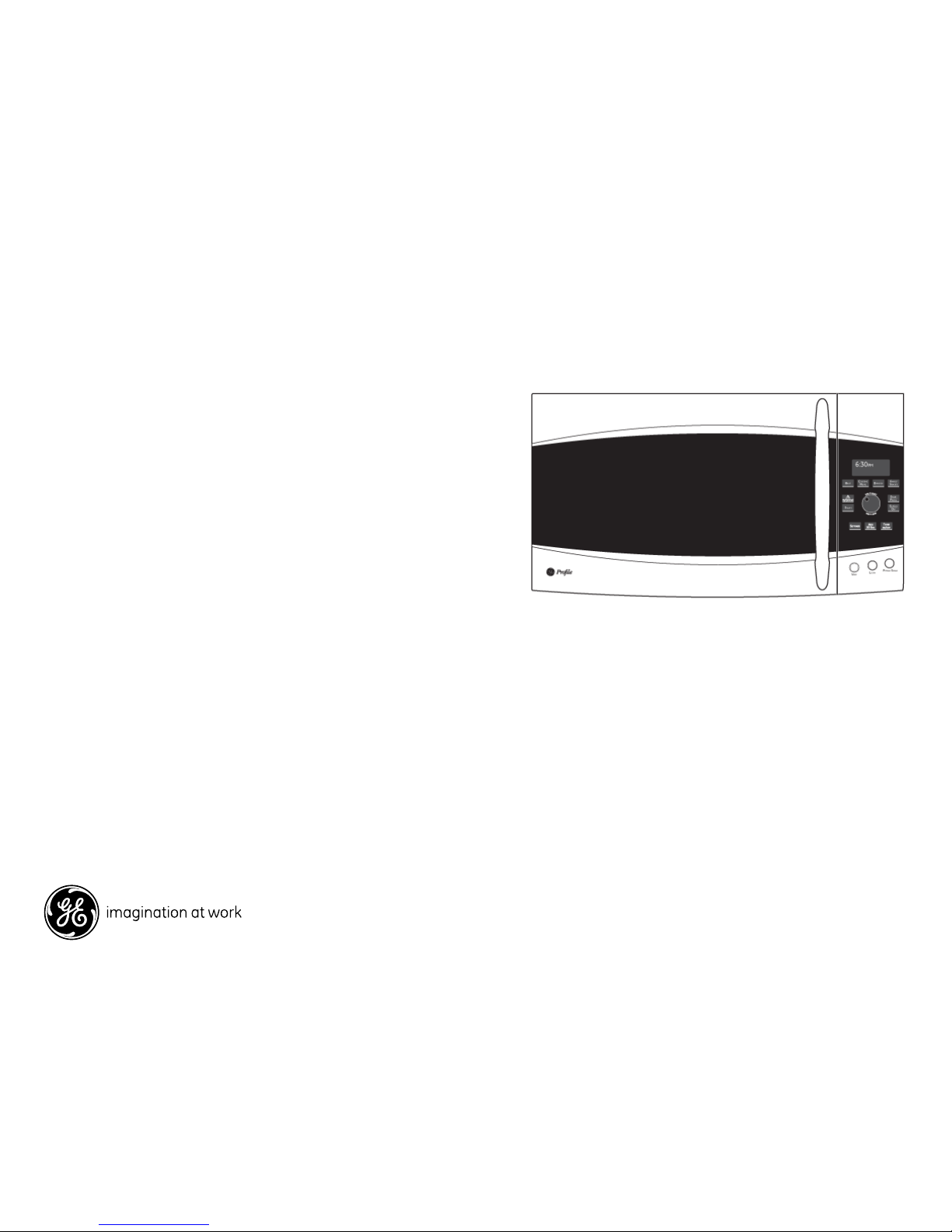

Features and Benefits

• 2.1cu.ft.capacity-1000Watts(IEC-705testprocedure)

•  C i r c u w a v e ™1000 cooking system - Cooking system provides more

power for fast, more even cooking results

• Sensorcookingcontrols-Automaticallyadjuststimeandpowerfor

delicious cooking results

• Easycleaninterior-Makesiteasytowipeupspills,splattersand

dried-on foods

• PowerSavermode-Reducesstandbypowerwhiletheunitisnot

in use

• USDAMyPlate.govmenu-Pre-programmedfoodsandrecipesassist

in preparation of healthy meal choices

• Steamcookbutton-Perfectlyprepareyoursteamedfavoritesfor

maximum nutrition retention

• Two-piecedesignwithhiddenvent-Createsastreamlinedlookfora

smooth finish

• Four-speed,400-CFMventingsystem-Quicklyremovessmoke,

steam and odors from the cooktop for fresh, cleaner kitchen air

• Recessedturntablewithon/off-Offerstheflexibilitytousedifferent

sizes of dishes. An on/off button controls turntable operation

• ModelPVM2170DRWW–Whiteonwhite

• ModelPVM2170DRBB–Blackonblack

240277

Specification Revised 10/11

PVM2170DR

GE Profile™Spacemaker®2.1 Cu. Ft. Over-the-Range Microwave Oven
