GE Profile Advantium PSA2200R Guide de l'utilisateur

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

Dimension Information (in inches)

Installation Information: This information is not

intended to be used for installing unit described.

Before installing, consult installation instructions

packed with product/kit for current dimensional data.

IMPORTANT: PLEASE READ CAREFULLY. FOR PERSONAL

SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED

TO AVOID SEVERE OR FATAL SHOCK.

DO NOT, UNDER ANY

CIRCUMSTANCES, CUT, DEFORM,

OR REMOVE ANY OF THE PRONGS

FROM THE POWER CORD. DO NOT

USE WITH AN EXTENSION CORD.

NEMA 14-30R Wall Receptacle

Insure proper ground

exists before use.

Specification Created 4/10 240449

Listed by

Underwriters

Laboratories

PSA2200R/2201R

Advantium™Above-the-Cooktop Oven

Above-the-cooktop Advantium oven

Dimensions (in inches)

66" MIN.

Mounting

height

from floor

30" MIN.

width required

Exhaust outlet

connects to

3-1/4" X 10" duct

16-3/8 max

(Rear)

16 max

25-1/2

16 max

30 max

Minimum distance from

door hinge side to adjacent

wall should equal 1/2-inch.

13"

MAX.

12"

MIN.

(without

obstruction)

100˚

Door open

Cabinet Front

SIDE VIEW A-A

Cabinet Bottom Shelf

Filler Block

Self-Aligning Screw

Oven Top

Equivalent

to Depth of

Cabinet Recess

This distance can

NOT exceed 2” to

ensure proper

installation with

the provided

screws.

240V and 120V outlets

need to be spaced on

the side if the desire is

to setup with top

exhaust.

Note: Outside venting is optional. Vent (duct) can be horizontal or vertical.

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

Dimension Information (in inches)

Hood Exhaust Duct

Outside ventilation requires a HOOD EXHAUST DUCT. Read the following carefully.

EXHAUST CONNECTION:

The hood exhaust has been designed to mate with a standard 3-1/4” x 10”

rectangular duct.

If a round duct is required, a rectangular-to-round transition adaptor must be used.

Do not use less than a 6” diameter duct.

REAR EXHAUST:

If a rear or horizontal exhaust is to be used, care should be taken to align exhaust

with the space between studs, or wall should be prepared at the time it is constructed

by leaving enough space between the wall studs to accommodate exhaust.

MAXIMUM DUCT LENGTH:

For satisfactory air movement, the total duct length of

3-1/4” x 10” rectangular or 6” diameter round duct should

not exceed 140 equivalent feet.

ELBOWS, TRANSITIONS, WALL AND ROOF CAPS, etc.,

present additional resistance to airflow and are equivalent

to a section of straight duct which is longer than their

actual physical size. When calculating the total duct length,

add the equivalent length of all transitions and adaptors plus

the length of all straight duct sections. The chart below

shows the approximate feet of equivalent length of some

typical ducts.

Specification Created 4/10

Listed by

Underwriters

Laboratories

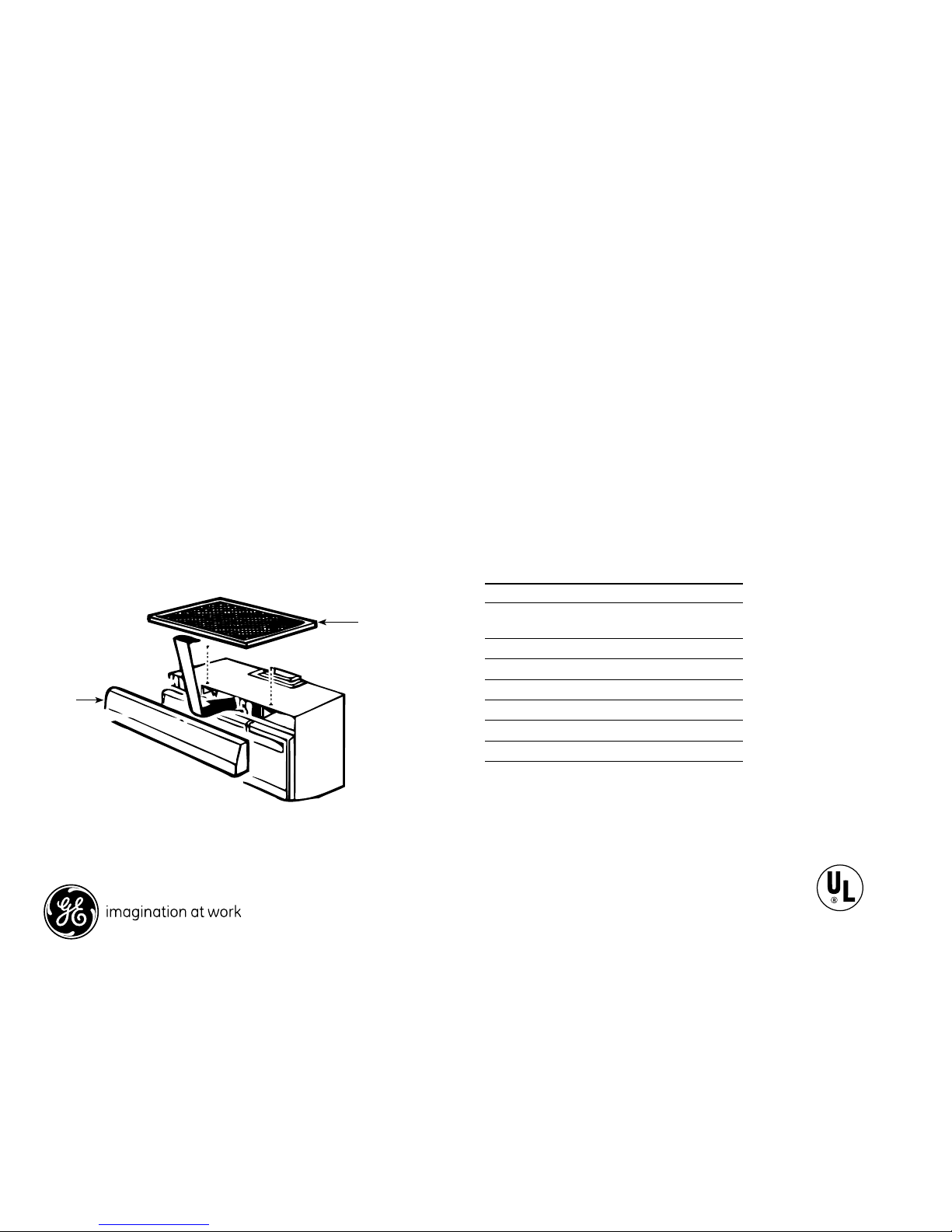

Grille

Filter Kit Accessory

Filter Kit

JX81D–Recirculating

Charcoal Filter Kit

To be used when

the Advantium oven

cannot be vented

to the outside.

Duct Equivalent

A. Rectangular-To-Round 5 Ft.

Transition Adaptor

B. Wall Cap 40 Ft.

C. 90° Round Elbow 10 Ft.

D. 45° Round Elbow 5 Ft.

E. 90° Rectangular Elbow 25 Ft.

F. 45° Rectangular Elbow 5 Ft.

G. Roof Cap 24 Ft.

240449

PSA2200R/2201R

Advantium™Above-the-Cooktop Oven

Features and Benefits

• Speedcooktechnology-Cooksupto8timesfasterthana

conventional oven

• 4OvensIn1ToMeetYourCookingNeeds-Speedcook,True

European Convection, Warming/Proofing, Sensor Microwave

• Optimizescooktimeforconsistentresults

• Savesvaluabletimebyeliminatingpreheating

• Over175preprogrammedrecipes

• Includesspeedcookinggrilltrayforpreparingmeats

• 2full-widthovenracksformulti-levelcooking

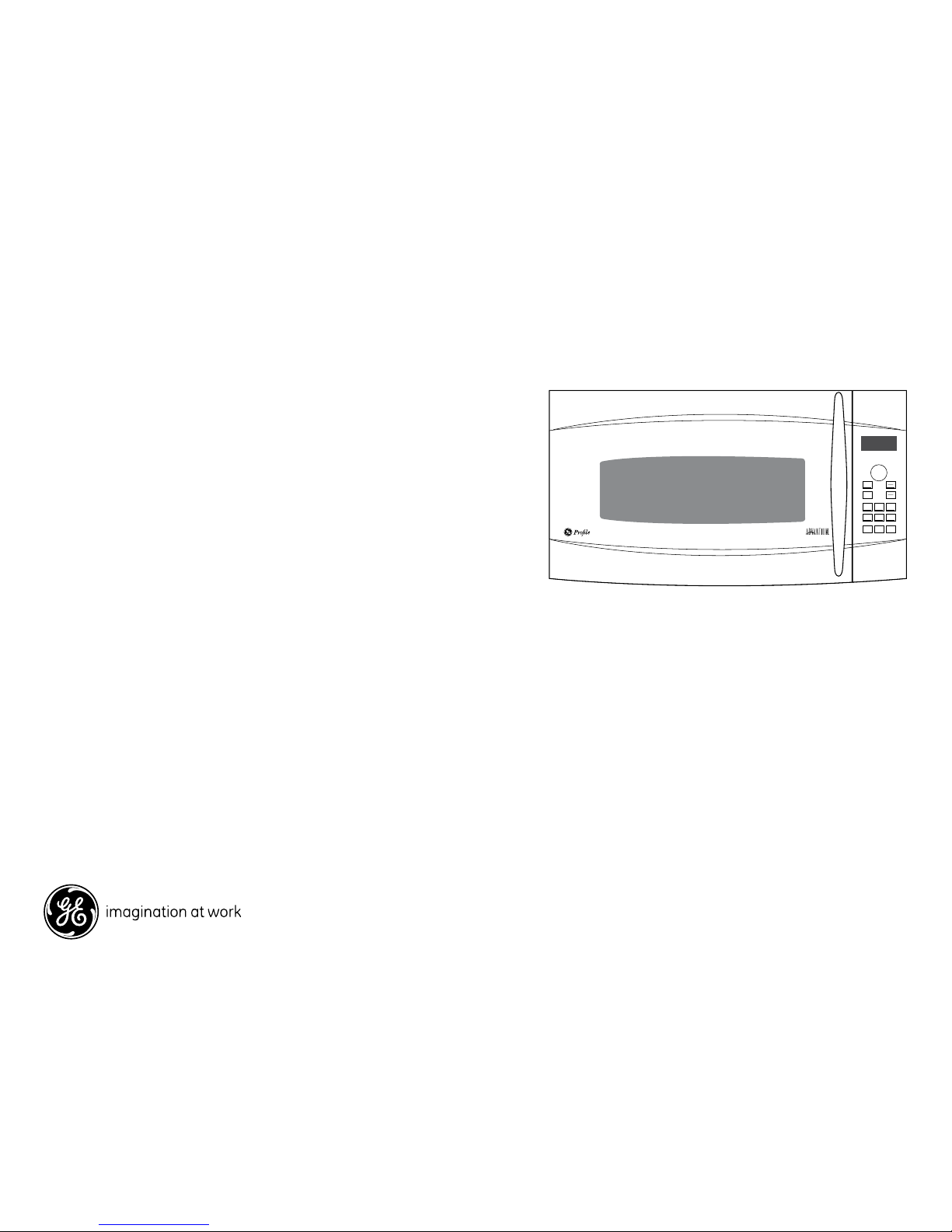

• Model PSA2200RWW - White on white

• Model PSA2200RBB - Black on black

• Model PSA2201RSS – Stainless steel

PSA2200RWW

PSA2200RBB

CLEAR

OFF

START

PAUSE

MICRO

WAVE

CONV

BAKE

SPEED

COOK

MICRO

30 SECS

COOKING

OPTIONS

SETTINGS

VENT

SURFACE

LIGHT

TIMER

ON/OFF

BACK

HELP

6:30 PM

Specification Created 4/10 240449

PSA2200R/2201R

Advantium™Above-the-Cooktop Oven
