GE 040315-0 ILLUSTRATED Guide de configuration
Not for
Reproduction
Illustrated Parts List
MODEL
040315-0
7000 Watt
Home Generator System
Rev. D
IPL No. 206234 12/23/2010
Not for
Reproduction
Not for
Reproduction
Table Of Contents
Torque Specification Chart ............................................................................................ Inside Back Cover
PRODUCT COMPONENTS PAGES
Main Unit .............................................................................................................................................................. 4
Alternator .............................................................................................................................................................. 6
Control Panel ....................................................................................................................................................... 7
Enclosure ............................................................................................................................................................. 9
Not for
Reproduction
Ex
p
loded View - Main Unit
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
0002.t
4
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2010
040315-0 - 7,000 Watt Home Generator System
206234IPL No.
Not for
Reproduction
Part No. Descri
p
tionRef.
Parts List - Main Unit
Footnotes:
Part No. Descri
p
tionRef.
CRADLE1 B191860GS
DUCT2 194568GS
TRAY, Oil Drain3 193536GS
ADAPTER, Engine4 191793GS
ALTERNATOR ASSEMBLY5 -----
KIT, Hardware Adapter6 194728GS
BOLT7 B4300GS
WASHER8 96796GS
SEAL9 208103GS
TAPTITE10 2830598SM
CAPSCREW, Hex head, 5/16-24 x 9.8411 187365HGS
DEFLECTOR, Muffler12 207270GS
DEFLECTOR13 193475GS
BRACKET, Muffler14 206856GS
GASKET15 692236
TAPTITE16 83512GS
MUFFLER17 207059GS
SCREW18 698941
PIPE, Exhaust19 194159GS
KIT, Hardware Deflector20 195008GS
KIT, Vibration Mount21 194209GS
CLIP22 192940GS
SCREW23 86494GS
COLLAR, Air Inlet24 192853GS
TAPTITE26 74908GS
HOSE, Fuel27 206817GS
ARRESTOR, Spark29 194221GS
PLATE, Temp Switch30 206047GS
SWITCH31 206045GS
WASHER32 27772GS
* SCREW, Phillips Head, 4-40 x 1/433 -----
* - Items without part numbers are common fasteners and are available at your local hardware store.
** Contact Engine Manufacturer
5
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2010
040315-0 - 7,000 Watt Home Generator System
206234IPL No.
Not for
Reproduction
Ex
p
loded View - Main Unit
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
0002.t
6
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2010
040315-0 - 7,000 Watt Home Generator System
206234IPL No.
Not for
Reproduction
Part No. Descri
p
tionRef.
Parts List - Main Unit
Footnotes:
Part No. Descri
p
tionRef.
COVER, Rear Bearing34 192906GS
HOSE, Oil Drain35 1723165SM
WIRE48 15253621GS
WARMER, Oil49 01916
CLAMP50 57822GS
** ENGINE900 -----
MANUAL, Operator's (Not Illustrated)-- 207985GS
MANUAL, Install (Not Illustrated)-- 209431GS
MANUAL, Engine (Not Illustrated)-- 277766TRI
KIT, Manual ACC (Not Illustrated)-- 208193GS
FLEX HOSE (Not Illustrated)-- 202295GS
PAINT, Touch-Up, Silver (Not Illustrated)-- 198811GS
KIT, LED Remote (Not Illustrated)-- 207337GS
FILTER, Cartridge (Not Illustrated)-- 790263
FILTER, Oil (Not Illustrated)-- 492392B
KIT, LP Conversion (Not Illustrated)-- 195069GS
BIT, Screw (Not Illustrated)-- 196731BGS
WARMER, Battery (Optional Accessory)-- 01915
KIT, Maintenance (Optional Accessory)-- 6034
PAINT, Spray Silver (Optional Accessory)-- 199475GS
* - Items without part numbers are common fasteners and are available at your local hardware store.
** Contact Engine Manufacturer
7
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2010
040315-0 - 7,000 Watt Home Generator System
206234IPL No.
Not for
Reproduction
Ex
p
loded View - Alternator
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
206480
8
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2010
040315-0 - 7,000 Watt Home Generator System
206234IPL No.
Not for
Reproduction
Part No. Descri
p
tionRef.
Parts List - Alternator
Footnotes:
Part No. Descri
p
tionRef.
ADAPTER, Alternator1 209599GS
ROTOR2 195430GS
STATOR3 206542GS
RBC (with O-Ring p/n 189197GS)4 193336GS
BOLT5 86308BGS
BRUSH ASSEMBLY6 66386GS
TAPTITE7 66849GS
PIN9 81917GS
HARNESS, Wiring10 193472GS
COVER, Rear Bearing11 192906GS
TAPTITE12 74908GS
BEARING13 65791GS
9
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2010
040315-0 - 7,000 Watt Home Generator System
206234IPL No.
Not for
Reproduction

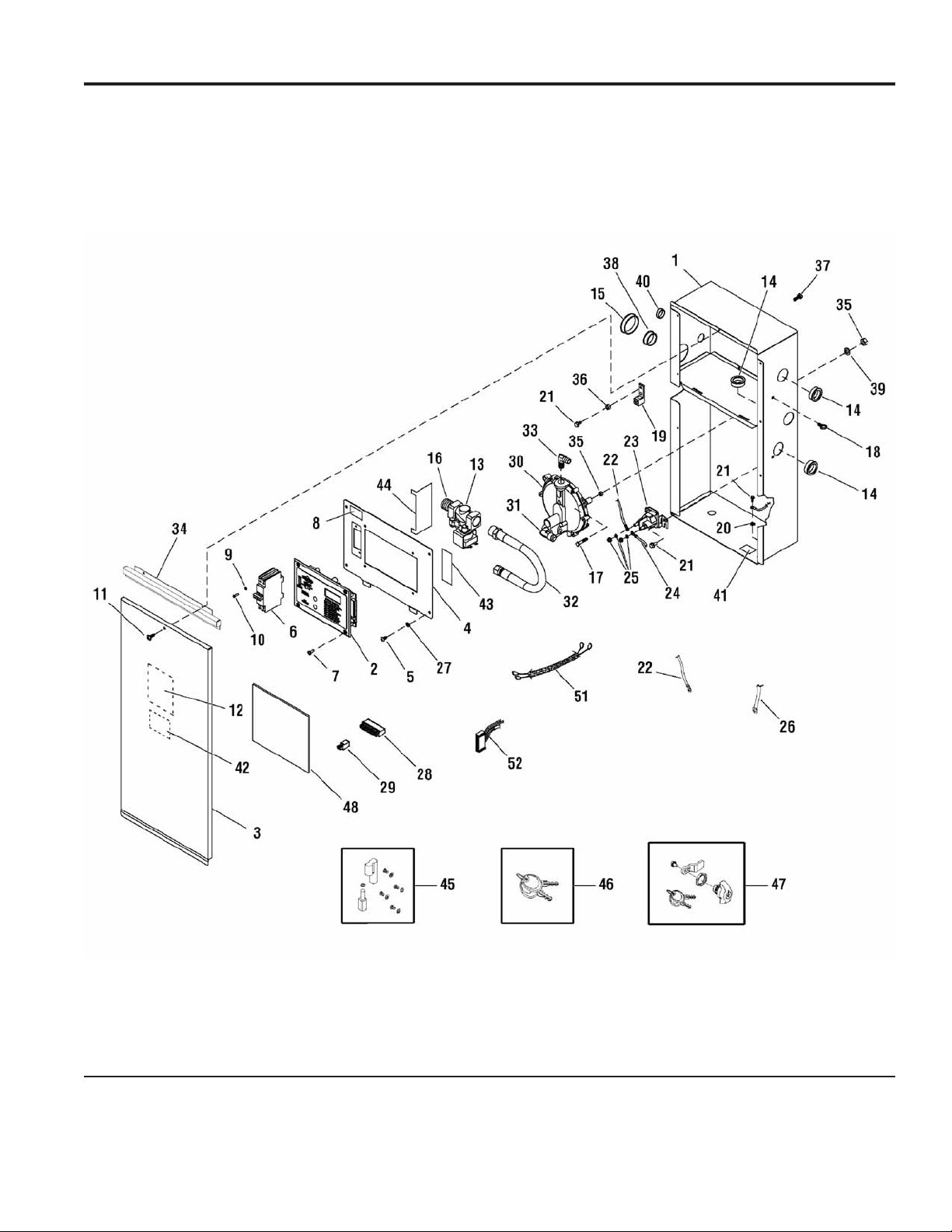

Ex
p
loded View - Control Panel
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
208189
10
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2010
040315-0 - 7,000 Watt Home Generator System
206234IPL No.
