R20 Recessed
Light Extender
User’s Manual
Congratulations on the purchase of
the Recessed Light Extender. Once
installed, you can provide directed light
to specific areas around your house.
Getting Started…

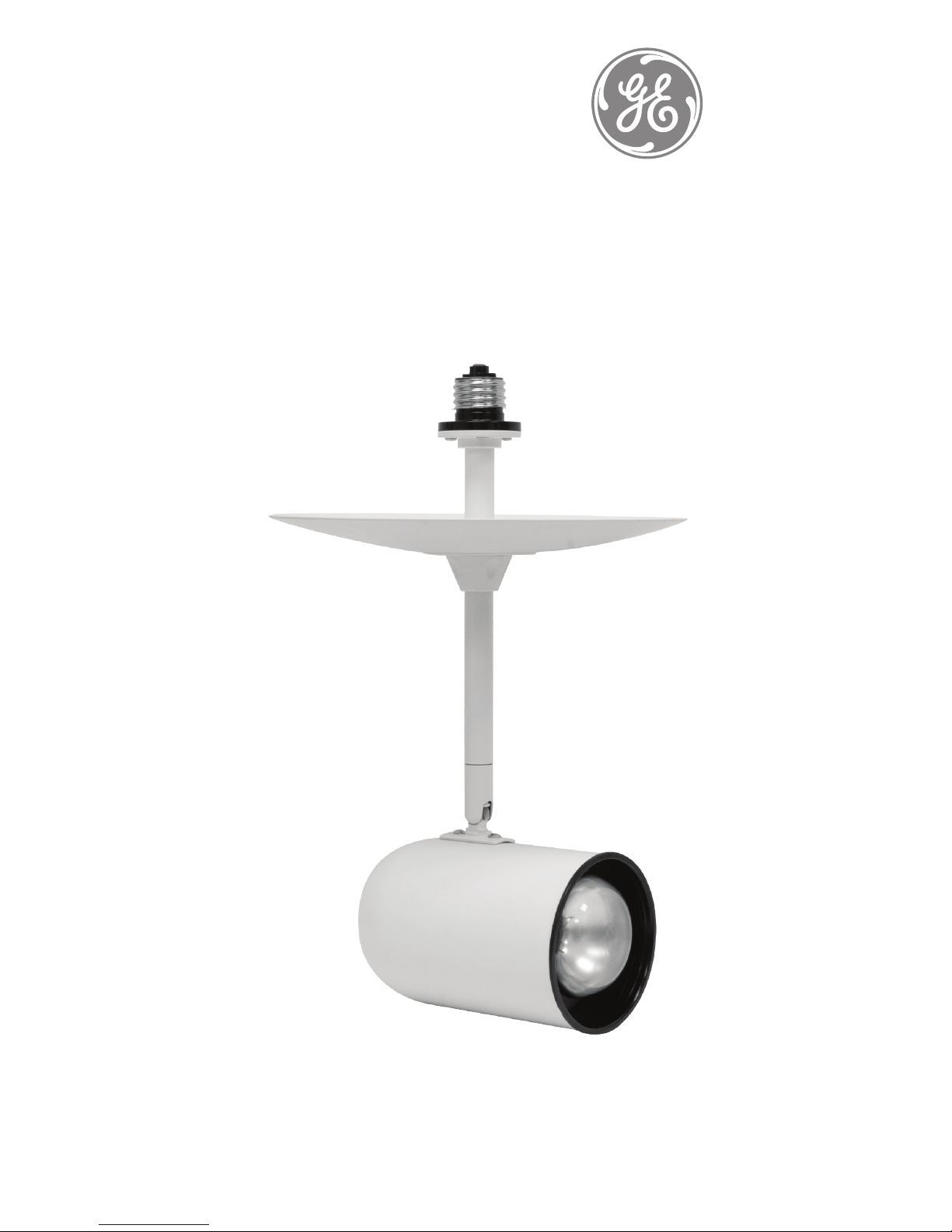

The 45153 Recessed
Light Extender model
requires a “R20” size
light bulb. You can use
an incandescent, CFL or LED light bulb.
Do not use a halogen light bulb.
The Recessed Light Extender is very
simple to assemble and even easier to install.
The Recessed Light Extender consists of two parts –
1. Light Assembly (ratchet screw base, rocker/swivel
mount and securing collar)
2. Cover Ring (alignment pin holes, snap clip holes)
Assembly
1. Remove the Recessed Light Extender Assembly and
Cover Ring from packaging. Take note of the alignment
pins and snap clips on securing collar.
2. Position the Recessed
Light Extender screw base
through the cover ring hole.
Position the Alignment pins
to the alignment hole on
the cover ring.
3. Firmly push the cover ring
onto the securing collar snap
clips until each clip snaps
into place.
No tools
required
Includes universal
cover ring that
fits all recessed
lighting fixtures up
to 8” openings
UP TO
8”
See back for troubleshooting
4. Loosen the adjustment
ring on the securing collar
and slide the collar down the
shaft towards the lamp hood
until the collar is just above
the ring line of the swivel joint.
Your Recessed Light Extender
is now ready to install.
Installation
1. Turn the power off to the
fixture. Simply unscrew the
light bulb from the existing
recessed can light. Insert
the light bulb into the
Recessed Light Extender and
screw securely into place.
Note: For the R20 size Recessed Light
Extender, use a R20 size light bulb.
Use an incandescent, CFL or LED light bulb.
Not for use with halogen light bulbs.
2. Screw in the Recessed
Light Extender into the
recessed light socket
until the screw base begins
to click. The Recessed Light
Extender has a safety ratchet
mechanism to ensure the
extender cannot be screwed
in too far and damage
the socket.
3. Slide the cover ring up to
the ceiling and tighten the
adjustment ring for a snug
fit. (The cover ring should
cover most existing recessed
light rings.)
To direct light to a specific
area, hold the extender shaft
and position lamp hood to
desired location using the
rocker/swivel mechanism.
Turn power back on...
45153-2
3/26/10
Troubleshooting
- Ensure power to the Recessed Light Extender is
turned “ON”.
- Test your bulb in another fixture to ensure that
the bulb is good.
- Recessed Light Extender’s safety ratchet will begin to
slip when the screw-in torque becomes too high. In this
case the safety ratchet may begin to slip before the
Recessed Light Extender is fully seated into the light
socket, causing the Recessed Light Extender to not
operate. These situations usually develop due to a
corroded or misthreaded recessed light lamp socket.
Please consult a qualified electrician if repair is required
for a recessed light socket.
Made in China / Hecho en China
is a trademark of General Electric Company and is
used under license to Jasco Products Company LLC, 10
E. Memorial Road, Oklahoma City, OK 73114
This Jasco product comes with a 1 year limited warranty.
Visit www.jascoproducts.com for details.
Este producto de Jasco Products tiene una garantía
limitada de 1 año. Visite www.jascoproducts.com
para detalles.
120VAC 75W MAX
RISK OF FIRE OR ELECTRIC SHOCK:
• Turn OFF power before installation, removal
or re-lamping
• Do not exceed electrical ratings
• For indoor use only
• Install this kit only in the luminaires that has the
construction features and dimensions shown in
the photographs and/or drawings
• Do not make or alter any open holes in an
enclosure of wiring or electrical components
during kit installation.
• Do not alter, relocate, or remove wiring,
lampholders, ballast, or any other
electrical component
WARNING
!
