GE Profile DPVH890GJ Manuel

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Specification Revised 5/09 270199

Dimensions and Installation Information (in inches)

Exhaust Options: 3-way via rear, right, and bottom.

Circuit Requirements: An individual, properly grounded

branch circuit, protected by a 30-amp circuit breaker or

a time-delay fuse, is required.

LP Conversion Kit: WE25M46

Note: Dryer wall outlet must be located within 36”

of service cord entry and accessible when dryer is

mounted in position.

Installation Information: For complete information, see

installation instructions packed with your dryer.

S D

T D A F

W U

SENSORDRY

TIMEDRY

Harmony

27”

32.34”

39-3/4”

32.34

39-3/4”

4-1/8”

3”

DPVH880

Gas Dryer Rating

120V 60Hz, 6A

DPVH890GJ

GE Profile™7.5 Cu. Ft. Colossal Capacity Gas Dryer With Steam

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Special Installation Requirements:

Stacked Installation:

•Bracketsforstackingdryeroverwasherareavailableatanadditionalcost.

Custom built-in white installation template:

•OrderPub.No.14-A025.

Alcove or Closet Installation:

•Ifyourdryerisapprovedforinstallationinanalcoveorcloset,itwillbe

stated on a label on the dryer back.

•ThedryerMUSTbeexhaustedtotheoutside.

•Minimumclearancesbetweendryercabinetandadjacentwallsorother

surfaces are: 0" either side, 3" front and rear

•Minimumverticalspacefromfloortooverheadcabinets,ceilings,etc.is52".

•Closetdoorsmustbelouveredorotherwiseventilatedandmustcontaina

minimumof60sq.in.ofopenareaequallydistributed.Ifthisclosetcontains

both a washer and a dryer, doors must contain a minimum of 120 sq. in. of

open area equally distributed.

•Nootherfuel-burningapplianceshallbeinstalledinthesameclosetwithagasdryer.

Bathroom or Bedroom Installation:

•ThedryerMUSTbeexhaustedtotheoutdoors.

•Theinstallationmustconformwiththelocalcodes,orintheabsenceof

localcodes,withtheNationalElectricCodeandNationalFuelGasCode,ANSIZ223

for gas dryers.

Minimum Clearance other than Alcove or Closet Installations:

•Minimumclearancestocombustiblesurfaces0"bothsides,3"rear.

For more information on venting kits and accessories,

please call 1-800-GE-CARES.

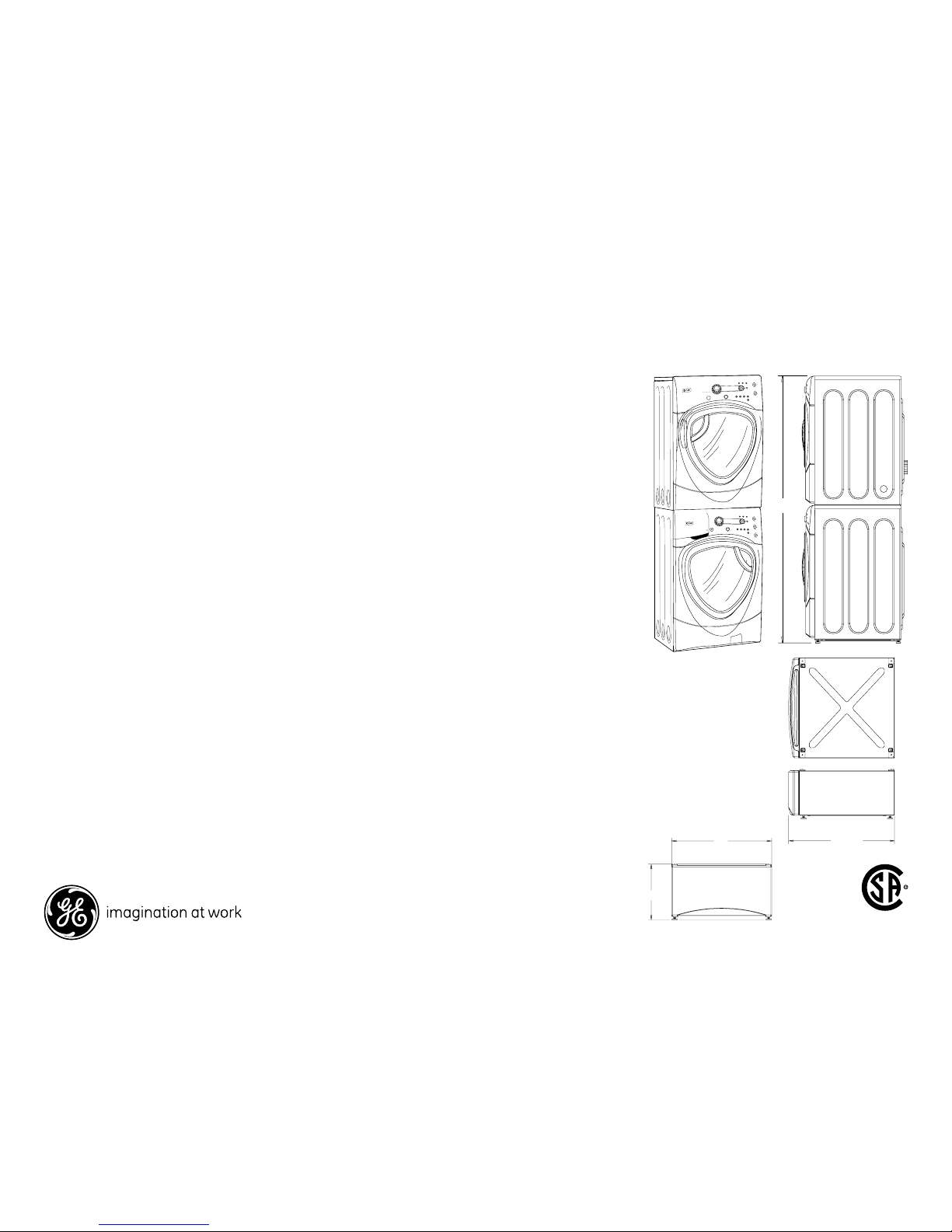

Stacked Dimensions (in inches)

79"

Harmony

1 5

29-1/2

Storage Pedestal Dimensions

(in inches)

SPSD157JMG - Champagne

SPSD157JMV - Vermillion Red

SPSD157JWW - White

Thisoptional15"pedestalraises

the door opening and height of

the washer or dryer. Feet on 15"

pedestalallowittoadjustto15-

3/8" height.

Specification Revised 5/09 270199

DPVH890GJ

GE Profile™7.5 Cu. Ft. Colossal Capacity Gas Dryer With Steam

Dryer Exhausting Information – Metal Duct Only

For complete information, see installation instructions packed with your dryer.

Ducting Materials: For best performance, this dryer should be vented with 4” diameter

allrigidmetalexhaustduct.Ifrigidmetalductcannotbeused,thenUL-listedflexible

metal(semi-rigid)ductingcanbeused(KitWX08X10077).Inspecialinstallations,itmay

benecessarytoconnectthedryertothehouseventusingaflexiblemetal(foil-type)duct.

AUL-listedflexiblemetal(foil-type)ductmaybeusedONLYininstallationswhererigid

metalorflexiblemetal(semi-rigid)ductingcannotbeusedANDwherea4”diametercan

be maintained throughout the entire length of the transition duct. Please see installation

instructionpackedwithyourdryerforcompleteinstructionswhenusingflexiblemetal

(foil type) ducting.

Exhaust Length Calculation:

1. Determinethenumberof90°turnsneededforyourinstallation.Ifyouexhausttothe

side or bottom of dryer, add one turn.

2. Themaximumlengthof4’rigid(aluminumorgalvanized)ductwhichcanbetoleratedis

shown in the table.

 Aturnof45°orlessmaybeignored.Two45°turnswithintheductlengthshouldbe

treated as a 90° elbow.

A turn over 45° should be treated as a 90° elbow.

Dryers mustbeexhaustedtotheoutside.

Caution: Forpersonalsafetydonotterminateexhaustintoachimney,underanyenclosed

house floor (crawl space), or into an attic, since the accumulated lint could create a fire

hazardormoisturecouldcausedamage.Neverterminatetheexhaustintoacommonduct

orplenumwithakitchenexhaust,sincethecombinationoflintandgreasecouldcreatea

fire hazard.

Exhaustductsshouldbeterminatedinadamperedwallcaptopreventbackdrafts,bird

nesting,etc.Thewallcapmustalsobelocatedatleast12"abovethegroundoranyother

obstruction with the opening pointed down.

For more information on venting kits and accessories, please call 1-800-GE-CARES.

Specification Revised 5/09 270199

DPVH890GJ

GE Profile™7.5 Cu. Ft. Colossal Capacity Gas Dryer With Steam

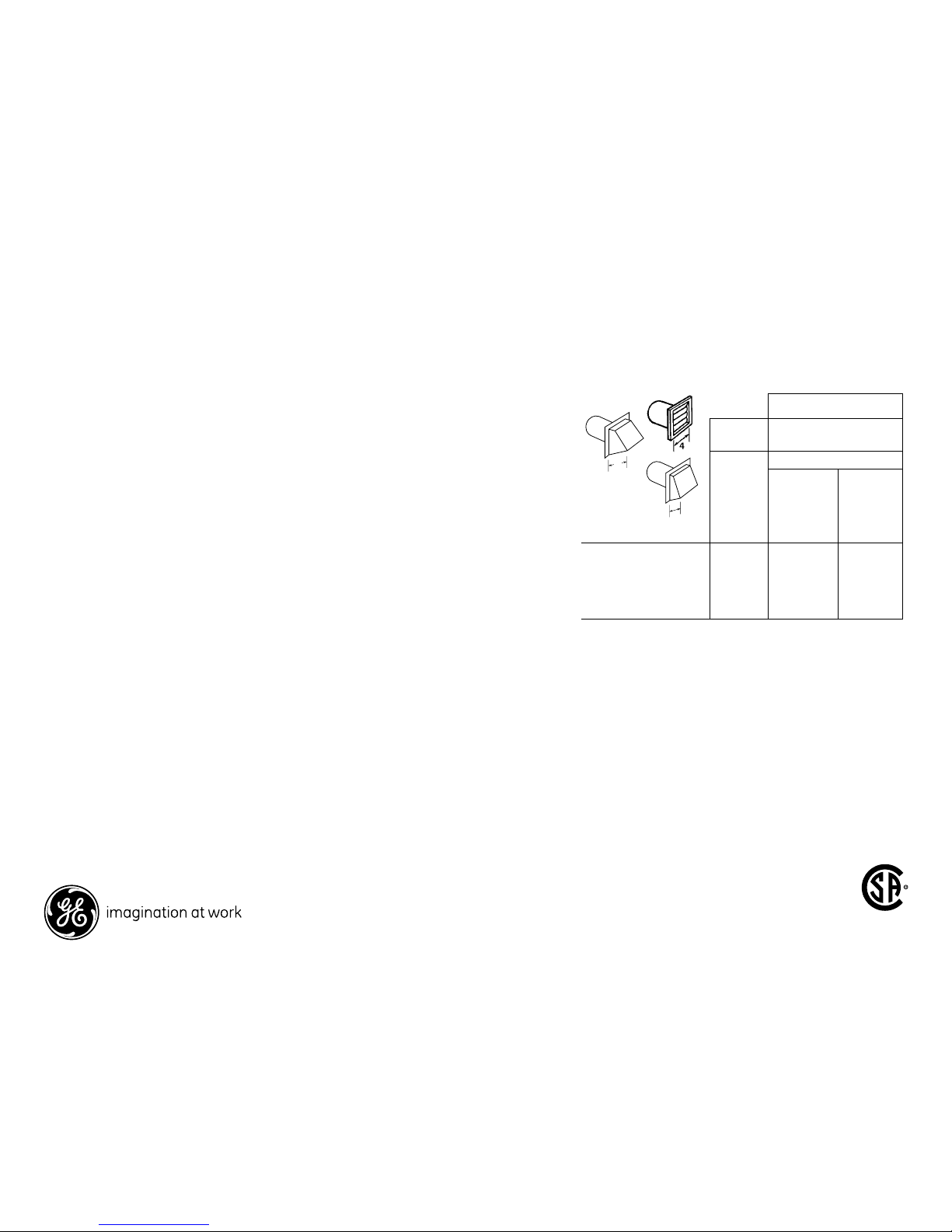

Best performance

Domestic

dryer models

Maximum length of 4"

dia. rigid metal duct

Number

90°

turns

Exhaust hood type

opening

2-1/2"

opening

7.5 and 7.3 cu. ft.

capacity electric

and gas dryers

150 ft.

140 ft.

130 ft.

120 ft.

110 ft.

127 ft.

117 ft.

107 ft.

97 ft.

87 ft.

2-1/2

IXED

OADS

RINKLE

REE

CTIVE

EAR

PEED

IMED

LUFF

ARM

ELICATES

OWER

SENSOR DRY

TIME DRY

OTTONS

ENSOR

EVEL

EMP

BACK

CYCLE DAMP

ALERT EXTEND

TUMBLE DRUM

LIGHT

LOCK

EWRINKLE

Harmony

DPVH580EH/GH

Features and Benefits

• 7.5Cu.Ft.ColossalCapacity-Thiscolossalsizedryerwillbereadyandable

to take on everything the washer sends its way

• SteamRefresh-Helpsreducewrinkles,odorsandrejuvenatesclothes

• SteamDewrinkle-Removewrinklesandrefreshescleanclothes

• ReverseTumble-Byreversingtherotationofthedrum,youcanexpectgentle,

fast even drying

• DuoDry™System - Quickly and consistently dries all types of clothes

• SpecialtyDryCycles-Providejusttherightlevelsofdryingforbetter

fabric care

• BaffleDry-Built-indryingrackandhanger-clipdesignmultipliesthedrying

options for hard-to-dry items or delicates

• CleanSpeak™CommunicationSystem-Thewashercommunicates

electronically with the dryer, which then presets dry cycles for better clothes

care, increased time savings and greater convenience

• StainlessSteelDrum-Resistsrustandwon'tchip,peelorsnagclothes

• DelayStart-Letsyoudothelaundryonyourterms

• OptionalStackingBracket(GEFLSTACK)-Availableatanadditionalcost

• ModelDPVH890GJMG–Champagne

• ModelDPVH890GJMV–VermillionRed

• ModelDPVH890GJWW–White

Specification Revised 5/09 270199

DPVH890GJ

GE Profile™7.5 Cu. Ft. Colossal Capacity Gas Dryer With Steam
