GE 5.8 Cu. Ft. Extra Large Capacity Front Load Dryer

Models --- DSXH47EG (Electric) & DSXH47GG (Gas)

Tech Manual --- Publication # 31-9148

• Rotary electronic controls with Cycles Status Lights

• Painted drum coated with a rust proof finish

• Four temperature options

• On/off end of cycle signal

• Seven dry cycles

•Installation:

9Free standing

9Stacked on washer

9Stacked on pedestal

GE Confidential & Proprietary Information – Not For Public Disclosure

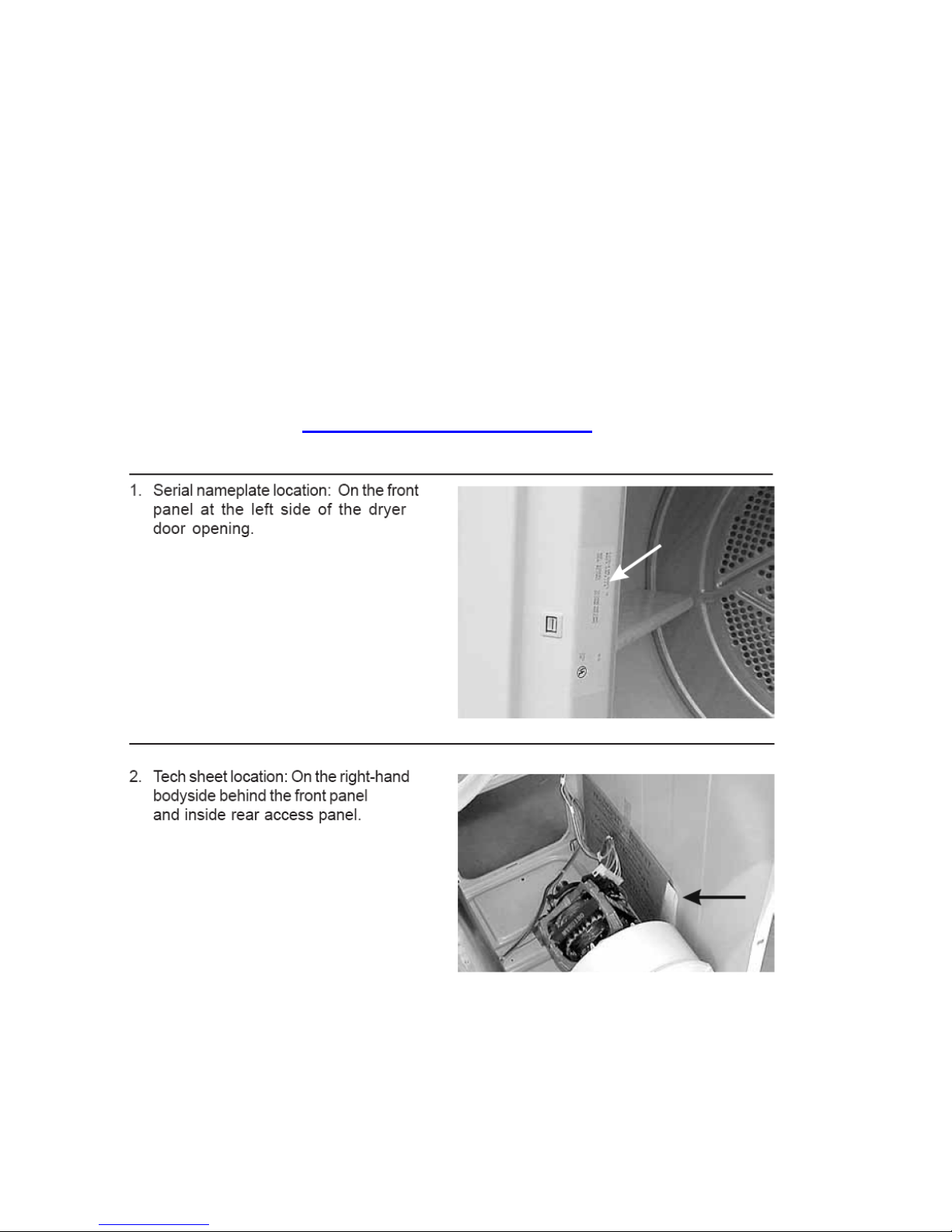

Quick Reference

GE Confidential & Proprietary Information – Not For Public Disclosure

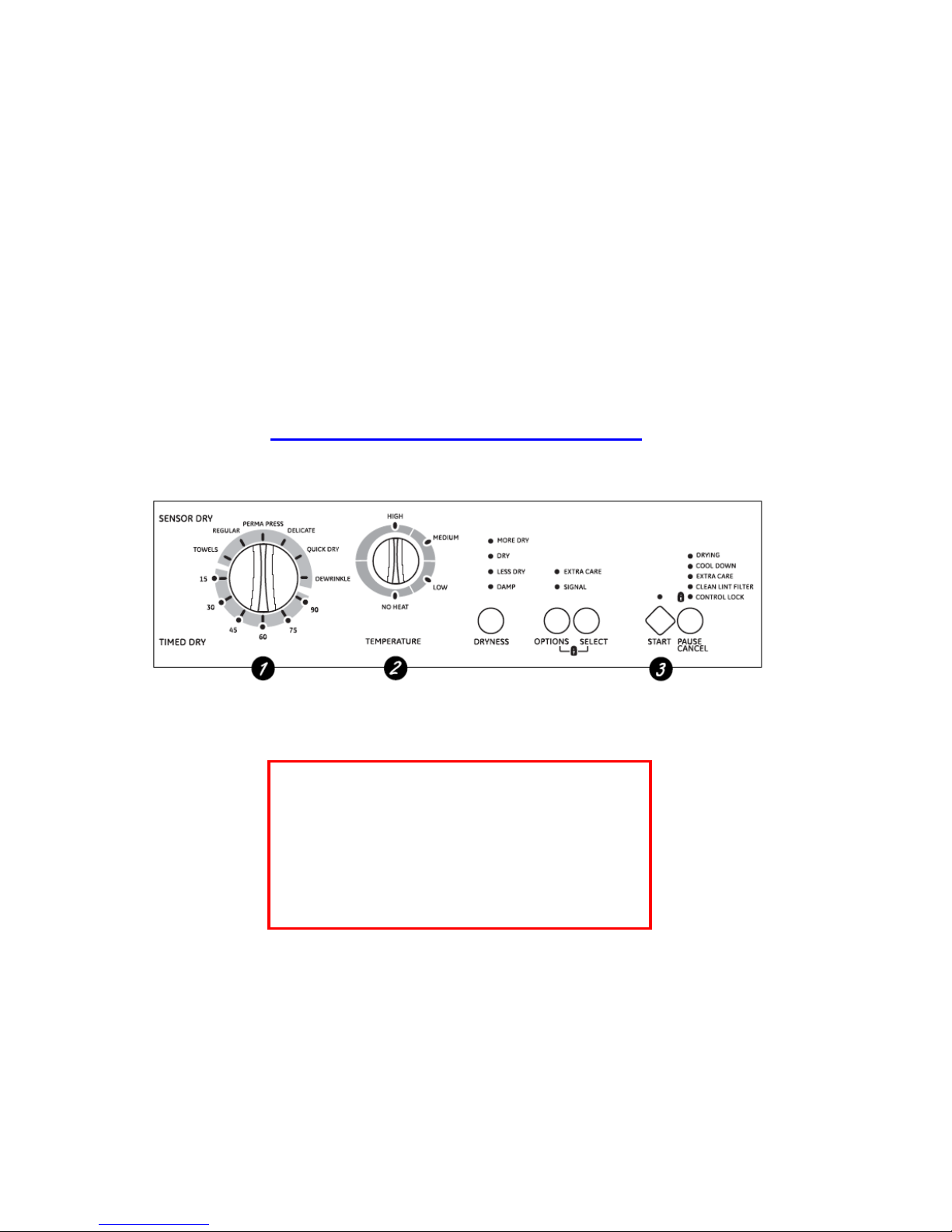

Control Panel Layout

Control Lock

To prevent accidental starting or

stopping the dryer, press OPTIONS and

SELECT at the same time until the Control

Lock indicator is lighted. To unlock the

Controls, press OPTIONS and SELECT again.

GE Confidential & Proprietary Information – Not For Public Disclosure

Service Error Codes

GE Confidential & Proprietary Information – Not For Public Disclosure

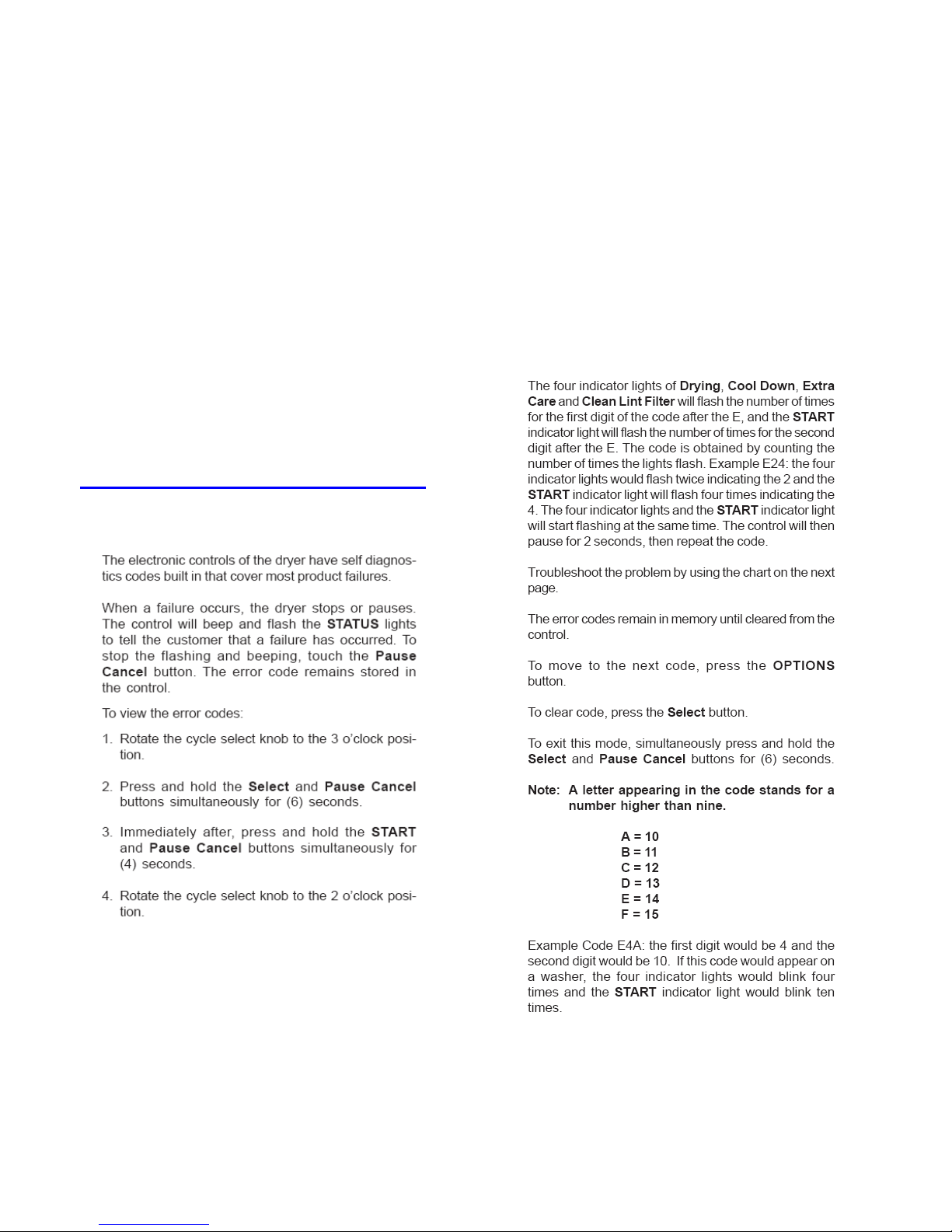

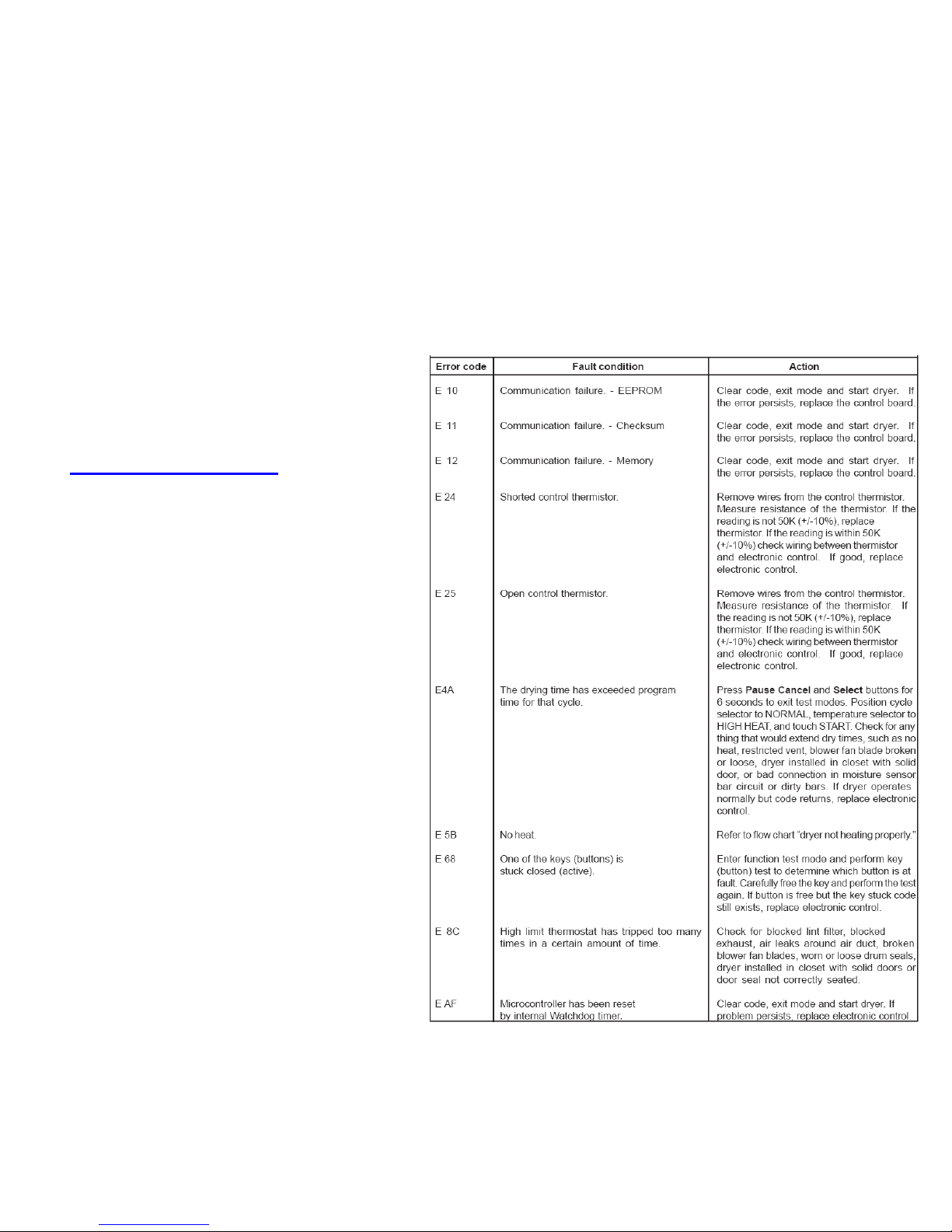

Error Codes

GE Confidential & Proprietary Information – Not For Public Disclosure

Disassembly

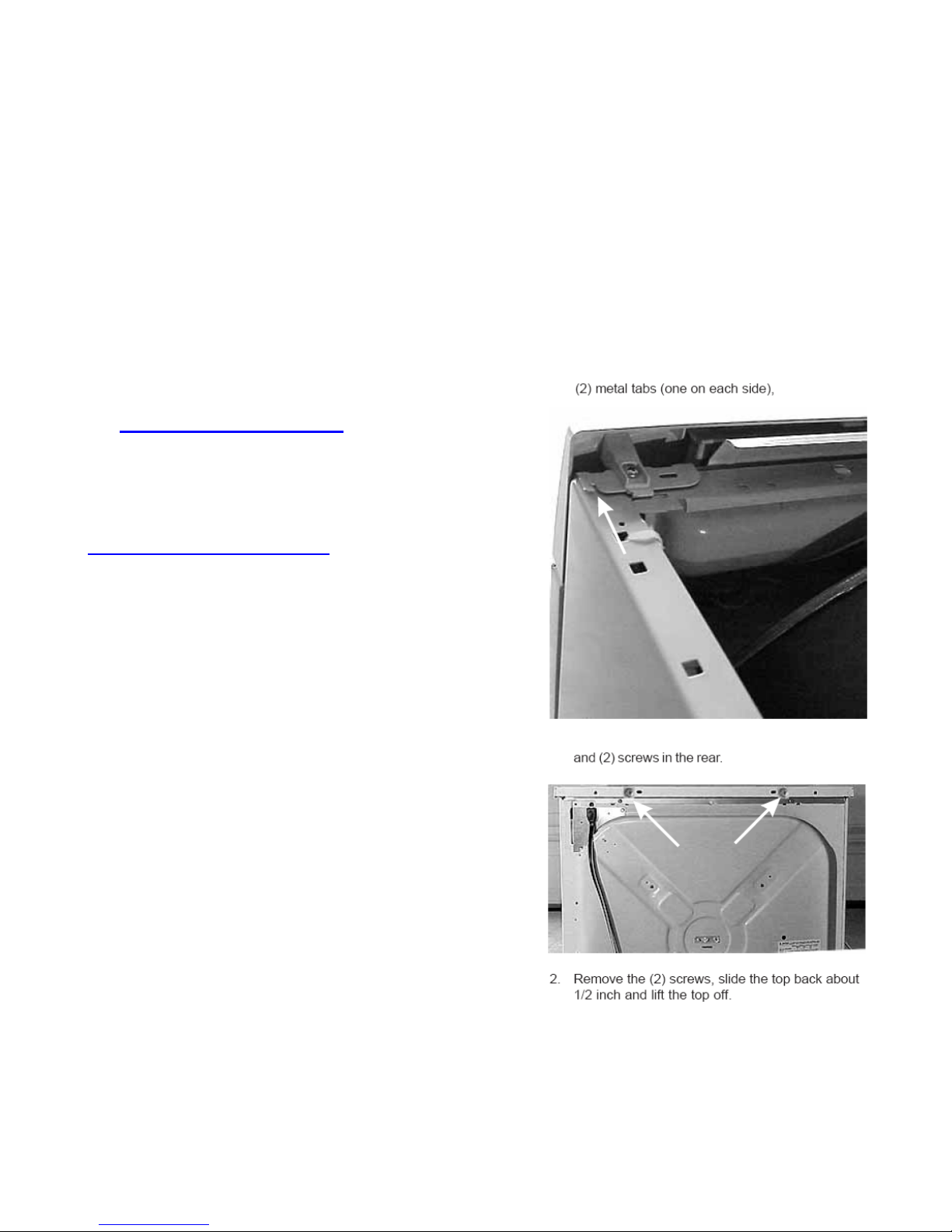

Removing the Top Panel

GE Confidential & Proprietary Information – Not For Public Disclosure

Disassembly

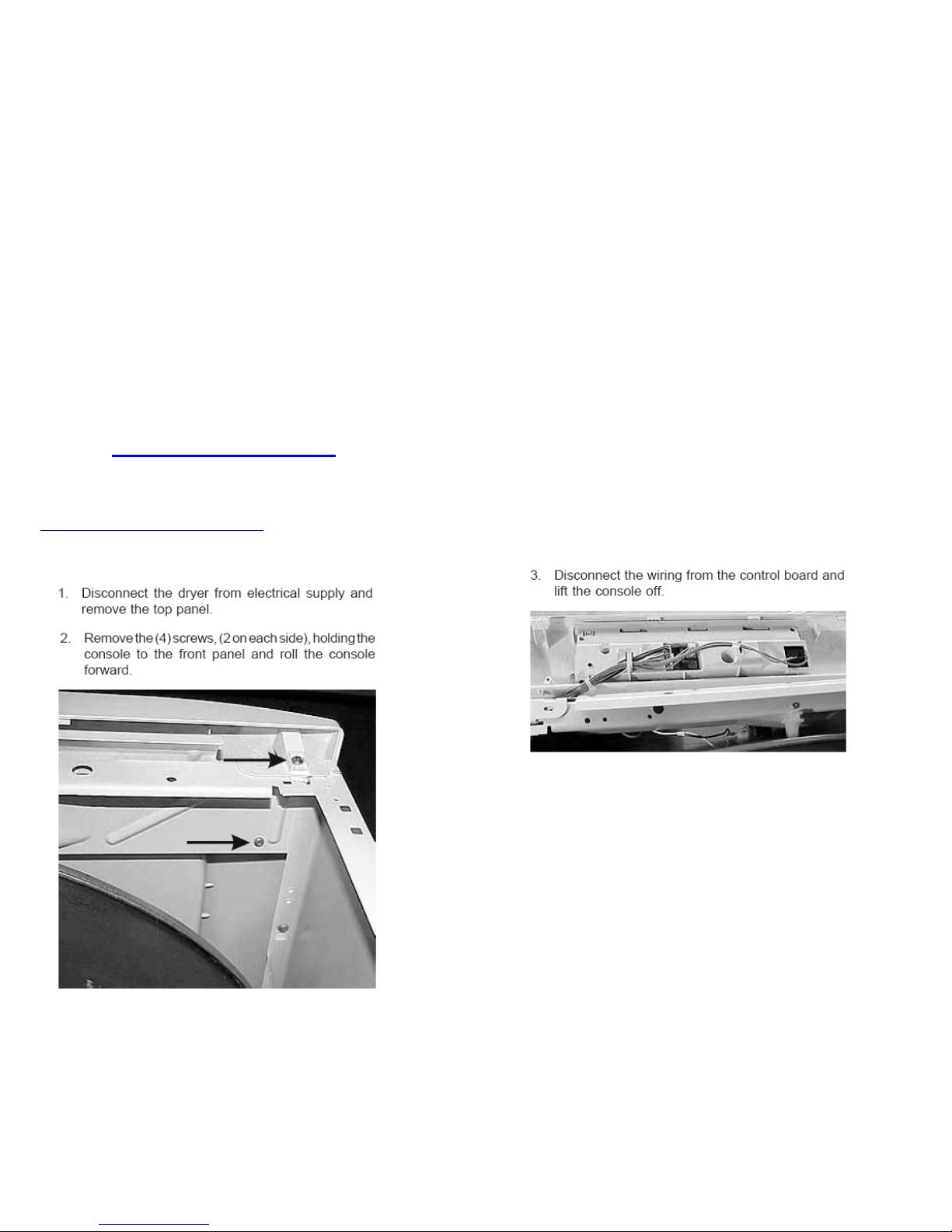

Removing the Console

GE Confidential & Proprietary Information – Not For Public Disclosure

Disassembly

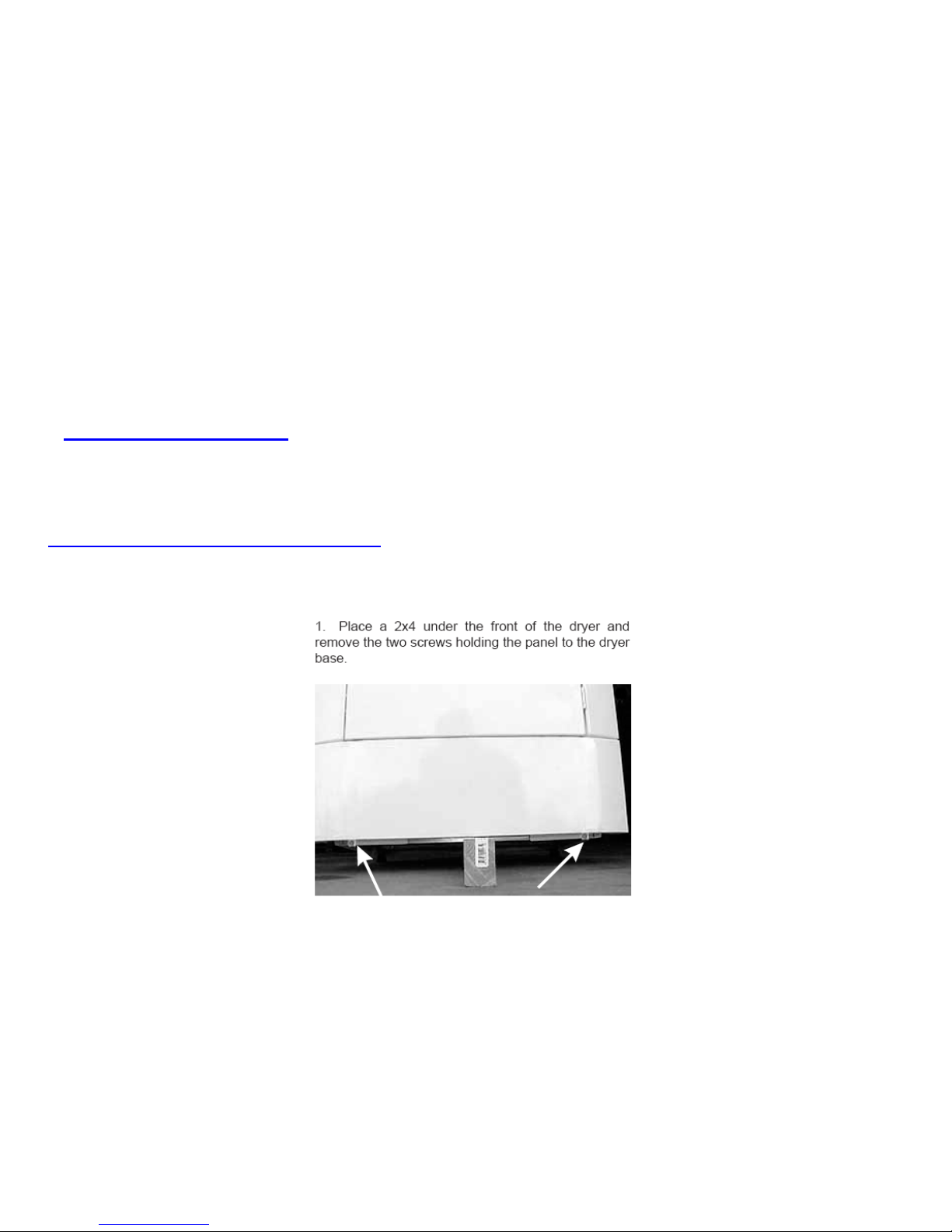

Removing the Front Access Panel

GE Confidential & Proprietary Information – Not For Public Disclosure

Disassembly

Removing the

Front Panel

GE Confidential & Proprietary Information – Not For Public Disclosure

Disassembly

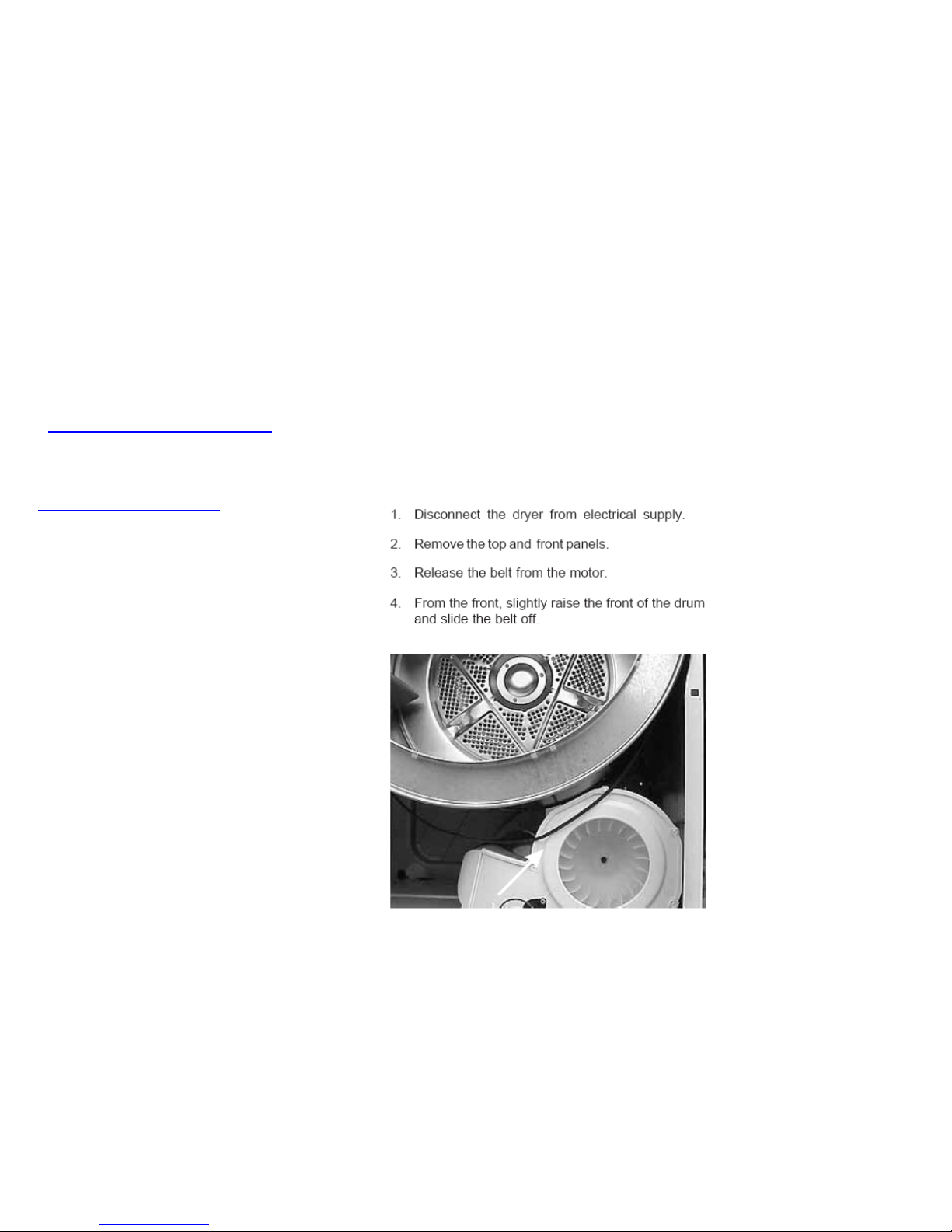

Removing the Belt
