GE DSXH43GF Manuel

DSXH43GFWW

GE®Extra-Large 5.7 Cu. Ft. Capacity Frontload Gas Dryer

Dimensions and Installation Information (in inches)

Exhaust Options: Gas—3-way via rear, right and

bottom. Dryer is shipped exhausted to the rear.

Alternate exhausting knockouts are supplied.

Gas Dryer Electric Rating: 120V, 60Hz, 6A

An individual properly-grounded branch circuit, with a

three-prong grounding-type receptacle, protected by

a 15 or 20 amp circuit breaker or a time-delay fuse is

required.

Gas (BTU/HR): 22,000. Factory-equipped for natural

gas. Tested for LP gas. LP gas supply requires a

conversion kit. Check installation instructions for

correct kit and have a qualified gas technician install

a conversion kit. See dryer ducting information for

proper installation.

Note: Dryer wall outlet must be located within 36”

of service cord entry and accessible when dryer is

mounted in position.

Installation Information: For complete information,

see installation instructions packed with your dryer.

Specification Revised 1/10 360425

SIDE VIEW

Optional

Vent Knockout

Door Open

90°

REAR VIEW

Under

Counter

3/16"

Gas Pipe Connection

Electric

Connection

27" Min.

70-5/8

Note:

Closet Installation Requires Additional

Minimum Clearances:

A Minimum of 120 Square Inches of Opening,

Equally Divided at the Top and Bottom of

the Closet Door is Required.

Top of Dryer to Ceiling 15"

Back of Dryer to Wall 4"

Front of Dryer/Washer 1"

to Closet Door

27"

Min. 34-5/8"

Min.

Custom Sized

Countertop Required

54" Min.

SIDE VIEW

Optional

Vent Knockout

Door Open

90°

REAR VIEW

Under

Counter

3/16"

Gas Pipe Connection

Electric

Connection

27" Min.

70-5/8

Note:

Closet Installation Requires Additional

Minimum Clearances:

A Minimum of 120 Square Inches of Opening,

Equally Divided at the Top and Bottom of

the Closet Door is Required.

Top of Dryer to Ceiling 15"

Back of Dryer to Wall 4"

Front of Dryer/Washer 1"

to Closet Door

27"

Min. 34-5/8"

Min.

Custom Sized

Countertop Required

54" Min.

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

Dimensions and Installation Information (in inches)

Special Installation Requirements

Undercounter Installation

Accessory mounting kits are required for undercounter installation. To order,

call 1-800-848-7722.

Stacked Installation: Brackets for stacking dryer over washer are included with

the dryer.

Alcove or Closet Installation:If your dryer is approved for installation in an

alcove or closet, it will be stated on a label on the dryer back. The dryer MUST

be exhausted to the outdoors. Minimum clearances between dryer cabinet and

adjacent walls or other surfaces are: 0" either side, 3" front and rear Minimum

vertical space from floor to overhead cabinets, ceilings, etc. is 52". Closet doors

must be louvered or otherwise ventilated and must contain a minimum of 60

sq. in. of open area equally distributed. If this closet contains both a washer

and a dryer, doors must contain a minimum of 120 sq. in. of open area equally

distributed. The closet should be vented to the outdoors to prevent gas pocketing

in case of a gas leak in the supply line. No other fuel-burning appliance shall be

installed in the same closet with the dryer.

Bathroom or Bedroom Installation: The dryer must be exhausted to the

outdoors. The installation must conform with the local codes, or in the absence

of local codes, with the National Electric Code and National Fuel Gas Code,

ANSI Z223 for gas dryers.

Minimum Clearances other than Alcove or Closet Installations:

Minimum clearances to combustible surfaces: 0" both sides, 3" rear

511LF1

36"

25-3/4"

53-1/2"

511LF2

Washer

Top Sheet

Dryer

Top Sheet

Countertop

511LF3

14''

29'' 56''-60''

Lip on All Sides

3/4" High x 3/4" Wide

Max.

511LF4

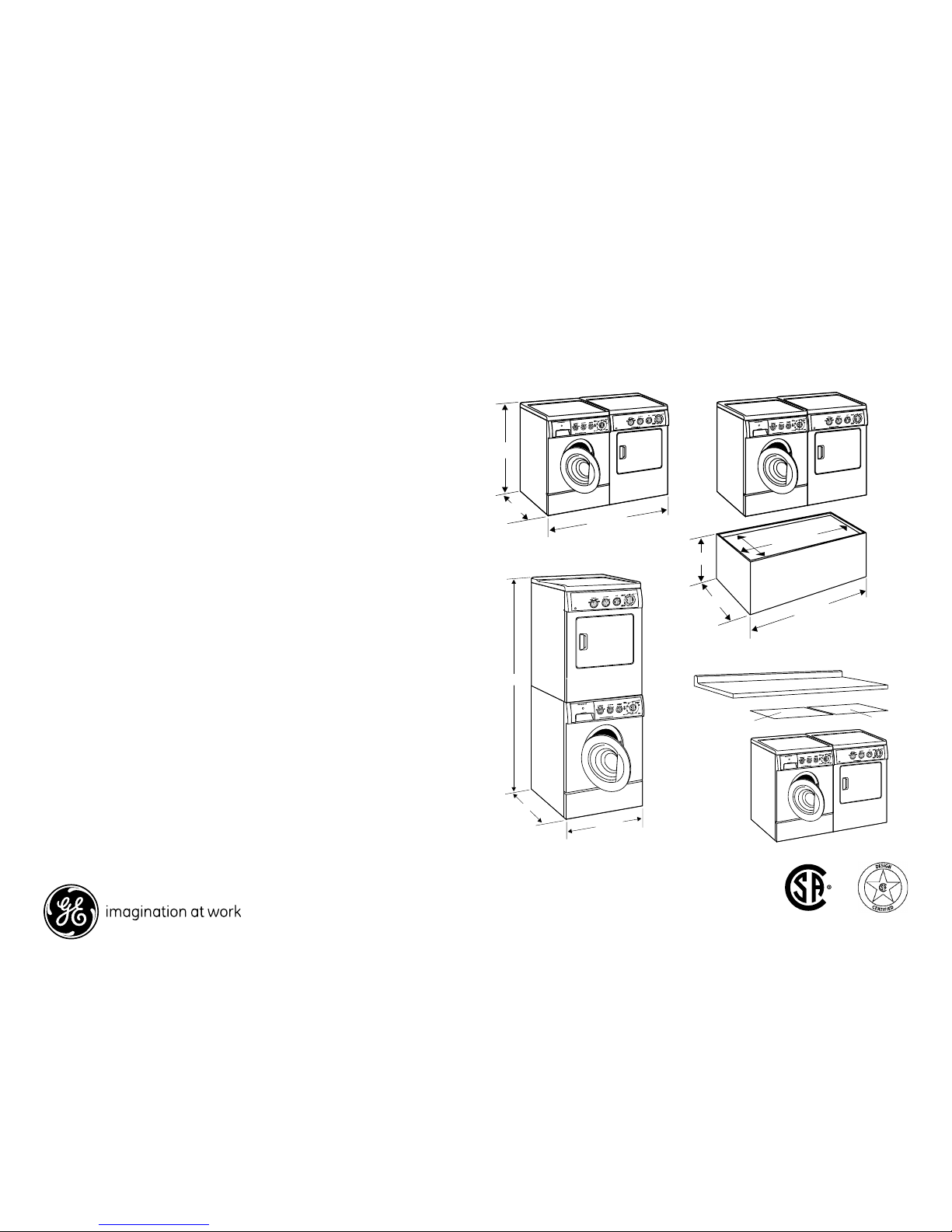

70-5/8"

25-3/4"

26-3/4"

Free-Standing Installation Raised/ Built-in Installation

Stacked Installation

Undercounter Installation

Specification Revised 1/10 360425

DSXH43GFWW

GE®Extra-Large 5.7 Cu. Ft. Capacity Frontload Gas Dryer

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

Dryer Exhausting Information – Metal Duct Only

For complete information, see installation instructions packed with your dryer.

Ducting Materials: For best performance, this dryer should be vented with 4” diameter all rigid metal

exhaust duct. If rigid metal duct cannot be used, then UL-listed flexible metal (semi-rigid) ducting can be

used (Kit WX08X10077). In special installations, it may be necessary to connect the dryer to the house

vent using a flexible metal (foil-type) duct. A UL-listed flexible metal (foil-type) duct may be used ONLY

in installations where rigid metal or flexible metal (semi-rigid) ducting cannot be used AND where a 4”

diameter can be maintained throughout the entire length of the transition duct. Please see installation

instruction packed with your dryer for complete instructions when using flexible metal (foil type) ducting.

Exhaust Length Calculation:

1. Determine the number of 90° turns needed for your installation. If you exhaust to the

side or bottom of dryer, add one turn.

2. The maximum length of 4’ rigid (aluminum or galvanized) duct which can be tolerated is

shown in the table.

A turn of 45° or less may be ignored. Two 45° turns within the duct length should be

treated as a 90° elbow.

A turn over 45° should be treated as a 90° elbow.

Dryers must be exhausted to the outside.

Caution: For personal safety do not terminate exhaust into a chimney, under any enclosed house

floor (crawl space), or into an attic, since the accumulated lint could create a fire hazard or moisture

could cause damage. Never terminate the exhaust into a common duct or plenum with a kitchen

exhaust, since the combination of lint and grease could create a fire hazard.

Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird nesting, etc.

The wall cap must also be located at least 12" above the ground or any other obstruction with the

opening pointed down.

For more information on venting kits and accessories, please call 1-800-GE-CARES.

360425

DSXH43GFWW

GE®Extra-Large 5.7 Cu. Ft. Capacity Frontload Gas Dryer

Specification Revised 1/10

0 60 ft. 48 ft.

1 52 ft. 40 ft.

Frontload dryers: 2 44 ft. 32 ft.

DSXH43EF/GF 3 32 ft. 24 ft.

DSXH47EG/GG 4 28 ft. 16 ft.

Number

90°

turns

Maximum length of

4” dia. rigid metalduct

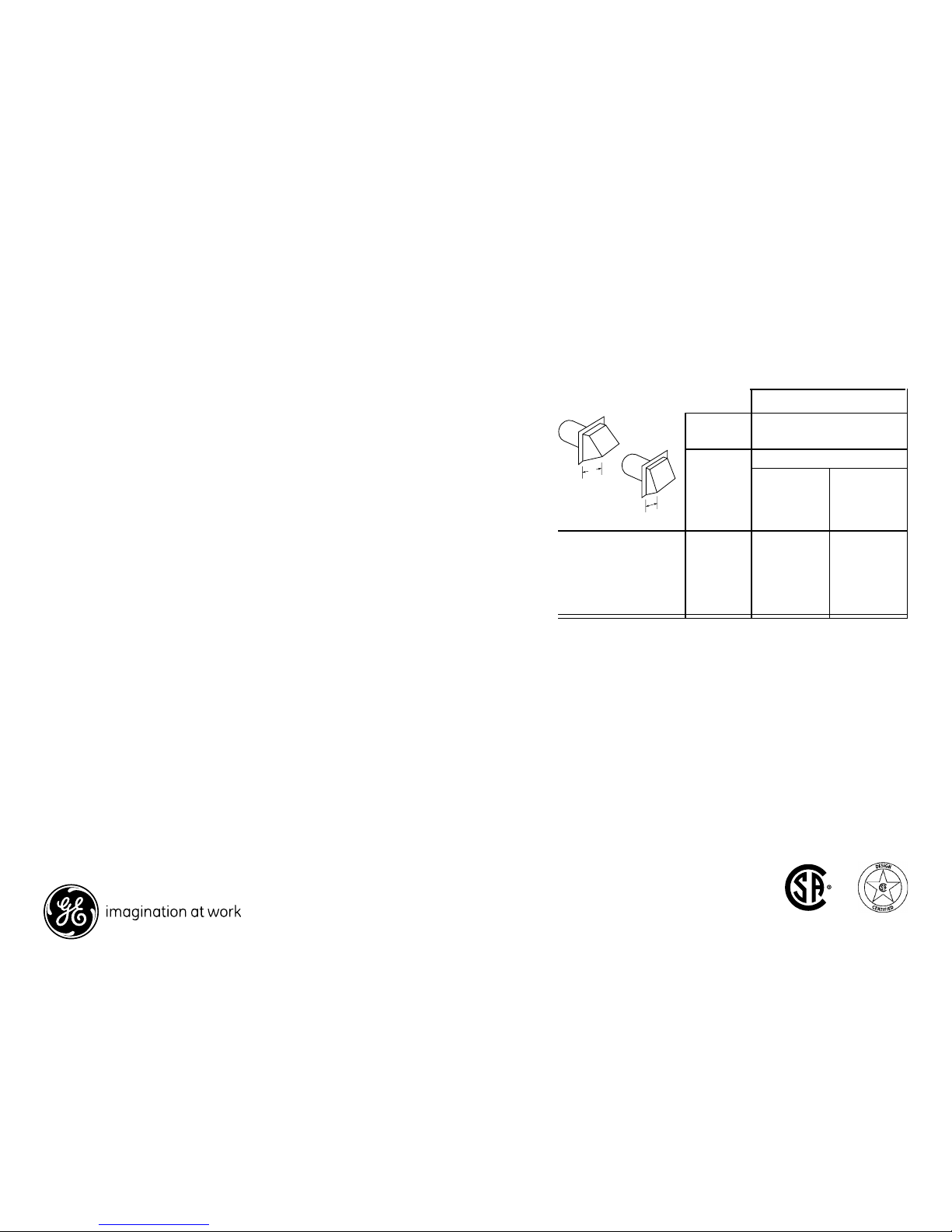

Exhaust hood type

4" opening

2-1/2"

opening

2-1/2

Best performance

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

Specification Revised 1/10 360425

Features and Benefits

• Extra-Large(5.7cu.ft.)Capacity

• TumbleDrying

• 4TemperatureOptions:Regular/Cottons,Medium/PermanentPress,

 Low/DelicatesandAirFluff/NoHeat(CoolDown)

• 1TimeDryCycle

• 2AutoDryCycles:CottonsandEasyCare

• AdjustableEnd-of-CycleSignal

• QuickCleanLintScreen

• DryingRack

• Spill-SaverTop

• InteriorDryerLight

• DuraFinishTopandDrum

• LevelingLegs

• HeavyDutySuspensionSystem

• Reverse-A-Door

• 100%FrontServiceable

• GEPedestal(modelnumberFPDW15)AvailableatAdditionalCost-

15"Hx27"Wx24-3/8"D;White

• ModelDSXH43EFWW-Whiteonwhite(Electric)

• ModelDSXH43GFWW-Whiteonwhite(Gas)

DSXH43GFWW

GE®Extra-Large 5.7 Cu. Ft. Capacity Frontload Gas Dryer
