GE DCVH680GJMR Manuel

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Specification Revised 8/09 360453

Dimensions and Installation Information (in inches)

Exhaust Options: 3-way via rear, left, and bottom.

Circuit Requirements: An individual, properly grounded

branch circuit, protected by a 15-20 amp circuit breaker

or a time-delay fuse, is required.

Note: Dryer wall outlet must be located within 36”

of service cord entry and accessible when dryer is

mounted in position.

Installation Information: For complete information, see

installation instructions packed with your dryer.

27 1-5/8

41-1/2

31-1/8

5-1/2

3-3/4

Gas Dryer Rating

120V 60Hz, 6A

DCVH680GJ

GE®7.0 Cu. Ft. Super Capacity Frontload Gas Dryer

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

360453

Specification Revised 8/09

Special Installation Requirements:

Stacked Installation:

•Brackets for stacking dryer over washer are not included with the dryer.

Order part no. WE25X10018.

Alcove or Closet Installation:

•Ifyourdryerisapprovedforinstallationinanalcoveorcloset,itwillbe

stated on a label on the dryer back.

•ThedryerMUSTbeexhaustedtotheoutside.

•Minimumclearancesbetweendryercabinetandadjacentwallsorother

surfaces are: 0" either side, 3" front and rear

•Minimumverticalspacefromfloortooverheadcabinets,ceilings,etc.is52".

•Closetdoorsmustbelouveredorotherwiseventilatedandmustcontaina

minimumof60sq.in.ofopenareaequallydistributed.Ifthisclosetcontains

both a washer and a dryer, doors must contain a minimum of 120 sq. in. of

open area equally distributed.

•Nootherfuel-burningapplianceshallbeinstalledinthesameclosetwith

a gas dryer.

Bathroom or Bedroom Installation:

•ThedryerMUSTbeexhaustedtotheoutdoors.

•Theinstallationmustconformwiththelocalcodes,orintheabsenceof

localcodes,withtheNationalElectricCodeandNationalFuelGasCode,

ANSIZ223forgasdryers.

Minimum Clearance other than Alcove or Closet Installations:

•Minimumclearancestocombustiblesurfaces0"bothsides,3"rear.

For more information on venting kits and accessories,

please call 1-800-GE-CARES.

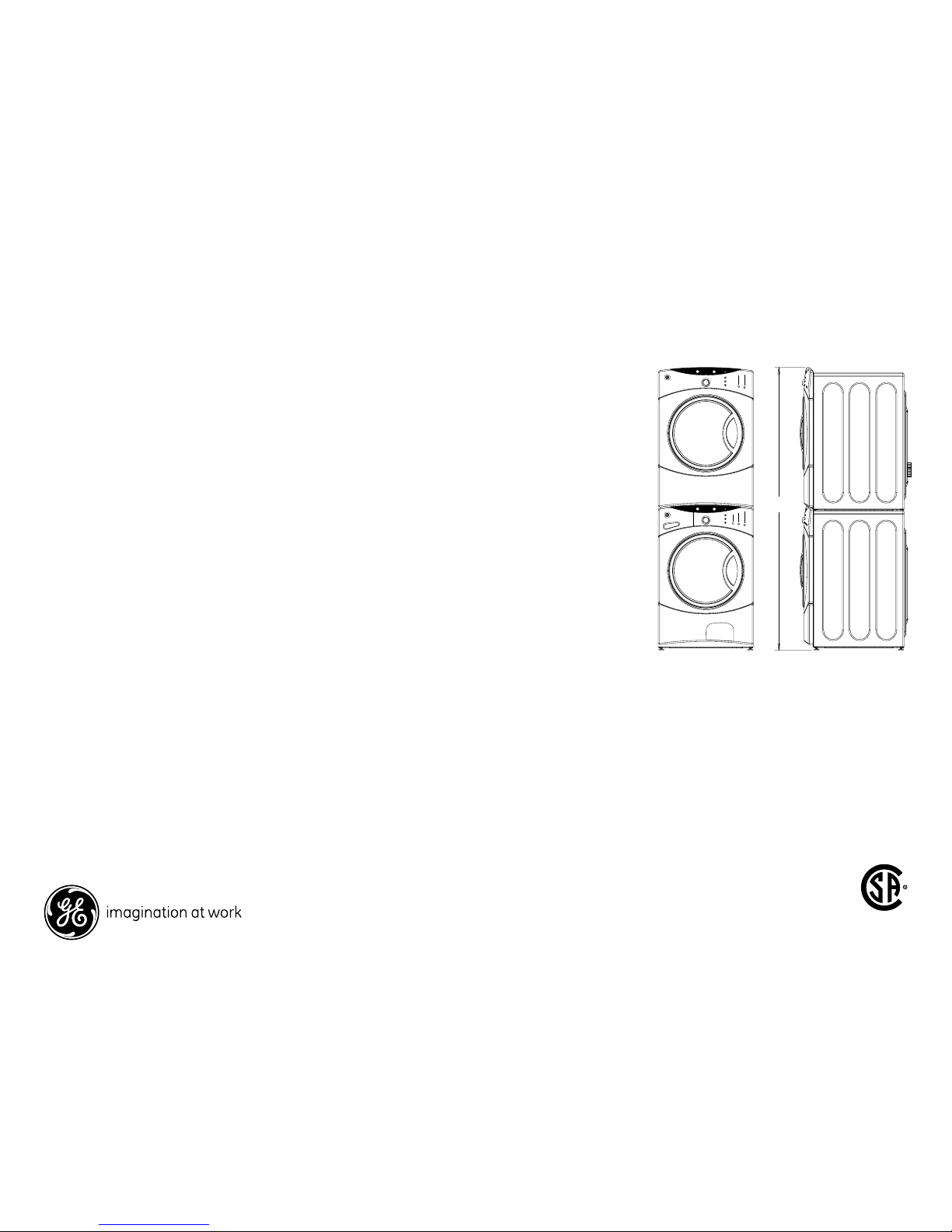

Stacked Dimensions (in inches)

80-1/8

DCVH680GJ

GE®7.0 Cu. Ft. Super Capacity Frontload Gas Dryer

Specification Revised 8/09 360453

Dryer Exhausting Information – Metal Duct Only

For complete information, see installation instructions packed with your dryer.

Ducting Materials: For best performance, this dryer should be vented with 4” diameter

allrigidmetalexhaustduct.Ifrigidmetalductcannotbeused,thenUL-listedflexible

metal(semi-rigid)ductingcanbeused(KitWX08X10077).Inspecialinstallations,itmay

benecessarytoconnectthedryertothehouseventusingaflexiblemetal(foil-type)duct.

AUL-listedflexiblemetal(foil-type)ductmaybeusedONLYininstallationswhererigid

metalorflexiblemetal(semi-rigid)ductingcannotbeusedANDwherea4”diametercan

be maintained throughout the entire length of the transition duct. Please see installation

instructionpackedwithyourdryerforcompleteinstructionswhenusingflexiblemetal(foil

type) ducting.

Exhaust Length Calculation:

1. Determinethenumberof90°turnsneededforyourinstallation.Ifyouexhausttothe

side or bottom of dryer, add one turn.

2. Themaximumlengthof4’rigid(aluminumorgalvanized)ductwhichcanbetoleratedis

shown in the table.

 Aturnof45°orlessmaybeignored.Two45°turnswithintheductlengthshouldbe

treated as a 90° elbow.

A turn over 45° should be treated as a 90° elbow.

Dryers mustbeexhaustedtotheoutside.

Caution: Forpersonalsafetydonotterminateexhaustintoachimney,underanyenclosed

house floor (crawl space), or into an attic, since the accumulated lint could create a fire

hazardormoisturecouldcausedamage.Neverterminatetheexhaustintoacommonduct

orplenumwithakitchenexhaust,sincethecombinationoflintandgreasecouldcreatea

fire hazard.

Exhaustductsshouldbeterminatedinadamperedwallcaptopreventbackdrafts,bird

nesting,etc.Thewallcapmustalsobelocatedatleast12"abovethegroundoranyother

obstruction with the opening pointed down.

For more information on venting kits and accessories, please call 1-800-GE-CARES.

DCVH680GJ

GE®7.0 Cu. Ft. Super Capacity Frontload Gas Dryer

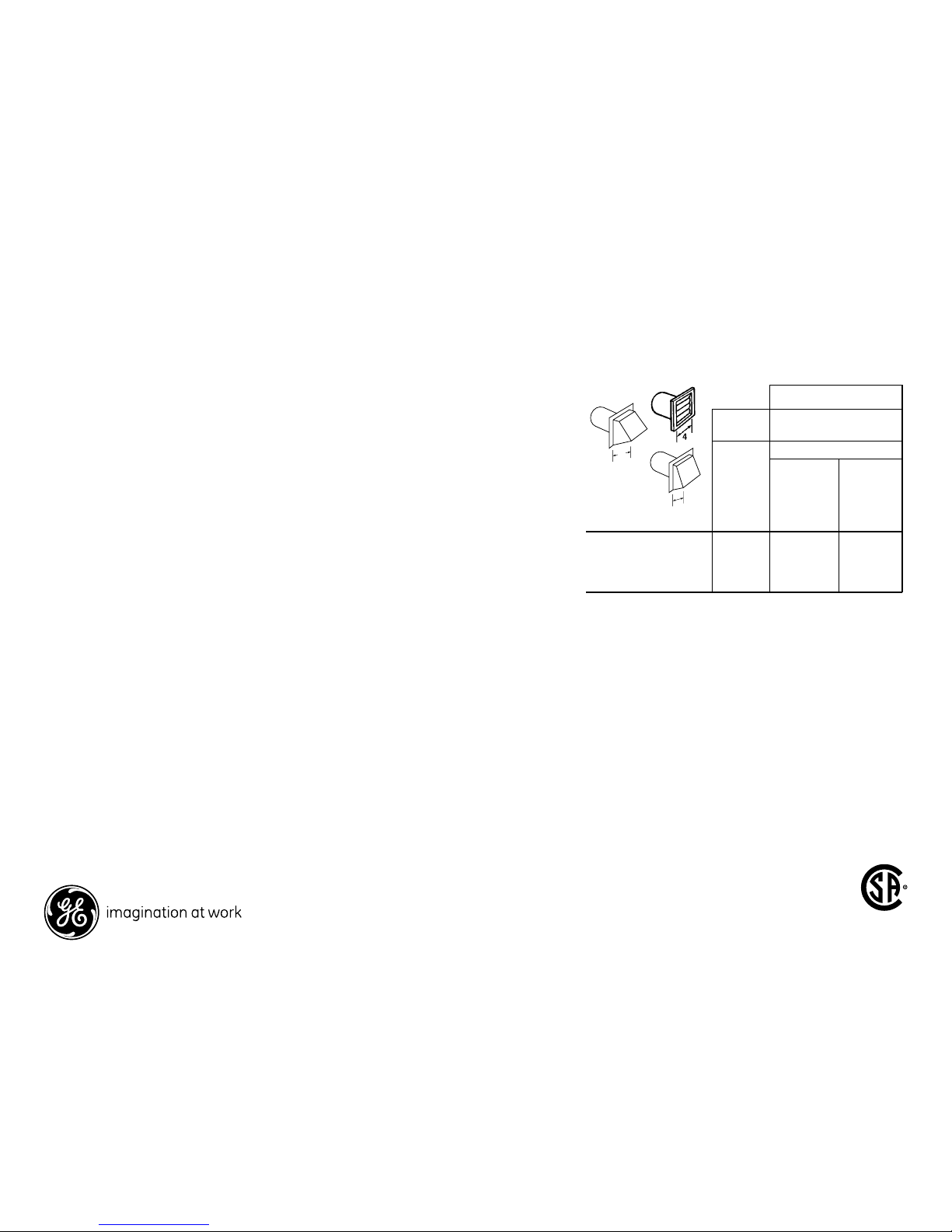

Best performance

Domestic

dryer models

Maximum length of 4"

dia. rigid metal duct

Number

90°

turns

Exhaust hood type

opening

2-1/2"

opening

7.0, 6.0 and 5.8 cu. ft.

capacity models

all gas dryers

90 ft.

60 ft.

45 ft.

35 ft.

60 ft.

45 ft.

35 ft.

25 ft.

2-1/2

Specification Revised 8/09 360453

DCVH680J

Features and Benefits

• 7.0Cu.Ft.SuperCapacity-Handleslarge-sizeitemsandfamily-sizeloads

•SensorDryPlus™- Continually monitors moisture levels to help clothes look

better longer

•RotaryElectronicControlswithCycleCountdownDisplayandLEDIndicators-

Simplify the cycle selection and provide accurate cycle times

•InteriorDryerLight-Letsyouseeeverythinginsideforeasyloadingandunloading

•DeluxeQuiet-Providesnear-silentperformancewithaquiet-engineeredmotor

andcomponents,plusanextralayerofinsulation

•AdjustableEnd-Of-CycleSignal-Alertsyouwhencycleisdone,savingtime

between loads

•MultipleDryCycles-Deliveroptimaldryingresults

•Anti-BacteriaOption-CertifiedbytheNSF®to reduce up to 99% of certain types

of bacteria

•5HeatSelections-Offerenhanceddryingperformanceandfabriccare

•DuraDrum™- Provides long-lasting dependability and durability

•DampDrySignal-Remindsyouwhentoremoveselectitemsforhang-drying

•DelayStart-Letsyoudothelaundryonyourterms

• ModelDCVH680GJBB–Blackonblack

• ModelDCVH680GJMR–Metallicred

• ModelDCVH680GJMS–Metallicsilver

• ModelDCVH680GJWW–Whiteonwhite

• ModelDCVH680GJMV–VermillionRed

DCVH680GJ

GE®7.0 Cu. Ft. Super Capacity Frontload Gas Dryer
