GE DCVH480 Manuel utilisateur

GE 24” DCVH480 Series Dryer

DCVH480EK0WW

DCVH485EK0MS

Service

uide 31-9194

MK 11/12/2009

https://appliancetechmanuals.com

IMPORTANT SAFETY NOTICE

The information in this presentation is intended for use by individuals

possessing adequate backgrounds of electrical, electronic, &

mechanical experience Any attempt to repair a major appliance may

mechanical

experience

Any

attempt

repair

major

appliance

may

result in personal injury & property damage. The manufacturer or seller

cannot be responsible for the interpretation of this information, nor can it

assume any liability in connection with its use.

WARNING

To avoid personal injury, disconnect power before servicing this product.

If electrical power is required for diagnosis or test purposes, disconnect

the power immediately after performing the necessary checks.

the

power

immediately

after

performing

the

necessary

checks.

RECONNECT ALL GROUNDING DEVICES

If grounding wires, screws, straps, clips, nuts, or washers used to

complete a path to ground are removed for service, they must be

returned to their original position & properly fastened.

https://appliancetechmanuals.com

GE Factory Service Employees are required to use safety glasses with side

hi ld t i t t (D

)l &t lt h f ll i

s, cu

res

yneema

)

oves

oe s

oes

or a

repa

rs.

Plano Safety Glasses

neema

Cut

Steel Toe Shoes

Resistant Glove

Prescription Safety Glasses

Safety Glasses must be compliant with

ANSI Z87.1-2003

https://appliancetechmanuals.com

Warranty

https://appliancetechmanuals.com

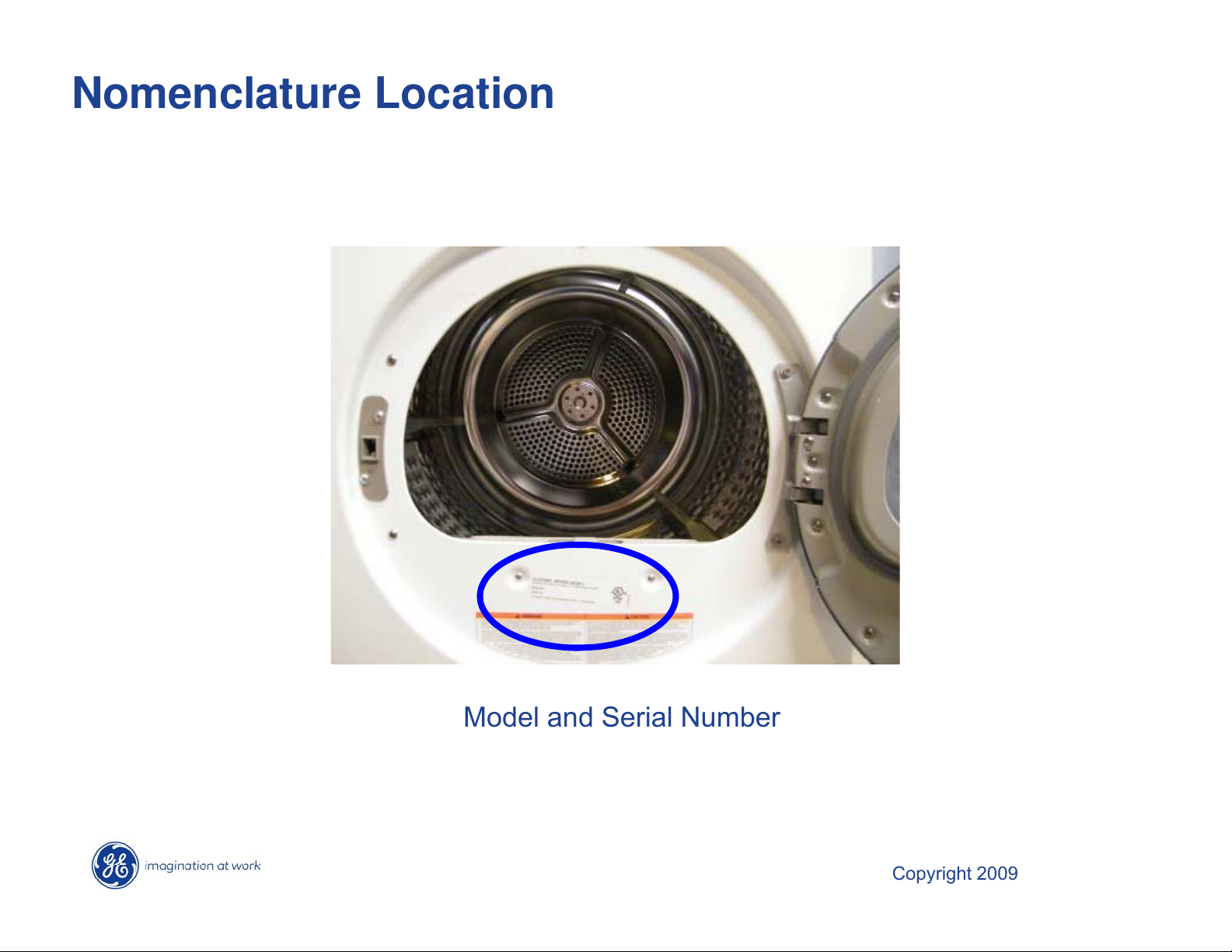

Nomenclature Location

Model and Serial Number

https://appliancetechmanuals.com

Mini Manual Location

Mini Manual

Mini Manual located behind control panel

https://appliancetechmanuals.com

Control Panel Selections

•

Time

adjusts the

“

Time Dry

”

cycles

Time

adjusts

the

Time

Dry

cycles

• Sensor - adjusts dryness level for “Sensor Cycles”

• Temp - adjusts the temperature setting for all non delicate heat cycles

https://appliancetechmanuals.com

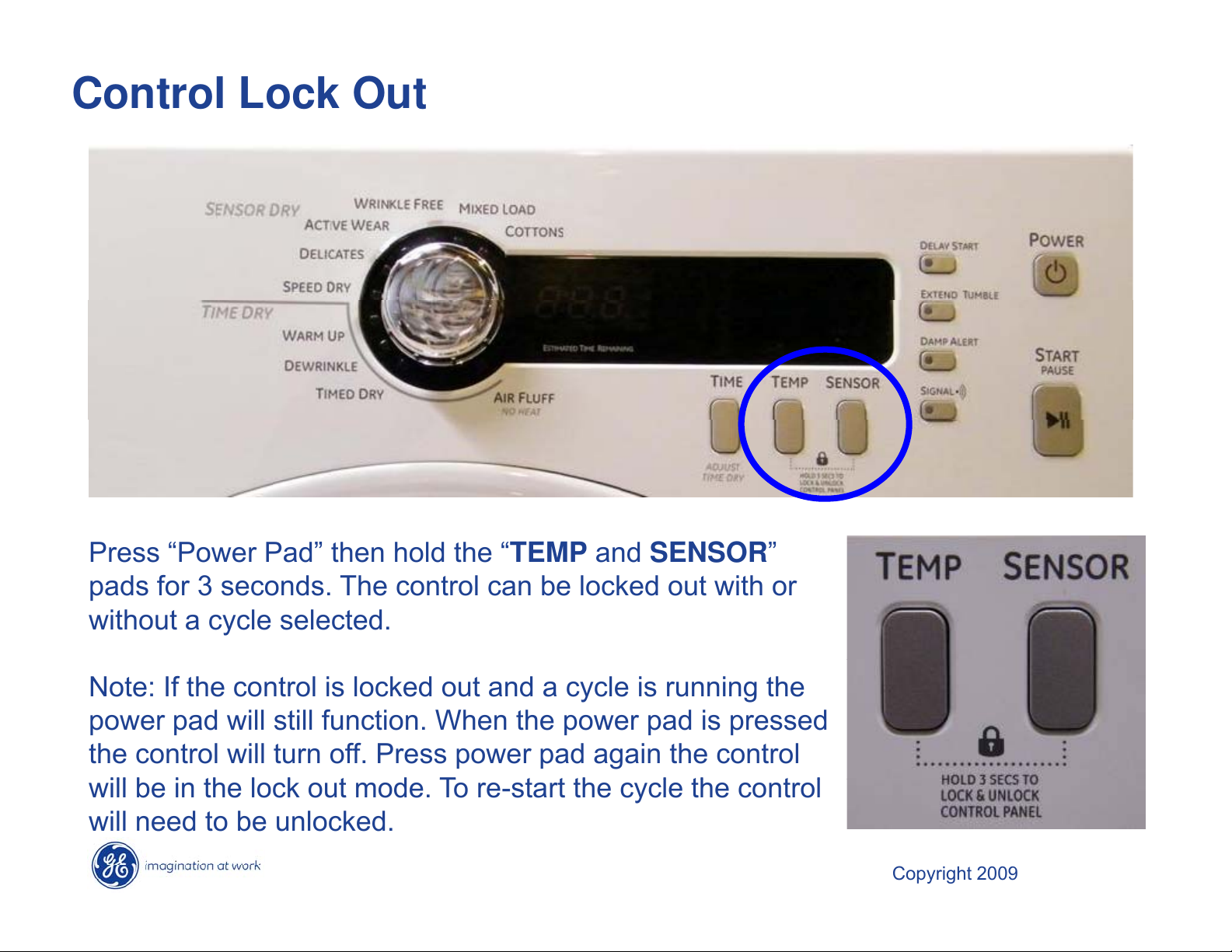

Control Lock Out

Press “Power Pad” then hold the “TEMP and SENSOR”

pads for 3 seconds. The control can be locked out with or

without a cycle selected.

Note: If the control is locked out and a cycle is running the

power pad will still function. When the power pad is pressed

the control will turn off. Press power pad again the control

ill b i th l k t d T

ttth lth tl

ill

o re-s

e cyc

e con

will need to be unlocked.

https://appliancetechmanuals.com

Damp Alert

• This option causes the dryer to beep when clothes have dried to a damp level.

• The dry cycle will continue running

•

Damp Alert can only be selected for

“

dry more dry and extra dry

”

sensor dry selections

Damp

Alert

can

only

selected

for

dry

and

extra

dry

sensor

dry

selections

https://appliancetechmanuals.com

STACKED INSTALLATION

• Dryer can be stacked on washer as an installation option

• Optional stacking kit required (GE kit # GE24STACK)

Shi i i ht f d i 100lb

•

Shi

ng we

ryer

100lb

Tools Required:

Phillips screwdriver

Phillips

screwdriver

Open end or adjustable wrench

Pliers

Level

https://appliancetechmanuals.com
