GE GLD5604V Manuel

Specification Created 5/11 350279

Listed by

Underwriters

Laboratories

GLD5604/5654/5664V

GE®Tall Tub Built-In Dishwasher

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

MAX.

20-1/2

4 (Adjustable)

33-3/4" MIN.

adj. to 35"

27-1/2

This wall area

must be free of

pipes or wires

Countertop

Hot

water

line on

left

2Plumbing and electrical

service must enter

inside shaded area

24" From wall

24" MIN.

90°

19" MIN. from wall

24"

MIN.

34" to 34-3/4"

Underside

of countertop

to floor

90°

Electrical

wiring on

right

Electrical

wiring is

3" from

cabinet

Dimensions and Installation Information (in inches)

Electrical Rating

Voltage AC.......................................................... 120

Hertz.................................................................... 60

Total connected load amperage............. 10

Calrod®heater watts max....................... 875

For use on adequately wired 120-volt, 15-amp circuit

having 2-wire service with a separate ground wire.

This appliance must be grounded for safe operation.

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

Specification Created 5/11 350279

GLD5604/5654/5664V

GE®Tall Tub Built-In Dishwasher

GLD4466RSS

GLD4456RCS

Features and Benefits

• 5-stagefiltrationwithPiranha™hard food disposer - 5 self-cleaning filters

ensure clean dishes

• Dedicatedsilverwarejets-Highlypressurizedsprayjetstargetthesilverware

area for improved cleaning

• SteamPreWash-Loosenstoughsoilsbeforeanycyclevirtuallyeliminatingthe

need for soaking or pre-rinsing dishes

• CleanSensor™- A highly sensitive laser continually monitors the soil level and

temperatureineverycycle,adjustingwaterandcycletimesasneededforthe

optimal cleaning results

• Naturalconvectionheateddryoption-Adryingelementeffectivelydries

dishes reducing the need to towel dry after unloading

• 57dBAsoundlevel-Quietoperationwithtwo-pumpsystemmeansabigclean

with little sound

• Pearlescentgraynylondeep-tieredrackwithStemSafe™- Long-lasting, durable

nylon coated racks resist rust and secure dishes

• ENERGYSTAR®qualified and CEE Tier II rated - Meets or exceeds federal

guidelines for energy efficiency for year-round energy and money savings

• SaniWashcycle(NSFresidential)-Hightemperaturerinsesanitizesand

reduces 99.999% of bacteria found on dishes

• Audibleend-of-cyclesignal-Thedishwashermakesasoundtotellyouwhen

the load is complete and dishes are ready to unload

•ModelGLD5664VSS–Stainlesssteel(shown)

•ModelGLD5654VCS–CleanSteel™

•ModelGLD5604VWW–Whiteonwhite

•ModelGLD5604VBB–Blackonblack As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels GE Lave-vaisselle

GE GSD1005 Manuel utilisateur

GE PROFILE GLD6900 Manuel utilisateur

GE Nautilus GSD4500 Series Manuel utilisateur

GE Profile Series Manuel utilisateur

GE GDT550HGD4WW Manuel utilisateur

GE GDF510-640 Series Manuel utilisateur

GE GSD8000 series Manuel utilisateur

GE Monogram ZBD6800K Manuel utilisateur

GE GSD4010 Manuel utilisateur

GE EDW6000 Series Manuel utilisateur

GE GSD970 P Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

GE Triton GSD5110 Manuel utilisateur

GE GSD4000NBB Manuel utilisateur

GE GSC720 Manuel utilisateur

GE CDWT980RSS - Cafe 24" Tall Tub Dishwasher Manuel utilisateur

GE Dishwashers Manuel utilisateur

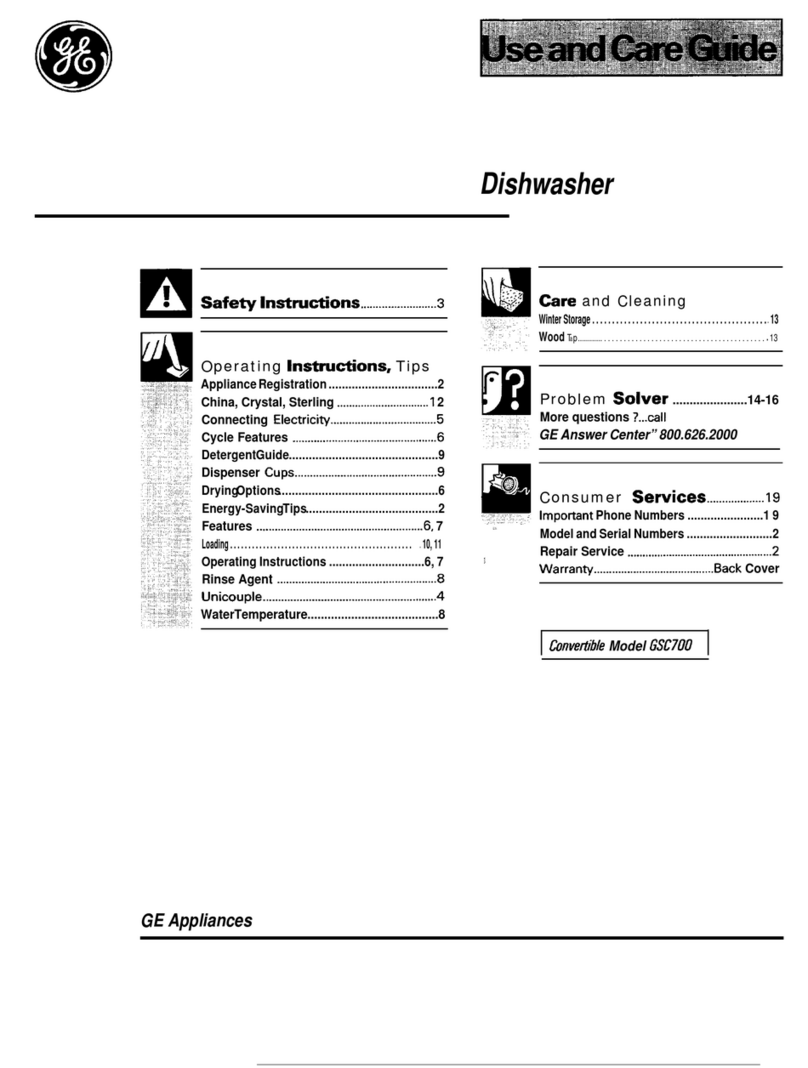

GE GSC700 Manuel utilisateur
