Dimensions and Installation Information
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Listed by
Underwriters
Laboratories
PP989DN
GE Profile™ 30" Downdraft Electric Cooktop
Specification Created 7/08
220977
Wall Installation: Wall installations
require 25” countertop
depth. When
cabinet is flush against the wall, the
fan housing can be rotated to the
horizontal position for direct
venting
through rear wall. Make a countertop
cutout in the range
cabinet according to unit dimensions and installation type.
Duct hole is positioned in back of cabinet for through-the-
wall ducting. Requires special offset adapter JXRW89.
Peninsula or Island Installation: For peninsula/islands a
minimum 26”
countertop
depth is suggested. Blower should
be in vertical position. Island or peninsula cabinets may
require adjustment in cutout depth and/or location within
the width dimensions. Duct hole is positioned in bottom of
cabinet for island or peninsula installation.
Slab Installation: For peninsula or island installation and
rear wall ducting, 6” PVC duct or locally approved piping
should be used if installing under a poured concrete slab.
Receptacle Location: Install an approved junction box
within shaded area shown in diagram. Junction box must
be at least 10-1/2" below top of cabinet.
Installation Information: Before installing, consult installation
instructions, packed with product, for current dimensional
data. Note: Electrical cable is not supplied with unit.
These cooktops are approved for indoor use only.
KW Rating
240V 9.1
208V 6.9
25
1-7/8"
MIN. Required*
20-5/8
Cut-out Dimensions (in inches)
28-7/8
*U.L. Requirement.
Note: A 6" minimum spacing to adjacent side wall is required
20
9
4
10-1/2
16
C
L
Cabinet Dimensions (in inches)
*Note: A 6" minimum spacing to adjacent side wall is required
Dimension and installation information are shown in inches.
227⁄16ʺ
(229⁄16ʺ SS)
201⁄2ʺ
22ʺ
297⁄8ʺ
(30ʺ SS)
23⁄16ʺ
(21⁄4ʺ SS)
283⁄4ʺ
Dimensions and Installation Information
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000. Dimension and installation information are shown in inches.
Listed by
Underwriters
Laboratories
PP989DN
GE Profile™ 30" Downdraft Electric Cooktop
Specification Created 7/08
220977

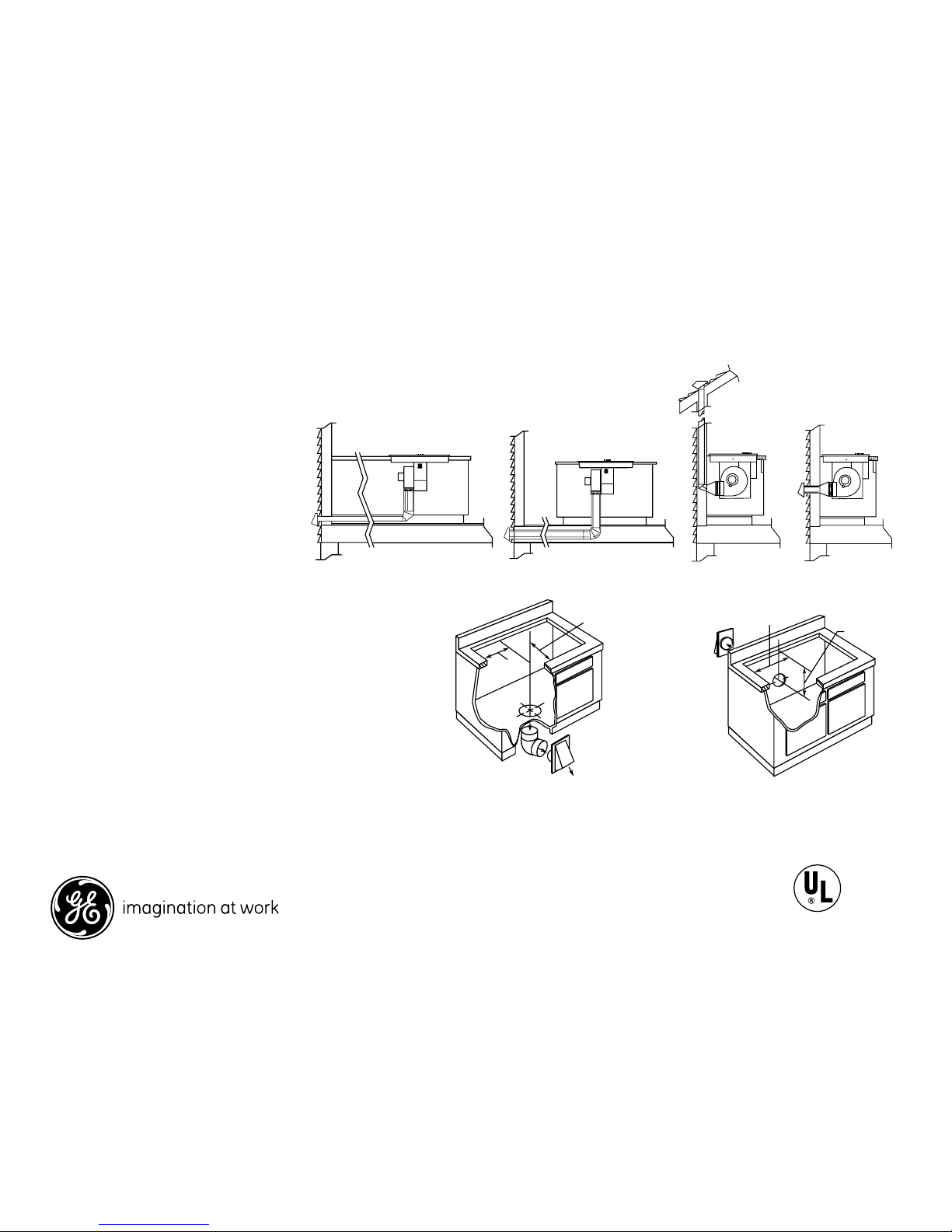

Installing the Ductwork: Use galvanized
or aluminum duct in 6” round or 3-1/4” x
10” size, or combination of both. PVC duct
or locally approved piping should be used
if installing under a poured concrete slab.
Local building code must be followed in
specifying type and schedule of all duct used.
Note: Ductwork must be vented to outside.
Do not vent into a wall, ceiling, crawlspace,
attic or any concealed space. Always use
an appropriate roof or wall cap with damper.
Laundry-type wall caps should never
be used. For maximum efficiency use the
shortest and straightest duct run possible,
with as few fittings as possible.
For satisfactory
performance the duct run
should not exceed 100 feet equivalent length.
Refer to the table of equivalent lengths
(shown in installation instructions) for
various duct configurations.
Rear Wall VentingDownward Venting
Venting Options
Through Cabinet Toe Space Inside Wall to Roof Direct to Outside
Between Floor Joist
9-1/8
10-1/8
18-3/4
6-1/8
PP989DN
GE Profile™ 30" Downdraft Electric Cooktop
Specification Created 7/08
220977
Features and Benefits
• Downdraft Exhaust - Powerful exhaust system effectively pulls smoke
and steam out of the kitchen
• Ceramic Glass Cooktop - A smooth cooktop surface makes cleaning
quick and easy
• Ribbon Heating Elements - Provide powerful heat beneath a smooth
glass surface to ensure even heat and fast warm-up times
• Bridge Element - Combines three cooktop elements into one large
cooking area, ideal for oversized cooking pans
• 6"/9" PowerBoil™Element - Accomodates various-size pots or pans
and 3,000 watts of power speeds the boiling process
• Three Speed Downdraft Fan - Powerful three speed exhaust system
effectively pulls smoke and vapors out of the kitchen
• Frameless Design - A smooth and seamless cooktop surface makes
cleaning quick and easy
• Model PP989TNWW – True white
• Model PP989DNBB – Black on black
PP989DN/TN/SN
Off
Hi
Lo
Off
Hi
Lo
Off
Hi
Lo
Off
Hi
Lo
Off
Off
