INTRODUCTION

Your GE Caller ID unit stores and displays specific information, provided by your local

telephone company, to subscribers of Caller ID or similar caller identification services.

You must subscribe to one of these services in order to use this unit.

BEFORE YOU BEGIN .................................. 1

POWERING THE CALLER ID UNIT ................. 2

INSTALLATION ........................................... 4

OPERATION .............................................. 9

CHOOSING ALANGUAGE ........................ 9

TIME AND DATE SETTINGS ...................... 9

RECEIVING AND STORING CALLS ............ 10

DELETE AND REVIEW BUTTONS ............. 11

VERY IMPORTANT PERSON BUTTON ........ 12

TABLE OF CONTENTS

DISPLAY CONTRAST ADJUSTMENT ......... 14

MESSAGE INDICATORS .........................15

TROUBLESHOOTING TIPS .......................... 16

GENERAL PRODUCT CARE ........................ 17

SERVICE ................................................ 18

LIMITED WARRANTY ................................ 21

WARNING:

TO PREVENT FIRE

OR ELECTRICAL SHOCK HAZARD,

DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE.

SEE MARKING ON BOTTOM / BACK OF PRODUCT

CAUTION

RISKOF ELECTRICSHOCK

DONOT OPEN

THE EXCLAMATION

POINT WITHIN THE

TRIANGLE IS A

WARNING SIGN

ALERTING YOU OF

IMPORTANT

INSTRUCTIONS

ACCOMPANYING

THE PRODUCT.

THE LIGHTNING

FLASH AND ARROW-

HEAD WITHIN THE

TRIANGLE IS A

WARNING SIGN

ALERTING YOU OF

"DANGEROUS

VOLTAGE" INSIDE

THE PRODUCT.

CAUTION: TO REDUCE THE

RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER

(OR BACK). NO USER-

SERVICEABLE PARTS IN-

SIDE. REFER SERVICING

TO QUALIFIED SERVICE

PERSONNEL.

BEFORE YOU BEGIN

PARTS CHECKLIST

Make sure your package includes the following items:

MODULAR JACK REQUIREMENTS

You need an RJ11 type modular jack, which is the most

common type of phone jack and might look like the one

pictured here. If you don’t have a modular jack, call your local

phone company to find out how to get one installed.

Caller ID unit

Telephone line cord

DELETE VIP DISPLAYREVIEW

Mounting Bracket

VERY IMPORTANT:

The Caller ID feature of

this product requires a

subscription to Caller ID

service from your

telephone company.

AC power supply

POWERING THE CALLER ID UNIT

The unit can operate on batteries only, but you must

use the AC power supply in order for the new call

indicator light and the display backlighting to work.

INSTALLING THE BATTERIES

Install 4 AAA-size batteries to retain caller ID informa-

tion in the event of a power failure.

Disconnect the line cords from the back of the unit

and wait a few seconds for the unit to go into

standby.

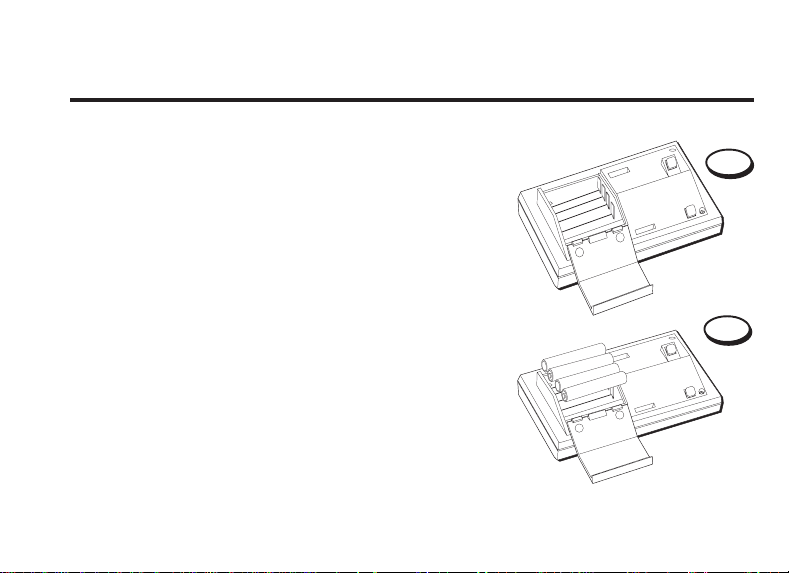

1. Open the battery compartment door by pressing

on the door and sliding it in the direction of the

arrow.

2. Insert 4 AAA-size batteries as shown on the

diagram in the battery compartment.

3. Replace the battery compartment door securely.

BATTERY INDICATOR

If the battery icon appears in the display, you need to

replace the batteries.

USING THE AC ADAPTER

You must use the AC power supply in order for the

new call indicator light and the display backlight to

work.When using AC power, the batteries serve as a

backup in the event of power failure.

NOTE: Only use the

Thomson 5-2408 AC

adapter that came with

this unit. Using other

adapters may damage

the unit.

INSTALLATION

You can set the unit on a tabletop or mount it on the wall.

IMPORTANT INSTALLATION INFORMATION

• Never install telephone wiring during a lightning

storm.

• Never touch uninsulated telephone wires or

terminals, unless the telephone line has been

disconnected at the network interface.

• Use caution when installing or modifying tele-

phone lines.

TABLETOP INSTALLATION

1. Connect the telephone line cord to the jack on the

back of the unit marked TO LINE, and to the

modular wall jack.

2. Connect your phone’s line cord to the jack on the

back of the unit marked TO PHONE.

3. Insert the AC adapter into the jack marked 9 V DC

into the back of the unit and to an AC power

outlet.

If you want the unit to sit up at an angle instead of

laying flat, attach the mounting bracket to the back of

the unit before connecting the cords.

NOTE: Only use the Thomson 5-2408 AC adapter

that came with this unit. Using other adapters may

damage the unit.

WALL MOUNT INSTALLATION

Use the mounting accessories included with this unit.

1. Hold the mounting bracket against the wall and

mark the mounting screw positions on the wall

with a pencil.

2. Insert the anchor screws and install the mounting

bracket on the wall.

3. Connect the telephone line cord to the jack on the

back of the unit marked TO LINE, and to the

modular wall jack.

4. Connect your phone’s line cord to the jack on the

back of the unit marked TO PHONE.

5. Insert the AC adapter into the jack marked 9 V DC

into the back of the unit and to an AC power

outlet.

6. Securely mount the unit on the bracket.

Canestrare Graphics HB

345

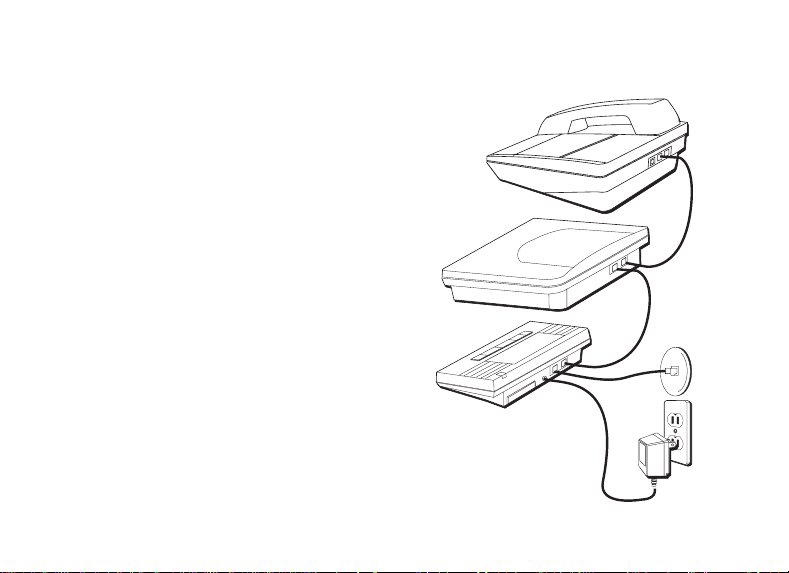

ANSWERING MACHINE INSTALLATION

The answering machine must be set to answer

calls after at least 2 rings to properly receive caller

ID information.To use your caller ID unit with an

answering machine:

1. Plug a telephone line cord into the modular

jack and into the jack on the back of the unit

marked TO LINE.

2. Plug another telephone line cord into the jack

on the back of the unit marked TO PHONE and

into the answering machine.

3. Plug a third telephone line cord into the

answering machine and into the phone.

4. Insert the AC adapter into the jack marked 9 V

DC into the back of the unit and to an AC

power outlet.

TWO-LINE SYSTEM INSTALLATION

You must use two caller ID units if you

want to use caller ID for both lines.You

must also purchase a triplex adapter.

1. Plug the triplex adapter into your two-

line modular wall jack.

2. Plug your two-line phone into the

two-line receptacle on the triplex

adapter.

3. Plug each caller ID unit into a single-

line receptacle on the triplex adapter.

4. Connect the AC power supply for

each unit.
