Wireless Alarm System

Garage Door

Sensor

User’s Manual

Important Safeguards 4

Introduction 5

Installation 6

Assigning a Sensor to a Zone 7-8

Erasing a Sensor from a Zone 8-9

Testing a Sensor or your system 9-10

Low battery indicator 10

Battery warnings 11

F.A.Q.'S 12-13

FCC Warning 14

Table of Contents

Before connecting or operating the Garage Door

Sensor, please read these instructions carefully and

save this manual for future reference.

Congratulations

The GE Choice Alert™Wireless Alarm System is one

of the most affordable and expandable wireless

alarm systems available. You’ll discover that the

system offers many features typically found in custom

installed Alarm systems.

The Choice Alert system is reliable and easy-to-

use. With Choice Alert you can select from a line of

Sensors and Accessories; start small and expand

as you need, or create a system that meets all your

needs. The Choice Alert System is protected by Priority

Code Selection technology which provides increased

security and trouble-free wireless connections. It

also guarantees the Control Center will only respond

to signals from your Sensors in and around your home,

and prevents anyone from tampering with

your system.

The user manual explains in simple steps how to

install, use and care for your new Choice Alert

Garage Door Sensor.

If you have any questions or would like

additional information please visit our web site

www.jascoproducts.com, or contact our

Customer Service Group at 1-800-654-8483.

Important safeguards

PreCautions

1. Do not attempt to disassemble the Garage Door

Sensor, unless described in the user’s manual. There

are no user serviceable parts.

2. Handle with Care – Avoid striking or shaking.

Improper use or storage could damage the Garage

Door Sensor. Modifying or tampering the device or its

internal components can cause a malfunction and

void the Garage Door Sensor’s warranty.

3. If you feel the Garage Door Sensor or any part of

the Choice Alert system is not operating correctly or

as described, please contact Customer Service for

assistance (1-800-654-8483).

Introduction

The Garage Door Sensor is designed to be used

speciﬁcally with vertical opening garage or shed doors.

When mounted properly it monitors when the door is

open or closed. If the door is opened, the Garage Door

Sensor will transmit a signal to the Control Center. The

settings on the Control Center determine if an alarm,

alert or chime sounds.

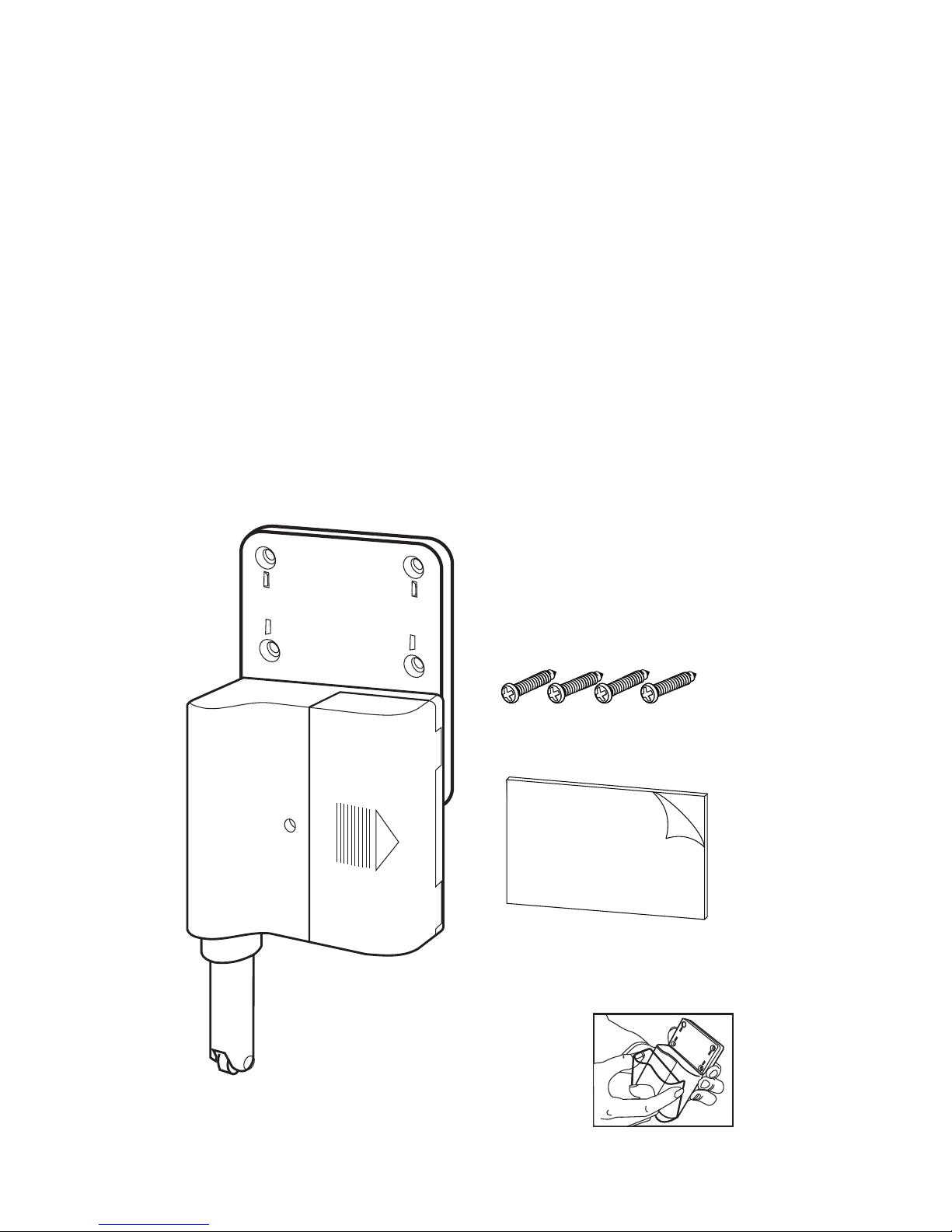

Parts Check List

Identify all the parts before proceeding.

4 Screws

Double sided tape

Make sure you take the

cover off before installing

Garage Door Sensor

with mounting bracket

Preparing the Garage Door Sensor for Installation

The Garage Door Sensor is a self-contained Sensor.

Before installing open the battery door and, remove

the yellow battery isolation tape from the Garage

Door Sensor. This activates the Lithium battery inside

the Garage Door Sensor. The approximate battery life

is up to two years. When replacing the battery it is

recommended to replace all Sensor batteries at the

same time in order ensure proper operation of the

entire system.

Note: When using doublesided tape apply to clean dry

surface.

The Garage Door Sensor is intended to be positioned

on the interior side of the garage door at the bottom.

The Garage Door Sensor must be mounted vertically

so the detection cylinder is able to move freely up and

down. Select a position on the garage door frame

near bottom edge. To not damage the Garage Door

Sensor when the door closes, position the Garage

Door Sensor with the detection rod retracted and the

Closed Open

bottom edge of the Garage Door Sensor even with the

door edge. In most applications you can use double

sided tape (included). It is strongly suggested to mount

Garage Door Sensor lightly to ensure operation. Once

you are conﬁdent with the mounting position apply

pressure to secure to surface. For a more secure

installation you can use the included screws.

Once the Garage Door Sensor is mounted, you’ll need

to assign the Garage Door Sensor to a Zone on the

Control Center.

Assigning the Sensor to a Zone

Assigning the Sensor into a Zone is an easy four step

process, however there are a few points to remember

- Only one Sensor can be assigned at a time.

-A Sensor cannot be assigned to two different Zones.

-Up to four Sensors can be added per Zone (if a ﬁfth

Sensor is added then the ﬁrst Sensor will be replaced.)

-Batteries must be active in the Sensor before it can

be assigned to a Zone.

-Sensors can be assigned to a Zone and then mounted,

or can be mounted and then assign to a Zone.

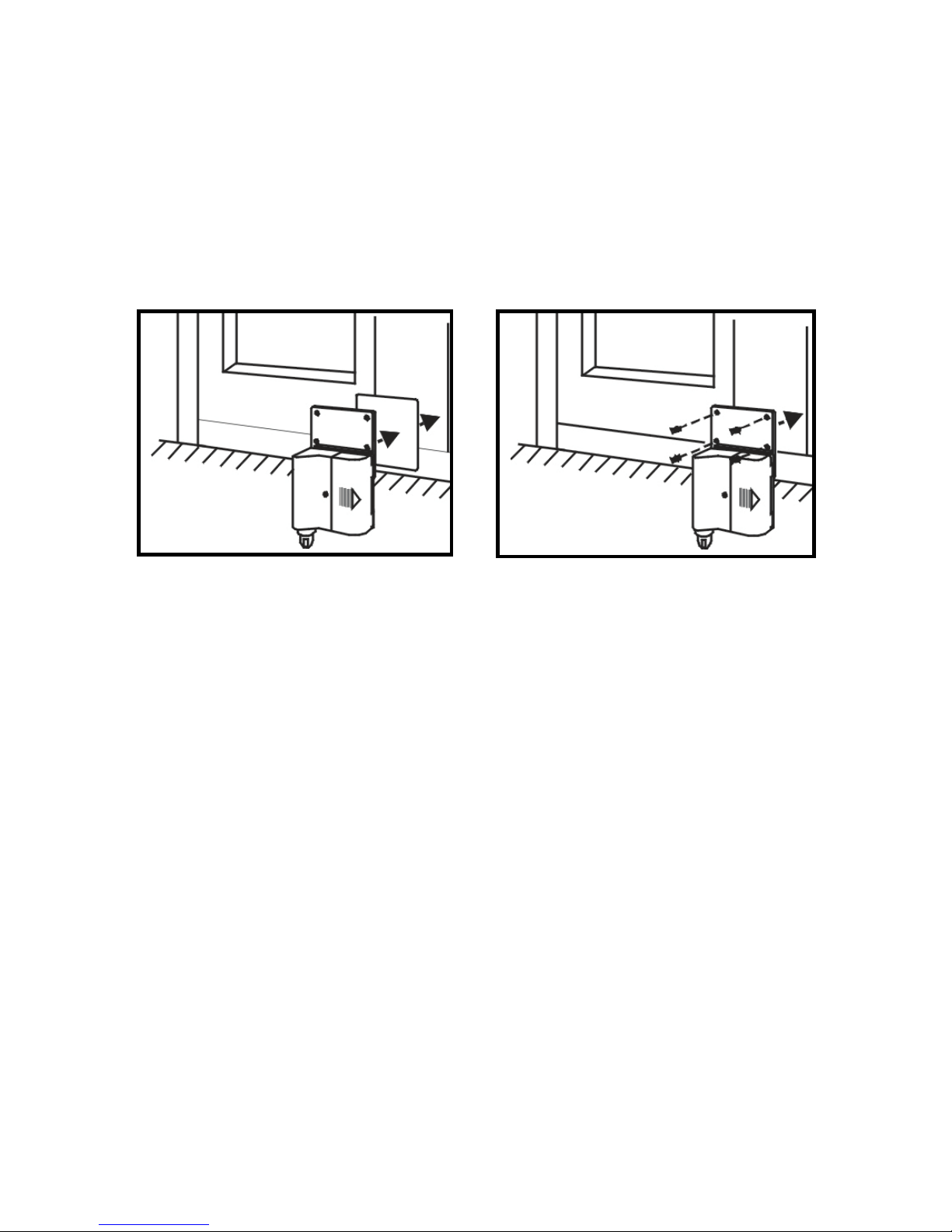

with tape with screws

Follow these steps to assign a Sensor to a Zone.

Step 1 – Press and hold the Learn button on the

Control Center for three seconds. When the

Control Center sounds a long beep, release the

Learn button.

Step 2 – Press the Zone button (1, 2, 3 or 4) for the

Zone you want to assign to the Garage Door Sensor.

The LED indicator for that Zone will begin to ﬂash.

Step 3 – Release the Zone button.

Note: Zone 4 is for dedicated alerts only. Sensors in this Zone

will not trigger an alarm or chime.

Step 4 – Activate the Garage Door Sensor

- To activate The Garage Door Sensor, lower

the detection rod to its full extension; if mounted,

raise the garage door.

Erasing the Sensor from a Zone

Note: If you need to remove the Sensor from a Zone, the

system will erase the entire Zone, so any other Sensors will

need to be put back into that particular Zone.

Step 1 - To erase a Zone, press and hold the

1 2 3 4 Arm

Zone

Armed Power

1 2 3 4

Alert

Chime

Off

Mute

Learn

Input DC 12V

Add a Sensor

Step 1

Press and hold

the Learn button

for three seconds

Step 3

Release the

Zone button

Step 4

Activate the Garage

Door Sensor

Step 2

Select the Zone number

Learn button on the Control Center. The unit will

beep once.

Step 2 - While holding the Learn button, press and

hold the Zone button to be erased. After ﬁve

seconds the Control Center will sound two beeps

and the Zone LED indicator will ﬂash twice.

Step 3 - Release all buttons. The Zone has

been erased.

Note: The Zone/Garage Door Sensor cannot be erased if:

-The Zone has been triggered for an Alert or alarm. The

Sensor/Zone must be reset.

-There is loss of signal from the Sensor to the Control

Center (such as low battery, or Sensor is out of range).

-The system is armed.

The Control Center will sound three beeps to indicate it could

not erase the Zone.

Testing a Sensor or your system

Once all the Sensors have been assigned to Zones

in the Control Center you can now test your system.

Ensure the Control Center can receive the signal

from the intended location of the Sensor before

permanently mounting a Sensor.

Step 1 - To place Control Center in Test mode

unplug AC adapter and remove batteries.

Step 2 - Press and hold the ‘Mute’ button and plug

the AC adapter back into the Control Center. When

all the LED indicators turn on, release the Mute

button. The Control Center is now in Test Mode and

any Sensor can now be tested in any Zone.

Step 3 - Set the Notiﬁcation Mode to switch ‘Alert’

position and begin activating Sensors one at a time.

1 2 3 4 Arm

Zone

Armed Power

1 2 3 4

Alert

Chime

Off

Mute

Learn

Input DC 12V

Add a Sensor

Step 1

Press and hold

the Learn button

for three seconds

Step 3

Release the

Zone button

Step 4

Activate the Garage

Door Sensor

Step 2

Select the Zone number

Note: The sensor has a LED that ﬂashes to show when the

sensor has triggered and transmitted to the main unit.

Step 4 - When testing is complete, unplug the AC

adapter, then plug the AC adapter back in and

reinstall batteries. This returns the Control Center

to standard operation mode.

Note: The Control Center will automatically return to standard

operation mode after 5 hours.

Low Battery Indicator

The Control Center continuously monitors all the

Sensors. If the Control Center does not receive a signal

from any Sensor it will begin rapidly ﬂashing the Zone

LED indicator . This indicates one or more Sensors in

the Zone may have low battery power and are unable

to transmit a signal the necessary distance. If all

batteries and/or Sensors are installed at the same

time into a Zone, it is recommended to replace the

batteries in all Sensors in the Zone.

However, you can check the Garage Door Sensor

status independently by placing the Control Center

in Test mode (see Testing a Sensor on page 9) and

trigger the Sensor separately (i.e. open garage door). If

the Sensor does not trigger an alert then replace the

battery with a new one. Additionally, the red LED on

the Sensor will ﬂash when the Sensor is triggered.
