GCC Technologies BENGAL Manuel utilisateur

BENGAL

CUTTING PLOTTER

User Manual

Great Computer Corporation ©

V 2.1 Oct. 10

NOTICE

GCC reserves the right to modify the information contained in this user

manual at any time without prior notice; un-authorised modification, copying

distribution or display is prohibited. All comments, queries or

suggestions concerning this manual please consult with your local dealer.

Bengalusermanual

ImportantInformation

Important Information

Thank you for purchasing the Bengal Cutting Plotter.

Before you use the cutting plotter, please make sure that you have read the

safety precautions and instructions below.

Caution

!SAFETY PRECAUTIONS!

¾For safety concern, please always hold the cutter firmly from the bottom while moving

it. Do not move the cutter by clasping the depression area on both sides.

O (correct) X (Incorrect)

¾Do not shake or drop the blade holder, a blade tip can fly out.

¾During an operation, do not touch any of the moving parts of this machine (such as the

carriage). Also be careful to make sure that clothing and hair do not get caught.

¾Always connect the power cable to a grounded outlet.

¾Always use the accessory power cable which is provided. Do not wire the power cable

so that it becomes bent or caught between objects.

¾Do not connect the power cable to branching outlet to which other machines are also

connected, or use an extension cable. There is danger of overheating and of

mis-operation of the machine.

¾Keep the tools away from children where they can reach.

¾Always put the pinch rollers within the white marks.

Bengalusermanual

Table of Contents

Important Information

1. General Information

1.1 PackageItems 1-1

1.2 Product Features 1-1

1.3 The Appearance 1-2

2. Installation

2.1 Precaution 2-1

2.2 Stand 2-2

2.3 BladeInstallation 2-5

2.4 Media Loading 2-7

2.5 Cable Connections 2-8

2.5.1 USBInterface 2-9

2.5.2 How to switch the USB mode 2-12

2.5.3 RS-232 Interface 2-12

3.Operation

3.1 The Control Panel 3-1

3.2 VLCD 3-3

3.3 File Uploader 3-6

3.4 Data Transmission 3-7

4. Basic Maintenance

4.1 Cleaning the cutting Plotter 4-1

4.2 Cleaning the Grid Drum 4-1

4.3 Cleaning the Pinch Rollers 4-2

5. Trouble Shooting

5.1 What if Bengal cannot Operate? 5-1

5.2 Light Indicators 5-1

5.3 Cutting Quality Problems 5-4

Appendix

A-1 CorelDrawinstruction A-1

A-2 Bengal Specification A-2

A-3 Blade Specification A-3

Bengal user manual

GeneralInformation 1-1

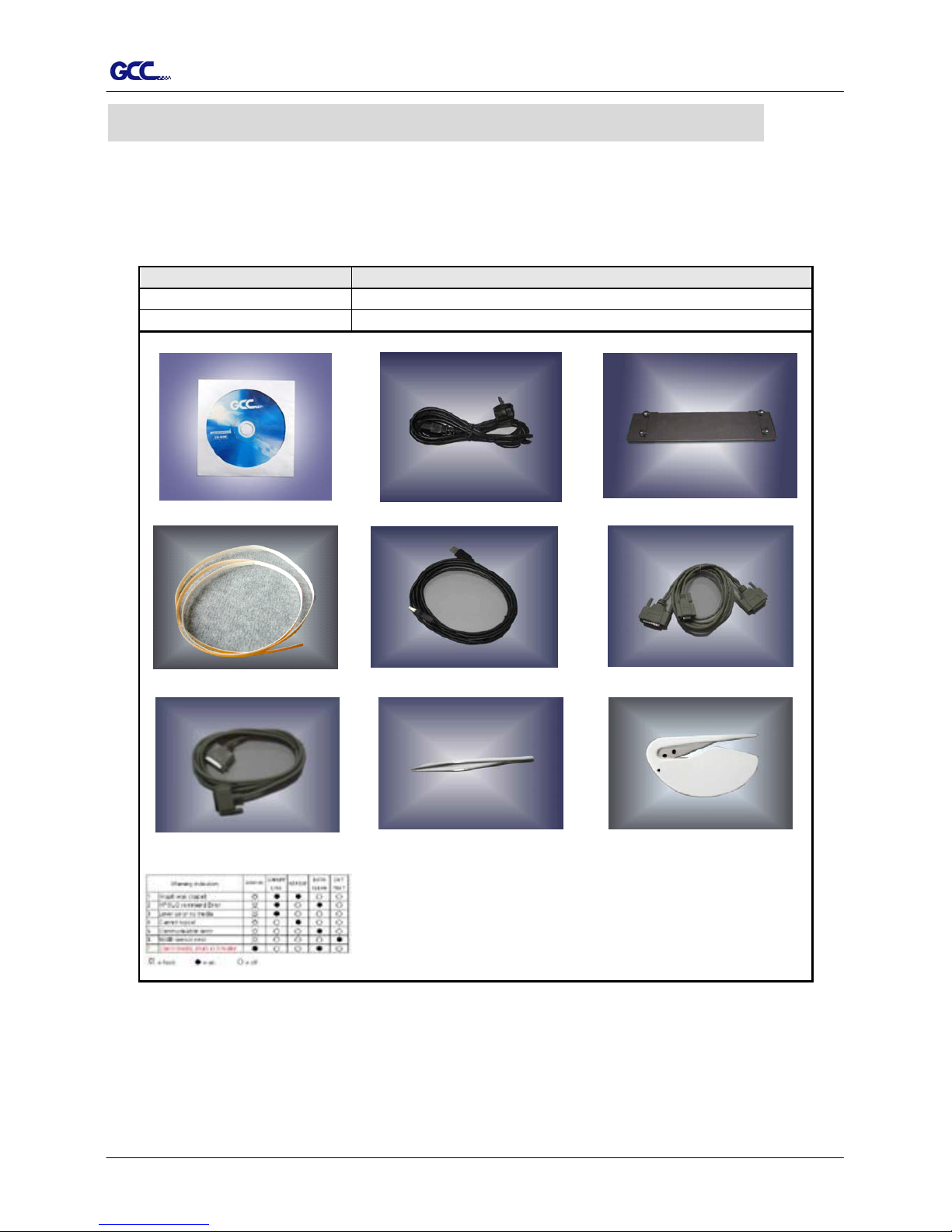

1.1 Package Items

The package of Bengal-60 contents the items listed below, please check carefully.

If you find any item missing, please consult your local dealer for further assistance.

Item Quantity

Cutting Plotter 1 Set

Accessories 1 Set

1. Installation CD 2. AC Power Cord 3. Desktop Support Brackets

4. Cutting Pad 5. USB Cable 6. RS-232 Cable

7. Printer Cable 8. Tweezers 9. Paper Slicer

10. Error-Condition Label

1.GeneralInformation

1.2 Product Features

The followings are the main features of the Sable cutting plotters:

‧Tri-port connectivity – USB & Serial interface.

‧Up to 400-gram cutting force.

‧Up to 600 mm/per second cutting speed.

Bengal user manual

GeneralInformation 1-2

1.3 The Appearance (BN-60)

1.3.1 The Front View

Object Description

A Primary Pinch Roller To help hold the media during cutting.

B Slicing Groove To help slice off media..

C Alignment Ruler To align media with clear guideline marks

D Tool Carriage To help perform cutting job with installed blade or pen.

E Blade Holder To hold the blade.

F Platen The surface for holding and supporting media in operation.

G Cutting Pad To protect blade and plate in operation.

H Control Panel To consist of 10 control keys and 4 LED lights.

1.3.2 The Back View

Object Description

I Grid Drum To move media back and forth in operation.

【Figure 1-1】

AGFED

【Figure 1-2】

Bengal user manual

GeneralInformation 1-3

1.3.3 The Side Views

【Figure 1-4】

J K L

【Figure 1-3】

Object Description

J AC Power Connector To insert the AC power cord.

K Fuse 3Amp.

L Power Switch To turn on or off the machine.

M USB Connector To connect the machine and a computer through a USB cable.

N Parallel Connector To connect the machine and a computer through a printe cable.

O Serial Interface Connector To connect the machine and a computer through a RS-232 cable.

Bengal User Manual

Installation 2-1

2.Installation

2.1 Precaution

Please read below information carefully before you start installation.

Notice 1

zMake sure the power switch is off before installing the cutting plotter.

zCarefully handle the cutter to prevent any injuries.

Notice 2 Choosing a proper place before setting up the cutting plotter

Before installing your cutting plotter, select a suitable location, which meets the following

conditions.

zThe machine can be approached easily from any direction.

zKeep enough space for the machine, accessories and supplies.

zKeep the working area stable, avoiding sever vibration.

zKeep the temperature between 15 and 30

℃

(60-86oF) in the workshop.

zKeep the relative humidity between 25% and 75% in the workshop.

zProtecting the machine from dust and strong air current.

zPreventing the machine from direct sunlight or extremely bright lighting.

Notice 3 Connecting the Power Supply

Check the plug of the power cord to see if it mates with the wall outlet. If not, please contact

your dealer.

zInsert the plug (male) into a grounded power outlet.

zInsert the other end (female) of power cord into the AC connector of cutting plotter.

Bengal User Manual

Installation 2-2

2.2 Stand

2.2.1 Stand Installation

Please follow the procedures below for assembling the stand and the media support system.

Step 1

Please examine supplied items in the accessory box of stand carton before you install:

Stand is an optional item.

Item List：

z1 Left side vertical stand

z1 Right side vertical stand

z1 Support for left side

z1 Support for right side

z1 Stand Beam

z2 Bottom Stands with wheels

z2 Sliding brackets for paper takeup

z1 Hex Wrench (M5)Φ4

z28 Socket flat head screws(M6*12L)

z1 Installation Guide

Step 2

Position the support for the left side perpendicularly to part Xand put the screws into the

holes and tighten them to form a left side T-stand (Figure 2-1). Repeat the same steps with the

support for the right side.

Support for left side

XBottom Stand with wheels

Figure 2-1

Step 3

Bengal User Manual

Installation 2-3

Place the stand beam upright on the T-stand and put the screws into the holes but do not

tighten them at this step.

Stand Beam

T-stand

Figure 2-2

Step 4

Position both the left Support and right Support perpendicularly to the T-stand and put the

screws into the holes and tighten them as shown in Figure 2-3.

Support for left side

Support for right side

Figure 2-3

Step 5
