Replacing the Gateway M320 Keyboard
This package includes a replacement keyboard for your Gateway M320 notebook and these
printed instructions.
Tools you need
You need a small Phillips and a small flat-blade screwdriver to replace the keyboard.
Preventing static electricity discharge
The components inside your notebook are extremely sensitive to static electricity, also
known as electrostatic discharge (ESD).
Before replacing the keyboard, follow these guidelines:
■Turn off your notebook.
■Wear a grounding wrist strap (available at most electronics stores) and attach it to a
bare metal part of your workbench or other grounded connection.
■Touch a bare metal surface on your workbench or other grounded object.
■Unplug the power cord, the modem cable, and the network cable.
■Remove the battery. For more information, see “Changing batteries” in your user guide.
■Disconnect all peripheral devices and remove any PC Cards.
Warning To avoid exposure to dangerous electrical voltages and
moving parts, turn off your notebook and unplug the power
cord, the modem cable, and the network cable before
opening the case.
Caution ESD can permanently damage electrostatic
discharge-sensitive components in your notebook.
Prevent ESD damage by following ESD guidelines every
time you replace the keyboard.
Warning To prevent risk of electric shock, do not insert any object
into the vent holes of your notebook.
2www.gateway.com
Before working with notebook components, follow these guidelines:
■Avoid static-causing surfaces such as carpeted floors, plastic, and packing foam.
■Remove components from their antistatic bags only when you are ready to use them.
Do not lay components on the outside of antistatic bags because only the inside of
the bags provide electrostatic protection.
■Always hold components by their edges. Avoid touching the edge connectors. Never
slide components over any surface.
Removing the keyboard
To remove the keyboard:
1Follow the instructions under “Preventing static electricity discharge” on page 1.
2Turn off your notebook.
3Disconnect the AC adapter and modem and network cables.
4Turn your notebook over so the bottom is facing up.
5Remove the battery. For instructions, see “Changing batteries” in your user guide.
6Turn your notebook over so the top is facing up, then open the LCD panel.
3
www.gateway.com

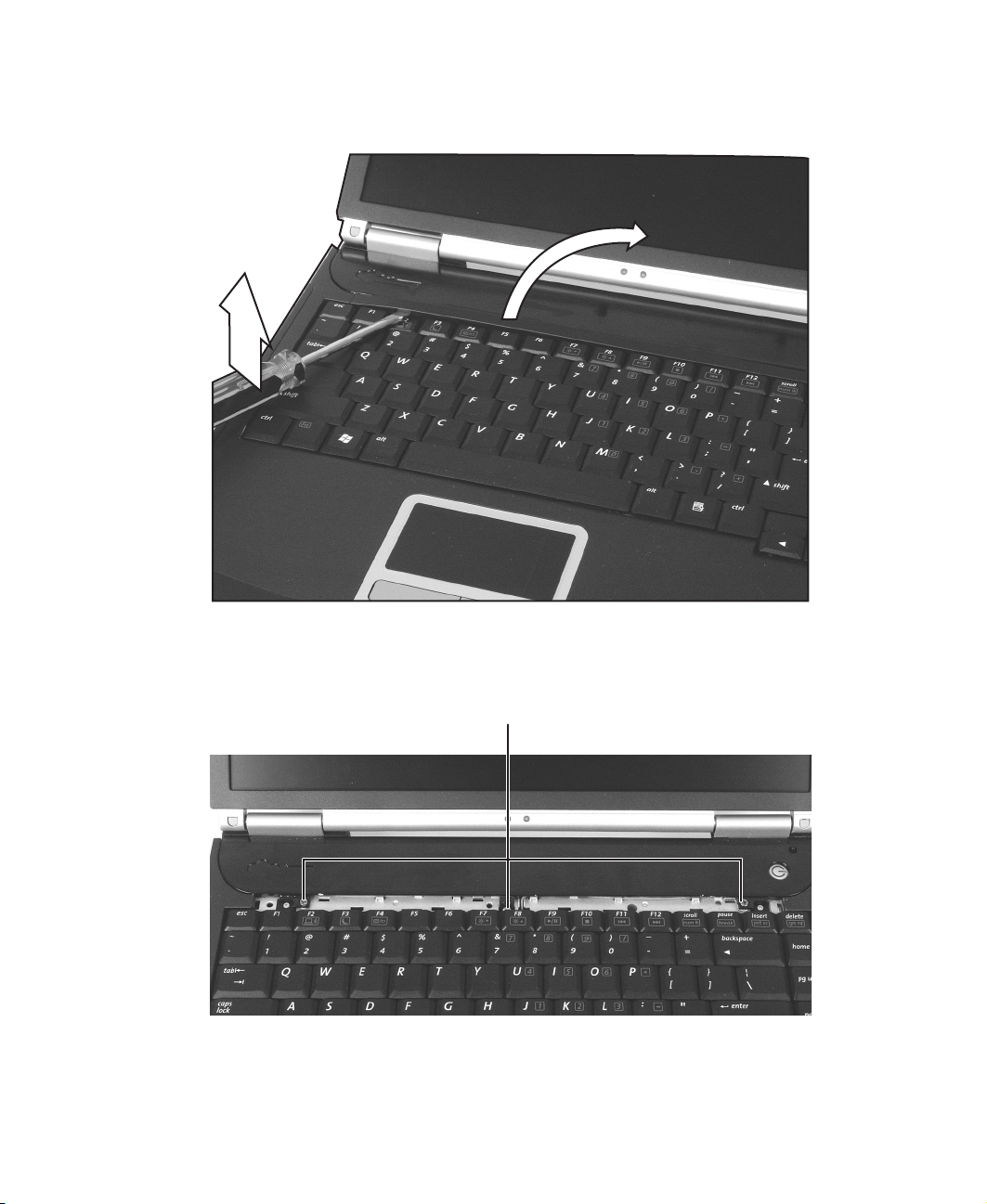

7Find the plastic strip located between the keyboard and the keyboard bezel. Insert the
small flat-blade screwdriver under the bottom of the strip near the F2 key and gently
pry it up.
8With a small Phillips screwdriver, remove the three keyboard bezel screws and put
them in a safe place.
9Open the LCD panel to the fully opened position so it lies flat on your workbench.
Screws
4www.gateway.com

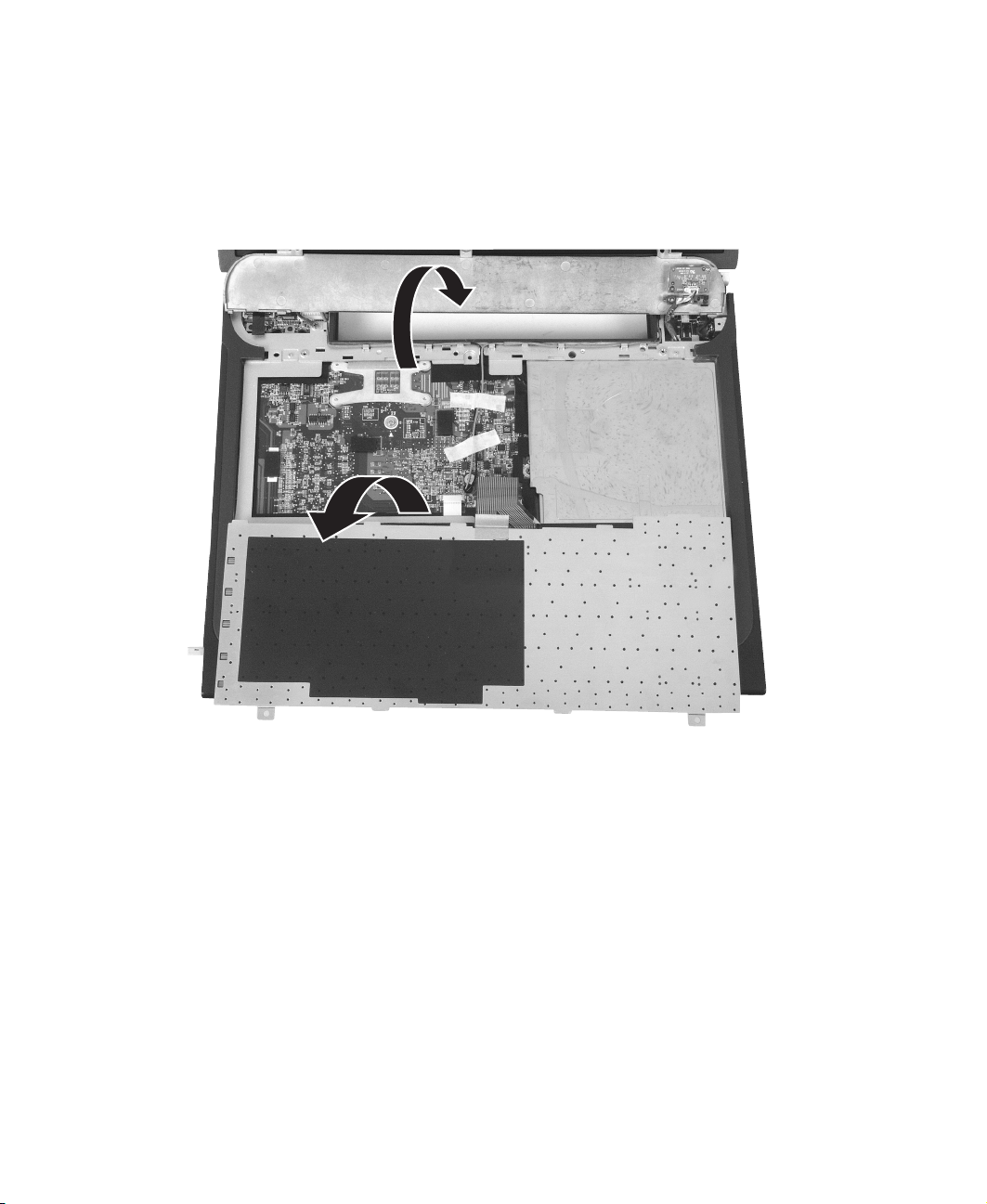

10 Lift the front edge of the keyboard bezel, then rotate it away from you so it lies
face-down on top of the LCD panel. Be careful not to damage the LCD panel.
11 Lift the back edge of the keyboard slightly, then slowly push it toward the LCD panel
to release the keyboard retaining tabs.
12 Slowly rotate the keyboard toward you so it lies keys-down on top of your notebook.
Be careful not to damage the LCD panel.
5
www.gateway.com

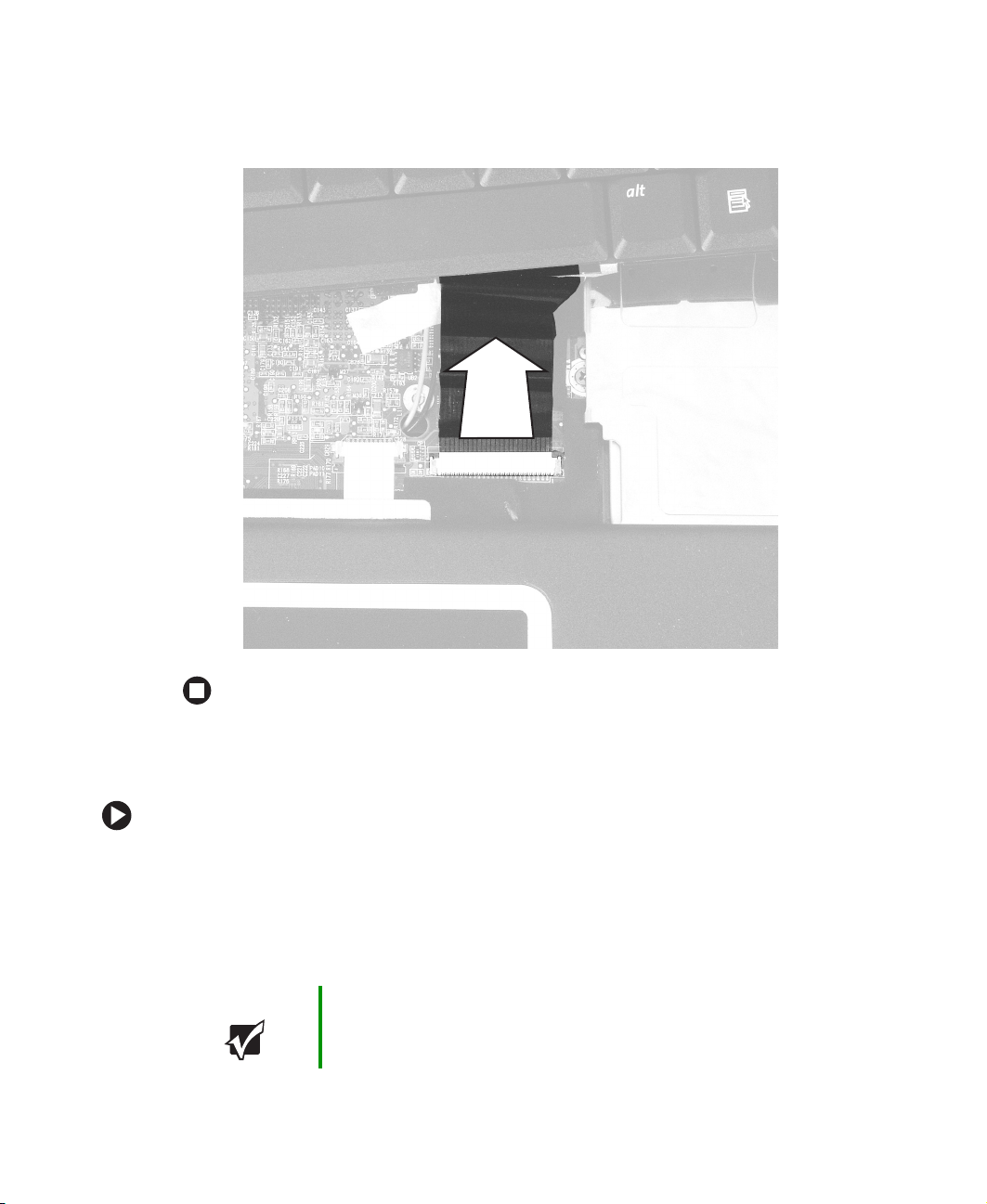

13 Lift the brown keyboard connector latch to unlock the keyboard connector.
14 Lift the keyboard connector and remove the keyboard cable. Be careful not to touch
or damage any other components.
Installing the keyboard
To install the keyboard:
1Place the new keyboard keys-down on your notebook with the space bar away from
you.
2Insert the keyboard plug, on the end of the keyboard cable, onto the keyboard
connector, then press down on the brown keyboard connector latch to lock the
keyboard connector in place.
Important The plug is correctly oriented if the cable is not twisted.
6www.gateway.com
3Rotate the keyboard toward the LCD panel until the keyboard is almost face-up.
4Insert the tabs on the front edge of the keyboard into the slot under the palm rest.
It may be necessary to press down on the keyboard keys along the front edge of the
keyboard to seat the retaining tabs into their corresponding slots.
5Gently press the keyboard down until it is flat all the way across. The keyboard should
easily fall into place. Be careful not to damage the LCD panel.
6Replace the keyboard bezel. Press down on the bezel in several places until it clicks
in place.
7Replace the three keyboard bezel screws.
8Replace the plastic keyboard strip. Press down on the strip in several places until it
clicks in place. The strip is correctly mounted when you can run you finger along
the strip and find no loose spots. The strip should be flat all the way across.
9Close the LCD panel, then turn your notebook over so the bottom is facing up.
10 Install the battery.
11 Connect the power adapter, the modem cable, and the network cable, then turn on
your notebook.
Caution If the strip is not correctly replaced, your notebook could
be damaged when you try to close the LCD panel.
7
www.gateway.com
Technical Support
See your user guide for Gateway Technical Support information.
Safety, Regulatory, and Legal Information
See your user guide for important safety, regulatory, and legal information.
© 2004 Gateway, Inc. All rights reserved. Gateway, Gateway Country, the Gateway stylized logo, and the
black-and-white spot design are trademarks or registered trademarks of Gateway, Inc. in the United States and
other countries. All other brands and product names are trademarks or registered trademarks of their respective
companies.
8www.gateway.com
MAN STM RPL KBD INST GDE R0 7/04
