Gateway M305 Manuel utilisateur

Gateway M305 Notebook

Customizing Troubleshooting

serviceguide

Thank you for purchasing this Factory Service

Manual CD/DVD from servicemanuals4u.com.

Please check out our eBay auctions for more great

deals on Factory Service Manuals:

servicemanuals4u

Contents

Replacing Gateway M305 Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Identifying the notebook model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Identifying components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Preparing your work space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Preventing static electricity discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Preparing the notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Removing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Adding or replacing memory modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Replacing the 802.11 mini PCI card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Replacing the hard drive kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Replacing the hard drive in the hard drive kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Replacing the keyboard cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Replacing the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Replacing the optical drive kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Replacing the LED indicator panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Replacing the CMOS battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Replacing the hinge covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Replacing the cooling assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Replacing the LCD panel assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Replacing the palm rest assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Replacing the diskette drive kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Replacing the memory card reader kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Replacing the system board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Replacing the modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Replacing

Gateway M305

Components

Use this service guide to help plan your maintenance tasks

for the Gateway M305 notebook. All tasks covered in this

guide can be performed by an authorized field technician

without jeopardizing the notebook’s warranty.

For information on the notebook’s general maintenance,

technical support, safety notices, and regulatory notices,

see your Gateway user’s guide.

If you have suggestions regarding the content of this guide,

send an e-mail with the subject “Service Guide Comments”

to channel.services@gateway.com.

stylized logo, and the black-and-white spot design are trademarks or registered

trademarks of Gateway, Inc. in the United States and other countries. All other brands

and product names are trademarks or registered trademarks of their respective

companies.

Important This service guide is not intended to be

provided to individual users or consumers.

It cannot be provided to anyone other than

an authorized service provider.

Replacing Gateway M305 Components

www.gateway.com

Identifying the notebook model

The label on the bottom of the notebook contains information that identifies

the notebook model and its features.

Warning It is important that you use the correct service guide for

the notebook. Failure to follow the approved tasks for the

notebook model may result in damage to the notebook.

Gateway

model

number

Identifying components

www.gateway.com

Identifying components

Where screw measurements are shown, the first number indicates screw head

width, and the second number indicates screw length.

Use this chart to identify the main components of the notebook. For a complete

list of replaceable parts, see “Contents” on page i.

LCD panel assembly

(see page 49)

Keyboard

(see page 27)

Palm rest assembly

(see page 54)

Cooling assembly

(see page 45)

Keyboard cover

(see page 24)

System board

(see page 71)

Replacing Gateway M305 Components

www.gateway.com

Preparing your work space

Before performing maintenance on the notebook, make sure that your work

space and the notebook are correctly prepared.

■Wear a grounding (ESD) wrist strap, and use a grounded or dissipative work

mat.

■Use a stable and strong table, and make sure that the table top is large

enough to hold each component as you remove it.

■Use bright lighting to make part identification easier.

■Keep your work surface free from clutter and dust that may damage

components.

■Use a magnetized screwdriver for removing screws.

■When removing components that are attached to the notebook by a cable,

unplug the cable before removing the screws, when possible, to avoid

damaging the cable.

■As you remove components and screws, lay them toward the rear of your

work surface (behind the notebook) or far enough to the side that your

arms do not accidentally brush them onto the floor.

■To help keep track of screws, try the following:

■Place each component’s screws in their own section of a parts sorter.

■Place each component’s screws next to the component on your work

surface.

■Print the first page of each task, then place the page toward the rear

of your work surface. As you remove screws, place the screws in their

respective boxes on the page. Where screw measurements are shown,

the first number indicates screw head width, and the second number

indicates screw length.

■After loosening screws that are deeply recessed in a hole (for example,

on the bottom of the base assembly), you can leave the screws in the

holes if you place small pieces of masking tape over the hole openings.

When reassembling the component, just remove the tape and tighten

the screws.

■When you place flat-headed screws on your work surface, stand them

on their heads to prevent the screws from rolling off the table.

Preventing static electricity discharge

www.gateway.com

Preventing static electricity

discharge

The components inside the notebook are extremely sensitive to static electricity,

also known as electrostatic discharge (ESD).

Before replacing components, follow these guidelines:

■Turn off the notebook.

■Wear a grounding wrist strap (available at most electronics stores) and

attach it to a bare metal part of your workbench or other grounded

connection.

■Touch a bare metal surface on your workbench or other grounded object.

■Unplug the power cord and the modem and network cables.

■Remove the battery. For more information, see “Removing the battery” on

page 7.

■Disconnect all peripheral devices and remove any PC Cards.

Warning ESD can permanently damage electrostatic

discharge-sensitive components in the notebook. Prevent

ESD damage by following ESD guidelines every time you

open the notebook case.

Warning To avoid exposure to dangerous electrical voltages and

moving parts, turn off the notebook and unplug the power

cord and modem and network cable before opening the

case.

Warning To prevent risk of electric shock, do not insert any object

into the vent holes of the notebook.

Autres manuels pour M305

Table des matières

Autres manuels Gateway Ordinateur portable

Gateway

Gateway Solo 9550 Manuel utilisateur

Gateway

Gateway T-6346c Manuel utilisateur

Gateway

Gateway MD24 Manuel utilisateur

Gateway

Gateway Solo 2500 Manuel utilisateur

Gateway

Gateway LT 1000 Manuel utilisateur

Gateway

Gateway M505 Manuel utilisateur

Gateway

Gateway 450SX4 Mode d’emploi

Gateway

Gateway C-120 Manuel utilisateur

Gateway

Gateway Notebook Guide rapide de l'utilisateur

Gateway

Gateway M-1628 Manuel utilisateur

Gateway

Gateway M520 Manuel de la liste des pièces

Gateway

Gateway Solo 3100 Manuel utilisateur

Gateway

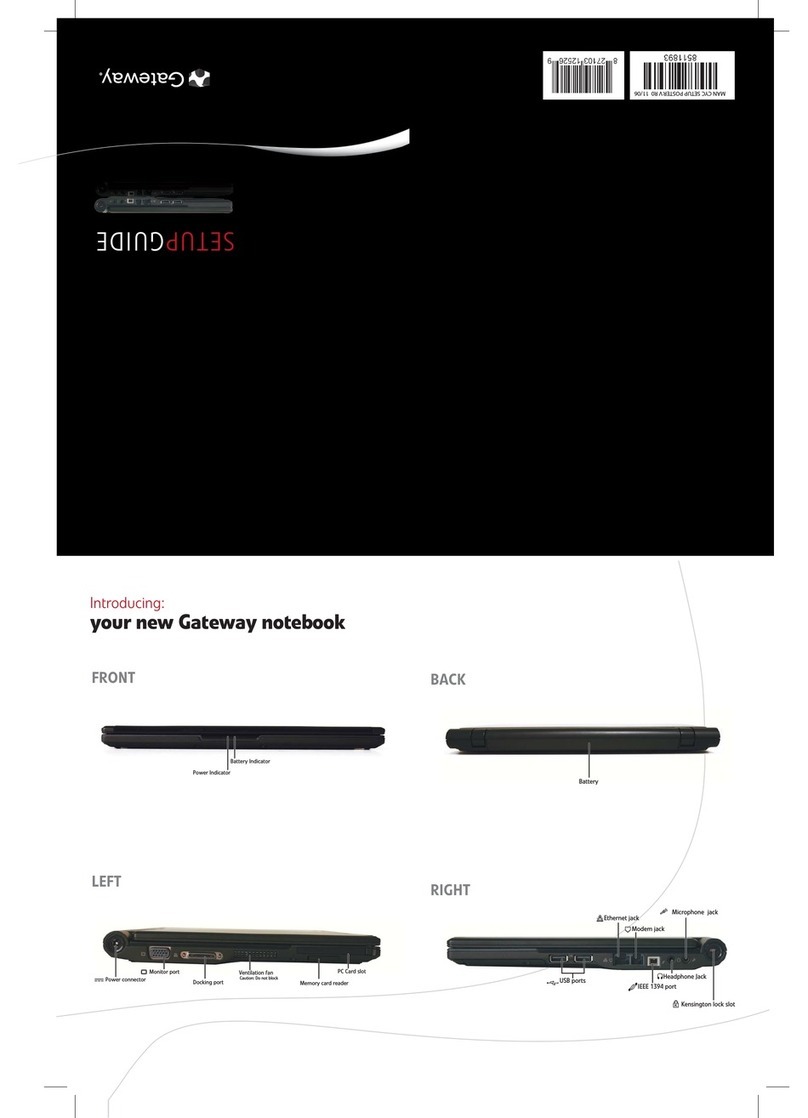

Gateway Notebook Manuel utilisateur
