Replacing the Gateway M275
Keyboard
This package includes a replacement keyboard for your Gateway M275
notebook and these printed instructions.
Tools you need
You need a small Phillips screwdriver and a small flat-blade screwdriver to
replace the keyboard.
Preventing static electricity discharge
The components inside your notebook are extremely sensitive to static
electricity, also known as electrostatic discharge (ESD).
Before replacing the keyboard, follow these guidelines:
■Turn off your notebook.
■Wear a grounding wrist strap (available at most electronics stores) and
attach it to a bare metal part of your workbench or other grounded
connection.
■Touch a bare metal surface on your workbench or other grounded object.
Warning ESD can permanently damage electrostatic
discharge-sensitive components in your notebook. Prevent
ESD damage by following ESD guidelines every time you
replace the keyboard.
Warning To avoid exposure to dangerous electrical voltages and
moving parts, turn off your notebook and unplug the power
cord and modem and network cables before replacing the
keyboard.
Warning To prevent risk of electric shock, do not insert any object
into the vent holes of the notebook.
2www.gateway.com
■Unplug the power cord and the modem and network cables.
■Remove the battery. For more information, see “Changing batteries” in
your user guide.
■Disconnect all peripheral devices and remove any PC Cards.
Before working with notebook components, follow these guidelines:
■Avoid static-causing surfaces such as carpeted floors, plastic, and packing
foam.
■Remove components from their antistatic bags only when you are ready
to use them. Do not lay components on the outside of antistatic bags
because only the inside of the bags provide electrostatic protection.
■Always hold components by their edges. Avoid touching the edge
connectors. Never slide components over any surface.
Removing the keyboard
To remove the keyboard:
1Follow the instructions under “Preventing static electricity discharge” on
page 1.
2Turn off your notebook.
3Disconnect the AC adapter and modem and network cables.
4Disconnect your notebook from the optional port replicator.
5Turn your notebook over so the bottom is facing up.
6Remove the main and optional secondary batteries.
3
www.gateway.com
7Remove the two keyboard screws.
8Turn your notebook over so the top is facing up.
9Open the LCD panel to the normal viewing position.
Screw Screw
4www.gateway.com

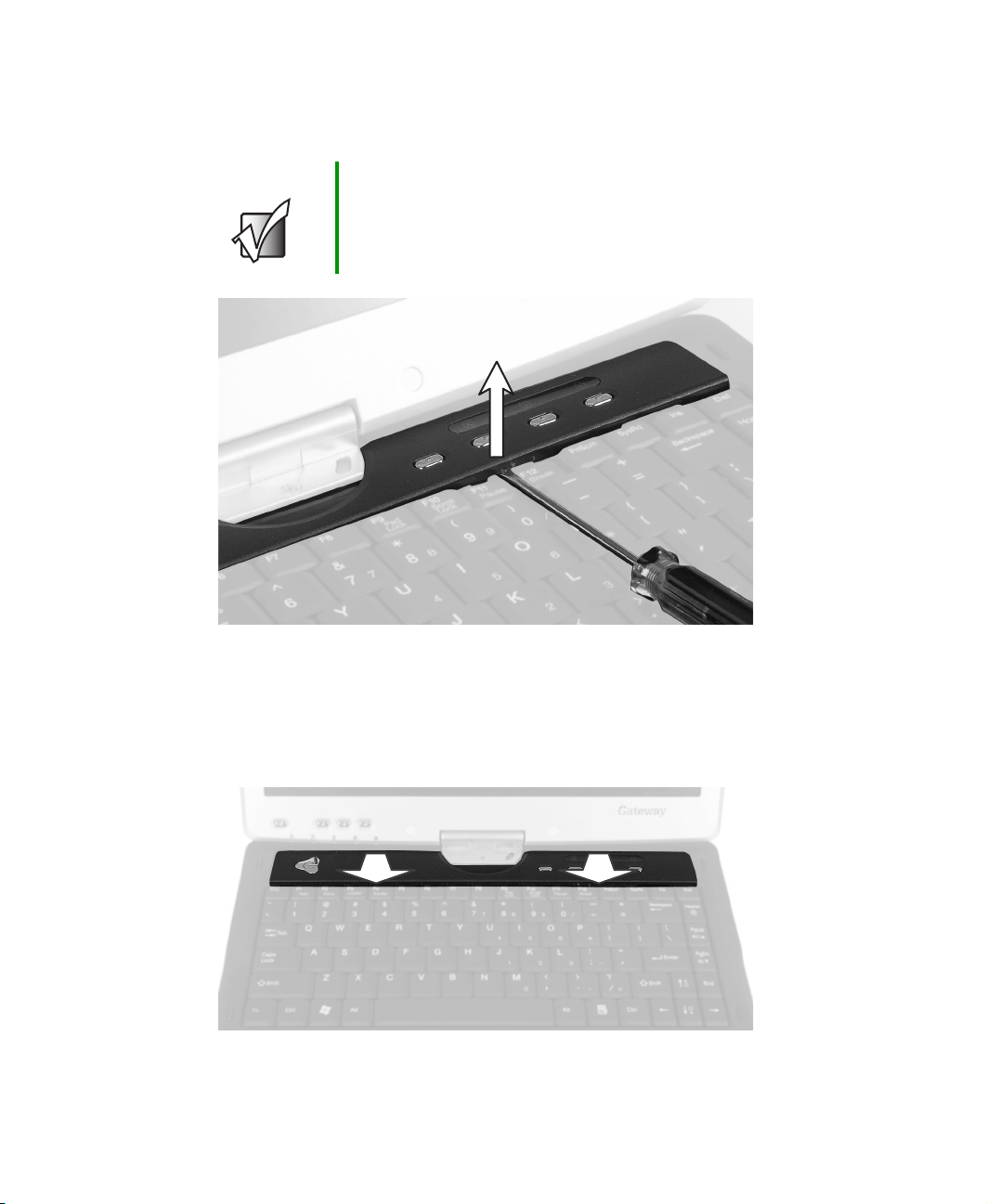

10 Insert the small flat-blade screwdriver under the bottom of the keyboard
bezel between the F11 and F12 keys and gently pry it up.
11 Remove the bezel from your convertible tablet PC by pulling the bezel
toward you and at the same time lifting its front to clear the keyboard.
You will hear small snapping sounds as the bezel comes away from your
convertible tablet PC. Be careful not to break off the tabs found on the
bottom of the bezel.
Important Inserting a piece of cloth between the screwdriver and
keyboard will help prevent damage to your convertible
tablet PC.
5
www.gateway.com
12 With a small Phillips screwdriver, remove the four keyboard screws and
put them in a safe place.
Screws
6www.gateway.com
13 Lift the back edge of the keyboard, then slowly rotate it toward you so it
lies keys-down on top of your convertible tablet PC. Be careful not to
damage the LCD panel.
14 Carefully insert the small flat-blade screwdriver between the keyboard
cable and the black plastic hinge where the cable connects to the system
board. Gently lift the hinge off the cable. The cable is now free and you
can remove the keyboard.
7
www.gateway.com
Installing the keyboard
To install the keyboard:
1Place the new keyboard keys-down on your notebook with the space bar
away from you.
2Verify the black plastic hinge on the system board keyboard connector is
in the raised position.
3Insert the end of the keyboard cable between the black plastic hinge and
the white connector.
4Press the black plastic hinge onto the keyboard cable.
5Rotate the keyboard toward the LCD panel until the keyboard is
almost face-up.
Important The plug is correctly oriented if the cable is not twisted.
8www.gateway.com

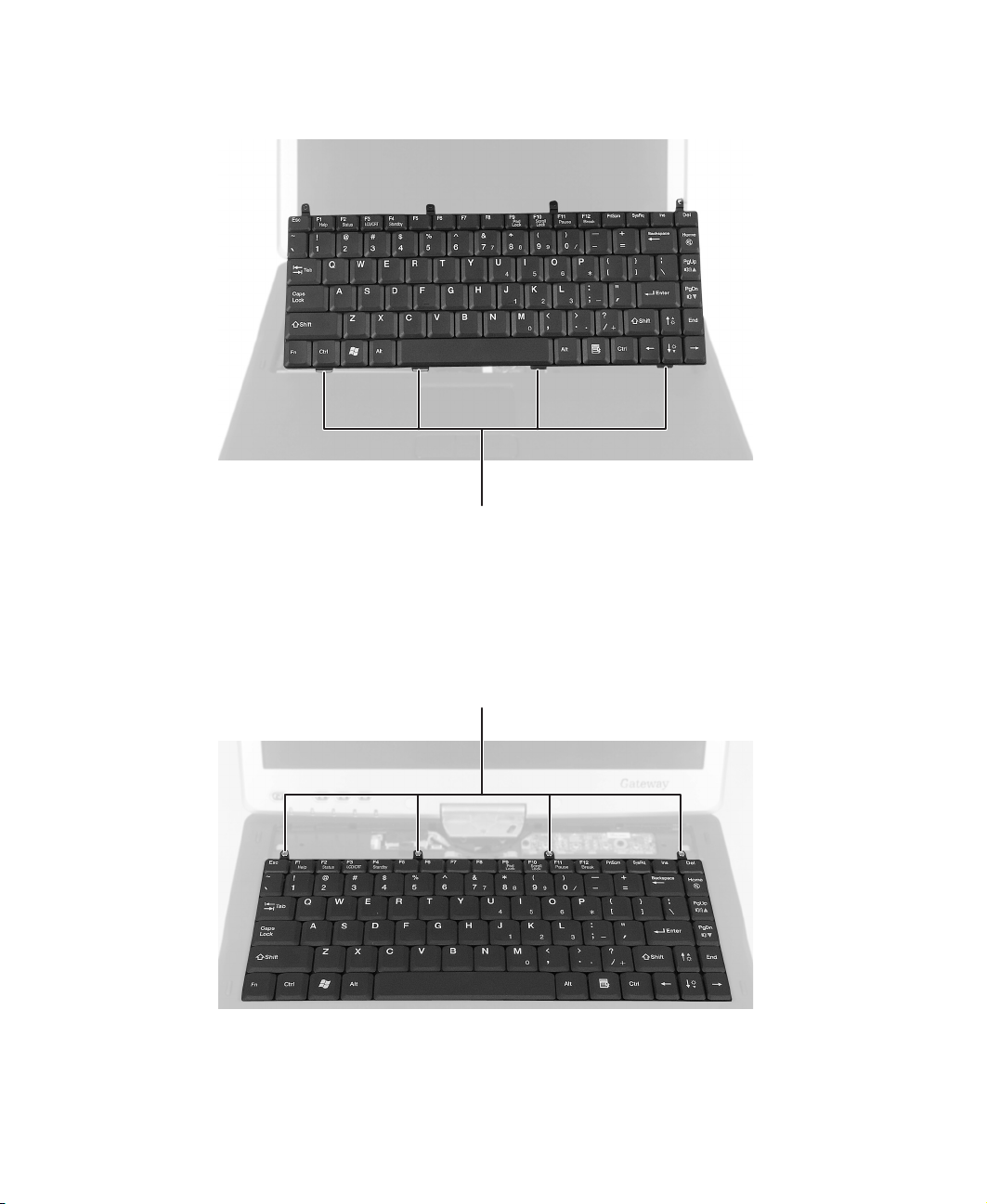

6Insert the tabs on the front of the keyboard under the palm rest.
7Gently press the keyboard down until it is flat all the way across. The
keyboard should easily fall into place. Be careful not to damage the
LCD panel.
8Replace the four keyboard screws.
Tabs
Screws
9
www.gateway.com

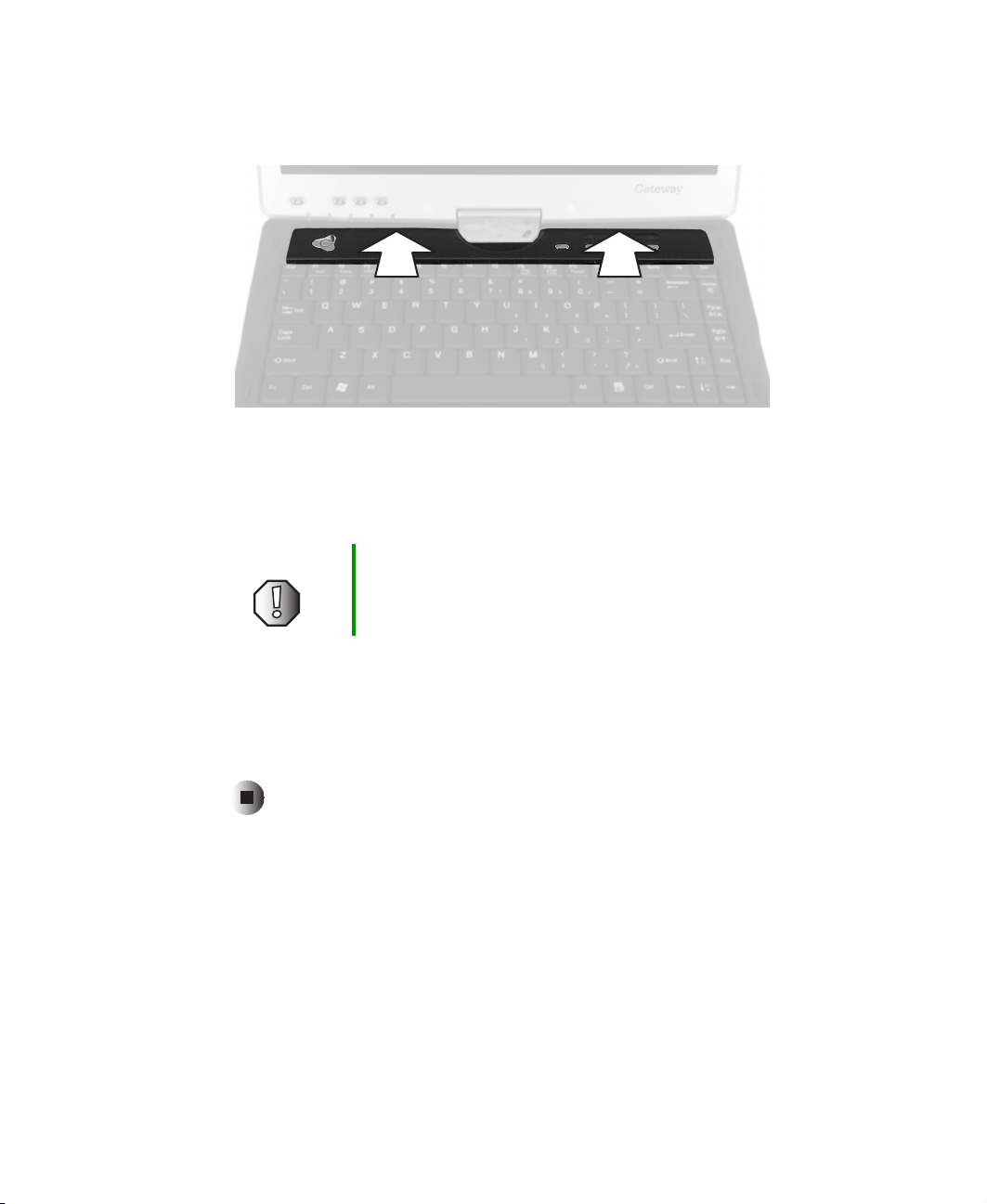

9Slide the tabs on the bottom side of the bezel under your convertible tablet
PC frame.
10 Press down on the bezel in several places to make sure it is correctly
mounted. The bezel is correctly mounted when you can run your finger
along the bezel and find no loose spots. The bezel should be flat all the
way across.
11 Turn your convertible tablet PC over so the bottom is facing up.
12 Replace the two keyboard screws.
13 Replace the battery, connect the power adapter and modem and network
cables, then turn on your notebook.
Safety, Regulatory, and Legal Information
See your user’s guide for important technical support, safety, regulatory, and
legal information.
© 2003 Gateway, Inc. All rights reserved. Gateway, Gateway Country, the Gateway stylized logo, and the
black-and-white spot design are trademarks or registered trademarks of Gateway, Inc. in the United States and
other countries. All other brands and product names are trademarks or registered trademarks of their respective
companies.
Warning If the bezel is not correctly replaced, your convertible tablet
PC could be damaged when you try to close the LCD
panel.
10 www.gateway.com
