Gatekeeper YG-5602/1U/E Manuel utilisateur



YG‐5602/1U/ESWINGINGGATE

OPENER



OWNER’SMANUAL



GatekeeperLtd.

P.O.Box752

Lacey’sSpring,AL35754

http://www.gatekeeperltd.com

Table of Contents

1. Safety Precautions........................................................4

2. Features........................................................................5

3. Specifications...............................................................5

4. Necessary Tools and Equipment..................................6

5. Site Preparation............................................................6

5a. Standard Power..................................................................6

5b. Solar Power........................................................................6

5c. Equipment Check...............................................................7

5d. Parts for Gate Arm Installation..........................................8

5e. Actuator Specifications and Measurements.......................9

6. Gate Arm (Actuator) Installation...............................10

6a. Determine Gate Open Direction ......................................11

6b. Pull to Open Inward.........................................................12

6c. Push to Open Outward.....................................................13

7. Stopper and Latch Installation...................................14

8. Electrical Installation.................................................16

8.1 - Connecting the AC Power.............................................16

8.2 - Wiring the Battery (see Fig.7b).....................................17

8.3 - Wiring the Actuators.....................................................17

8.4 - First Time Activation Test.............................................18

9. Using the RF Remote Control....................................18

10. External Interfaces...................................................20

10.1 - Keypad/ Button Switch ...............................................20

10.2 - Loop detector...............................................................20

10.3 - Safe guard (Infrared device or Photocell)....................21

11. Advanced Control Wiring........................................22

11.1 -Visual Guide for Wiring................................................24

13. Auto-close function..................................................26

14. Additional Features..................................................26

15. Operation Notes on the Gate Opener System..........27

16. Maintenance & Troubleshooting .............................28

17. Gatekeeper Ltd. Limited Warranty..........................30



THIS PAGE INTENTIONALLY LEFT BLANK

1.SafetyPrecautions



InstallingtheYG‐5602/1GateOpenerrequiresinstallationofstandard

110Vor230Velectricalwiring.Thisworkshouldonlybeperformedbya

trainedtechnician.Mis‐wiringcouldcausepersonalinjuryorDEATH.To

preventtheriskofelectrocution,besuretoturnoffallpowertotheYG‐

5602/1untilinstallationiscomplete.



Pleasekeephands,fingersandlooseclothingawayfrommovingpartsas

theymaybedraggedintomovingparts.

Thegatemaymoveatanytime.Ensureallpersonsareclearofthegatewhen

itismovingtoavoidtheriskofinjury.Donottouchthegatewhileitisin

operation.Donotattempttogothroughthegatewhileitisstillinmotion.

Thisopenerisintendedforvehicularuseonly.

Donotallowchildrenorpetsnearyourgate.Keeptheremotecontrolsaway

fromchildren.Placecontrolswheretheycannotbeaccessedbyreaching

throughthegate.

Toavoidelectricshock,unplugunitbeforeopeningcase.

Makesurethebatteryinsidetheopenerischargedfullybeforeusing.

Beforeinstallation,theclutchshouldbeunlocked.

Theauto‐reversefunctionmustbecheckedduringinstallationtoensurethat

thegatecanauto‐reverseintheeventofobstruction,anditshouldbe

inspectedregularly.

Theautomaticgateopenermustbegrounded.

Installthegateopenerontheinsideoftheproperty;DONOTinstallitonthe

outsideofthepropertywherethepublichasaccesstoit!

Additionalsafetyequipmentsuchasphotoelectricsensors,safetyedges,

rollerguardsandwarningsignsmustbeinstalledtopreventinjury.

Intheeventofpowerfailure,anemergencyreleasekeyallowsyoutooperate

thegatemanually.

Pleaseeraseandresetthecodeafterinstallingtheopener.

Thegateopenershouldbeinstalledbyaqualifiedtechnician;otherwise,

seriouspersonalinjuryorpropertydamagemayoccur.



Forservice,callanexperiencedtechnician.Donotinanywaymodifythecomponentsof

theautomatedsystem;otherwiseseriouspersonalinjuryorpropertydamagemayoccur.

Wedonotacceptresponsibilityfordamageorinjuryresultingfromtheinstallationofthis

opener.

2.Features

ClassI:Avehiculargateopener(orsystem)intendedsolelyforuseinasinglefamilyhome,

oranassociatedgarageorparkingarea.



ADDITIONAL FEATURES

Supportssingleordualgateoperation.

Adjustableautoreversefunctionforsafetypurposes.

Built‐inbatterybackupintheeventofpowerloss.

Auto‐closefeaturewith3waittimes:12/25/50selectablebydipswitch.

Batterylow‐voltagedetectiontoavoidbatterydamage.

Automaticslowdownfeaturetodecreasenoisyclosing.

Keypad/singlebuttoninterface.

Infraredsafetybeaminterface.

Supportsupto15RFremotes,2included.

Userprogrammableandusererasableremotecodes.

RFhoppingcodetechnologypreventsthievesfromguessingyourremotecode.

Manualkeyreleasedesignforemergencypurposes.

SupportsKeypadinterfaceandMagneticLoopDetectorssimultaneously.



3.Specifications

PowerSupplyUModel110VAC(60Hz)

EModel230VAC(50Hz)

BackupBattery:12VDC/4AH

MaximumNumberofRemoteControls15(2Included)

MaximumGateWeight300KG/661lbs

MaximumGateWidth3.6meters/12feetperleaf

DutyCycle50%

WorkingTemperatureRange:‐20°C‐~55°C,‐4°F–~131°F

PowerConsumption:150W(Max)

5W(Standby)

PowerSupplyoftheMotor12VDC/8A,96W(MAX)

PowerSupplyoftheLamp:12VDC,21W(MAX)

PowerSupplyoftheElectricLock:12VDC,60W(Max)

PowerSupplyoftheReceiver:12VDC,2W(Max)

PowerSupplyoftheAccessories:12VDC,3W(Max)

Over‐current‐protection:3.5A~7.5A

PauseTime:Programmable,0sec~50sec

2ndLeafClosingDelay:Programmable,0sec~8sec

DimensionsandWeight:300x245x90mm,4.6kgs

11.8”x9.65”x3.5”,10.1lbs

4.NecessaryToolsandEquipment

ThefollowingtoolsmaybenecessarytoinstalltheYG‐5602/1Gateopener.

StandardandPhilipsscrewdrivers

Electricdrill

Wirecutters

Wirestripper

Socketset

Welder

5.SitePreparation

Beforeyoubegintheopenerinstallation,checkthefollowing.

1. Thegateshouldbemountedandmovingfreelywithlittleresistancein

movement.

2. Thegateandpostmustbesuitableforbeingautomated.Checkthatthe

structureissufficientlystrongandrigid,andthatitsdimensionsandweights

conformtothoselistedinthespecificationstableofthisdocument.(page5)

3. Makesurethatthegateisplumbandlevel.

4. Thefencepostsmustbemountedinconcrete.

5a.StandardPower

TheYG‐5602isnormallypoweredbyU/Estandardpower(Umodel110V/60HzAC;Emodel

240V/50HzACpower)Ifyouhavenotalreadydoneso,wireawaterproofoutletnearthegate

followingpropersafetystandardsforyourarea.Ifyouarenotexperiencedwiththistypeof

wiringorifyourarearequiresit,hireaprofessionalelectriciantoperformthisaswellas

wireintheYG‐5602intheelectricalsection.

TheYG‐5602requiresatleasta15Aservice.Makesureyourelectriciantakesintoaccountthe

voltagedropinvolvedinrunningmanyfeetofwiretoyourinstallationlocation.Ifan

insufficientgaugeofwireisused,therewillbeinsufficientpoweratthesitetooperatethe

opener.



5b.SolarPower

Ifyouplantousesolarpanelstopoweryourgate,verifythatyouhavesufficientsolarpower

tochargethebatteryandprovidepowerforthenumberofopeningsandclosingsyouplanto

need.Differentareasoftheplanetreceivevaryingamountsofsunlight,andthatamount

variesonthetimeoftheyear.Makesureyouaccountforallthisinanysolarinstallation.



Ifinsufficientpowerisavailable,theopenerbatterycanbepermanentlydamagedandthis

isnotcoveredunderthewarranty.

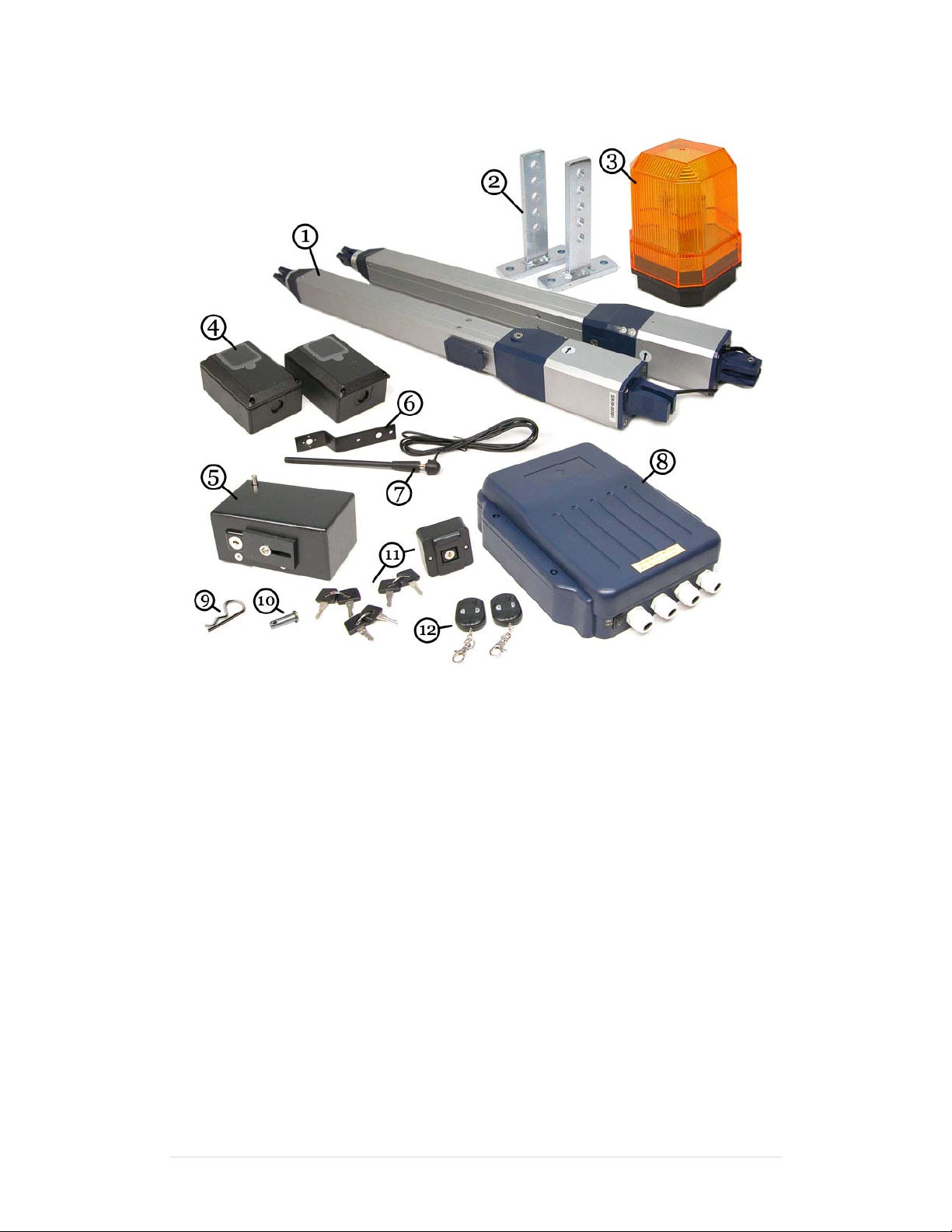

5c.EquipmentCheck



1. SwingingGateActuator

2. “T”MountingBracket

3. Flashinglight

4. Throughbeamtypeinfra‐redphotosensor

5. ElectricLatchwithKeylock

6. Mountingbracket

7. Antenna

8. Controlbox

9. CotterPin

10. ClevisPin

11. Keysandmanualkey‐lock

12. Remotekey



*Notshowninpicture

1. StopBlock

2. “L”Mountingbracket

3. BarMountingbracket

4. Assortedboltsandnuts

5d.PartsforGateArmInstallation



Youneedthefollowingpartstoconnectanactuatortoyourgate.



NoDescriptionQuantity

Single Dual

1Actuator12

2NestPin12

3FastenerScrew12

4“L”MountingBracket24

5BarMountingBracket12

6NutforBolt24

7Bolt24

8ReleaseKey12

9Bolt612

10CotterPin12

11“T”MountingBracket12

12FrontClevisPin12

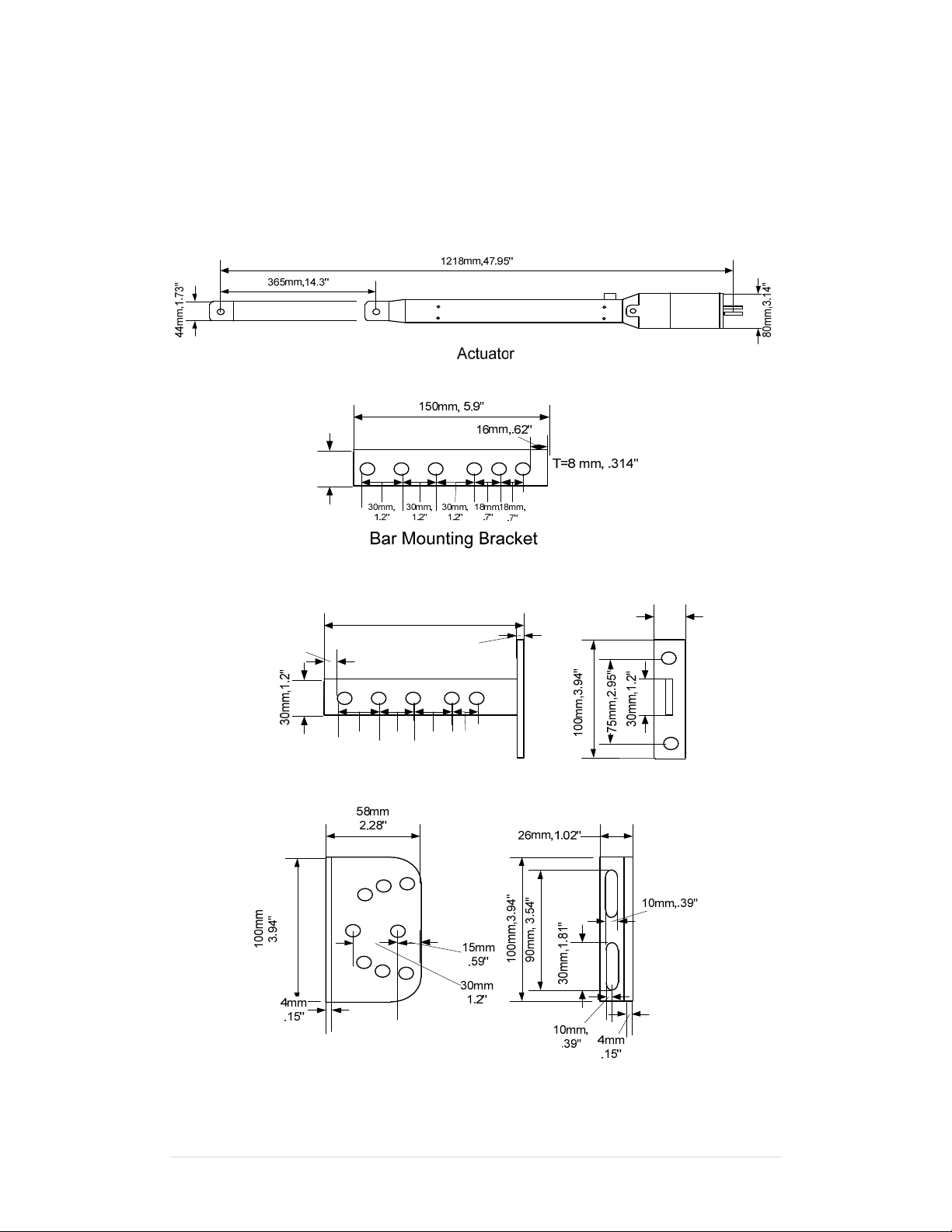

5e.ActuatorSpecificationsandMeasurements

1. ActuatorMaximumDirectForce:1400N,315lbs

2. ActuatorMaximumPowerConsumption:12Vat6A=72W

3. DutyCycle:50%



30mm,1.2"



“T” Mounting Bracket

150mm, 5.9"

20mm,

.78" 20mm,

.78"

8mm,.31"

15mm,.59"

30mm,1.2"



“L”MountingBracket

Figure1.
