Garmin Zumo 200 Series Manuel d'instructions

zūmo®200 series

quick start manual

for use with the zūmo 220

 zūmo0QuickStartManual

Your zūmo

Serialnumber

underthebattery

Mini-USB

connectorunder

theweathercap microSD

™

cardslot

underthebattery

Releasekey:Slide

uptoopenthe

batterycover.

Battery

contacts

Powerbutton:

Pressandholdtoturnon/offthezūmo.

Pressquicklytoadjustthebacklight

brightness.

GPSantenna

Speaker Batterycover

zūmo0QuickStartManual 

Important Information

‹

Warning

See the Important Safety and Product

Information guide in the product box for product

warnings and other important information.

This product contains a lithium-ion battery.

To prevent the possibility of personal injury or

product damage caused by battery exposure to

extreme heat, remove the device from the vehicle

when exiting or store it out of direct sunlight.

Before mounting the zūmo, see the Important

Safety and Product Information guide for

information about laws pertaining to windshield

mounting.

Getting Started

Installing the Battery

1. Locate the lithium-ion battery that came in the

product box.

2. Slide the release key up to open the battery

cover on the back of the zūmo.

3. Locate the metal contacts on the end of the

lithium-ion battery.

4. Insert the battery so that the metal contacts

on the battery match up with the metal

contacts inside the battery compartment.

5. Press the battery into place.

6. Slide the battery cover back on until it clicks

into place.

 zūmo0QuickStartManual

Connecting Power to the zūmo

1. Pull back the weather cap from the mini-USB

connector located on the back of your zūmo.

2. Plug the vehicle power cable into the mini-

USB connector.

Charging Your zūmo

Charge your zūmo for at least 4 hours before

using on battery power.

Use the automotive power cable.

Use the USB cable.

Use an optional AC adapter cable.

Use an optional battery charger.

Mount Your zūmo in an

Automobile

1. Pull back the weather cap from the mini-USB

connector located on the back of your zūmo.

Cradle Lever

Suctioncup

arm

•

2. Plug the vehicle power cable into the mini-

USB connector.

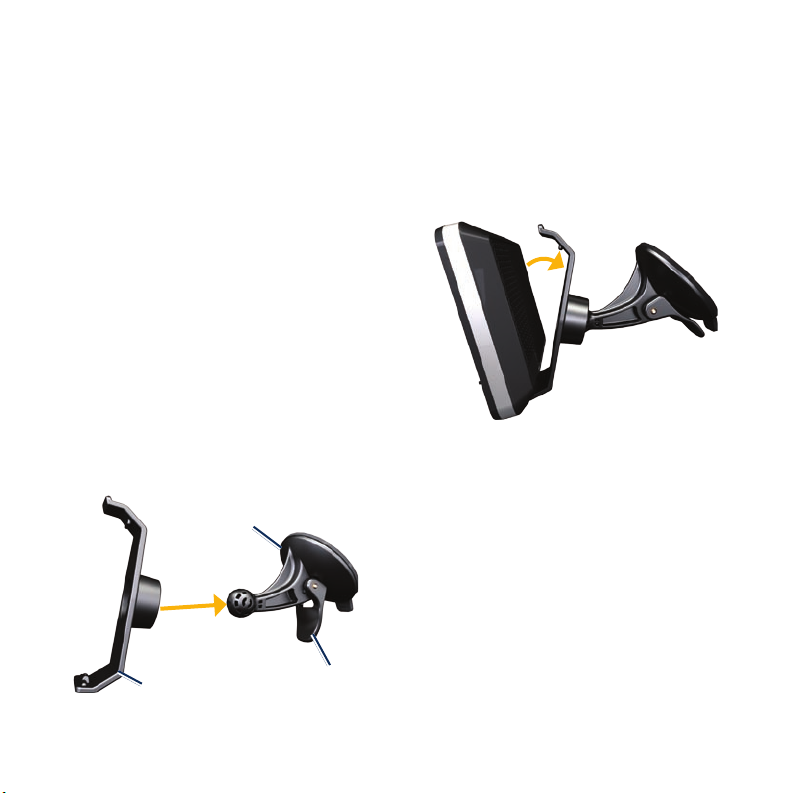

3. Snap the cradle onto the suction cup arm.

4. Remove the clear plastic from the suction

cup. Clean and dry your windshield and the

suction cup with a lint-free cloth.

5. Place the suction cup on the windshield.

6. Flip the lever back, toward the windshield.

7. Fit the bottom of your zūmo into the cradle.

8. Tilt the zūmo back until it snaps into place.

9. Plug the other end of the vehicle power cable

into a power outlet in your vehicle. Your zūmo

should turn on automatically if it is plugged in

and the vehicle is running.

zūmo0QuickStartManual 

Mount Your zūmo on the

Motorcycle

‹

Warning

Incorrectly wiring the power cable with bare

wire leads can result in damage to the vehicle or

the battery and can cause bodily injury. Garmin

strongly recommends having an experienced

installer with the proper knowledge of electrical

systems install the unit.

Notice

To avoid draining the motorcycle battery,

disconnect the power cable from your zūmo

device when you are not riding.

NOTE: Select a suitable and secure location to

mount the zūmo on your motorcycle, based on

available power sources and safe cable routing.

Install the Handlebar Base

The zūmo includes parts for two handlebar

installation solutions. Custom mounts can

require additional hardware (www.ram-mount

.com).

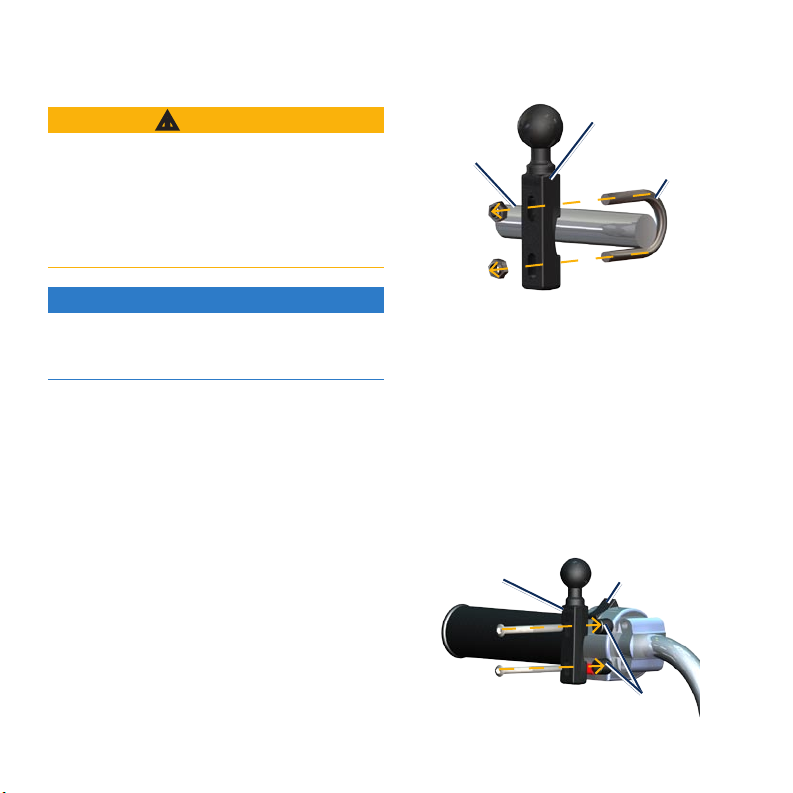

Installing the U-bolt and handlebar base:

1. Place the U-bolt around the handlebar, and

thread the ends through the handlebar base.

2. Tighten the nuts to secure the base. Do not

overtighten.

NOTE: The recommended torque is 50 lbf-in.

Do not exceed torque of 80 lbf-in.

Handlebar

base

Handlebar

U-bolt

Installing the handlebar base to the clutch/

brake clamp bracket:

NOTE: Both 1/4 in. standard and M6 bolts are

included. Match the size of the factory bolts on

your clutch/brake clamp bracket.

1. Remove the two factory bolts on your clutch/

brake clamp bracket.

2. Thread the new bolts through the handlebar

base, spacers, and clamp bracket.

3. Tighten the bolts to secure the base.

Clutch/brake

clampbracket

Handlebar

base

Spacers

 zūmo0QuickStartManual

Baseplate

Cradle

Panheadscrews

Washers

Spacers

Nuts

Attach the Base Plate to the zūmo

Mount

1. Thread the M4 × 40 mm panhead screws

through the washers, cradle, spacers, and

base plate.

2. Tighten the nuts to secure the base plate.

Attach the Base Plate to the Handlebar

Base

1. Align the ball of the handlebar base and the

ball of the base plate with the double-socket

arm.

2. Tighten the knob slightly.

3. Adjust for better viewing and operation.

4. Tighten the knob to secure the mount.

Cradle

Baseplate

Double-socketarm

Knob

Handlebarbase

zūmo0QuickStartManual 

Install Your zūmo in the Mount

1. Fit the bottom of your zūmo into the cradle.

2. Tilt the zūmo back into the cradle.

3. Press down the release lever.

Cradle

Releaselever

Remove Your zūmo from Either Mount

1. Press the release lever on the top of the

mount to release the zūmo.

2. Lift out the zūmo.

Conguring the zūmo

To turn on your zūmo, press and hold . Follow

the on-screen instructions.

Acquiring Satellites

Go outdoors to an open area, out of garages, and

away from tall buildings. Stop your vehicle, and

turn on the zūmo. Acquiring satellite signals may

take a few minutes.

The bars indicate satellite strength.

When the bars are green, the zūmo has

acquired satellite signals. Now you can select a

destination and navigate to it.

Resetting the zūmo

If the zūmo stops functioning, turn the zūmo

off and on again. If this does not help, press and

hold for 10 seconds. The zūmo should operate

normally. You can also remove the battery, and

then reinstall it.

 zūmo0QuickStartManual

Using the Menu Page

➊➋ ➌

➍

➎

➏ ➐

➑➒

➊

GPS satellite strength.

➋

Bluetooth headset status.

NOTE: Pages appear differently based on your

usage mode and settings.

➌

Touch to change usage mode.

➍

Battery status.

➎

Current time. Touch to change time

settings.

➏

Touch to nd a destination.

➐

Touch to view the map.

➑

Touch to adjust the volume.

➒

Touch to use the tools such as settings,

Where Am I?, Help, and routes.

Finding Points of Interest

1. Touch Where To? > Points of Interest.

2. Select a category.

3. Select a destination, and touch go!.

To search by name, touch Where To? > Points

of Interest > Spell Name.

To search in a different area, touch Where To?

> Near.

Using the Go! Page

➊➋

➌➍

➊

Touch to view the route on the map.

➋

Touch to start navigating the route.

➌

Touch to view this location and surrounding

areas on the map.

➍

Touch to save this location to your

Favorites.

zūmo0QuickStartManual 

Using the Map Page

Your route is marked with a magenta line.

As you travel, your zūmo guides you to your

destination with voice prompts, arrows on

the map, and directions at the top of the map.

A checkered ag marks your destination.

If you depart from the original route, your

zūmo recalculates the route and provides new

directions.

➊ ➋

➎ ➏

➍

➌

➎

➊

Touch to view

the next turn

(navigating on

road).

➋

Touch the text

bar to view the

turn list.

➌

Touch to zoom

in and out.

➍

Touch the

vehicle icon to

view the Where

Am I? page.

➎

Touch to

view the trip

computer.

➏

Touch to view

the Menu page.

10 zūmo0QuickStartManual

Taking a Detour

If the road ahead is closed, you can take a detour.

NOTE: Detour is not available when navigating

off road.

1. With a route active, touch Menu.

2. Touch Detour.

The zūmo attempts to nd an alternate route

that avoids the current road or the next road on

your turn list, and then returns to your original

route. If the route you are currently navigating is

the only reasonable option, the zūmo might not

calculate a detour.

Adding a Stop to Your Route

1. With a route active, touch Menu > Where

To?.

2. Search for the extra stop.

3. Touch go!.

4. Touch Add as Via Point to add this stop

before your destination.

Touch Set as new Destination to make this

your new nal destination.

TIP: To add more than one stop, edit the current

route. Touch Where To? > Custom Routes.

Navigating Off Road

When you choose a destination while the off

road feature is enabled, the zūmo plots a straight

line to the destination.

1. Touch Tools > Settings > Navigation.

2. Under Route Preference, touch Off Road.

Directionto

destination

Customizable

dataelds

Heading

Pairing your Bluetooth® Headset

You can listen to zūmo audio with your

Bluetooth headset. The rst time you use two

devices together, you must “pair” them. Your

Bluetooth headset and the zūmo must be turned

on and be within 10 meters of each other. After

the initial pairing, the two devices can connect

automatically each time you turn them on.

1. Touch Tools > Settings > Bluetooth.

2. Enable Bluetooth technology on your zūmo.

3. Under Connections, touch Add or Change.

4. Enable Find Me/Discoverable/Visible mode

on your headset.

Autres manuels pour Zumo 200 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Garmin GPS

Garmin

Garmin GNC 300TSO Manuel utilisateur

Garmin

Garmin nuvi 350 Manuel d'utilisation

Garmin

Garmin GPSMAP 3205 - Marine GPS Receiver Manuel utilisateur

Garmin

Garmin GPS 155TSO Manuel utilisateur

Garmin

Garmin zumo 390LM Manuel utilisateur

Garmin

Garmin aera 560 Manuel

Garmin

Garmin GPS II+ Manuel utilisateur

Garmin

Garmin GTN 750 Manuel du propriétaire

Garmin

Garmin aera 796 Manuel

Garmin

Garmin StreetPilot c300 Manuel utilisateur

Garmin

Garmin eTrex Venture Cx, Legend Cx Manuel utilisateur

Garmin

Garmin Cessna Caravan G1000 Manuel

Garmin

Garmin eTrexLegend TM Manuel utilisateur

Garmin

Garmin nüvi 2555LMT Manuel utilisateur

Garmin

Garmin Apollo SL50 Manuel utilisateur

Garmin

Garmin 16-HVS Manuel utilisateur

Garmin

Garmin GPSMAP 7400 Series Guide de démarrage rapide

Garmin

Garmin nuvi 3790 Manuel d'instructions

Garmin

Garmin GPS 400 Manuel utilisateur

Garmin

Garmin GTN 625 Manuel utilisateur

Garmin

Garmin G3X Touch Manuel utilisateur

Garmin

Garmin Cessna Caravan G1000 Manuel utilisateur

Garmin

Garmin GNS 480 Mode d'emploi

Garmin

Garmin Fishfinder 240 Blue Manuel

Manuels GPS populaires d'autres marques

Raven

Raven Cruizer II Manuel

Hama

Hama 53118 Manuel utilisateur

Jigabot

Jigabot EX Manuel utilisateur

Pointer

Pointer Cellocator CelloTrack XT LTE Guide d'installation

Queclink

Queclink GV55LITE Manuel utilisateur

Voxson

Voxson Voxtrack GPS500 Manuel d'instructions

Starcom Systems

Starcom Systems Kylos Compact Manuel utilisateur

Cobra

Cobra Marine MC 600Ci Manuel utilisateur

Cellocator

Cellocator CelloTrack T Manuel utilisateur

Enfora

Enfora Mini-MT GSM2228UG001 Manuel utilisateur

Magellan

Magellan eXplorist 100 Manuel utilisateur

LTE

LTE G50B Manuel utilisateur

SkyGolf

SkyGolf SkyCaddie SG1 Manuel utilisateur

Kenwood

Kenwood DNN9330BT Manuel utilisateur

Safelet

Safelet Indra Manuel utilisateur

Bushnell

Bushnell 360100 Manuel utilisateur

Geneq

Geneq SXBlue Manuel utilisateur

ORIGO

ORIGO ED308 Manuel utilisateur
