Garmin Nuvi 2555LT Manuel d'instructions

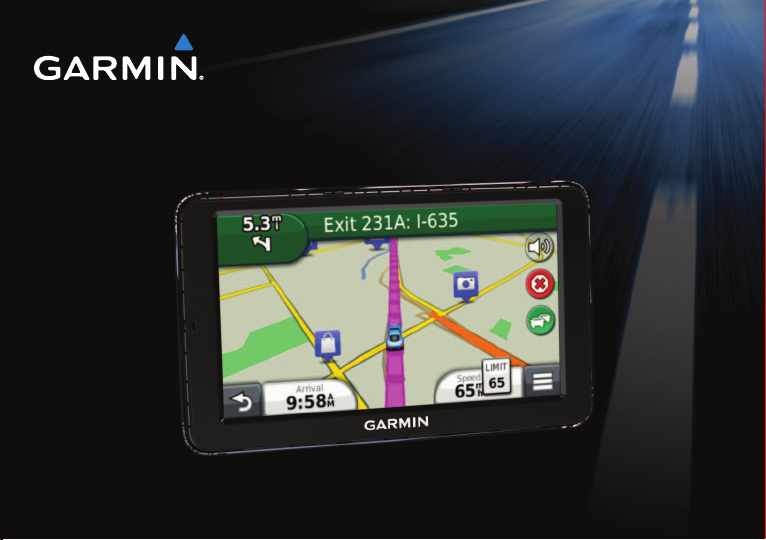

nüvi 2505 Quick Start Manual 1

nüvi® 2505 series

quick start manual

üvi models: 2515, 2545, 2555, 2565, 2595

September 2011 190-01356-01_0B Printed in Taiwan

2 nüvi 2505 Quick Start Manual

Getting Started

‹ WARNING

See the Important Safety and Product

Information guide in the product box for product

warnings and other important information.

Setting Up Your Device

When using your device for the rst time,

complete the following tasks.

1 Connect the device to vehicle power (page

2).

2 Mount the device (page 2).

3 Register the device (page 3).

4 Check for updates.

• Software updates (page 4).

• Free map update (page 4).

5 Download the full owner’s manual (page 4).

Connecting the Device to Vehicle

Power

‹ WARNING

This product contains a lithium-ion battery.

To prevent the possibility of personal injury or

product damage caused by battery exposure

to extreme heat, remove the device from the

vehicle when exiting or store it out of direct

sunlight.

Notice

Before mounting the device, see the Important

Safety and Product Information guide for

information about laws pertaining to windshield

mounting.

Charge your device as you drive before using it

on battery power.

1 Plug the vehicle power cable ➊ into the

USB port ➋ on the device ➌.

2 Press the suction cup ➍ to the windshield.

nüvi 2505 Quick Start Manual 3

3 While pressing, ip the lever ➎ back toward

the windshield.

➊

➋

➍

➌

➎

➏

4 Snap the mount ➏ onto the suction cup.

5 Fit the bottom of your device into the mount.

6 Tilt your device back until it snaps into place.

7 Plug the other end of the vehicle power

cable into a power outlet in your vehicle.

8 If necessary, connect the external antenna to

the vehicle power cable and secure it to the

windshield using the suction cups.

About myDashboard

You can use myDashboard to register your

device, check for software and map updates,

access product manuals and support, and more.

Setting Up myDashboard

1 Connect the mini-USB cable ➊ to the mini-

USB port ➋ on the device (page 2).

➊➋

2 Connect the mini-USB cable to the USB port

on your computer.

3 Go to www.garmin.com/dashboard.

4 Follow the on-screen instructions.

Registering your Device

1 From myDashboard, click Register Now.

4 nüvi 2505 Quick Start Manual

2 Follow the on-screen instructions.

3 Keep the original sales receipt, or a

photocopy, in a safe place.

nüMaps Guarantee™

If you register the device at http://my.garmin

.com within 90 days of acquiring satellites while

driving, your device could be eligible for one free

map update. Go to www.garmin.com/numaps for

terms and conditions.

Using myDashboard Services

1 Open myDashboard (page 3).

2 Select an option:

• To update the software, click Update

Now under Software Updates.

• To update the maps, click Update Now

under Map Updates.

• To download the owner’s manual, click

Manuals, and then click Download next

to the manual you want.

3 Follow the on-screen instructions.

Using the Power Key

➊

Select an option:

• To turn off the device, hold the Power

key ➊ for 4 seconds.

• To reset the device, hold the Power key

for 10 seconds.

• To put the device in sleep mode, press

the Power key.

• To bring the device out of sleep mode,

press the Power key and double-tap .

nüvi 2505 Quick Start Manual 5

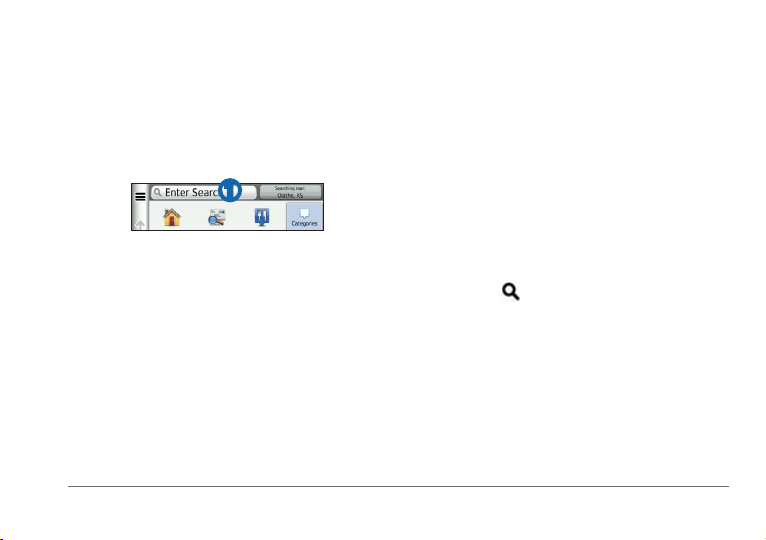

Finding a Location Using the Search Bar

You can use the search bar to search for

locations by entering a category, brand name,

address, or city name.

1 Select Where To?.

2 Select the search bar.

➊

3 Enter a search term.

Suggested search terms appear below the

search bar as you type.

• To search for a type of business, enter a

category name, such as “movie theaters”

or “coffee shops.”

• To search for a business by name, enter

all or part of the name.

• To search for an address near you, enter

the street number and street name.

• To search for an address in another city,

enter the street number, street name,

city, and state.

• To search for a city, enter the city and

state.

• To search for coordinates, enter latitude

and longitude coordinates.

4 Select an option:

• To search using a suggested search

term, select the term.

• To search using the text you entered,

select .

5 If necessary, select a location.

Searching Near Another Location

From the main menu, select Where To? >

Searching Near.

6 nüvi 2505 Quick Start Manual

Adding a Stop

1 From the navigation screen, select >

Points of Interest.

2 Search for the extra stop.

3 Select the stop from the search results.

4 Select Go!.

5 Select Add to Active Route.

Your Route on the Map

Notice

The speed limit icon feature is for information

only and does not replace the driver’s

responsibility to abide by all posted speed limit

signs and to use safe driving judgment at all

times. Garmin will not be responsible for any

trafc nes or citations that you may receive for

failing to follow all applicable trafc laws and

signs.

Your route is marked with a magenta line on the

map. If you depart from the original route, your

device recalculates the route. A speed limit icon

could appear as you travel on major roadways.

➍

➌

➊ ➋

• Select ➊ to view the next turn.

If a view of a junction exists, the junction

view appears.

• Select ➋ to view the turn list.

• Select ➌ to stop the route you are

currently navigating.

• Select ➍ to view the Where Am I? page.

Taking a Detour

From the navigation page, select >

Detour.

nüvi 2505 Quick Start Manual 7

If the route you are currently taking is the

only reasonable option, the device might not

calculate a detour.

About Trafc

Notice

Garmin is not responsible for the accuracy or

timeliness of the trafc information.

Trafc information may not be available in all

areas or countries.

A trafc receiver is included in some packages.

It is built into the vehicle power cable. The trafc

receiver and the device must be in data range of

a station transmitting trafc data to receive trafc

information. You do not need to activate the

subscription included with your trafc receiver.

When you are receiving trafc information, a

trafc icon appears on the map page. The trafc

icon changes color to indicate the severity

of trafc conditions on your route or on the road

you are currently traveling.

Go to www.garmin.com/trafc for more

information.

Pairing Your Phone

Hands-free calling is available on some nüvi

models. Before you can pair, your phone and the

device must be turned on and within 33 ft. (10

m) of each other.

1 Enable the Bluetooth® component on your

phone.

2 Select Settings > Bluetooth.

3 Select Bluetooth.

4 Select Add Phone > OK.

5 Select your phone, and touch OK.

6 Enter the Bluetooth PIN (1234) for your

device in your phone.

815 69 555

00 46 7744 52020

00 33 1 5517 81 89

43 (0) 3133 3181 0

0800-0233937

00 902 00 70 97

00 358 19 311 001

1-866-429-9296

0180 5 / 42 76 46 - 880

0180 5 / 42 76 46 - 550

00800 4412 454

+44 2380 662 915

00 32 2672 5254

913-397-8200

1-800-800-1020

00 39 02 3669 9699

00 35 1214 447 460

00 45 4810 5050

0808 2380000

+44 (0) 870.8501241

www.garmin.com/support

Garmin®, the Garmin logo, and MapSource® are trademarks of Garmin

Ltd. or its subsidiaries, registered in the USA and other countries. nüMaps

Guarantee™ is a trademarks of Garmin Ltd. or its subsidiaries. These

trademarks may not be used without the express permission of Garmin.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.,

and any use of such name by Garmin is under license.

Garmin International, Inc.

1200 East 151st Street,

Olathe, Kansas 66062, USA

Garmin (Europe) Ltd.

Liberty House, Hounsdown Business Park

Southampton, Hampshire, SO40 9LR UK

Garmin Corporation

No. 68, Zhangshu 2nd Road, Xizhi Dist.

New Taipei City, 221, Taiwan (R.O.C.)
