Garmin Nuvi 1695 Manuel d'instructions

nüvi®1695

quick start manual

01102436

190-01200-01_01.indd 1 4/30/2010 11:25:19 AM

2 nüvi 1695 Quick Start Manual

Looking at Your Device

‹

WARNING

See the Important Safety and Product

Information guide in the product

box for product warnings and other

important information.

Micro-USB

connector

Power key

microSD

™

card slot

Microphone

Using the Main Menu

➊ ➋

➌ ➍ ➎

➊

Touch to nd a destination.

➋

Touch to view the map.

➌

Touch to make a call when

connected to a compatible

mobile phone. See

www.garmin.com/bluetooth for

more information.

➍

Touch to adjust the volume.

➎

Touch to use tools such as

settings, help, and weather.

190-01200-01_01.indd 2 4/30/2010 11:25:20 AM

nüvi 1695 Quick Start Manual 3

Using the Main Menu

Toolbar

➋ ➌ ➍ ➎➊ ➏ ➐

➊

GPS signal status. Touch

and hold to view satellite

information.

➋

Bluetooth®technology status.

Touch to change Bluetooth

settings.

➌

Usage mode indicator. Touch to

select a usage mode.

➍

Current time. Touch to change

time settings.

➎

Current temperature. Touch to

view weather information.

➏

nüLink! services signal status.

➐

Battery status.

Setting Up Your Device

When using the device for the rst

time, complete the following tasks:

1. Mount the device (page 3).

2. Charge the device (page 5).

3. Acquire satellites (page 5).

Mounting your Device

‹

WARNING

This product contains a lithium-ion

battery. To prevent the possibility of

personal injury or product damage

caused by battery exposure to

extreme heat, remove the device

from the vehicle when exiting or

store it out of direct sunlight.

NOTICE

Before mounting the device, see

the Important Safety and Product

Information guide for information

about laws pertaining to windshield

mounting.

190-01200-01_01.indd 3 4/30/2010 11:25:20 AM

4 nüvi 1695 Quick Start Manual

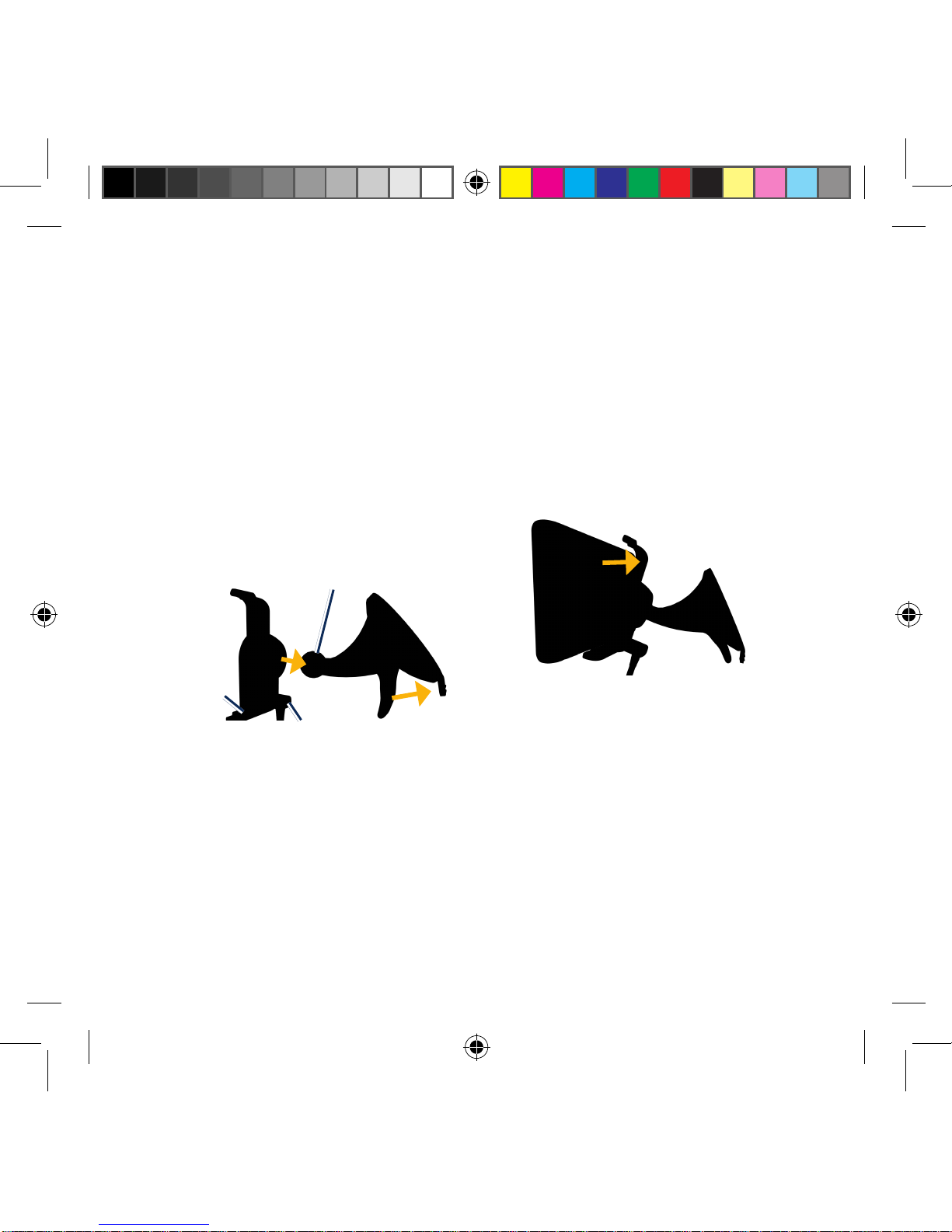

1. Remove the clear plastic from the

suction cup. Place the suction cup

on the windshield.

2. Flip the lever back toward the

windshield.

3. Plug the vehicle power cable into

the back of the cradle.

4. Snap the cradle onto the suction

cup arm.

Suction cup arm

Cradle

Vehicle power cable

5. Plug the other end of the vehicle

power cable into a power outlet

in your vehicle.

6. Fit the bottom of your device into

the cradle.

7. Tilt your device back until it

snaps into place.

Your unit should turn on

automatically if it is plugged in and

the vehicle is running.

190-01200-01_01.indd 4 4/30/2010 11:25:21 AM

nüvi 1695 Quick Start Manual 5

Charging Your Device

Charge your device for at least 4

hours before using it on battery

power.

Your device can be powered three

ways.

Connect the vehicle power cable

to the mount while the device is

in the mount.

Connect the USB cable.

Connect an AC adapter (available

on some device models).

Acquiring Satellites

1. Go outdoors to an open area,

away from tall buildings and

trees.

2. Turn on your device.

Acquiring satellite signals can take a

few minutes. The satellite icon

indicates signal status. When at least

one of the lines is green, your device

has acquired satellite signals.

•

Finding a Point of

Interest

1. Touch Where To? > Points of

Interest.

2. Select a category and a

subcategory.

3. Select a destination, and touch

Go!.

4. If necessary, touch Start to

navigate the route.

To search for a location in a

different area, touch Where To?

> > Near.

Finding a Point of Interest by

Name

1. Touch Where To? > Points of

Interest.

2. Select a category and a

subcategory.

3. Touch .

190-01200-01_01.indd 5 4/30/2010 11:25:21 AM

6 nüvi 1695 Quick Start Manual

Following Your Route

Your route is marked with a magenta

line. As you travel, your device

guides you to your destination with

voice prompts, arrows on the map,

and directions at the top of the map.

If you depart from the original route,

your device recalculates the route.

Touch and drag the map to view a

different area of the map. A speed

limit icon could appear as you travel

on major roadways.

➊ ➋

➌

➍➎

➏

➐

➊

Touch to view the Next Turn

page or Junction View page.

➋

Touch to view the Turn List.

➌

Touch and to zoom in

and out.

➍

Touch to return to the Main

menu.

➎

Touch to change the data eld.

➏

Touch to view the WhereAm I?

page.

➐

Touch to view the trip

computer.

Adding a Stop

Before you can add a stop, you must

be navigating a route.

1. Touch to return to the Main

menu.

2. Touch Where To?.

3. Search for the extra stop.

4. Touch Go!.

5. Touch Set as Via Point to

add this stop before your nal

destination.

190-01200-01_01.indd 6 4/30/2010 11:25:21 AM

nüvi 1695 Quick Start Manual 7

Taking a Detour

Before you can take a detour, you

must be navigating a route.

1. Touch to return to the Main

menu.

2. Touch Detour.

Using nüLink!™

Services

Your device comes with a

subscription to Garmin nüLink!

services, which allows you to receive

current information on weather, fuel

prices, ight times, and more.

For more information on nüLink!

services, touch Tools > Help, or refer

to the nüvi 1695 Owner’s Manual at

www.garmin.com.

NOTE: nüLink! Services may not be

available in all areas or countries.

Finding Local Businesses

NOTE: nüLink! Services may not

be available in all areas or countries.

To use this feature, you must have

a current nüLink! subscription, and

your device must be receiving a

nüLink! signal.

Local search enables you to search

for the most up-to-date location

information.

In addition to searching by spelling

the name of a location, you can also

search for a specic category of

location, like hair salon or art gallery.

1. Touch Where To? > Points of

Interest > Local Search.

2. Enter the location name or

category.

3. Touch Done.

190-01200-01_01.indd 7 4/30/2010 11:25:21 AM

8 nüvi 1695 Quick Start Manual

4. Select a location.

Touch the Google® tab to

perform a local search over

the nüLink! connection.

Touch the Garmin tab to

search the pre-loaded Garmin

POI.

5. Touch Go!.

Finding a Destination

Using Phone Book

Listings

NOTE: nüLink! Services may not

be available in all areas or countries.

To use this feature, you must have

a current nüLink! subscription, and

your device must be receiving a

nüLink! signal.

1. Touch Where To? > White

Pages.

2. Select an option:

•

By Name—Touch to search

for a listing using rst and last

names.

By Phone Number—Touch

to search for a listing using a

phone number.

3. Use the on-screen keyboard to

enter a name or a phone number,

and touch Done.

4. Select a listing in the search

results, if necessary.

•

190-01200-01_01.indd 8 4/30/2010 11:25:21 AM

nüvi 1695 Quick Start Manual 9

Finding Fuel Prices

NOTE: nüLink! Services may not

be available in all areas or countries.

To use this feature, you must have

a current nüLink! subscription, and

your device must be receiving a

nüLink! signal.

1. Touch Where To? > Fuel Prices.

2. Touch > Fuel Type and select

the fuel type for your vehicle. A

list of fuel prices per gallon at

nearby gas stations appears.

3. Select a station.

Checking Movie Times

NOTE: To use this feature, you must

have a current nüLink! subscription,

and your device must be receiving a

nüLink! signal.

1. Touch Where To? >Movie

Times.

2. Touch > Select Day and

select an upcoming day.

3. Select Find By Movie Title or

Find by Theater Name.

4. Select a movie title or a movie

theater.

Finding Local Events

NOTE: nüLink! Services may not

be available in all areas or countries.

To use this feature, you must have

a current nüLink! subscription, and

your device must be receiving a

nüLink! signal.

1. Touch Where To? >Local

Events.

2. Select a category.

3. Touch > Select Day and

select an upcoming day.

4. Select an event.

5. Touch Save to save the event to

Favorites.

190-01200-01_01.indd 9 4/30/2010 11:25:21 AM

10 nüvi 1695 Quick Start Manual

Using Trafc

NOTICE

In no event shall Garmin be liable

for any incidental, special, indirect,

or consequential damages, including,

without limitation, damages for any

trafc nes or citations, whether

resulting from the use, misuse

or inability to use the product or

from defects in the product. Some

states do not allow the exclusion of

incidental or consequential damages,

so the above limitations may not

apply to you.

NOTE: nüLink! Services may not

be available in all areas or countries.

To use this feature, you must have

a current nüLink! subscription, and

your device must be receiving a

nüLink! signal.

When you are receiving trafc

information, a trafc icon appears

in the upper-left corner of the map

page. The trafc icon changes

color to indicate the severity of

trafc conditions on your route or on

the road you are currently traveling.

If a severe trafc delay occurs on

your route while you are navigating,

the device automatically recalculates

the route.

Using Weather

‹

WARNING

The weather information provided

through this product is subject

to service interruptions and may

contain errors, inaccuracies

or outdated information, and

consequently should not be relied

upon exclusively. Always use

common sense while driving or

navigating and check alternate

weather information sources prior

to making safety-related decisions.

190-01200-01_01.indd 10 4/30/2010 11:25:21 AM

Table des matières

Autres manuels Garmin GPS

Garmin

Garmin GPSMAP 78S Guide de sécurité

Garmin

Garmin GTU 10 Manuel utilisateur

Garmin

Garmin eTrex Legend H Manuel utilisateur

Garmin

Garmin NUVI Manuel utilisateur

Garmin

Garmin GPSMAP 3205 - Marine GPS Receiver Guide de référence

Garmin

Garmin NavComm SL30 Manuel utilisateur

Garmin

Garmin GPSMAP 64s Feuille d'instructions

Garmin

Garmin GPSMAP 3005C Manuel utilisateur

Garmin

Garmin Astro Manuel utilisateur

Garmin

Garmin ECHOMAP PLUS 60 series Manuel d'instructions

Garmin

Garmin eTrex Summit - Hiking GPS Receiver Manuel utilisateur

Garmin

Garmin nuvi 1690 Manuel utilisateur

Garmin

Garmin Vivofit Manuel utilisateur

Garmin

Garmin eTrex Legend Cx Guide de référence

Garmin

Garmin Approach G5 - GPS-Enabled Golf Handheld Manuel utilisateur

Garmin

Garmin GPS 65 Personal Navigator Manuel utilisateur

Garmin

Garmin GPSMAP 198C Manuel utilisateur

Garmin

Garmin GPSMAP 176 Manuel utilisateur

Garmin

Garmin GTN 6 series Manuel utilisateur

Garmin

Garmin Diamond DA40 Manuel

Garmin

Garmin GPS 60 - Hiking GPS Receiver Mode d’emploi

Garmin

Garmin GPS 500 Manuel utilisateur

Garmin

Garmin TREAD Manuel utilisateur

Garmin

Garmin GPSMAP 3206 - Marine GPS Receiver Manuel utilisateur

Manuels GPS populaires d'autres marques

Raven

Raven Cruizer II Manuel

Hama

Hama 53118 Manuel utilisateur

Jigabot

Jigabot EX Manuel utilisateur

Pointer

Pointer Cellocator CelloTrack XT LTE Guide d'installation

Queclink

Queclink GV55LITE Manuel utilisateur

Voxson

Voxson Voxtrack GPS500 Manuel d'instructions

Starcom Systems

Starcom Systems Kylos Compact Manuel utilisateur

Cobra

Cobra Marine MC 600Ci Manuel utilisateur

Cellocator

Cellocator CelloTrack T Manuel utilisateur

Enfora

Enfora Mini-MT GSM2228UG001 Manuel utilisateur

Magellan

Magellan eXplorist 100 Manuel utilisateur

LTE

LTE G50B Manuel utilisateur

SkyGolf

SkyGolf SkyCaddie SG1 Manuel utilisateur

Kenwood

Kenwood DNN9330BT Manuel utilisateur

Safelet

Safelet Indra Manuel utilisateur

Bushnell

Bushnell 360100 Manuel utilisateur

Geneq

Geneq SXBlue Manuel utilisateur

ORIGO

ORIGO ED308 Manuel utilisateur
