Garmin GPSMAP 695 Manuel utilisateur

GPSMAP®695/696

Quick Reference Guide

Portable Aviation Receiver

Garmin GPSMAP 695/696 Quick Reference Guide

190-00959-00 Rev. A 1

Overview

Overview GPS Navigation Flight Planning Hazard Avoidance Additional Features Messages & Alerts Utilities

OVERVIEW

7” WVGA (800x480)

Color Display

Unit Overview

SD Card Slot

External GPS Antenna

Connector

Audio (Head-

phones/Line Out)

USB Connector

External Power/Serial Port

Connector

Backlit Keypad

Power Button

Battery Pack

Garmin GPSMAP 695/696 Quick Reference Guide

190-00959-00 Rev. A

Overview

OverviewGPS NavigationFlight PlanningHazard AvoidanceAdditional FeaturesMessages & AlertsUtilities

Power

Button

Press and hold to turn the unit on or off

With the unit on, press to adjust the backlight and volume

RNG Key Press to increase or decrease the viewing range of the map

FMS

Joystick

Press the FMS Joystick to toggle input focus between user

interaction with the current page and the page navigation bar

Turn the FMS Joystick clockwise to access a dropdown menu

Turn the FMS Joystick to change the selected value within the

highlighted ﬁeld

Move the FMS Joystick to highlight ﬁelds or move the map pointer

when interacting with the page

ENT Key Press to conﬁrm menu selection or data entry

Press to acknowledge messages

Press and hold to mark a waypoint

CLR Key Press to cancel an entry, revert to the previous value in a data entry

ﬁeld or remove menus

Press and hold to return to the default page

MENU Key Press once to view the Page Menu

Press twice to view the Main Menu

Press a third time to clear the Main Menu

FPL Key Press to display the Flight Plan Page

Press a second time to remove the Flight Plan Page

Direct-To

Key

Press to activate the Direct-To function, enter a destination

waypoint and establish a direct course to the selected destination

NRST Key Press to display the Nearest Page for viewing the nearest airports,

intersections, NDBs, VORs, waypoints, frequencies, and airspaces

Softkey

Selection

Keys

Press to select softkey shown above the bezel key on the unit

Garmin GPSMAP 695/696 Quick Reference Guide

190-00959-00 Rev. A 3

Overview

Overview GPS Navigation Flight Planning Hazard Avoidance Additional Features Messages & Alerts Utilities

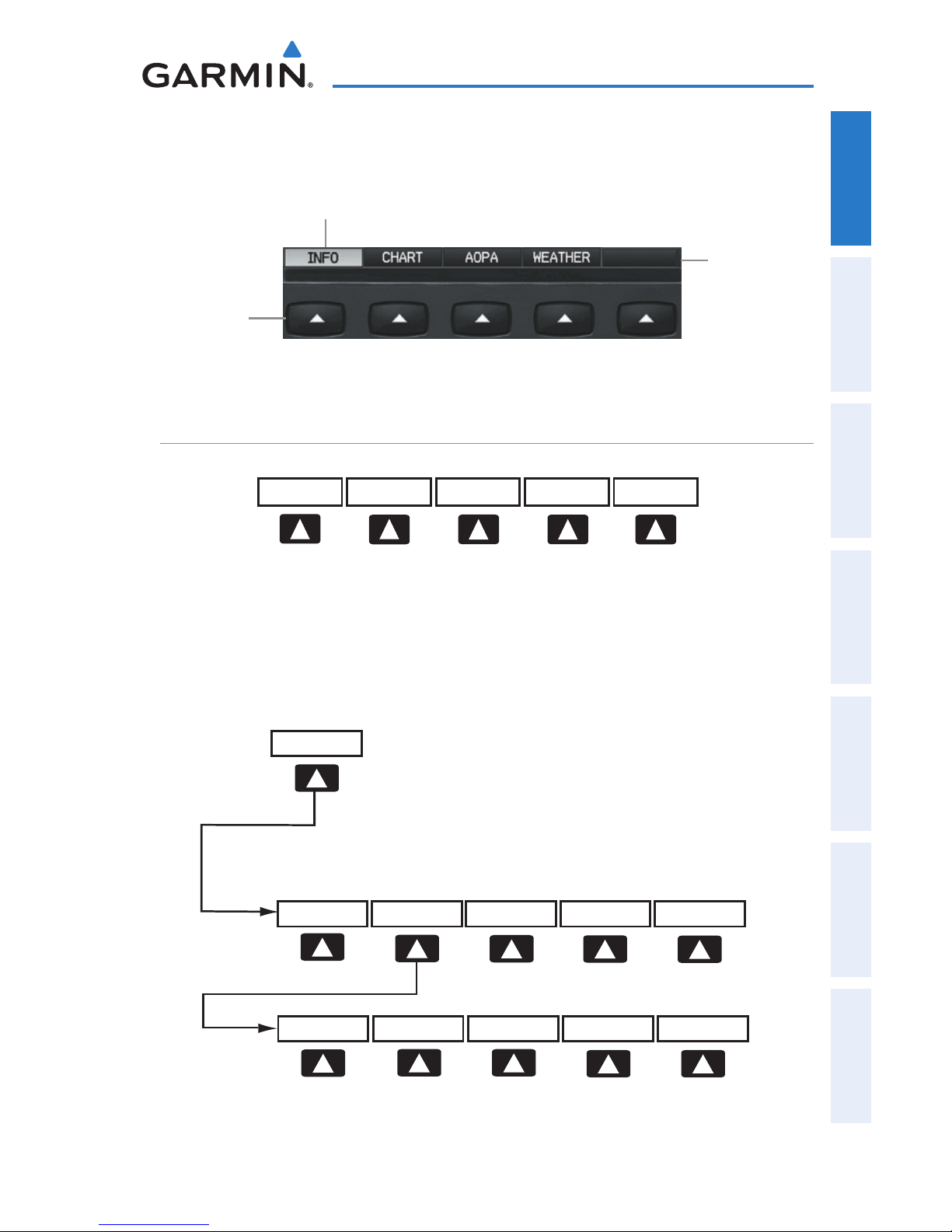

SOFTKEYS

Softkeys (WPT Page)

Softkey

Bezel Mounted

Softkeys (Press)

Softkey Names

(Displayed)

MAP PAGE SOFTKEYS

MAP TERRAIN WEATHER PANEL

• MAP Enables second-level Map Page softkeys

TERRAIN Displays/removes terrain awareness information

WEATHER Displays/removes weather information

PANEL Displays/removes the Panel

MAP

VFR MAP

BACK

IFR MAP TOPO BACK

Press the BACK Softkey to

return to the top-level softkeys.

SAT VIEW

HIGH AWY

LOW AWY

IFR MAPVFR MAP

Garmin GPSMAP 695/696 Quick Reference Guide

190-00959-00 Rev. A

Overview

OverviewGPS NavigationFlight PlanningHazard AvoidanceAdditional FeaturesMessages & AlertsUtilities

VFR MAP Softkey selected

• MAP Enables second-level Map Page softkeys

VFR MAP Displays VFR map information and softkeys

IFR MAP Displays IFR map information and softkeys

TOPO Displays/removes topographical terrain shading

SAT VIEW Displays/removes satellite imagery (above 20nm scale)

BACK Returns to top-level softkeys

IFR MAP Softkey selected

• MAP Enables second-level Map Page softkeys

VFR MAP Displays VFR map information and softkeys

IFR MAP Displays IFR map information and softkeys

LOW AWY Low Altitude (Victor) Airways displayed

HIGH AWY High Altitude Airways (Jet Routes) displayed

BACK Returns to top-level softkeys

WAYPOINT PAGE SOFTKEYS

INFO CHART AOPA WEATHER

INFO Displays waypoint information

CHART Displays optional FliteCharts (Americas Unit Only)

AOPA Displays AOPA information (Americas Unit Only)

WEATHER Displays METAR and TAF text (GPSMAP 696®Only)

WEATHER PAGE SOFTKEYS (GPSMAP 696 ONLY)

PAN MAP ANIMATE LEGEND

INFO

Garmin GPSMAP 695/696 Quick Reference Guide

190-00959-00 Rev. A 5

Overview

Overview GPS Navigation Flight Planning Hazard Avoidance Additional Features Messages & Alerts Utilities

PAN MAP Activates the map pointer for panning the map

ANIMATE Animates NEXRAD weather

INFO Displays XM Information

LEGEND Displays weather legends

XM AUDIO PAGE SOFTKEYS (GPSMAP 696 ONLY)

INFO CHANNEL VOLUME

CATEGORY FAVORITE

INFO Displays XM Information

CATEGORY Highlights the Category ﬁeld

CHANNEL Highlights the Channels ﬁeld

FAVORITE Displays a list of favorite channels

VOLUME Enables second-level VOLUME softkeys.

Press and hold to toggle Mute on and off.

VOL + BACKVOL - MUTE

VOLUME

Press the BACK Softkey to

return to the top-level softkeys.

• VOLUME Enables second-level VOLUME softkeys

VOL - Decreases XM audio volume

VOL + Increases XM audio volume

MUTE Toggles XM audio on/off

BACK Returns to top-level softkeys

Garmin GPSMAP 695/696 Quick Reference Guide

190-00959-00 Rev. A

Overview

OverviewGPS NavigationFlight PlanningHazard AvoidanceAdditional FeaturesMessages & AlertsUtilities

DATA ENTRY

Using the FMS Joystick to enter data:

Press the FMS Joystick to activate the cursor.

Move the FMS Joystick to highlight the desired ﬁeld.

Begin entering data.

To quickly enter a waypoint identiﬁer, turn the FMS Joystick counter-

clockwise to display a list of recent waypoints (RECENT WPTS), nearest

airports (NRST APTS) or ﬂight plan waypoints (FPL WPTS).

Move the FMS Joystick to highlight the desired waypoint from the list

and press the ENT Key.

Turn the FMS Joystick to select a character for the ﬁrst placeholder.

Turning the FMS Joystick clockwise scrolls through the alphabet (where

appropriate) toward the letter Z, starting in the middle at K, and the digits

zero through nine. Turning the FMS Joystick counter-clockwise scrolls in

the opposite direction.

Use the FMS Joystick to move the cursor to the next placeholder in the

ﬁeld.

Repeat, turning the FMS Joystick to select a character and the moving

the FMS Joystick to move the cursor, until the ﬁelds are complete.

Press the ENT Key to conﬁrm entry.

Press the FMS Joystick or the CLR Key to cancel data entry (the ﬁeld reverts

back to its previous information).

MENUS

Navigating the Page Menu:

Press the MENU Key once to display the Page Menu.

Turn or move the FMS Joystick to scroll through a list of available options

(a scroll bar always appears to the right of the window/box when the

option list is longer than the window/box).

Press the ENT Key to select the desired option.

Garmin GPSMAP 695/696 Quick Reference Guide

190-00959-00 Rev. A 7

Overview

Overview GPS Navigation Flight Planning Hazard Avoidance Additional Features Messages & Alerts Utilities

Press the FMS Joystick, the CLR Key, the MENU Key twice to remove the

menu and cancel the operation.

Navigating the Main Menu:

Press the MENU Key twice to display the Main Menu.

Turn or move the FMS Joystick to scroll through a list of available options

(a scroll bar always appears to the right of the window/box when the

option list is longer than the window/box).

Press the ENT Key to select the desired option.

Press the FMS Joystick, the CLR Key, the EXIT Softkey, or the MENU Key to

remove the menu and cancel the operation.

PAGES

Active Page Title Input Focus on Navigation Bar

(Page Cursor Off)

Input Focus on Current Page

(Page Cursor On)

Selected Page

Selecting a Main Page using the FMS Joystick:

If necessary press the FMS Joystick to begin interaction with the Navigation

Bar.

Turn the

FMS Joystick

until the desired page is selected (MAP, WPT, WX,

TER, XM, INFO).

Selecting the FPL or NRST Pages:

Press the FPL or NRST Key.

If necessary, press the FMS Joystick to begin interaction with the

Navigation Bar.

Turn the FMS

Joystick

until the desired page is selected.

Garmin GPSMAP 695/696 Quick Reference Guide

190-00959-00 Rev. A

GPS Navigation

OverviewGPS NavigationFlight PlanningHazard AvoidanceAdditional FeaturesMessages & AlertsUtilities

GPS NAVIGATION

PANEL

Altitude

Panel (Map Page)

Vertical Speed

CDI Scale

Estimated Time Enroute

Turn Rate Indicator

Ground Speed

HSI - Next Waypoint

-Distance

Setting the Bug Indicator:

From the Map Page, press MENU Key to display the Map Page Menu

Turn or move the FMS Joystick to highlight ‘Set Bug Indicator’, and press

the ENT Key. The ‘Set Bug Indicator’ Menu appears.

Turn or move the FMS Joystick to highlight the desired menu option, and

press the ENT Key. For the ‘User Selected’ option, turn the FMS Joystick to

select the desired heading reference, and press the ENT Key.

Manually setting a course to the destination waypoint:

From the Map Page, press MENU Key to display the Map Page Menu

Turn or move the FMS Joystick to highlight ‘Set OBS and Hold’, and press

the ENT Key.

Turn the FMS Joystick to select the desired course to the destination, and

press the ENT Key.
