Garmin ETREX H Manuel utilisateur

eTrex® H

Owner’s Manual

personal navigator

Garmin International, Inc.

1200 East 151

Street,

Olathe, Kansas 66062, USA

Tel. (913) 397.8200 or (800) 800.1020

Fax (913) 397.8282

Garmin (Europe) Ltd.

Liberty House

Hounsdown Business Park,

Southampton, Hampshire, SO40 9RB UK

Tel. +44 (0) 870.8501241 (outside the UK)

0808 2380000 (within the UK)

Fax +44 (0) 870.8501251

Garmin Corporation

No. 68, Jangshu 2

Road,

Shijr, Taipei County, Taiwan

Tel. 886/2.2642.9199

Fax 886/2.2642.9099

disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin.

Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium

to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this

manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution

of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and

to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the

Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this

and other Garmin products.

Garmin

is a trademark of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. myGarmin

™

, eTrex

AutoLocate

, TracBack

, BlueChart

, and MapSource

are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may

not be used without the express permission of Garmin.

August 2007 Part Number 190-00818-00 Rev. B Printed inTaiwan

eTrex H Owner’s Manual i

IntroductIon

Thank you for choosing the Garmin

eTrex

H. Take

a moment to compare the contents of this package

with the packing list on the box. If any pieces are

missing, contact your Garmin dealer immediately.

Contact Garmin

Contact Garmin if you have any questions while using

your unit. Contact Garmin Product Support by phone:

(913) 397-8200 or (800) 800-1020, Monday–Friday,

8 AM–5 PM Central Time; or go to

www.garmin.com/support/.

In Europe, contact Garmin (Europe) Ltd. at

+44 (0) 870.8501242 (outside the UK) or

0808 2380000 (within the UK).

Product Registration

Help us better support you by completing our online

registration today! Connect to our Web site at

http://my.garmin.com. Keep the original sales receipt,

or a photocopy, in a safe place.

Optional Accessories

For a complete list of available accessories for use

with the eTrex, refer to http://buy.garmin.com.

WARNING: See the Important Safety and Product

Information sheet in the product box for product

warnings and other important information.

ii eTrex H Owner’s Manual

IntroductIon

Table of Contents

Introduction........................................................i

Contact Garmin ....................................................i

Product Registration............................................i

Optional Accessories...........................................i

Getting Started..................................................1

Unit Overview ......................................................1

Installing Batteries and Lanyard........................2

Operating the eTrex.............................................3

Key Functions......................................................4

Turning on the eTrex ...........................................5

Main Pages........................................................7

SkyView Page ......................................................7

Map Page..............................................................7

Pointer Page ........................................................9

Trip Computer Page ........................................ 10

Main Menu ......................................................11

Routes Page...................................................... 14

Tracks Page ...................................................... 16

Appendix .........................................................23

Specications ................................................... 23

Interface Formats ............................................. 24

Connecting Your eTrex to a Computer ........... 24

Software License Agreement .......................... 25

Declaration of Conformity ............................... 25

Index ................................................................26

eTrex H Owner’s Manual 1

GettInG Started

Unit Overview

Carry lanyard

attachment slots

Battery compartment

cover

Battery compartment

locking ring

External power and data

connector

(under weather cap)

LCD display

GPS antenna

QUIT/PAGE

key

POWER key

UP/DOWN

keys

ENTER/

MARK key

2 eTrex H Owner’s Manual

GettInG Started

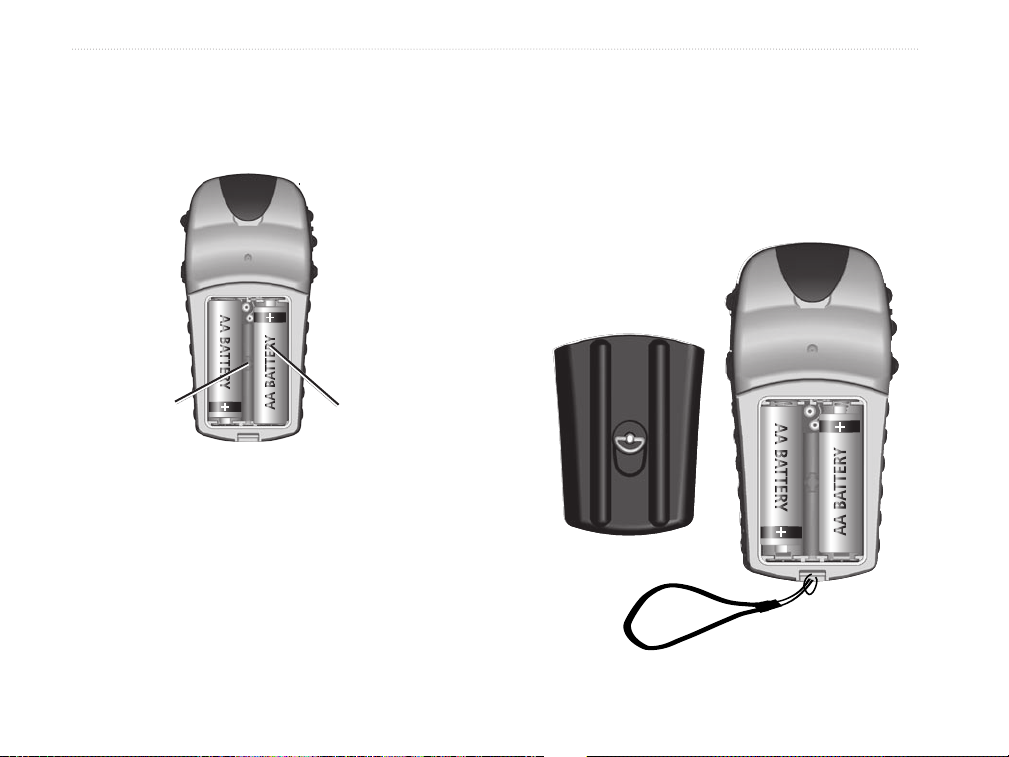

Installing Batteries and Lanyard

The eTrex operates on two AA batteries (not

included). You can use Alkaline or NiMH batteries.

Battery

compartment

Locking

pin slot

To install the batteries:

1. Remove the battery cover by turning the

Locking ring counter-clockwise and pulling out.

2. Insert the batteries, observing the proper

polarity.

Remove the batteries if the unit is not being used for

several months. Stored data is not lost when batteries

are removed.

To install the lanyard:

1. Remove the battery cover and place the loop of

the lanyard through the slot in the base of the

unit.

2. Route the strap through the loop, and pull tight.

Lanyard installation

eTrex H Owner’s Manual 3

GettInG Started

Operating the eTrex

Understanding Terms

Select—move the highlighted area on the screen up

or down, using the UP and DOWN keys to select

individual fields.

Key—when you are directed to press a key, press and

quickly release the key.

Field—the location on a page where data or an option

can be shown or entered.

Scroll bar—when viewing a list of items too long to

appear on the screen, a scroll bar appears next to the

list. To scroll through a list, press the UP or DOWN

keys.

Default—the factory setting saved in the unit’s

memory. You can change the settings, but you can

revert to the factory settings when you select Restore

Defaults.

Manual Conventions

In this manual, when you are instructed to select

an item, small arrows (>) appear in the text. They

indicate that you should select a series of items on

the screen using the UP or DOWN keys, and press

ENTER after each item. For example, if you see

“select TRACKS > SETUP >,” you should highlight

TRACKS, and press ENTER. Then highlight

SETUP, and press ENTER.

4 eTrex H Owner’s Manual

GettInG Started

HIGH SENSITIVITY

Key Functions

UP/DOWN keys

From the Map page, press to zoom

the map in or out.

From any other page, press to scroll

up or down a list or move a slider

bar.

ENTER/MARK key

Press and release to enter data or

menu selections.

Press with a main page open to view

its option menu.

Press and hold to MARK your

location as a waypoint.

QUIT/PAGE key

Press to cycle through the main pages.

Press to exit a page or quit a function.

POWER key

Press and hold to turn unit on or off.

Press and release to turn backlighting

on or off.

eTrex H Owner’s Manual 5

GettInG Started

Turning on the eTrex

When you turn on the eTrex, the SkyView page

appears, followed by a READY TO NAVIGATE

message after the unit has collected enough satellite

data to establish its current location (initialized).

To turn the eTrex on and off:

1. Press and hold POWER. When the unit turns

on, a Welcome page appears followed by the

SkyView page.

2. To turn off the eTrex, press and hold POWER.

Ready to navigate

SkyView Page

Backlight and Contrast Adjustment

To turn on the backlight:

Press and quickly release POWER.

To set the timeout and adjust the contrast:

1. Press PAGE until the SkyView page appears,

then press ENTER twice to open the backlight/

contrast window.

2. Press ENTER to view the timeout options,

make a selection > ENTER.

3. Press DOWN to move to the contrast slider >

ENTER.

4. Press UP or DOWN to adjust the contrast >

QUIT to close.

Backlight time out options

and contrast adjustment

slider

6 eTrex H Owner’s Manual

GettInG Started

Selecting Options and Entering Data

Press UP/DOWN to highlight, select, or choose an

item in a list or a eld on the screen.

To select and activate an option:

1. From any page except the Menu page, press

ENTER to view the options menu.

2. Press UP or DOWN to move the highlight up

and down on the menu. To select an option,

press ENTER.

To exit a menu or return to the previous

setting:

Press QUIT/PAGE. The QUIT/PAGE key

moves backward through your steps. Press

QUIT/PAGE repeatedly to return to the starting

page. Once at the starting page, pressing the

key cycles you through the ve main pages.

On-Screen Messages

When a signicant event in the operation of the

unit occurs, an on-screen message appears to advise

you of the occurrence. In each case, the condition

is described and often a remedy is provided. Press

ENTER to acknowledge the message and close.
