Quick guide

SILENO minimo

QG_Minimo_Gardena.indd 1QG_Minimo_Gardena.indd 1 2021-03-02 11:16:102021-03-02 11:16:10

1. STOP button

2. LED for function check of the charging station,

boundary and guide wires

3. Charging station

4. ON/OFF button

5. Park button

6. Start button

7. Start/Schedule button

8. OK button

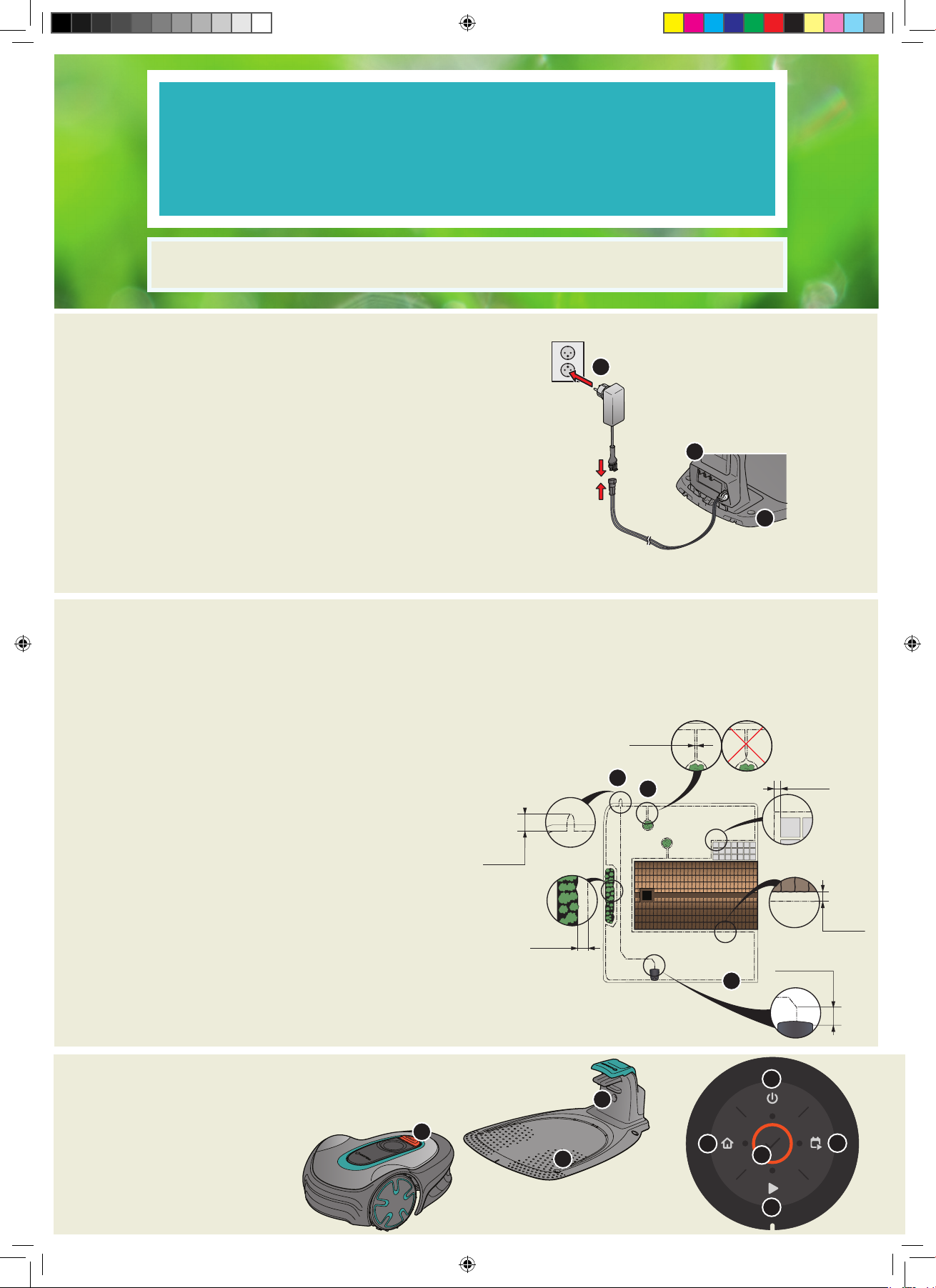

1. To install the charging station

1. Place the charging station on a flat level surface where there is open space.

NOTE: To place the charging station in a limited space or in a corner, please read

the Operator’s manual.

2. Connect the low voltage cable to the charging station and the power supply.

3. If outdoor, put the power supply at a minimum height of 30 cm / 12 in from the

ground.

4. Connect the power supply to a 100-240 V wall socket.

5. Place the robotic lawn mower in the charging station.

6. Push the ON/OFF button to switch on the robotic lawn mower and to charge the

battery while the boundary wire is laid.

NOTE: Do not continue with any product settings before the installation is

complete.

2. To install the boundary wire

1. Lay the boundary wire so that it forms a loop around the whole work area using stakes supplied or bury the wire.

NOTE: Do not lay the boundary wire in sharp bends.

2. Adapt the distance between the boundary wire and different objects.

A. Lay the boundary wire around all work area in a loop.

B. High obstacles > 3.5 cm / 1.4 in e.g. wall or fence.

C. Low obstacles 1-3.5 cm / 0.4-1.4 in. or a dropped edge e.g. flower bed.

D. Objects level with the lawn 0-1 cm / 0.4 in e.g. path, paving stones.

E. Make an island to isolate areas.

3. Make an eyelet at the point on the boundary wire where the guide wire is later connected (F).

4. To handle slopes, passages and secondary areas, refer to the Operator’s manual.

For more information and instructions, please read the complete supplied Operator‘s manual or visit www.gardena.com.

Installation support videos can be found on www.gardena.com.

GETTING STARTED WITH

THE GARDENA ROBOTIC LAWN MOWER

30 cm / 12”

10 cm / 4”

0 cm / 0”

10 cm / 4”

35 cm / 14”

30 cm / 12”

QG_Minimo_Gardena.indd 2QG_Minimo_Gardena.indd 2 2021-03-02 11:18:412021-03-02 11:18:41

1. STOP button

2. LED for function check of the charging station,

boundary and guide wires

3. Charging station

4. ON/OFF button

5. Park button

6. Start button

7. Start/Schedule button

8. OK button

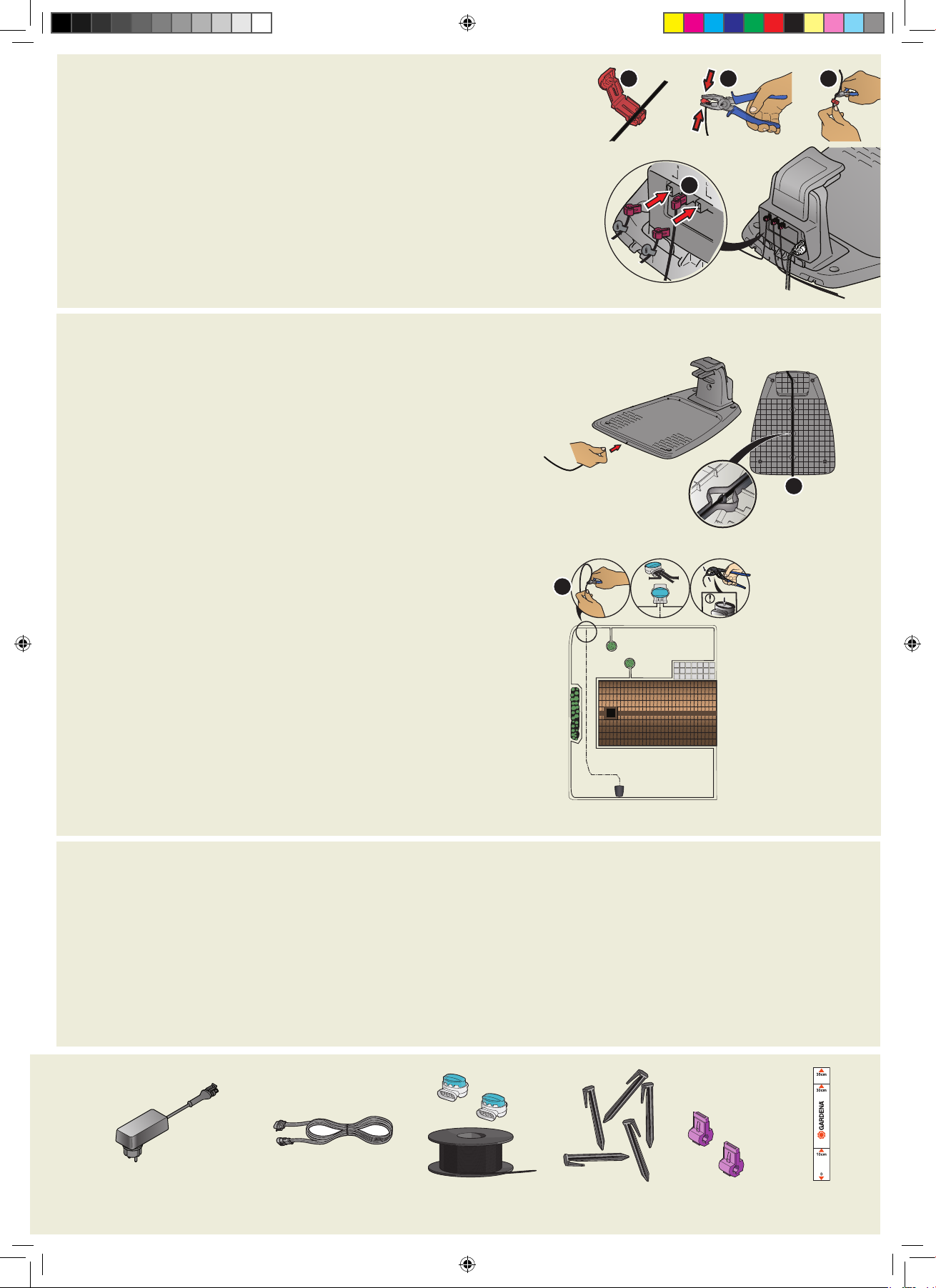

3.To connect the boundary wire

1. Open the connector and lay the boundary wire in the connector.

2. Press the connector and the wire together by using a pair of pliers.

3. Cut off the wire 1-2 cm / 0.4-0.8 in. after the connectors.

4. Press the boundary wire connectors onto the contact pins marked L (left) and R (right) on the charging station.

NOTE: The right-hand wire must be connected to the right-hand contact pin on the

charging station, and the left-hand wire to the left-hand pin.

4.To install and connect the guide wire

Install a guide wire to lead the robotic lawn mower to remote parts of the lawn and

to help it to find the charging station.

1. Push the guide wire through the bottom of the charging station and fasten it into

place using the snap locks.

2. Fit the connector to the guide wire in the same way as for the boundary wire,

according to the instructions above.

3. Press the guide wire connector onto the contact pin marked GUIDE on the

charging station.

4. Pull the guide wire a minimum of 1 m / 3.3 ft. straight out from the front edge of

the charging station.

5. Lay the guide wire from the charging station to the point on the boundary wire

(eyelet) where the connection is made using stakes supplied or bury the wire.

NOTE: Do not lay the guide wire in sharp bends and it cannot cross the boundary

wire that for instance is laid out for an island.

6. Cut the boundary wire at the center of the eyelet that was made in step 2.3.

7. Connect the guide wire to the boundary wire by inserting the boundary wires

and guide wire in the coupler, and pressing the coupler together with a pair of

pliers.

NOTE: After the guide wire is installed, attach the charging station to the ground

with the supplied screws and allen key.

NOTE: For optimal performance through narrow passages please ensure the

guide wire is laid correctly through it. Please read the Operator‘s manual for

further instructions.

Power supply

(the appearance of the power supply

may differ depending on market)

Low voltage cable Boundary wire and

couplers

Stakes Connectors Measurement

gauge

To stop the product

1. Push the STOP button.

5. To start and stop the robotic lawn mower

To start the product

1. Push the ON/OFF button for 3 seconds.

2. Enter the PIN code.

3. Select the operating mode.

To enter the factory PIN code

1. Push the ON/OFF button.

2. Push the Start/Schedule button.

3. Push the Start button.

4. Push the Park button.

NOTE: You can change the PIN code in the

GARDENA Bluetooth® App.

QG_Minimo_Gardena.indd 3QG_Minimo_Gardena.indd 3 2021-03-02 11:19:102021-03-02 11:19:10

2020-11-25

www.gardena.com

The right to make changes without prior notice is reserved.

www.gardena.com

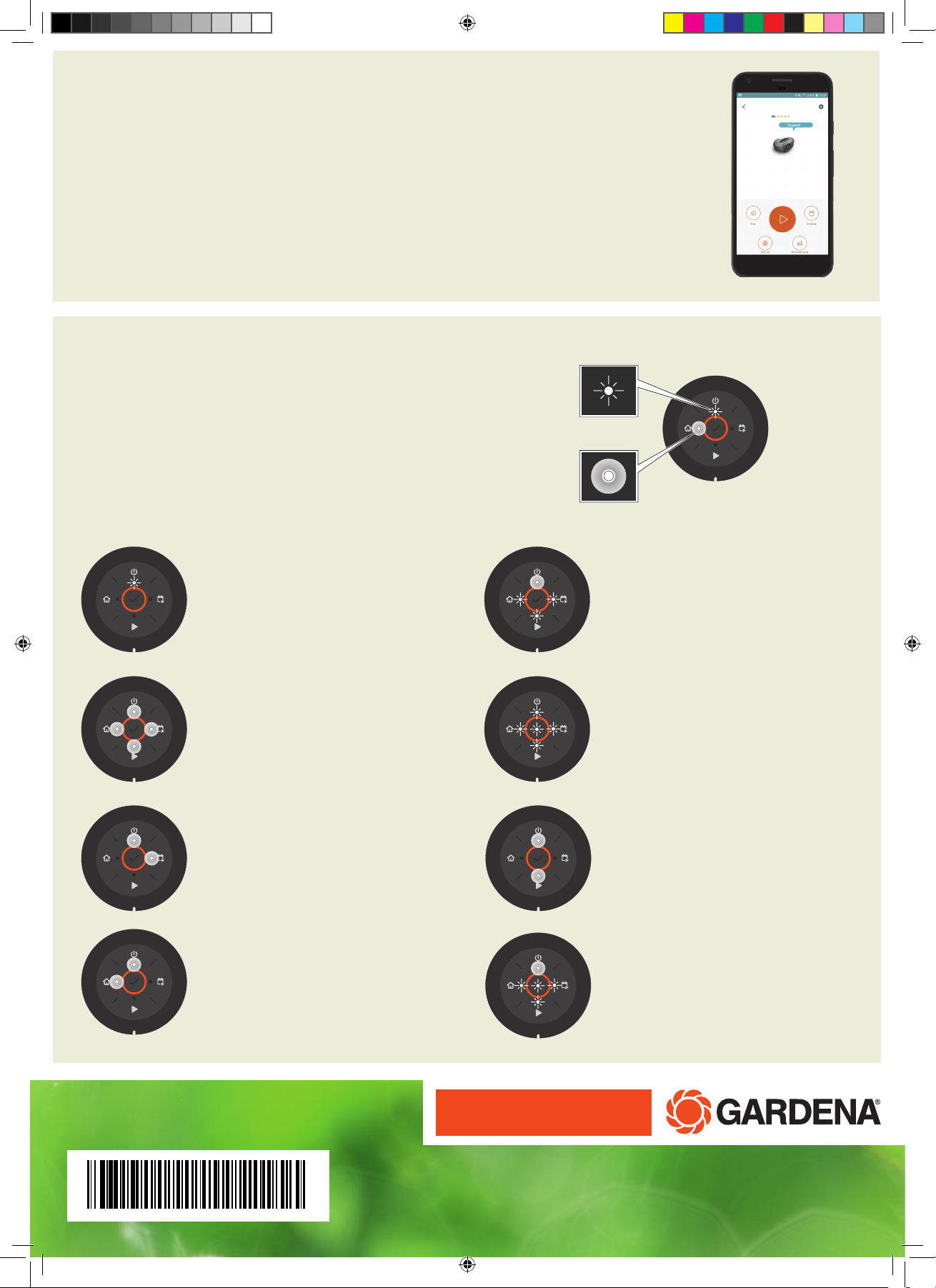

To pair the robotic lawn mower and the app

The GARDENA Bluetooth® App is a free app for your mobile device. The GARDENA Bluetooth® App is used for the settings

and operation of the robotic lawn mower. When pairing between the robotic lawn mower and app has been confirmed, you have

access to the menus and functions as long as you are within short-range (Bluetooth®).

1. Download the GARDENA Bluetooth® App on your mobile device.

2. Switch off the robotic lawn mower and switch it on again.

3. Pair the GARDENA Bluetooth® app with the product.

4. Enter the PIN code.

NOTE: The Bluetooth® pairing mode is active for 3 minutes.

LED status indicator on the keypad

The LED status indicator lamps on the keypad shows the status of the robotic

lawn mower. The buttons on the keypad with flashing lights are the available

operating modes for the robotic lawn mower that you can select. You must enter

the PIN code before you can select an operating mode.

If the robotic lawn mower is parked, push the STOP button and the robotic lawn

mower is set to idle mode where you can set an operating mode.

A. Flashing light

B. Solid light

Standby

Waiting for PIN code

Idle

Cutting according

to set schedule

Cutting, either in operating mode

override schedule or secondary area

Parking Error

Wrong PIN code

QG_Minimo_Gardena.indd 4QG_Minimo_Gardena.indd 4 2021-03-02 11:19:562021-03-02 11:19:56

1141365-26

2021-03-02
