HAND-HELD BLOWER
USER’S MANUAL
MODEL: GP26B
www.midlandpower.co.uk
MIDLAND POWER
DISTRIBUTION LIMITED
quality service support
- -
1
INTRODUCTION
EB260BN engine blower has been designed and manufactured
with superior performance and reliable without compromise to
safety or durability. EB260BN’s high performance engine
system is adopted the 2-cycle engines technology marked with
power, low displacement and weight. As a professional
owner/operator, you’ll soon discover why EB260BN is so
simple in a class by itself!
IMPORTANT!
The information contained in this manual describes
available at the time of production. We will try our best to offer
you the latest information about your EB260BN. We reserve the
right to make changes in production without prior notice, and
without obligation to make alterations to machines previously
manufactured.
CAUTION!
This EB260BN engine machine is equipped
with a speak-arresting muffler. Never
operate this machine without both the
muffler and spark arrestor installed and
properly functioning!
- -
2
CONTENTS
Attention Statements………………………3
Product Description……………………… 5
Specifications………………………………6
Assembling the Machine……………………7
Mixing Fuel…………………………………8
Filling the Fuel Tank…………………………9
Starting the Machine…………………………12
Routine Maintenances………………………14
Storage………………………………………16
Troubleshooting………………………………17
- -
3
ATTENTION STAEMENTS

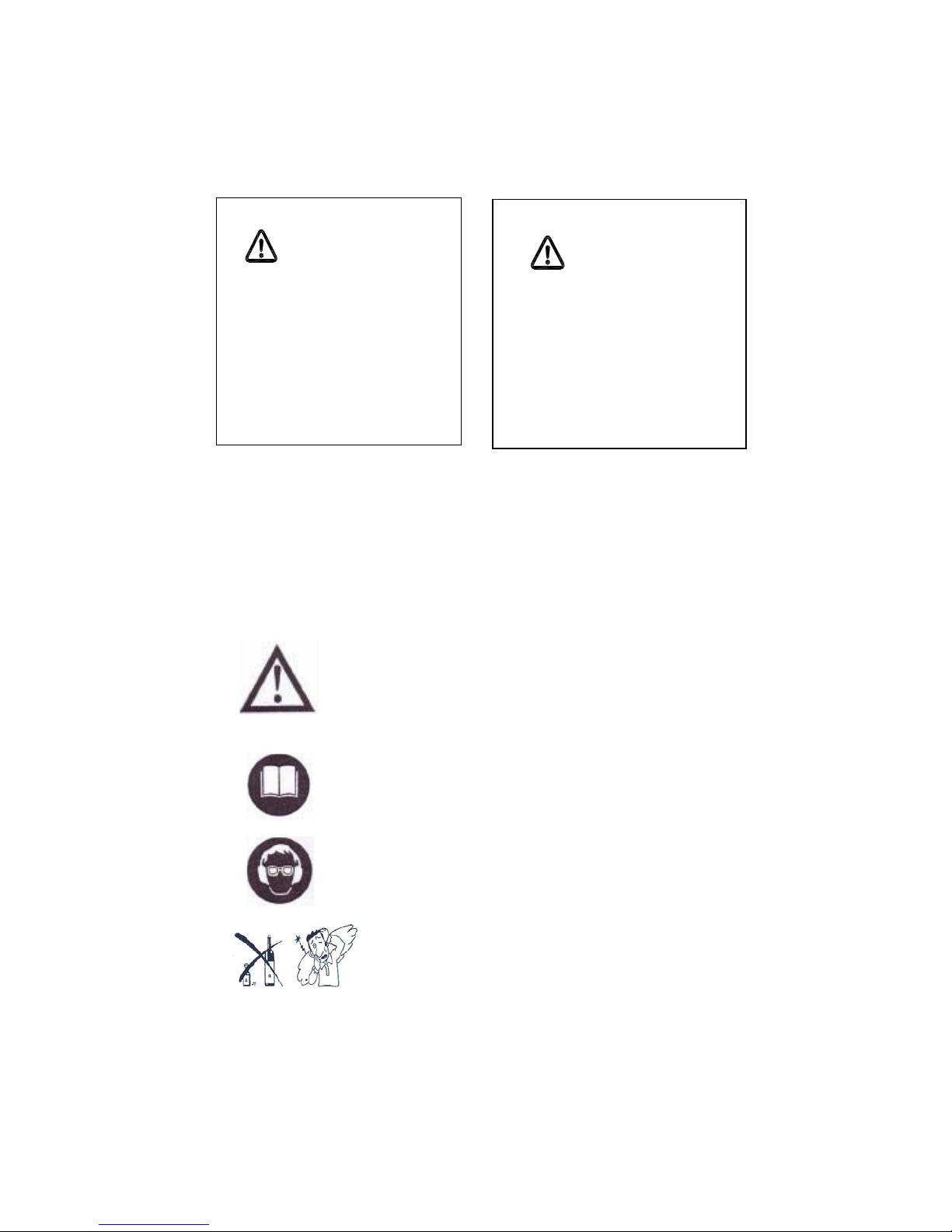

This manual contains special “attention statements” surrounded
by boxes and preceded by the triangular Attention Symbol
IMPORTANT!
A statement preceded by the word “IMPORTANT” is one that
possesses special significance.
NOTE:
A statement proceeded by word “NOTE” contains information
that is handy to know and may make your job easier.
·Special safety precautions must be observed when
working with the power tool.
·Read this user’s manual carefully before using this
machine
·Wear eye and earing protection
·Never operate this machine when you are
fatigued,ill or under the influence of alcohol.
WARNING!
A statement preceded by
WARNING contains
Information that should be
acted upon to prevent
serious bodily injury.
CAUTION!
A statement preceded by
the word “CAUTION”
contains information that
should be acted upon to
prevent machine damage.
- -
4

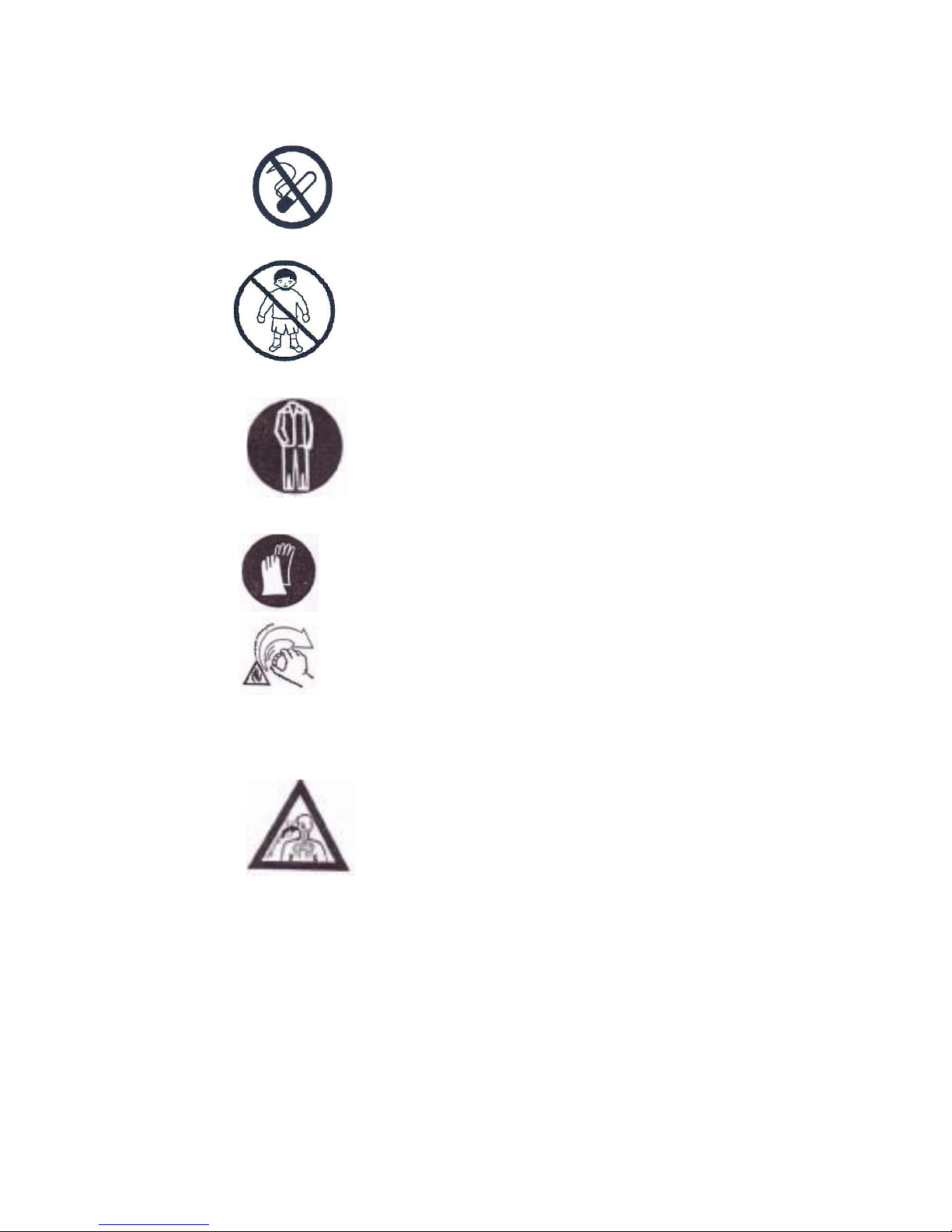

·Never smoke when working with this
machine
·Never allow children or anyone unable to fully
understand the manual to use this machine
·Clothing must be sturdy and snug-fitting,
but allow complete freedom of movement— the
safety clothing is recommended.
·Wear heavy-duty, nonslip gloves, preferably
made of chrome leather.
·Unit vibrations can cause an improperly tightened
fuel cap to loosen or come off and spill quantities of
fuel.
In order to reduce risk of fuel spillage and fire,tighten fuel cap.
·Warning！Your blower produces toxic exhaust
fumes when the engine is running.These gases
(e.g. carbon monoxide) may be colorless and
odorless. To reduce the risk of serious or fatal
injury from breathing toxic fumes, never run the blower indoors
or in poorly ventilated locations.
- -
5
·Danger form rotating impeller! Stop the engine
before installing or removing the machine tubes!
Never perform any maintenance or assembly
procedures on this machine while the engine is
running.
·Never direct the machine stream toward people or
animals!
·Operate the machince only at reasonable hours-not
early in the
morning or late at night when people might be disturbed.
Comply with times listed in local ordinanes.
·Use rakes and machine at the lowest possible engine speed to
do the job.
·In dusty conditions, slightly dampen surfaces or use mister at
tachment if available.
·Watch out for children,pets,open windows etc.and blow debris
safely away.
PRODUCT DESCRIPTION!
The operational procedures described in this manual are
intended to help you get the most from your machine and to
protect you and others from harm. These procedures are general
guidelines only, and are not intended to replace any safely
rules/laws that may be in force in your area. If you have any
question regarding your EB260BN blower , or if you do not
understand something in this manual, your dealer will be glad to
assist you.
- -
6
WARNING!
Do not make unauthorized
Modifications to this machine
SPECIFICATIONS
Model………………………………………EB260BN
Dimensions(L×W×H)………………355×285×395
Engine Type……………………………1E34FN
Cylinder Diameter………………………34mm
Displacement……………………………25.4cc
Fuel…………………………Gasoline/oil mixture 40:1
Carburetor…………Membrane type primer pump
Way of ignition……………………………CDI
Spark plug………………………………RCJ6Y
Starting…………………………………Recoil starter
Fuel Tank Capacity………………………0.5L
Weight…………………………………4.5kg
Rated Power (KW/r/min)………………0.65/7500
Idle speed (r/min)：……………………3000±200
- -
7
ASSEMBLING THE MACHINE
(1)Nomenclature
(2)Assembly
Put blow pipe B to the machine Put blow A to B by
byrotating rotating
IMPORTANT!
Whether the assembly of blower pipe is proper ornot will
influence the stable performance so before operate this machine
please make sure that it is properly assembled.
Use
sc
r
ew
M5×10 t
o
r
e
inf
o
r
ce
- -
8
MIXING FUEL
Fuel requirements
□ Use only fresh, clean fuel
□ Use only fuel with an octane rating of 90 or high
□ Mix all fuel with premium 2-cycles engine oil at a
gasoline/oil ratio of 40:1
CAUTION!
Never attempt to mix fuel in the machine fuel tank!Always mix
all fuels in a clean. approved container!
Some gasoline contain alcohol as an oxy genated! Oxy genated
fuels may cause increased engine operating temperatures! Under
certain conditions, alcohol-based fuels may also reduce the
lubricating qualities of some mixing
oils! Never use any fuel containing more than 10% alcohol by
volume! When an oxygenated fuel must be used fuel containing
an ether-based oxygenates such as MTBE is to be
preferred over alcohol!
Whenever possible use 2-cycle oil or equivalent oil mixed at a
40:1 ratio. Be aware that generic oils and some outboard mixing
oils may note intended for use in high-performance air cooled
2-cycle engines, and should never be used in your engine
machine.
IMPORTANT!
Mix only enough fuel for your immediate needs! If fuel must be
stored longer than 30-days, it should first be treated with a
stabilizer or equivalent product!
- -
9
Remove the fuel cup
WARNING!
Danger of fire and burn injury!
□ Always use extreme care when handling fuel! Fuel is highly
flammable!
□ Never operate this blower if fuel system components are
damaged or are leaking!
□ Never attempt to refuel the engine while it is running !
□ Never attempt to refuel a hot engine! Always allow the
blower engine to cool before fueling!
□ Never smoke or light any fires near the blower or fuel!
□Always transport and store fuels in an approved container!
□ Never place flammable maternal close to the engine muffler!
□ Never operate the blower without a properly functioning
muffler and spark arrestor installed!
□ Never operate the blower unless it is properly assembled and
in good working condition!
FILLING THE FUEL TANK
1. Place the machine on the ground or on a sturdy work surface,
and wipe any debris from around the fuel cap.
2. Remove the fuel cap.
3. Fill the tank with clean, fresh fuel.
