Gamma+ 6002 Manuel utilisateur

OWNER'S MANUAL

Issue 3 - June 20, 1998

6002

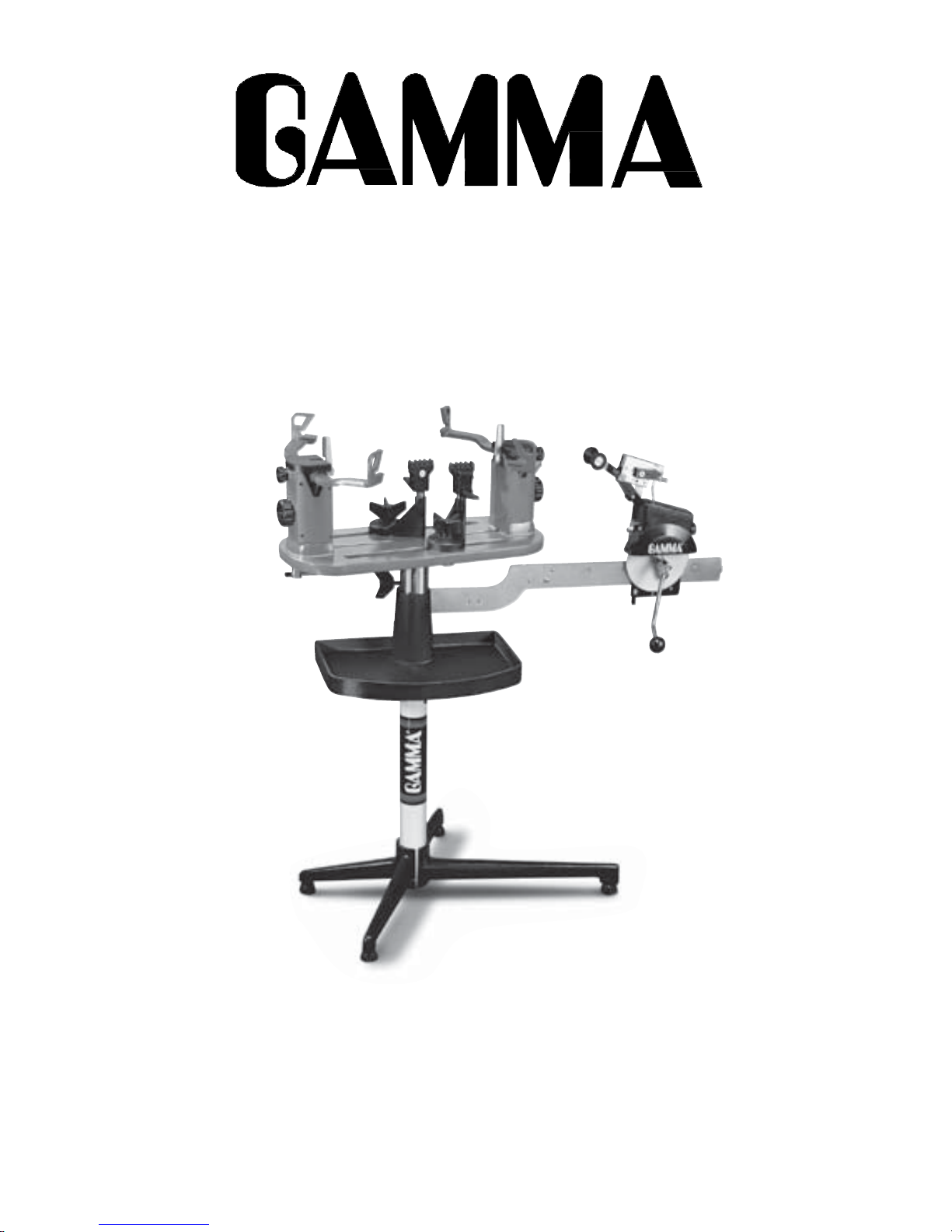

STRINGING MACHINE

TABLE OF CONTENTS

LIMITED WARRANTY

GAMMA SPORTS ("GAMMA") warrants to the original purchaser that the GAMMA stringing machine ("EQUIPMENT") purchased is free from defects

in materials and workmanship for a period of five (5) years from the date of original purchase for mechanical parts (excluding string clamps), and for

a period of one (1) year from the date of purchase for string clamps. Should any defects develop under normal use within the specified time periods,

GAMMA will at its option, repair or replace the defective EQUIPMENT provided it is returned to GAMMA prepaid at the purchaser's expense. This

warranty does not apply to any damage or defect caused by negligence, abuse, misuse, unauthorized alteration, shipping, handling, or part wear

and tear as a result of normal use.

GAMMA's obligation under this warranty is limited to repair or replacement of defective EQUIPMENT, and no one is authorized to promise any other

liability. GAMMA shall in no event be liable for any incidental or consequential damages.

To return defective EQUIPMENT, a return authorization (RA#) must be obtained from a GAMMA customer service representative by calling 1-800-

333-0337. The RA# must be marked on the outside of the shipping carton being returned. All returns must be shipped prepaid by the customer to

GAMMA. Please retain the original shipping carton and packing materials for any future shipments.

6002

OWNER'SMANUAL

PAGE 1................................................................................................WARRANTY

PAGE2 ...................................................................................................FEATURES

PAGE3 ....................................................................... ASSEMBLYINSTRUCTIONS

PAGE9 .............................................................................. MOUNTINGTHEFRAME

PAGE11 ............................................................................STRINGINGTHEFRAME

PAGE13 .................................................................................... PATHFINDERAWL

PAGE14 ....................................................... MAINTENANCEANDADJUSTMENTS

PAGE16 .................................................................................TROUBLESHOOTING

PAGE16 .............................................................................. CAREANDCLEANING

PAGE17 .................................................................. COMPONENTIDENTIFICATION

PAGE18 ......................................................................................... PARTSLISTING

FEATURES

Manual Spring Tensioner

Diamond Coated String Gripper

Tension Range: 11lbs. - 89lbs.

6 Point Suspension Mounting System ( 10 Point Support )

DiamondCoatedDualActionSwivelCompositeStringClamps

Full 360 Degree Turntable Rotation

Precision Bearing Mounted Turntable

Large Convenient 141 sq. in. Tool Tray

Height Adjustable From 36” to 48”

Base Leg Assembly

TheGAMMA6002stringing machineusesa

four leg base design. The legs must be

assembled to the support post before use.

Remove the lower column support from the

carton.Thisis thelargerofthetwopostsand

has the GAMMA label.

Align the holes in the leg flange with the

matching holes in the lower column support

post. Secure the leg with one FLAT HEAD

cap screw through the upper hole, and one

SOCKET HEAD cap screw through the bot-

tomhole.Repeatthisprocedureforthethree

remaining legs.

Upper Column Support Assembly

Insert the upper column support into the

lower column support / base leg assembly.

Leave the upper column extended to maxi-

mumheightandlockinplacewiththetwoset

screwslocatedatthetopofthelowercolumn

support.

ASSEMBLYINSTRUCTIONS

Bellows Installation

The bellows assembly is supplied in two

pieces and should be assembled as follows.

Placethebellowssectionwiththeflangeover

the upper support column with the flange on

thetop.Placetheremainingbellowsoverthe

upper support column and mate it with the

flange on the lower bellows.

Tool Tray Installation

Lower the tool tray over the top of the upper

column support and let it rest loosely on the

bellows assembly.

Tension Track Installation

Placethetube of the tension track assembly

over the top of the upper column support.

Alignthetensiontrackwiththelonglegofthe

base assembly. Securely tighten the two

socket set screws on the tension track as-

sembly tube, locking it to the upper column

support. Align the notch in the tool tray with

the tension track bar while raising the tool

tray.Securethetraywiththesetscrewsinthe

side of the tray casting.

ASSEMBLYINSTRUCTIONS

Turntable Brake Installation

Remove the flat head screw from the end of

thebrakeleverboltandinstallthebrakelever

boltintothethreadedholelocatedontheside

of the turntable tube.

Place the brake pad into the turntable tube,

theninsert theendof thebrakeleverbolt into

the hole of the brake pad so that the brake

pad rests on the shoulder of the bolt.

Insert the flat head screw into the end of the

brake lever bolt from the inner side of the

brake pad. While holding the head of the

screw with the 2.5mm L-shaped wrench,

turn the lever bolt to secure the brake pad

againstthe shoulder of the lever bolt and set

the head of the screw below the inner

surface of the brake pad. turn the lever to

retract the pad until it sets against the inner

surface of the turntable tube to provide

clearance for installation of the turntable.

Retract the four set screws around the top

of the turntable tube to provide clearancefor

installing the turntable. Carefully lower the

turntable into the tube until it seats fully into

the tube and rests against the bearing lo-

cated at the botom of the tube.

ASSEMBLYINSTRUCTIONS

Tighten the four set screws located at the

topoftheturntabletubeuntiltheycontactthe

bearinglocatedontheturntable pin. Tighten

the screws in a crossing pattern from one

side to the next to keep the bearing on the

turntable pin centered in the tube.

ASSEMBLYINSTRUCTIONS

Installing the Fixed Clamps

Toinstalltheclamps,removethewingedlock

knob to separate the knob from the lower

guide bushing. Be careful not to lose the

thrust bearing components located in the

center recess of the knob.

Align the clamp base with the clamp slot of

the turntable base. Insert the clamp guide

bushingintotheclampfromthebottomofthe

turntable making sure to engage the guide

with the clamp slot.

Place the load bushing into the top of the

clamp base mating it to the lower guide

bushing.

Aftercheckingthatthethrustbearingisposi-

tionedcorrectlyinthebaseofthewingedlock

knob, screw the knob into the base bushing

until fully seated.

Support Post Installation

The support post assemblies are precision

aligned at the factory and are marked for

proper installation on the turntable.

Installthemarkedsupportpostonthemarked

sideoftheturntable.Align the threaded hole

inthe bottomofthe supportpostwith theslot

intheturntable.Screwtheleverlockboltwith

washer into the bottom of the support post

and tighten gently.Position the washer with

the rounded edge toward the turntable.

Repeat procedure on the opposite side.

ASSEMBLYINSTRUCTIONS

Installing the Tensioner

Remove the button head screw and washer

located at the end of the tensioner bar with

the 3 mm hex wrench provided. Slide the

tensioner onto the bar, being careful to align

the bar with all of the bearings and the drive

gear with the gear track. Replace the button

head screw and washer in the end of the

tensioner bar.

Installing the Crank Arm

Remove the flat head screw located on the

crankshaftwiththe2.5mmwrenchprovided.

Slide thecrank handle over the crank shaft

while aligning the holes. Replace the flat-

head screw.

TravelStop

Note: The tensioner bar is equipped with a

tensioner travel stop screw to limit travel of

thetensioneralong thebarandprevent con-

tact between the tensioner and the racquet

mounting system while stringing. The stop

screw is located about midpoint along the

tensioner bar below the gear track. To en-

gage the stop, turn the stop screw clockwise

until fully seated against the bar. To disen-

gage the stop screw, turn it counter clock-

wise until it no longer protrudes beyond the

surface of the bar.

Adjusting the Frame Support Posts

Place the racquet frame over the center

support slide and onto the frame support.

Loosen the lever lock bolt on one support

post. Slide the post outward until the center

support of the racquet support slide is posi-

tioned near the inside surface of the racquet

frame. Securely tighten the lever lock bolt.

Adjust the opposite post using the same

procedure.

Caution: To avoid racquet damage, the sup-

portslideshouldnotcontacttheracquetprior

to fixing the support posts.

Height Adjustment

TheturntableheightoftheGAMMA6002can

be adjusted to suit the stringer. To adjust,

loosen the two set screws on the lower col-

umn support post below the bellows assem-

bly. Adjust the amount of engagement be-

tween the upper and lower column supports

untilthedesiredheightisattained.Makesure

that the tension track is still aligned with the

long leg of the base and tighten the two set

screwstolock theuppersupportcolumninto

place.

Shoulder Support Adjustment

TheshouldersupportsontheGAMMA6002

are adjustable to provide support to the

racquet frame. Loosen the knurled knob at

thebottomoftheshouldersupportandswivel

the support so that the pads will contact the

frame squarely when the arms are closed

against the racquet. Should the shoulder

supports block string holes, adjust the posi-

tionoftheracquetbetweenthearmsuntilthe

shoulder supports contact the racquet be-

tween grommet holes.

MOUNTINGTHEFRAME
