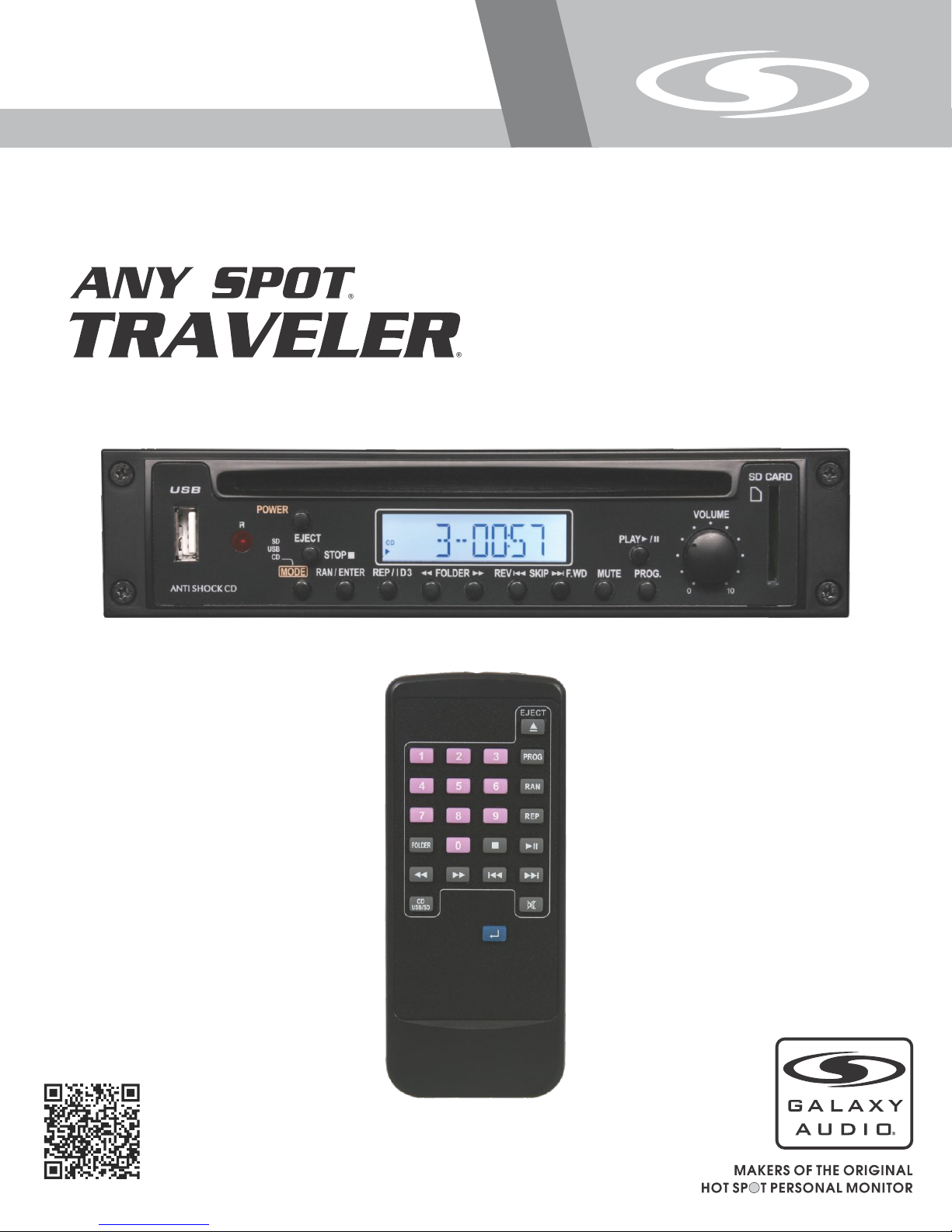

Description of Controls
Description of Controls
1. USB Connector: Used to play MP3 files from an external source.
2. POWER:
ON: Press Power button to switch on the power.
OFF: Press and hold to switch off the power.
3. CD Slot: Carefully insert a CD here.
4. LCD Display: Displays track, time played, mode selected
5. PLAY / PAUSE: Press once to play, press again to pause.
6. SD Card Slot: Accepts SD and SDHC Cards containing MP3 files.
7. Infrared Window: Picks up the signal from the remote control.
8. STOP/ EJECT: Press once to stop play. Press again to eject disc.
a. When stopped the LCD will display all track numbers.
b. When pressed again the LCD shows “EJECT”. Press again to re-insert the disk.
9. MODE - SD/USB/CD: Press this key to select USB, SD, or CD mode.
10. RAN / ENTER: Shuffle and execute button. Press once to activate shuffle feature. The LCD display will show “SHUFFLE”
and start to play from available tracks. When in the programming mode, this button will execute the ENTER command.
11. REP / ID3: Press to repeat tracks. There are three modes to select between.
a. Press once to repeat a single WAV track from CD. The LCD will show REPEAT 1. Press twice to repeat all tracks. The
LCD will show REPEAT ALL. Press 3 times to cancel the repeat function. “Repeat” will be removed from the LCD.
b. Press once to repeat a single MP3 track from CD, USB or SD Card. The LCD will show REPEAT 1. Press twice to
repeat all tracks in the folder. The LCD will show REPEAT FOLDER. Press 3 times to repeat all tracks in all folders.
The LCD will show REPEAT ALL. Press 4 times to cancel the repeat function. “Repeat” will be removed from the LCD.
Note: that enabling the Shuffle/Random will remove the repeat setting. And vice versa, selecting a Repeat mode will
remove the Shuffle/Random mode.
12. FOLDER : Press to select previous folder.
13. FOLDER : Press to select next folder.
14. REV: Press and release to select previous track number. Press and hold for fast reverse.
15. F.WD: Press and release to select next track number. Press and hold for fast forward.
16. MUTE: Press to mute audio.
17. PROG: Press to program the order of track play.
a. To program WAV files from CD media: Press once till the LCD display shows “PROGRAM”, then use the SKIP previous
or next buttons to select the first track. Then press the ENTER button. Repeat SKIP and ENTER commands to program
additional tracks. When finished, press PLAY. The LCD will show “MEMORY” and start to play the programmed tracks.
b. To program MP3 files from CD, USB, or SD media: Press once till the LCD display shows “PROGRAM” then press
FOLDER to select the desired folder, then use the SKIP previous or next buttons to select the first track. Then
press the ENTER button. Repeat SKIP and ENTER commands to program additional tracks. When finished, press
PLAY. The LCD will show “MEMORY” and start to play the programmed tracks.
c. Press to cancel the programming function.
18. VOLUME: Rotate to adjust & control the desired volume.
