All parts of this document are the property of Philips.

collected, except where express authorisation has been provided in writing or through a contractual agreement.

Published by Philips Subject to modication EN 4219 400 00033

Service

Coee Machine

Gaggia Anima

2015-July-30

Service

Manual

Rev. 00 July 2015

General Information

Description Value

Housing material Thermoplastic type

Size (w x h x d) Anima OTC AMF CMF 221 x 340 x 430 mm (data may vary depending on the model)

Size (w x h x d) Anima XL 221 x 386 x 430 mm

Weight OTC AMF CMF 7,5 kg (data may vary depending on the model)

Weight Anima XL 8 kg

Power cord length 800 - 1200 mm

Control panel Front type

Cup size Up to 152 mm

Water tank OTC AMF CMF 1.8 litres - Removable type

Water tank Anima XL 2.5 litres - Removable type

Coffee bean hopper capacity Anima OTC AMF CMF 250 g

Coffee bean hopper capacity Anima XL 500 g

Coffee grounds drawer capacity 15

Milk carafe capacity 0,5 l (OTC version)

Pump pressure 15 bar

Boiler Stainless steel boiler

Safety devices Thermal fuse

Energy saving mode < 1 Wh

Nominal voltage - Power rating - Power supply Read the data plate placed inside the service door

GAGGIA ANIMA

Table of contents Page

6. Standard checks

6.1. Repair schedule 1

6.2. Service schedule 1

6.3. Final test 2

7. Disassembly

7.1. Outer Shell 1

7.2. Dispenser 2

7.3. Coee grinder 3

7.4. Grinder blades 3

7.5. Coee grinder adjustment 4

7.6. Carafe connection and hot/Steam water dispenser 5

7.7. Central plate 5

7.8. Pin boiler 6

7.9. Gear motor 6

7.10. Pump 7

7.11. Flow-meter 7

7.12. Boiler 7

7.13. CPU board 8

7.14 Programming access for SSC (Saeco Service Center) 8

7.15. KYB interface and display 8

7.15. Fitting and removing Oetiker clamps 9

8. Notes

9. Water circuit diagram

10 Electrical diagram

Table of contents Page

1. Introduction

1.1. Documentation required 1

1.2. Tools and equipment required 1

1.3. Material 1

1.4. Safety warnings 1

1.5 Service Policy 2

1.6.1. External machine parts Anima XL

1.6.2. External machine parts Anima OTC 3

1.6.3. External machine parts Anima AMF - CMF 4

1.6.4. Internal machine parts 5

2. Technical specications

2.1. Technical specications 1

2.2.1. Specication for the measurement of the coee products

temperature

2.2.2. Specication for the measurement of the milk products

temperature

2.3. Machine parameters and performance 5

3. User instructions

3.1. Customer menu 1

3.2. Operation, cleaning and maintenance 3

4. Operating logic

4.1. Water circuit 1

4.2. Milk carafe 2

4.3. Single microswitch 3

4.4. Temperature sensor 3

4.5. Coee grinder 4

4.6. Detection of coee bean absence, dose adjustment,

blocked coee grinder.

4.7. Dose self-learning (SAS) only for 120v 5

4.8. Coee grinder 6

4.9. Autodose sistem description 6

4.10. Coee lack detection and coee grinder blocked. 7

4.11. Coee cycle 8

4.12. Water level detection (water tank) 9

4.14. Descaling request 9

4.14. Water lter 10

5. Troubleshooting

5.1. Test mode Incanto 1

5.1.1. SteamOut 7

5.2. Error Codes 9

GAGGIA ANIMA

CHAPTER 1

INTRODUCTION

GAGGIA ANIMA 01 INTRODUCTION

Pag. 1/6

1.1 Documentation required

The following documentation is needed for repair procedures:

• Instruction booklet for speciﬁc model

• Technical documentation for speciﬁc model (diagrams, exploded view, sympton cure and

service manual)

1.2 Tools and equipment required

As well as the standard equipment, the following is required:

Qty. Description Notes

1 Screwdriver

1 Pliers for Oetiker clamps

1 CC -A - Vdc tester

1 Digital thermometer Scale limit > 150°C

1 SSC (Saeco Service Center) Programmer (for programming and diagnostics mode)

1.3 Material

Description Notes

Thermal paste Heating element > 200°C

Descaler Saeco descaler

Grease solvent Personal choice

Silicone grease Safe to use with food

1.4 Safety warnings

We recommend you consult the technical manual of the machine before performing any mainte-

nance work.

Observe all applicable standards relating to the repair of electrical appliances.

Always disconnect the power plug from the mains before beginning repair work.

Disassembling the machine, the operator must pay attention to hot and under

Pressure parts: boiler, pin-boiler, valves, dispensing, steam tube, brew unit,

connections and pipes to avoid burns. Please refer to speciﬁc hydraulic circuit

(Image1) to know the parts in detail.

The machine hydraulic circuit can reach maximum pressure of 16/18 bar.

To operate in safety condition is recommended to perform the Steam Out procedure in

order to remove the pressure and hot water inside the hydraulic circuit.

Simply turning off the main machine power switch is not an adequate safety

precaution.

This domestic appliance is rated as insulation class I.

On completion of the repair work, insulation and dielectric rigidity tests must be

performed.

GAGGIA ANIMA 01 INTRODUCTION

Pag. 2/6

1.5

Service POLICY grid as used for coffee machine

Components Assembly use Single components available

COFFEE

GRINDER Only for OOW repairs YES, to consult the speciﬁc exploded-view of the machine or

of the Coffee Grinder on website

BREWING UNIT Only for OOW repairs YES, to consult the speciﬁc exploded-view of the machine or

of the Brewing unit on website

BOILER Only for OOW repairs YES, to consult the speciﬁc exploded-view of the machine on

website

GEAR

MOTOR Only for OOW repairs YES, to consult the speciﬁc exploded-view of the machine on

website

FILTER

HOLDER Only for OOW repairs YES, to consult the speciﬁc exploded-view of the machine on

website

MILK

CARAFE Only for OOW repairs YES, to consult the speciﬁc exploded-view of the machine on

website

THERMAL

CARAFE Only for OOW repairs YES, to consult the speciﬁc exploded-view of the Thermal

Carafe on website

MILK ISLAND Only for OOW repairs YES, to consult the speciﬁc exploded-view of the Milk Island

on website

List of principal assembly present in all our coffee machines

For IN WARRANTY repairs is mandatory to use the single components (not the assembly) avail-

able in the exploded views of the coffee machines or of the speciﬁc components. If you ﬁnd the

information “SEE THE EXPLODED VIEW E........” in the assembly description ﬁeld, it means that

the single components of the assembly are available in the other pages of the exploded view. It’s

possible to use the assembly only if there is a speciﬁc Symptom Cure that include this possibility

or when the single components are not available for the order.

Pump

Safety valve

Water

discharge

Steam pipe

Water tank

Two-way solenoid valve

Brewing Unit

Flowmeter

Boiler

Water

Hot water /steam

From this point circuit

High temperaure

From this point circuit

in pressure

Flowmeter

Steam and hot water

Two-way solenoid valve

Pump

Brewing Unit

Boiler

Safety valve

Water

discharge

Water tank

Image 1

GAGGIA ANIMA 01 INTRODUCTION

Pag. 3/6

1.6.1. External machine parts Anima XL

1 ESPRESSO button

ESC button

2 ESPRESSO LUNGO button

3 AROMA STRENGTH button

OK button

4 CAPPUCCINO button

UP button

5 LATTE MACCHIATO button

6 MENU button

DOWN button

7 STAND-BY button

8 Display

In the example:

Main menu; ready for brewing

MAX

MIN

11 10

PUSH

MAX

MIN

MAX

1 STAND-BY button

2 Water tank seat

3 Coffee bean hopper

4 Removable water tank

5 Main switch

I. ON

0. OFF

6 Power cord socket

7 Coffee grounds drawer

8 Drip tray

9 Drip tray grill

10 Coffee dispensing spout

11 Hot water dispensing spout

12 Milk carafe

1 Water tank lid

2 Coffee bean hopper lid

3 Service door

4 Coffee residues drawer

5 Brew group

6 Coffee dispensing spout

7 Drip tray

8 Coffee grounds drawer

9 ‘Drip tray full’ indicator

10 Hot water dispensing spout

11 Milk carafe lid

12 Milk carafe top

13 Milk frother dispensing spout

14 Milk container

ESPRESSO

ESPRESSO LUNGO

AROMASTRENGTH

CAPPUCCINO

LATTE MACCHIATO

Main components

Main removable parts

GAGGIA ANIMA 01 INTRODUCTION

Pag. 4/6

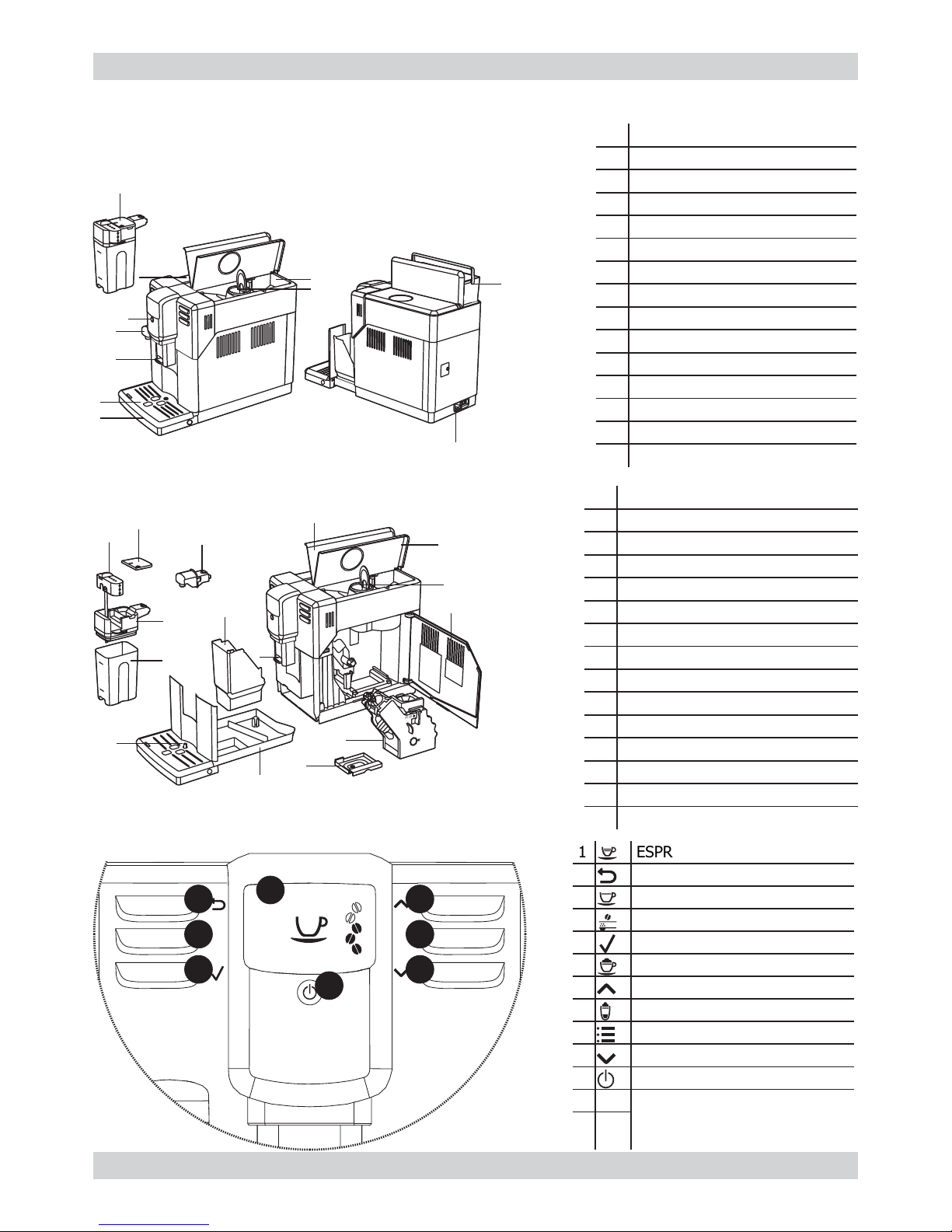

1.6.2. External machine parts Anima OTC

MAX

MIN

MAX

MIN

12 11

PUSH

1 ESPRESSO button

ESC button

2 ESPRESSO LUNGO button

3 AROMA STRENGTH button

OK button

4 CAPPUCCINO button

UP button

5 LATTE MACCHIATO button

6 MENU button

DOWN button

7 STAND-BY button

8 Display

In the example:

Main menu; ready for brewing

1 STAND-BY button

2 Water tank seat

3 Coffee bean hopper

4 Pre-ground coffee compartment

5 Removable water tank

6 Main switch

I. ON

0. OFF

7 Power cord socket

8 Coffee grounds drawer

9 Drip tray

10 Drip tray grill

11 Coffee dispensing spout

12 Hot water dispensing spout

13 Milk carafe

1 Water tank lid

2 Coffee bean hopper lid

3 Pre-ground coffee compartment lid

4 Service door

5 Coffee residues drawer

6 Brew group

7 Coffee dispensing spout

8 Drip tray

9 Coffee grounds drawer

10 ‘Drip tray full’ indicator

11 Hot water dispensing spout

12 Milk carafe lid

13 Milk carafe top

14 Milk frother dispensing spout

15 Milk container

Main components

Main removable parts

Control buttons and display OTC

ESPRESSO

LATTE MACCHIATO

CAPPUCCINO

AROMA STRENGTH

ESPRESSO LUNGO

GAGGIA ANIMA 01 INTRODUCTION

Pag. 5/6

1.6.3. External machine parts Incanto AMF CMF

1 ESPRESSO button

ESC button

2 ESPRESSO LUNGO button

3 AROMA STRENGTH button

OK button

4 STEAM or MILK FROTH button

UP button

5 HOT WATER button

6 MENU button

DOWN button

7 STAND-BY button

8 Display In the example:

Main menu; ready for brewing

1 STAND-BY button

2 Water tank seat

3 Coffee bean hopper

4 Pre-ground coffee compartment

5 Removable water tank

6 Main switch

I. ON

0. OFF

7 Power cord socket

8 Coffee grounds drawer

9 Drip tray

10 Drip tray grill

11 Coffee dispensing spout

12 Steam/hot water dispensing spout

13A Automatic milk frother (AMF)

13B Classic milk frother (CMF)

1 Water tank lid

2 Coffee bean hopper lid

3 Pre-ground coffee compartment lid

4 Service door

5 Coffee residues drawer

6 Brew group

7 Coffee dispensing spout

8 Drip tray

9 Coffee grounds drawer

10 ‘Drip tray full’ indicator

11 Steam/hot water dispensing spout

Steam wand (ﬁxed)

Rubber grip

12 Automatic milk frother top

13 Milk frother suction tube

Main components

Main removable parts

Control buttons and display CMF and AMF

AMF

MAX

13 13

PUSH

ESPRESSO

ESPRESSO LUNGO

AROMASTRENGTH

STEAM

HOT WATER

4MILK FROTH

GAGGIA ANIMA 01 INTRODUCTION

Pag. 6/6

1.6.4 Internal machine parts

Flow-meter

Power board

BoilerThermostat

Pump

Coffee

dispenser

2-way

solenoid valve

Safety valve

Grinding

adjustment insert

Coffee grinder

Boiler pin

GAGGIA ANIMA

CHAPTER 2

TECHNICAL

SPECIFICATIONS

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gaggia Cafetière

Gaggia

Gaggia GE-GD Manuel utilisateur

Gaggia

Gaggia sup025ydr Manuel utilisateur

Gaggia

Gaggia Gaggia RI8323/08 Manuel utilisateur

Gaggia

Gaggia Espresso Color Manuel utilisateur

Gaggia

Gaggia Velasca Manuel utilisateur

Gaggia

Gaggia CLASSIC Manuel utilisateur

Gaggia

Gaggia 10001696 Manuel utilisateur

Gaggia

Gaggia Carezza Series Manuel utilisateur

Gaggia

Gaggia 9026SC0B0011 Manuel utilisateur

Gaggia

Gaggia Gran Gaggia RI8325/08 Manuel utilisateur

Gaggia

Gaggia Carezza Deluxe RI8525/09 Manuel utilisateur

Gaggia

Gaggia Ruby Manuel utilisateur

Gaggia

Gaggia Concetto Manuel utilisateur

Gaggia

Gaggia Topazio Manuel utilisateur

Gaggia

Gaggia Syncrony Logic Manuel utilisateur

Gaggia

Gaggia TS Manuel utilisateur

Gaggia

Gaggia Gaggia Classic RI8161/40 Manuel utilisateur

Gaggia

Gaggia CLASSIC Manuel utilisateur

Gaggia

Gaggia 9334GB0B0011 Manuel utilisateur

Gaggia

Gaggia Evolution Espresso Manuel utilisateur

Gaggia

Gaggia Brera Manuel utilisateur

Gaggia

Gaggia Brera Manuel utilisateur

Gaggia

Gaggia KIII Manuel utilisateur

Gaggia

Gaggia Gran Prestige Manuel utilisateur

Manuels Cafetière populaires d'autres marques

Taurus

Taurus Livorno 6 Manuel utilisateur

Delta-q

Delta-q QUICK Manuel utilisateur

Bunn

Bunn LCA-1 Guide de dépannage

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Instructions d'installation

Saeco

Saeco Vienna Plus Sup 018M Manuel utilisateur

DeLonghi

DeLonghi DC300 Manuel utilisateur

INCAPTO

INCAPTO BXCO1470E Manuel utilisateur

Bosch

Bosch TASSIMO finesse TAS16B Series Manuel utilisateur

Exido

Exido 245-072 Manuel utilisateur

Animo

Animo OptiVend Choco Manuel utilisateur

Siemens

Siemens TQ505DF Series Manuel utilisateur

DeLonghi

DeLonghi ECI341 Manuel utilisateur

Krups

Krups KT406511 Manuel utilisateur

Cimbali

Cimbali M32 Classic Manuel utilisateur

Philips

Philips HL3844N Manuel utilisateur

Bosch

Bosch TES 515 SERIES Manuel utilisateur

Tekmatix

Tekmatix TMFM - 65 Manuel utilisateur

Scarlett

Scarlett SC-CM33005 Manuel utilisateur
