Futureguard SummerSpace OCTAGONAL POOL CABANA Manuel utilisateur

A S S E M B L Y

I N S T R U C T I O N S

OCTAGONAL POOL

CABANA

Futureguard Building Products

101 Merrow Road, Auburn, Maine 04210

www.futureguard.net

IG-C-OCT-V1.2

Complete Field Assembly Instruction Guide

For assistance Call:

1 (207) 795-6536

A S S E M B L Y

I N S T R U C T I O N S

PROCESS:

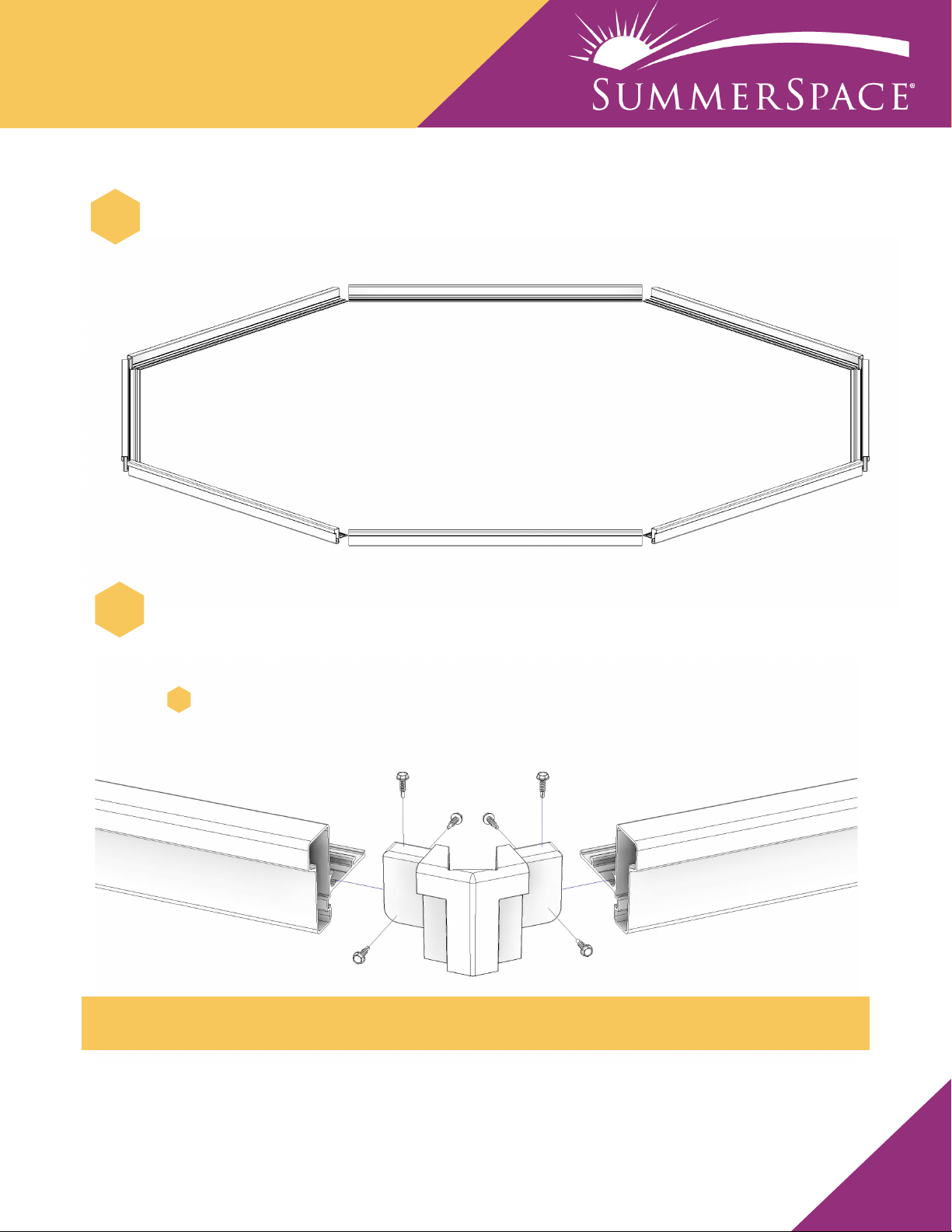

1Lay out all eight Soffit pieces in an octagonal shape where the Cabana

will be assembled.

Page 1

2Insert G1 Corner Castings into the end of each Soffit, connecting them

so that the upper screw locations are facing inside the rink

Predrill pilot holes in the marked locations on each Soffit, then

secure with six F9 self-drilling screws.

Pro Tip - Start with the top fastener to help keep the soffit and corner 90 flush.

Futureguard Building Products

101 Merrow Road, Auburn, Maine 04210

www.futureguard.net

IG-C-OCT-V1.2

3Square the frame on the ground by measuring diagonally, from

opposite corner to opposite corner. The measurements should be

exactly the same for each corner, if not shift the frame until those

measurements match.

A S S E M B L Y

I N S T R U C T I O N S

Page 2

Futureguard Building Products

101 Merrow Road, Auburn, Maine 04210

www.futureguard.net

IG-C-OCT-V1.2

5Connect the Rupola Ring using the H1 Cupola Ring Corners.

A S S E M B L Y

I N S T R U C T I O N S

Page 3

Lay out the eight Cupola Ring Side pieces in an octagonal shape in the

center of the structure. The pieces are marked for screw locations; be

sure that each piece is positioned so that the 'high' marks are on the

inside of the Cupola Ring and the 'low' marks all face outwards.

Predrill pilot holes in the marked locations on each B3 Cupola Ring

Side, then secure with four F9 self-drilling screws

Futureguard Building Products

101 Merrow Road, Auburn, Maine 04210

www.futureguard.net

IG-C-OCT-V1.2

6Line up each Hip Rafter into its outside G1 Soffit 135 so that the screw

hole is facing up. Then, working in a diagonal X pattern, slip the end of

each onto its corresponding H1 Cupola Ring 135. The roof should start

to take shape.

A S S E M B L Y

I N S T R U C T I O N S

Page 4

Futureguard Building Products

101 Merrow Road, Auburn, Maine 04210

www.futureguard.net

IG-C-OCT-V1.2

Page 5

A S S E M B L Y

I N S T R U C T I O N S

7Ensure the Hip Rafters are fully nested into each G1 Soffit corner 135,

and secure with two F9 self-drilling screws.

Futureguard Building Products

101 Merrow Road, Auburn, Maine 04210

www.futureguard.net

IG-C-OCT-V1.2

8Ensure that each Hip Rafter is fully seated onto its corresponding H1

Soffit Corner 135, drill pilot holes, and secure with two F9 self-drilling

screws each.

A S S E M B L Y

I N S T R U C T I O N S

Page 6

Futureguard Building Products

101 Merrow Road, Auburn, Maine 04210

www.futureguard.net

IG-C-OCT-V1.2

9Lay out the eight Common Rafters on the center mark of the Soffit,

and the Cupola Ring. Secure using F9 self-drilling screws.

A S S E M B L Y

I N S T R U C T I O N S

Page 7

Futureguard Building Products

101 Merrow Road, Auburn, Maine 04210

www.futureguard.net

IG-C-OCT-V1.2

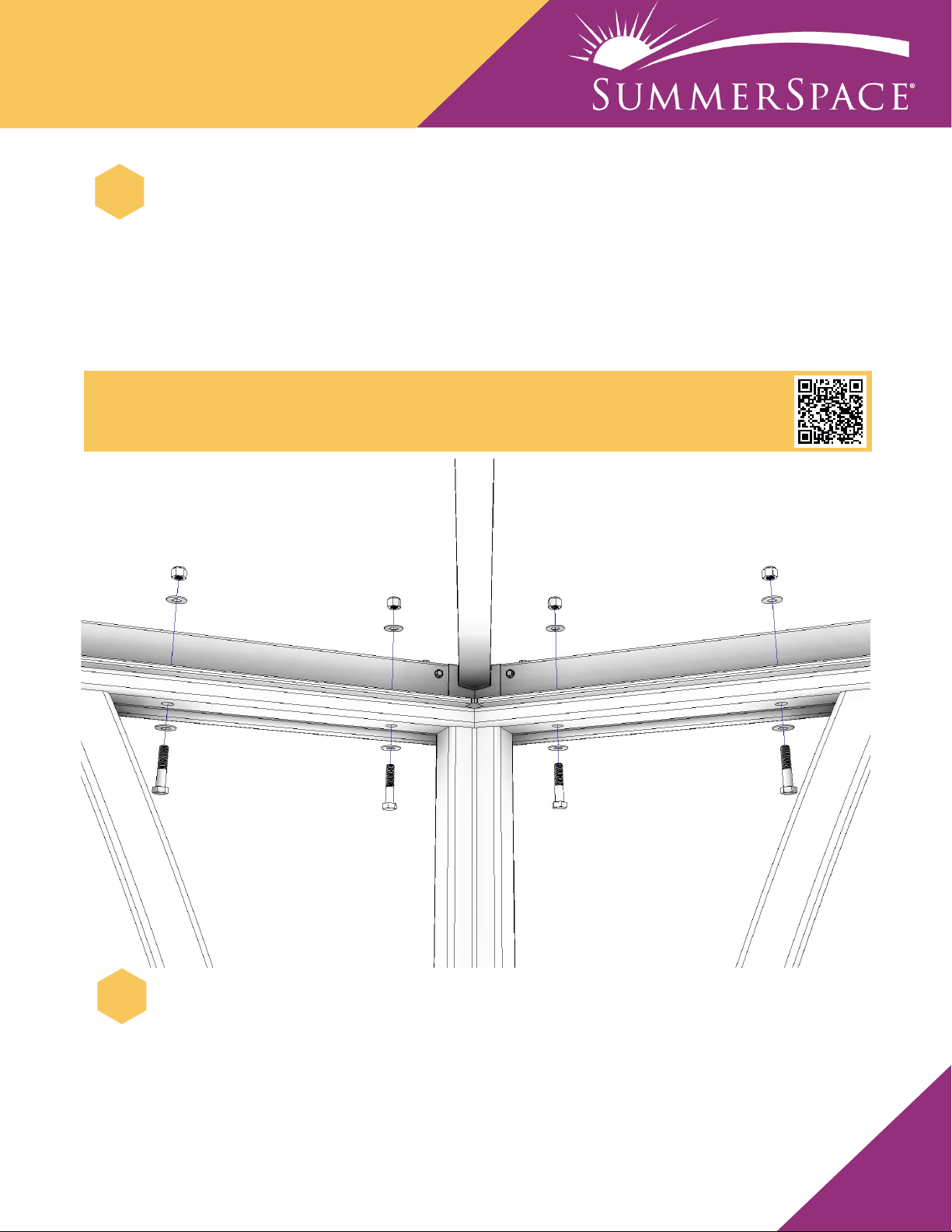

10 Lift one side of the roof section by hand, and have your partner align &

connect the first I1 Leg , insert, and hand tighten the hardware. Repeat

the same process for the adjacent Leg. Move to the opposite side of the

roof and repeat the process for those Legs. You can then move around

the Cabana and attach the remaining four Legs.

Pro Tip- Use your Skylift to lift the roof structure from the center cupola ring.

Align the legs in each corner, insert, and hand tighten the hardware.

11 Once the roof structure is supported by all the Legs, make final

adjustments to each Leg and fully tighten the hardware.

A S S E M B L Y

I N S T R U C T I O N S

Page 8

Futureguard Building Products

101 Merrow Road, Auburn, Maine 04210

www.futureguard.net

IG-C-OCT-V1.2

A S S E M B L Y

I N S T R U C T I O N S

Align the inner corners of the Fabric directly over the center of the H1

Cupola Ring 135's so that the Fabric seams run straight down the

center of the Hip Rafters.

Starting in the center of the frame, lay the J Top Fabric on one side of

the Cupola Ring.

Secure the top of the Fabric to the H1 Corner with F9 self-drilling

screws through the grommet on either side of the seam.

Unfold the J Top Fabric down one face of the roof, and center the

opening on the Cupola Ring.

Page 9

Futureguard Building Products

101 Merrow Road, Auburn, Maine 04210

www.futureguard.net

IG-C-OCT-V1.2
