Furuno FAR-3210 Manuel

The purpose of this guide is to provide the

basic operation for this equipment. For more

detailed information, see the Operator's Manual.

All brand and product names are trademarks,

registered trademarks or service marks of their

respective holders.

Radar Controls

See the next page.

Status LED

The color and state of the LED change

according to system or alert status.

Trackball module

Operates similar to a PC mouse.

USB port (under cover)

For connection of USB flash drive.

Power switch

Turns the system on or off.

(This switch does control

monitor on/off.)

UNDO

Undoes edit or text input

when creating a radar

map, route, user chart.

RANGE

Selects radar range (radar

and chart radar modes),

chart scale (chart mode).

ALARM ACK

Acknowledges alerts; silences the

audio alarm.

Rotary control for EBL

Adjusts the active EBL.

EBL1, EBL2

Activates or deactivates the respective EBL.

Rotary control for VRM Adjusts the diameter of the active VRM.

VRM1, VRM2 Activates or deactivates the respective VRM.

Model

CHART RADAR

English

Operator's Guide

FAR-3210/3220/3230S/3230S-SSD/3310/3320/3330S/

3330S-SSD/3320W/3330SW/3210-BB/3220-BB/

3230S-BB/3230S-SSD-BB/3220W-BB/3230SW-BB

BRILL

Rotate: Adjusts the

brilliance of a FURUNO

monitor.

Push: Selects a color

palette.

A/C RAIN

Rotate: Suppresses rain clutter.

Push: Toggles between manual

and automatic rain clutter

adjustment.

A/C SEA

Rotate: Suppresses sea clutter.

Push: Toggles between manual

and automatic sea clutter

adjustment.

GAIN

Adjusts the

sensitivity of the

radar receiver.

InstantAccess knob

Selects the buttons on the

InstantAccess bar.

ESC

Goes back one step in current

operating sequence on the

InstantAccess bar.

(Product Name: MARINE RADAR)

VIEW/HIDE

Radar mode, chart radar mode:

Shows or hides AZ box, Drop mark

boxes, Mark box, PI line box, Trial

box.

Chart mode: Shows or hides EBLs,

InstantAccess bar, [Overlay/NAV

Tools] box, [Route information] box,

VRMs.

ACQ/ACT

TT: Acquires cursor-selected target, for target

tracking.

AIS: Activates cursor-selected sleeping AIS

target.

TARGET DATA

Displays the detailed data for selected TT, AIS

target, in the TT/AIS information box.

TARGET CANCEL

TT: Stops tracking cursor-selected tracked

target.

AIS: Sleeps cursor-selected activated AIS target.

Long-press to erase all displayed TT target data.

Radar Controls (con’t.)

HL OFF

Temporarily erases everything except

radar echoes when pressed and held

down.

EBL OFFSET

Activates or deactivates the offset EBL.

MODE

Selects a presentation mode.

OFF

EBL

OFFSET

MODE

STBY/TX

Toggles the radar between

standby and TX.

Opens, closes the menu.

CANCEL

Cancels the changes made on

the currently selected menu.

ENTER

Confirms selection on menu.

CANCEL

ENTER

STBY

VECTOR TIME

Sets the vector time (length) for TT and AIS targets.

VECTOR MODE

Sets the vector mode (relative, true) for TT and AIS targets.

TARGET LIST

Displays AIS, TT data in the target list.

VECTOR

TIME

VECTOR

MODE

TARGET

LIST

TRAIL

Short press: Turns the echo trail display on or off.

Long press: Resets all trails.

PANEL

Adjusts the backlighting of the keys.

MARK

Inputs selected mark, at the position selected.

PANEL

TRAIL

MARK

OFF CENTER

Puts sweep origin at the cursor location.

CU/TM RESET

Course-up: Resets heading line to 000°.

True motion: Moves own ship position 75% of

the radius in stern direction.

INDEX LINE

Short press: Selects an index line.

Long press: Activates or deactivates selected

index line.

OFF

CENTER

CU/TM

RESET

INDEX

LINE

Radar Display Indications

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

Status bar

(see page 5)

Cursor position box

This box shows

- Latitude and longitude of the

cursor position.

- Range and bearing to the

cursor position.

- TTG to the cursor position.

Sensor information, datum box

Shows your ship's heading, heading source, ship's speed, water tracking speed,

speed source, course over ground, speed over ground, course and speed source,

ship’s position, position source, chart datum.

Drop-down menu with various radar and chart radar functions.

NAV data/Route information box

Provides various navigation data and route information.

TT/AIS setting box

(see page 8)

Sets the parameters for TT

and AIS targets.

Past POSN, Trail box

Sets the parameters for the

past position display and

target trails.

Alert box

Shows alert messages by

alert name and alert number.

Acquisition zone box

Sets an acquisition zone for

TT, AIS.

Target List button

Displays the TT and AIS

target list.

Trial maneuver

box

Sets the parameters

for the trial maneuver.

Drop mark 2 box

Shows the bearing

and range to the drop

mark 2.

VRM1, 2 boxes

Shows the range and TTG* to VRM1, VRM2.

*: Function activated from menu.

EBL1, 2 boxes

Shows the bearing to EBL1, EBL2.

Drop mark 1 box

Shows the bearing

and range to the drop

mark 1.

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

ACE

OFF

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

ACE

OFF

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

ACE

OFF

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

ACE

OFF

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

ACE

OFF

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Indication

area

InstantAccess bar (see page 6)

Quick access to often-used radar, chart radar functions.

PI line box

- Adjusts the direction and width of the parallel

index lines.

- Activates or deactivates the parallel index lines.

Watch box

Counts down the time remaining until the

buzzer sounds to alert the operator to view the

radar picture.

Mark box

Selects the mark to inscribe on the radar

display.

Tuning bar

Shows tuning status except for

solid state radar.

Range/Presentation

mode box

- Selects the radar range.

- Selects the presentation

mode.

REF point box

Selects the reference

point (antenna or CCRP)

for measurements

(range, bearing, etc.) and

markers (position, etc.)

Radar Display Indications (con’t)

Depth : 22.5 m

Water

TEMP : 10.5°C

REL : 006.3°R

Wind : 12.1 m/s

Current : 121.3°R

1.7 kn

NAV data Route 1 Route 2

-30 -20 -10 min m

Message

area

Heading line

Indicates ship's heading.

Bearing scale

The bearing scale provides an estimate of

the bearing to a target.

EBL1

Measures the bearing to a target.

EBL2

Measures the bearing to a target.

Own ship marker

(Blue horizontal line)

Marks your ship's position.

Stern marker

Marks location of stern.

North marker

Marks North.

VRM1

Measures the range to a target.

VRM2

Measures the range to a target.

Drop mark

Finds the range and bearing to drop

mark position.

Range rings

Provides an estimate of the range

to a target.

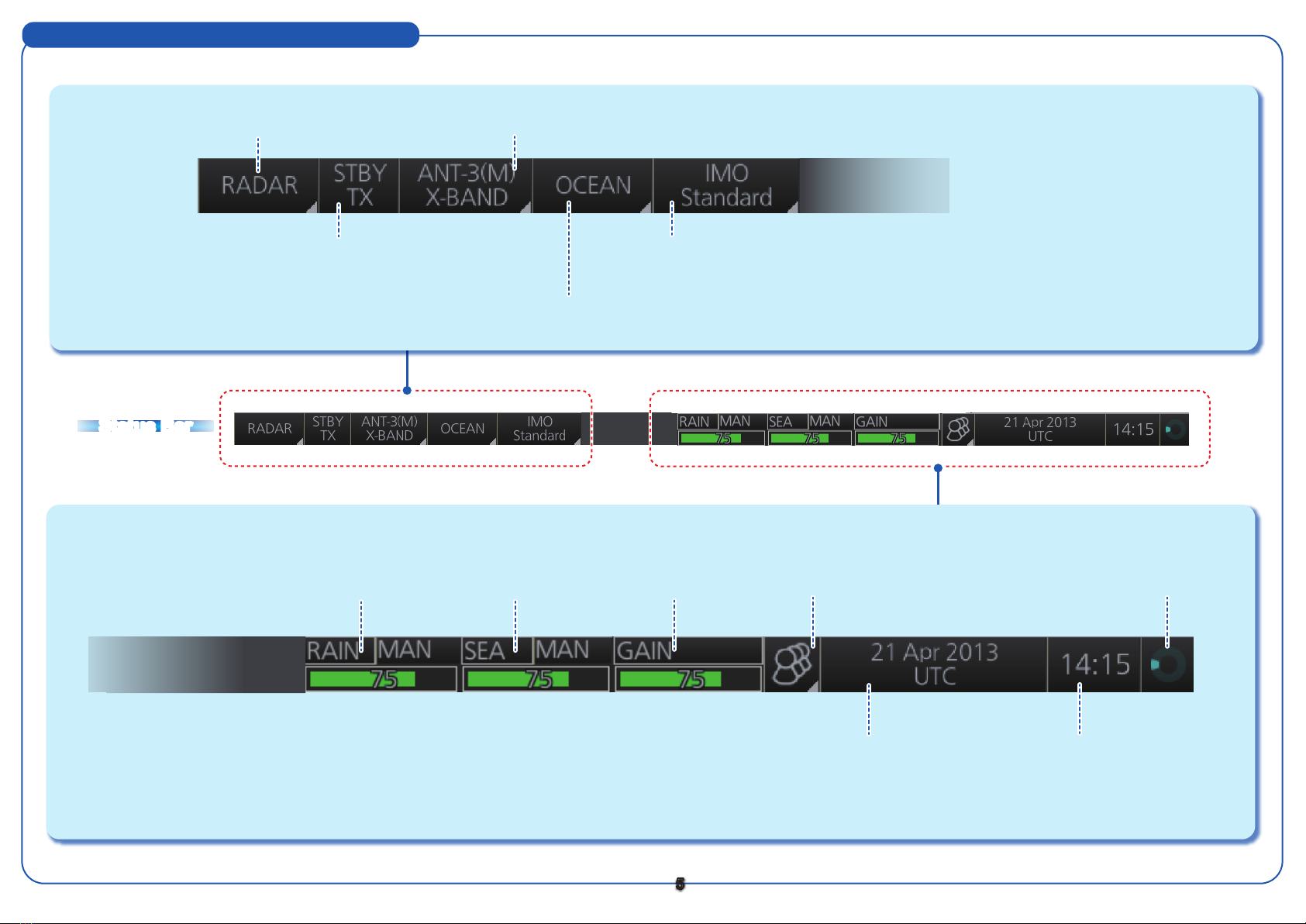

Status Bar (radar, chart radar mode)

Status Bar

RAIN

Reduces rain clutter.

SEA

Reduces sea clutter.

User profiles, Settings menu

Manages user profiles;

opens the Settings menu.

GAIN

Adjusts the gain of

the radar receiver.

Working indicator

Rotates clockwise if the

system is working properly.

Time

Displays the time.

Date

Displays the date;

selects the time to

use, local or UTC.

Operating mode

Selects a mode: radar or chart for radar.

STBY TX

Toggles the radar between

stand-by and transmit.

Antenna

Selects an antenna.

Customize Echo Presets the radar controls for specific navigation purpose;

for example, set up to use the radar in congested waters.

Chart database Selects the IMO chart database (base, primary, standard or all).

Available in the chart radar mode.

Instant Access Bar (radar, chart radar mode)

OFF

EAV

OFF

CU/TM

reset

PULSE

TUNE

MAN

MAP

Chart

OFF

Chart

Disp

OWN

AIS

Day

MOB

Capture

Takes a screenshot.

MAP ON/OFF

Shows or hides the radar map marks on the radar display,

in the radar mode.

Chart ON/OFF

Shows or hides the electronic chart.

Chart Disp

Shows or hides various chart objects.

MAP

Chart

OFF

Chart

Disp

Radar mode

Chart radar mode

Chart ON/OFF

Shows or hides the electronic chart.

Coast

Line

Only

Chart

Top

Layer

Chart

DISP

Sel

DISP

Object

Chart

Legend

Shows only the coastline when clicked.

Puts the chart objects on the top layer when clicked.

Shows chart legend.

Opens the [SEL DISPLAY OBJECT] menu.

Opens the [CHART DISPLAY] menu.

PULSE

TUNE

MAN

PULSE

Selects the radar

pulse length.

TUNE (other than solid state radar)

Tunes the radar receiver.

OFF

Activates or deactivates

the interference rejector.

Activates or deactivates

the echo stretch.

EAV

Activates or

deactivates the

echo averaging.

OWN

AIS

Day

OWN AIS

Shows the [VOYAGE DATA] menu, to set your ship’s AIS data.

AIS message

Displays screen for “received AIS messages”.

Palette

Selects a color palette.

BRILL

Adjusts the brilliance of a FURUNO monitor.

UNDO

Restores previous condition in radar map and text input.

TX CH (for solid state radar)

Selects the transmit frequency.

CU/TM reset

Resets ship's position in

course-up and true motion

modes.

CU/TM

reset

HL OFF

Temporarily erases everything

but radar echoes.

OFF

TX CH

Automatic Clutter Elimination

(ACE)

Automatic Clutter

Elimination (ACE) mode

The indication for the EAV

button is grayed out.

MOB

Enters a MOB mark at the current position.

MAP

OFF

Chart

Disp

*1*1

*2*2

Activates or deactivates the Automatic Clutter

Elimination (ACE) function.

Automatic Clutter Elimination (ACE) automati-

cally sets the gain, rain and sea clutter

controls.

Automatic Clutter Elimination

(ACE) function is off

EAV

OFF

EAV

OFF

ACE

OFF

ACE

OFF

ACE

OFF

Automatic Clutter Elimination

(ACE) function is on

Symbol Name

Sleeping AIS target

(green)

Activated AIS target

(green)

Association AIS target

(green)

Dangerous AIS target

(red)

Dangerous association

AIS target (red)

Lost AIS target (red)

Click the

radar echo.

TT symbol

(under acquisition)

Click the

TT symbol.

Right-click the

display area to

show the

context-sensitive

menu.

Select

[Target

Cancel]

then click

the TT

symbol.

FURUNO

Sleeping

target

TT symbol

(target acquired)

Click the AIS

target symbol.

Activated

target

Symbol Name

Target under automatic

acquisition (red)

Acquired target (green)

Dangerous target (red)

Lost target (green)

Click

Target under manual

acquisition (green)

AIS Operations

How to manually acquire a target for tracking

How to show a tracked target’s data

How to stop tracking a target

How to activate a sleeping target How to show an AIS target’s data

AIS symbols

TT symbols

TT Operations

When you convert a sleeping target to an activated target, the

activated target's course and speed are shown with a vector.

You can easily judge target movement by monitoring the vector.

Vector ROT

Heading line

TT/AIS

The TT/AIS setting box shows or hides the TT and AIS displays, and sets the CPA/TCPA alarm, the past position display, vector time and reference, etc.

Sets TT

acquisition

method; hides

TT display.

Shows or hides

AIS display.

Sets TT/AIS

vector reference.

Sets TCPA condition for

TT/AIS CPA/TCPA alarm.

Sets TT/AIS lost target filter

conditions.

Sets plot

interval for

TT/AIS

past

position

displays.

Disables or enables

TT/AIS CPA/TCPA

alarm.

Sets CPA condition

for TT/AIS CPA/TCPA

alarm.

Sets TT/AIS vector time.

Click to set association criteria (with arrow).

<: AIS symbol used for association target.

>: TT symbol used for association target.

No indication

: Disables association.

Sets conditions for automatic

activation of AIS targets when

their CPA is within the CPA set.

Sets reference (true or REL) for

TT/AIS past position points.

EBL1 box,

EBL2 box

VRM1 box,

VRM2 box

Permanent warning box

Chart scale, presentation mode box Cursor position box

Chart Display Layout

Overlay/NAV

Tools box

Lower

section

InstantAccess bar

(see page 11)

Upper

section

Status bar (see page 10)

Sensor information box

Own ship functions box

Route information box

0.9 m

341.2°

Alert

box

Status Bar (chart for radar mode)

Operating mode Selects the operating mode: RADAR or CHART for RADAR.

NAVI Selects the Voyage navigation mode.

CHARTS Goes to the Chart maintenance mode.

PLAN Selects the Voyage planning mode.

OTHERS Sets system in standby.

CHART ONLY

Shows only the chart,

when left button is

pressed and held down.

STD DISP

Restores the IMO

standard display.

Chart database

Selects the pre-defined presentations

of ENC content: IMO BASE, IMO

STD or IMO ALL.

Displays the operator's

manual, chart program no.

and system information.

User profiles,

Settings menu

Manages user

profiles; opens

the Settings

menu.

Date

Displays the date; selects the

time to use, local or UTC.

How to open a drop-down list

Drop-down

list

Click button

Indicates a

drop-down list.

No use.

Time

Displays the time.

Working indicator

Rotates clockwise if

the system is working

properly.

Autres manuels pour FAR-3210

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Furuno Radar

Furuno

Furuno WR2120 Manuel utilisateur

Furuno

Furuno WR2120 Manuel utilisateur

Furuno

Furuno DRS4A Manuel utilisateur

Furuno

Furuno FAR-3320SW Manuel utilisateur

Furuno

Furuno FCR-1030 Manuel utilisateur

Furuno

Furuno WR-2100 Manuel utilisateur

Furuno

Furuno FAR-3210 Manuel utilisateur

Furuno

Furuno FR-1908V-BB Manuel utilisateur

Furuno

Furuno WR110 Manuel utilisateur

Furuno

Furuno FOIL-200 Manuel utilisateur

Furuno

Furuno WR110 Manuel utilisateur

Furuno

Furuno FR-2105 Manuel utilisateur

Furuno

Furuno FR-1500 Manuel utilisateur

Furuno

Furuno DRS12AX X-Class Manuel utilisateur

Furuno

Furuno DRS6A Manuel utilisateur

Furuno

Furuno FAR-3230S-BB Manuel utilisateur

Furuno

Furuno FAR2137S/12 Manuel utilisateur

Furuno

Furuno FCR-1010 Manuel utilisateur

Furuno

Furuno DRS4D-NXT Manuel utilisateur

Furuno

Furuno FR-1500 MARK-3 Manuel utilisateur

Furuno

Furuno DRS6A X-Class Manuel utilisateur

Furuno

Furuno WR-2100 Manuel utilisateur

Furuno

Furuno FAR-3220Z Manuel utilisateur

Furuno

Furuno WR2120 Manuel utilisateur

Manuels Radar populaires d'autres marques

SAW D2L

SAW D2L Valentine One Gen2 Manuel utilisateur

Raymarine

Raymarine Raytheon R20X Manuel utilisateur

Simrad

Simrad CA34 Manuel utilisateur

Endress+Hauser

Endress+Hauser Micropilot FMR67B Caractéristiques techniques

Endress+Hauser

Endress+Hauser Levelflex M FMP45 Manuel utilisateur

ECHOMAX

ECHOMAX Active-X-Band Manuel utilisateur

AGD

AGD 340 Manuel utilisateur

Kustom Signals

Kustom Signals Eagle 3 Manuel utilisateur

SYMEO

SYMEO STU Manuel utilisateur

Axis

Axis D2110-VE Manuel utilisateur

MALA

MALA MIRA Manuel utilisateur

Emerson

Emerson ROSEMOUNT 5300 Manuel utilisateur

Rosemount

Rosemount 5300 Series Manuel utilisateur

Endress+Hauser

Endress+Hauser Levelflex FMP56 Caractéristiques techniques

TERMA

TERMA SCANTER 5102 Manuel utilisateur

GSSI

GSSI UtilityScan Manuel utilisateur

Acconeer

Acconeer A111 Manuel utilisateur

Crosley

Crosley CR37 Manuel utilisateur
