Furuno LH-3000 Manuel utilisateur

1. INSTALLATION

Wiring

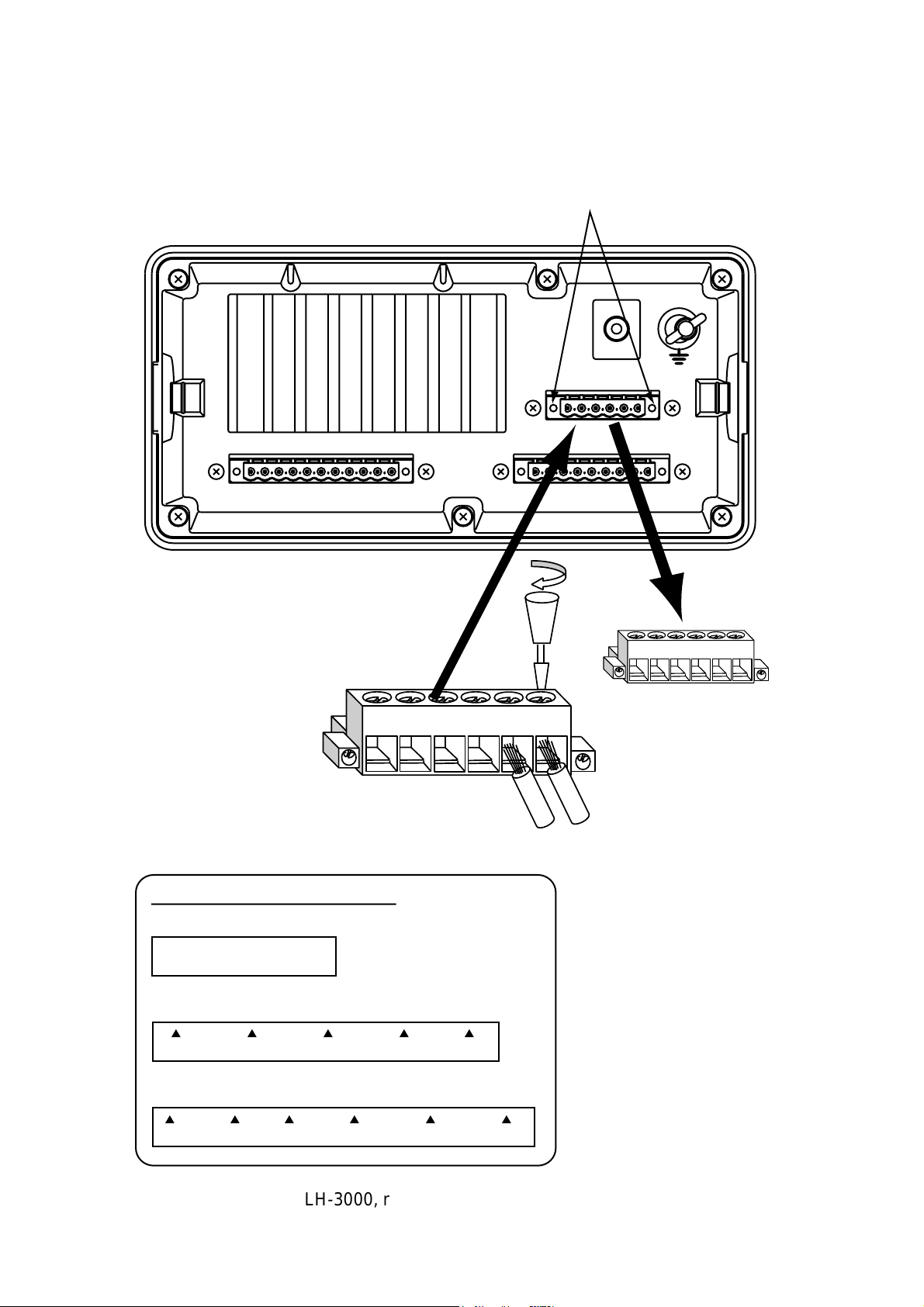

The illustration below shows how to connect the power supply. Other equipment are

connected similarly.

(1) Unfasten screws.

(2) Pull out terminal.

- +

(3) Insert wire into terminal,

and tighten screw at top

of terminal.

AFT FWD 13.6V

- + - + - +

TERMINAL ARRANGEMENT

0V 0V 0V 0V 0V4 CAL4

MIC PTT AUX ALRM SP4

- + - + - +

AFT FWD 13.6V

0V3 CAL3 SP2 0V1 CAL1

SP3 0V2 CAL2 SP1

(4) Set terminal;

tighten screws.

Jeweler’s

screwdriver

Note: Connect power cables

to the battery correctly.

ppppp

pppp p p

LH-3000, rear panel, how to wire terminals

1. INSTALLATION

Power connection

The LH-3000 is intended for

use with a 13.6 VDC power

supply. Connect the power

cable (local supply) to the

terminals labeled “13.6V”.

Use cable type DPYC-1.5 or

equivalent. Fabricate the

cable as shown below. For

longer runs the wire size of

leads should be increased

accordingly to minimize line

losses. The wire connected to the positive (+) terminal must be connected to the positive

terminal on the DC power source, and the wire connected to the negative terminal (-) must

be connected to the negative terminal on the DC power source. If the power leads are

reversed the fuse (inside the Loud Hailer) will blow.

Intercom speaker (option)

Up to four intercom speakers may be connected to the intercom speaker terminals labeled

CAL1-CAL4. Connect each speaker to the terminal block according to desired intercom

speaker selection. The cable end is prefabricated. However, to meet EMC requirements the

length of the cable must be less than 1 m. If the distance between the Loud Hailer and

intercom speaker is greater than 2 m (max. 20 m), use a junction box (local supply). For the

connection to the junction box use cable type CO-SPEVV-SB-C 0.2X2P (option) and

fabricate it as below. In this case, the length of the cable between the junction box and an

intercom speaker must no be more than 1 m regardless of whether the equipment must

meet EMC requirements or not.

Loud Hailer Intercom

Speaker

2 m max.

Distance between loud hailer and intercom speaker is less than 2 m.

Loud Hailer Junction

Box 1 m max.

Distance between loud hailer and intercom speaker is 2-20 m.

Intercom

Speaker

2-20 m max.

11 7

Outer sheath

Twist and trim the shield.

Inner sheath Remove the outer sheath and

armor by 45 mm.

Remove the inner sheath by 11 mm,

and the sheath of the cores by 7 mm.

Cut the unused cores.

Solder a vinyl wire to the shield.

Tape the sheath.

Vinyl wire

Vinyl

tape

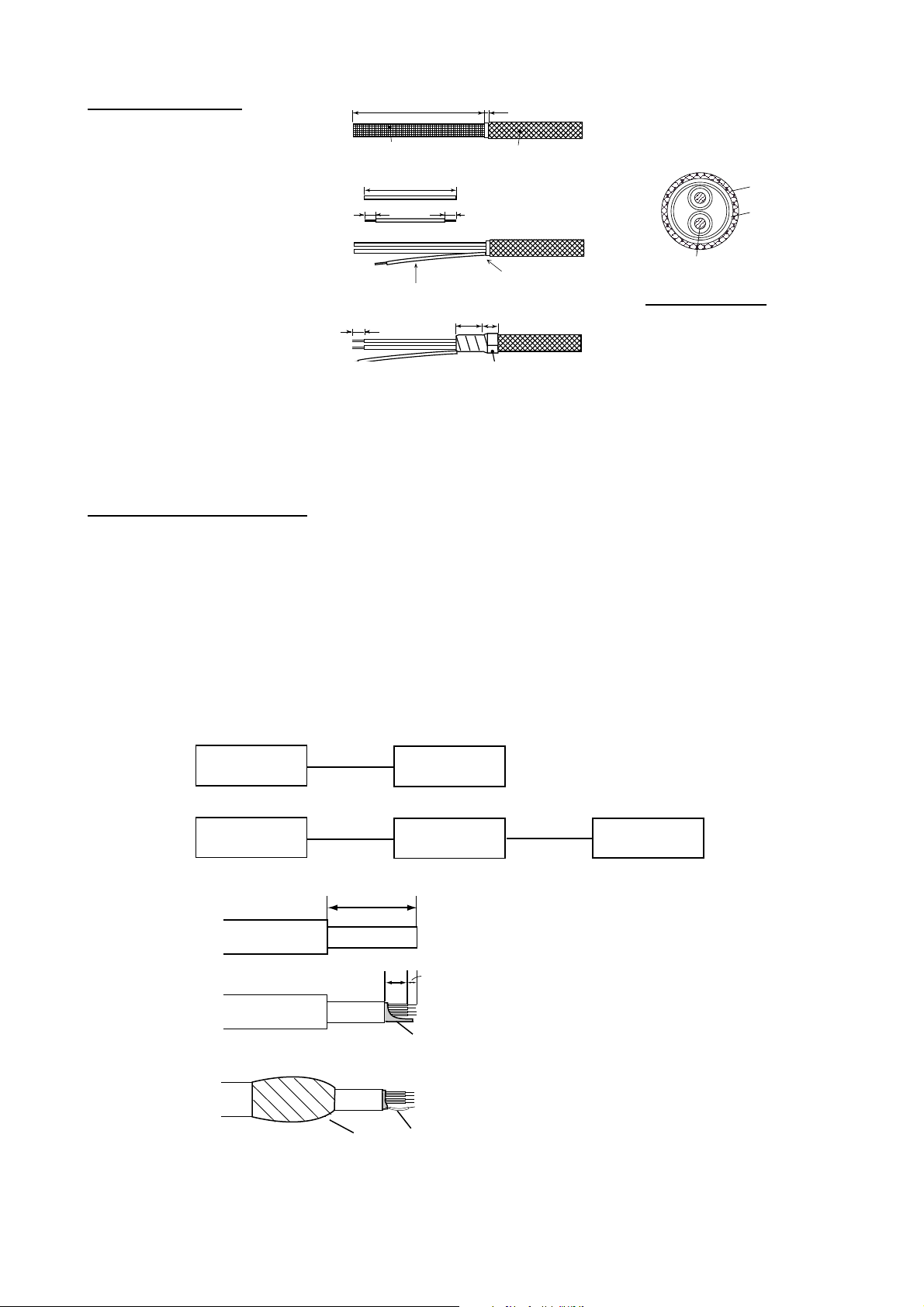

Fabrication of speaker cable

Conductor

S = 1.5 mm

φ= 1.56 mm

Armor

Sheath

φ =

11.7 mm

DPYC-1.5 Sectional view

77 3

Armor

Cut the sheath.

Sheath

15 10

515

Drain wire fabrication

Solder drain wire

* Length long enough to

reach ground terminal.

243

DRAWN

CHECKED

APPROVED

DWG.No.

TITLE

NAME

名称

相互結線図

LH‑3000

ラウドヘイラー

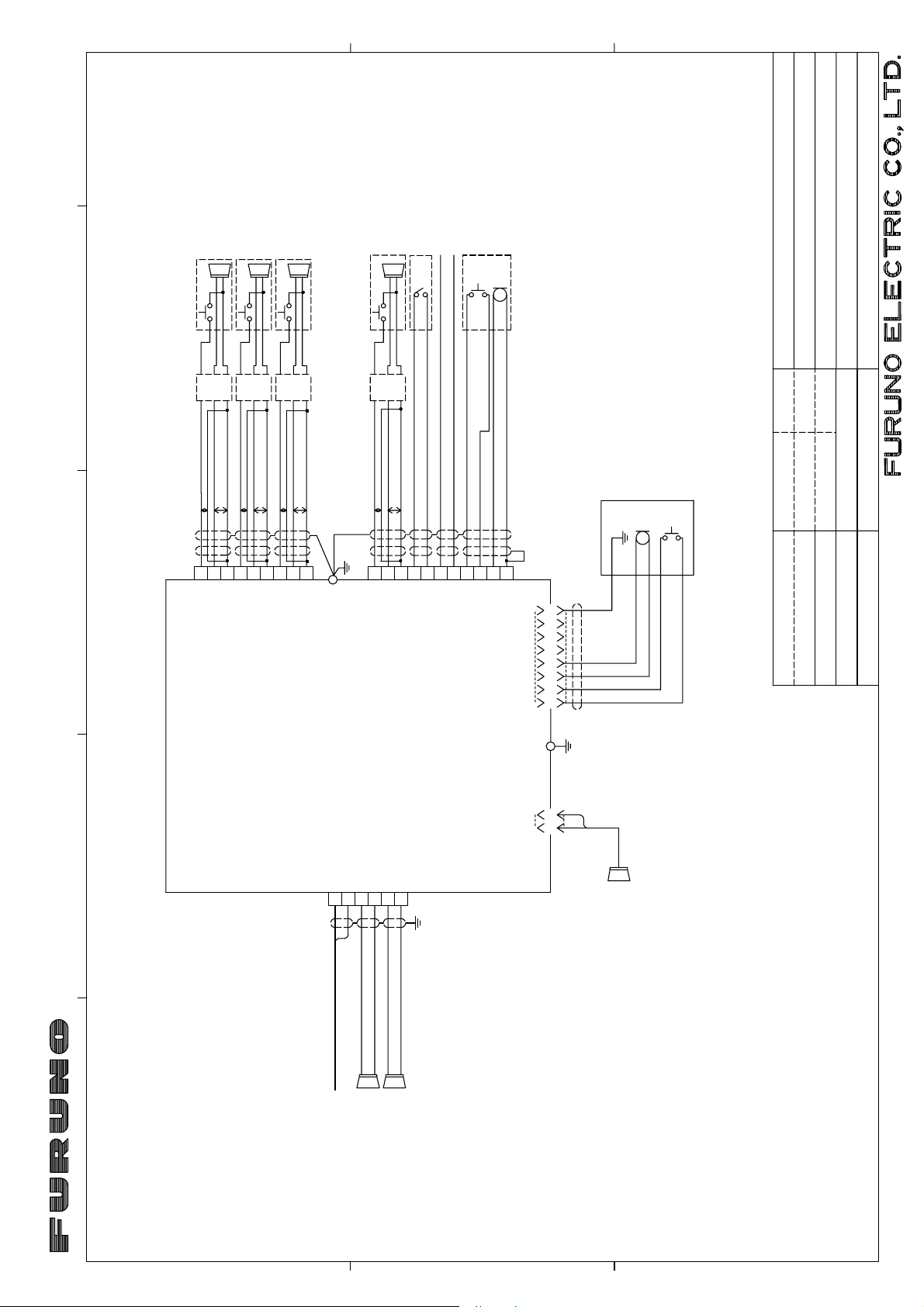

INTERCONNECTION DIAGRAM

GND

PTT

MIC

12345678

GND

EXT. SPEAKER

IV‑1.25

φ3.5 PLUG

FWD+

FWD‑

AFT‑

AFT+

After Horn

Forward Horn

13.6 VDC

CAL1

SP1

CAL2

SP2

CAL3

SP3

インターコムスピーカ

INTERCOM SPEAKER

LH‑3010

インターコムスピーカ

INTERCOM SPEAKER

LH‑3010

インターコムスピーカ

INTERCOM SPEAKER

LH‑3010 *3

LOUD HAILER

LH‑3000

ALARM

AUX

PTT

MIC

CAL4

SP4

0V INPUT FROM

MICROPHONE

インターコムスピーカ

INTERCOM SPEAKER

LH‑3010 *3

C5646‑C01‑B

K.MIYAZAWA

DPYC‑1.5

TTYC‑1

TTYCS‑1

+13.6V

‑13.6V

0V1

0V2

0V3

0V4

DPYC‑1.5, MAX 7.5m

ALARM SENSOR

EXT. AUDIO SOURCE *1

NOTE

*1: LOCAL SUPPLY.

*2: CONNECTOR PLUGS FITTED AT FACTORY.

*3: OPTION.

*4: SOLDER DRAIN WIRE TO ARMOR OF CABLE AND CONNECT IT TO EARTH TERMINAL.

DO NOT SHORT THE DRAIN WIRES ON THE HEAT SINK.

注記

＊2）コネクタは工場にて取付済み。

＊3）オプション。

＊1）現地手配。

＊4）ケーブルのあじろがい装にアース線を

ハンダ付けしてアース端子に接続。

このアース線は放熱板にショートさせないこと。

＊5）LH‑3000とLH‑3010間：

EXTERNAL SPEAKER

外部スピーカ 8Ω

CONNECT CABLE FROM LH‑3010 DIRECTLY TO LH‑3000.

USE JUNCTION BOX(JB).

GREATER THAN 2m:

Feb. 3 '04

（2mを超える場合）接続箱(JB)を使用し、LH‑3000とJB間は20m以下、

JBとLH‑3010間は1m以下にすること。

(2m以下の場合）LH‑3010からのケーブルを直接LH‑3000に接続すること。

*5: CABLING BETWEEN LH‑3000 AND LH‑3010:

2m OR LESS:

DISTANCE BETWEEN LH‑3000 AND JB SHALL BE 20m OR LESS.

DISTANCE BETWEEN JB AND LH‑3010 SHALL BE 1m OR LESS.

*3 CO‑SPEVV‑SB‑C 0.2X2P MAX 20m

*3 CO‑SPEVV‑SB‑C 0.2X2P, MAX 5m

J.B.

MIC

DM‑2003

Takahashi T.

Y.Hatai

Yosh

itoshi

Hatai

電子署名

者:

Yoshitoshi

Hatai

DN:

cn=Yoshit

oshi

Hatai,

o=Furuno,

c=JP

日付:

2004.01.2

3

11:29:48

+09'00'

Signa

ture

invali

S-1
