FOREWORD
A Word to the Owner of the SC-30
Congratulations on your choice of the FURUNO SC-30 Satellite Compass. We are confident you
will see why the FURUNO name has become synonymous with quality and reliability.
For 60 years FURUNO Electric Company has enjoyed an enviable reputation for quality marine
electronics equipment. This dedication to excellence is furthered by our extensive global network
of agents and dealers.
This equipment is designed and constructed to meet the rigorous demands of the marine environ-
ment. However, no machine can perform its intended function unless installed properly. Please
carefully read and follow the recommended procedures for installation.
Thank you for considering and purchasing FURUNO equipment.
Features
The SC-30 Satellite Compass outputs highly accurate heading, GPS position data and speed and
motion data for AIS, ECDIS, ARPA radar, autopilots, etc. Data is output in NMEA 2000®* format,
and with connection of the optional interface unit the data can be converted to NMEA 0183 format.
Settling time is within three minutes and the follow-up performance is an excellent 45°/s.
• Heading accuracy of ±1.0°
• Perfect heading sensor for radar/ARPA, AIS, scanning sonar, etc.
• Outputs accurate heading, position, time, speed, course.
• Pitch and roll output in digital and analog format for ship's motion correction
• Dual antenna system with three axis rate gyro and acceleration sensors
• Data can be output in NMEA 2000 format
• Free from regular maintenance
• Aesthetically pleasing antenna fits nicely on recreational boats
*NMEA 2000 is a registered trademark of the National Marine Electronics Association USA.
Busse-Yachtshop.de [email protected]
v

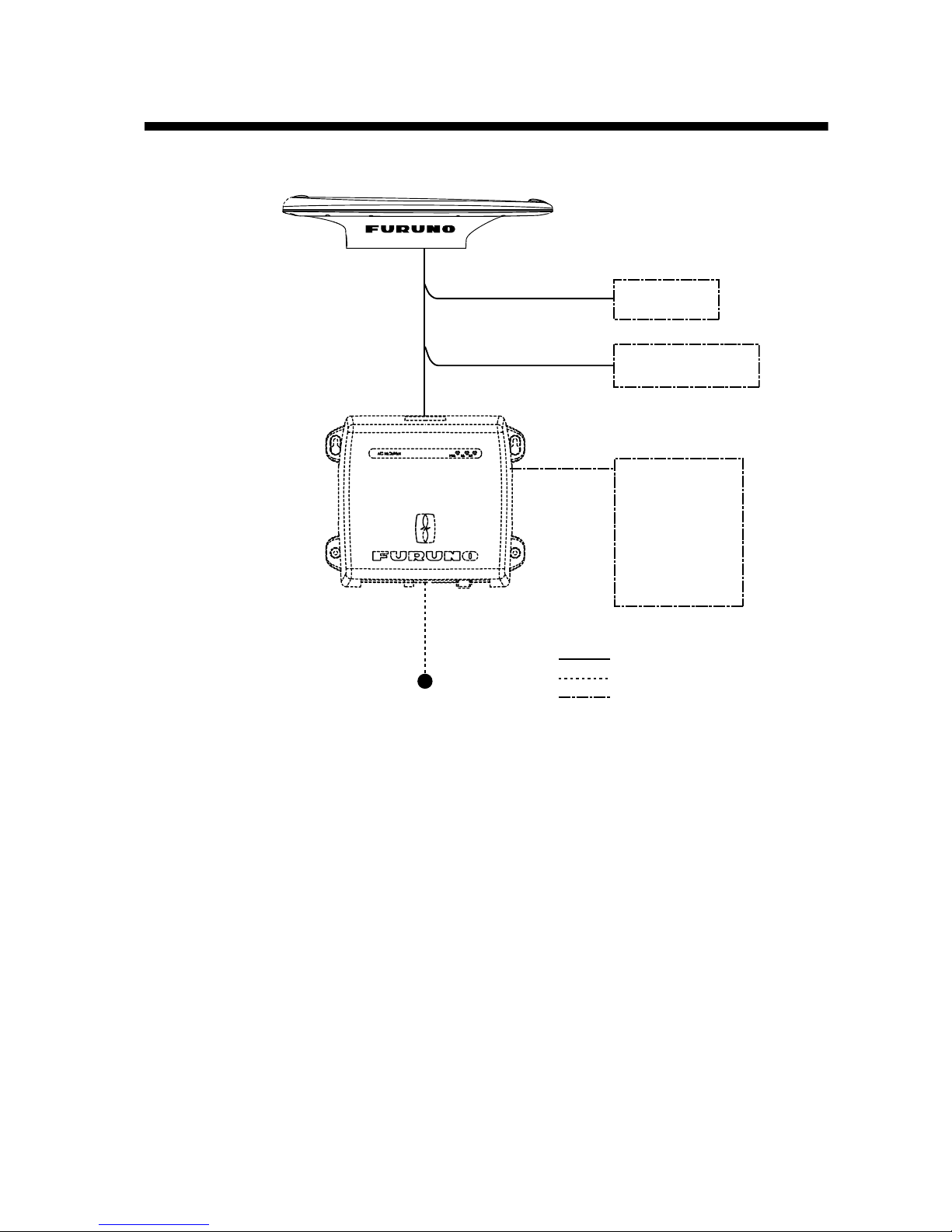

SYSTEM CONFIGURATION
SC-30
12-24 VDC
: Standard supply
: Optional supply
: Local supply
IF-NMEASC
INTERFACE UNIT
Video Plotter
Radar
Autopilot
Current Indicator
Scanning Sonar
Video Sounder
ECDIS
AIS
NavNet 3
(MFD, MFDBB)
OR
NMEA-2000
NMEA-0183
Marine Instrument
Junction Box
IF-NMEASC
Busse-Yachtshop.de [email protected]
1
1. MOUNTING
1.1 Equipment Lists
Standard supply
* See packing list at back of manual for details.
Optional supply
Name Type Code No. Qty Remarks
Sensor SC-30 - 1
Installation
Materials
CP20-02900 000-011-455 1
(Select
one)
With cable MJ-A10SPF0016-060C
(6 m) and Installation materials
CP20-02901*
CP20-02910 000-011-459 With cable MJ-A10SPF0017-150C
(15 m) and Installation materials
CP20-02901*
CP20-02920 000-011-461 With cable MJ-A10SPF0015-150C
(15 m) and Installation materials
CP20-02901*
Spare Parts SP20-01201 001-019-740 1 Fuse FGBO 125V 1A, 3 pcs., (for
use w/MJ-A10SPF0017-150C)
Name Type Code No. Qty Remarks
Interface
Unit
IF-NMEASC - 1 See OME-72651, issued
separately
Bird-Repel-
lent Fixture
OP20-36 004-380-830 4
Cable Assy. MJ-A10SPF0017-300C 000-166-890-10 1 30 m, φ8
MJ-A10SPF0015-300C 000-166-892-10 30 m, φ10
MJ-A10SPF0016-060C 000-166-887-10 6 m, φ8
MJ-A10SPF0017-150C 000-166-889-10 15 m, φ8
MJ-A10SPF0015-150C 000-166-891-10 30 m, φ10
Busse-Yachtshop.de [email protected]
1. MOUNTING
2
1.2 Mounting Considerations
In addition to the considerations described in this section, keep the length of the sensor cable in
mind when selecting a mounting location.
General considerations
Mount the sensor above radar mast
Like in the figure below, mount the SC-30 sensor above a radar mast. This provides an unob-
structed path between the sensor and the satellite, regardless of vessel heading. Follow the pro-
cedure on the next page to choose an installation site.
Sensor mounted above antennas and structures
If sensor cannot be installed above radar mast
If absolutely impossible to do otherwise, the sensor may be installed below a radar mast. Howev-
er, certain guidelines must be followed to prevent the shading and multipath problems which occur
as shown in the figure below. Follow the procedure on the next page to choose an installation site.
Problems associated with mounting sensor below a radar mast
Mast
Radar Antenna
Bridge
SC-30 Sensor
Radar Antenna
SC-30
Sensor
Bridge
Reception blocked by mast.
Location influenced
by reflected wave.
