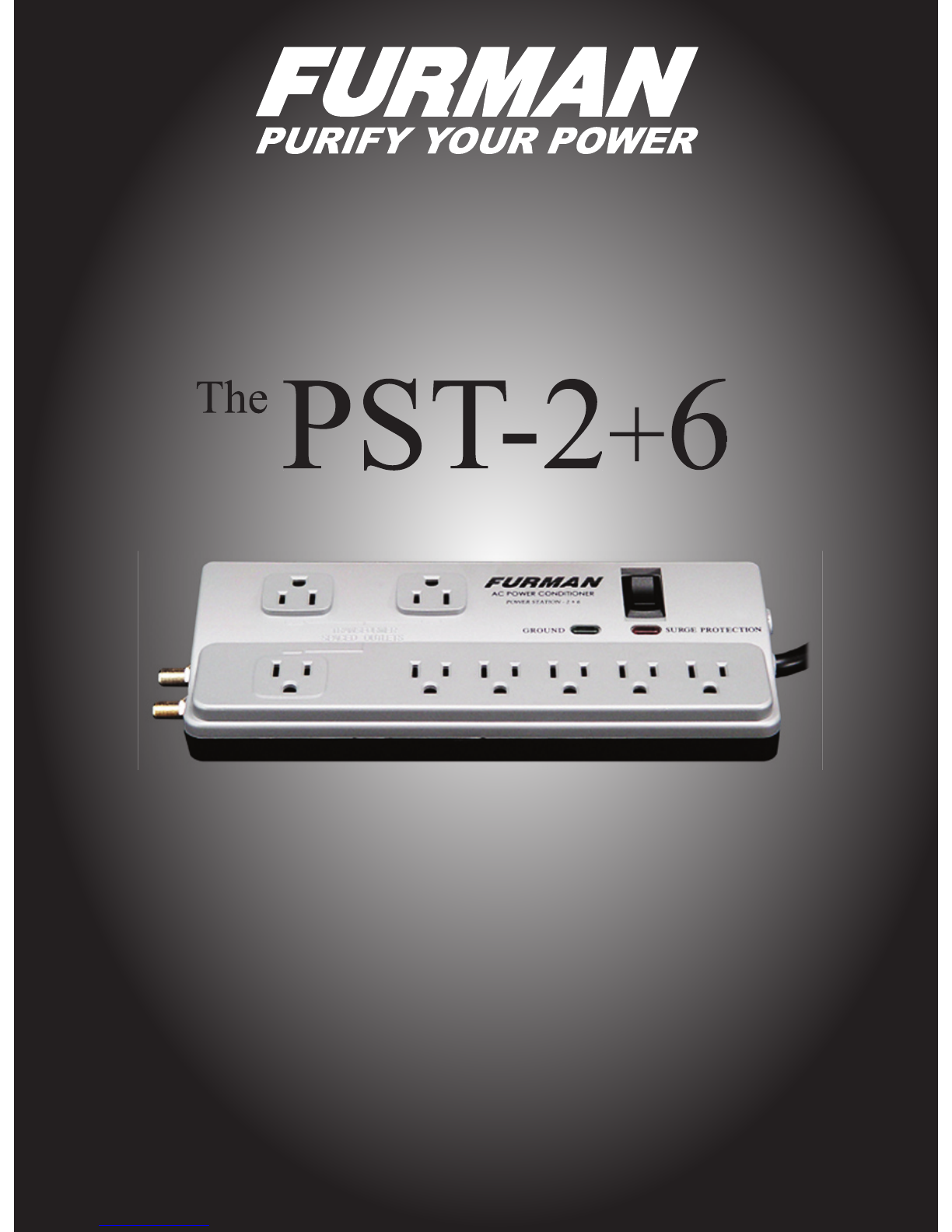

The

PST-2

Owners Manual

Introduction

Thank you for purchasing the Furman Power Station-2+6 Power

Conditioner. For over 30 years, Furman has pioneered the

development of AC power products for the most demanding audio,

video, and broadcast professionals. Furman’s Ground Contamination

Free Surge Protection, Advanced Filtering Technology, and Digital-

HD Television Ready circuitry can signiﬁ cantly improve your

sensitive components while protecting them from spikes, surges and

contaminated AC power.

Today’s power grid typically experiences numerous electrical surges

and spikes on a daily basis. At best, these irregularities can degrade

your equipment’s performance; at worst, they can severely damage

individual components or your entire system. Not so with Furman.

With our exclusive Ground Contamination Free Surge Protection,

your valued equipment is protected without the long-term damaging

effect of conventional surge strips.

Safety Information

To obtain best results from your Furman Power Station-6 Power

Conditioner, please be sure to read this manual carefully before

using.

Warning:

To reduce the risk of electrical shock, do not expose this equipment

to rain or moisture. Dangerous high voltages are present inside the

enclosure. Do not remove the covers. There are no user serviceable

parts inside. Refer servicing to qualiﬁ ed personnel only.

Important Safety Instructions

1. Please read and observe all safety and operating instructions

before installing your Power Station-2+6 (PST-2+6). Retain these

instructions for future reference.

2. Your PST-2+6 should not be used near water – for example, near

a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement,

near a swimming pool, etc.

3. Do not place your PST-2+6 near heat sources such as radiators,

heat registers, stoves or other appliances that produce heat.

4. The PST-2+6 should only be connected to a 120 VAC, 60Hz, 15

amp grounded electrical outlet. Do not defeat the ground or change

polarization of the power plug.

5. Route the power cord and other cables so that they are not likely

to be walked on, tripped over, or stressed. Pay particular attention

to the condition of the cords and cables at the plugs, and the point

where they exit your PST-2+6. To prevent risk of ﬁ re or injury,

damaged cords and cables should be replaced immediately.

6. Clean your PST-2+6 with a damp cloth only. Do not use solvents

or abrasive cleaners. Never pour liquid on or into the unit.

7. Your PST-2+6 should be serviced by qualiﬁ ed service personnel

when:

• The power supply cord or the plug has been frayed, kinked, or cut.

• Objects have fallen or liquid has spilled into the unit.

• The unit has been exposed to rain or other moisture.

• The unit does not appear to operate normally, exhibits a marked

change in performance, or the Surge Protection or Ground indicator

is not lit.

• The unit has been dropped, or the enclosure damaged.

8. Your PST-2+6 requires that a safety ground be present for proper

operation. Any attempt to operate the unit without a safety ground is

considered improper operation and could invalidate the warranty.

Operation

AC, Telephone, and Coaxial Connectors

Telco – Satellite / Cable Transient Voltage Surge Suppressors:

The PST-2+6 features transient voltage surge suppression for both

standard telephone lines, as well as cable and satellite lines utilizing

standard coaxial connectors. As these surge suppressors are in-line,

they will require an additional cable (supplied with the PST-2+6) to

connect from their output to the control device requiring protection.

All in-line surge suppressors feature our exclusive ground

contamination free technology. This aids in eliminating audio

buzzing, and the video hum-bars that can result from typical in-line

suppressors. Further, our cable and satellite suppressors are TIVO

friendly as well as HD-Digital Television ready. Both DC carrier

signals as well as high bandwidth signals can pass through our

circuit. In fact the bandwidth is less than 0.1dB loss at 1GHz!

To connect your cabling to these in-line protectors, simply follow the

in and out indications marked next to the Telco, and Cable / Satellite

connectors.

Note:

It is not possible to make an in-line cable / satellite protector

“maintenance-free.” Under extreme conditions, it is possible that

the surge suppression in one of these devices could sacriﬁ ce itself

after a catastrophic event. If the telephone, cable or satellite signal

will no longer pass through our protector, please send your Power

Station to Furman for servicing. To test this, simply disconnect

the incoming and out going cable from the PST-2+6. Connect the

incoming connector to the component that formerly received the out

going connector, thus by-passing the in-line protection. If the signal

is present (but not when used with the PST-2+6) then the protection

circuit is damaged (assuming it worked properly before the storm or

catastrophic event).

Circuit Breaker

If the PST-2+6 is connected to an AC outlet where sufﬁ cient voltage

is present, the unit should operate properly with the protection OK

indicator lit, after the main power switch is turned to the on position.

If the unit still does not function under these conditions check the

circuit breaker button! It is the round black button adjacent to the

incoming AC cord. If the circuit breaker trips immediately, there may

be too great of a current load placed upon it. Simply disconnect one

product at a time until this no longer happens. If the breaker trips

with no components connected, there may be a wiring defect that

requires Furman service.

Indicators

Protection OK Indicator:

Although Furman’s Ground Contamination Free Surge Suppression

rarely requires servicing, nature has a way of occasionally creating

electrical forces that are beyond the capabilities of any transient

voltage surge suppressor device to absorb without some degree

of damage. In the instance that this occurs, the green “Surge

Protection” LED indicator will turn off and a warning buzzer will sound

an audible alarm. If this happens, Furman’s surge suppression circuit

is compromised. The unit must be returned to Furman Sound, or an

authorized Furman Service Center for repair.

Mounting

If the Power Station needs to be mounted to the inside panel of a rack

or hung from a wall, a convenient crossed oval cutout is provided on

the unit’s bottom panel. A standard No. 6 pan head screw can be

used in the same way a picture is hung from a wall. Simply measure

the centers on the bottom of your Power Station. This will be the

distance from the two mounting holes drilled into your wall, rack or

cabinet surface. Once the screw is fastened ﬂ ush with the surface,

back it out approximately 1/4”. The screw head should push through

the crossed cutout on the bottom surface of the Power Station. Next,

simply allow the Power Station to move down and seat into the end

of its oval cut-out. Adjust the pan head screw if necessary.

Warranty

Furman Sound, Inc., having its principal place of business at 1997 South

McDowell Blvd., Petaluma, CA 94954 (“Manufacturer”) warrants its PST-

2+6 (the “Product”) as follows:

Manufacturer warrants to the original Purchaser of the Product that

the Product sold hereunder will be free from defects in material and

workmanship for a period of one year from the date of purchase.

The Purchaser of the product is allowed ﬁ fteen days from the date of

purchase to complete warranty registration by mail or on-line at the

Furman website. If the Product does not conform to this Limited Warranty

during the warranty period (as herein above speciﬁ ed), Purchaser shall

notify Manufacturer in writing of the claimed defects. If the defects are of

such type and nature as to be covered by this warranty, Manufacturer

shall authorize Purchaser to return the Product to the Furman factory

or to an authorized Furman repair location. Warranty claims should be

accompanied by a copy of the original purchase invoice showing the

purchase date; this is not necessary if the Warranty Registration was

completed either via the mailed in warranty card or on-line website

registration. Shipping charges to the Furman factory or to an authorized

repair location must be prepaid by the Purchaser of the product.

Manufacturer shall, at its own expense, furnish a replacement Product or,

at Manufacturer’s option, repair the defective Product. Return shipping

charges back to Purchaser will be paid by Manufacturer.

THE FOREGOING IS IN LIEU OF ALL OTHER WARRANTIES,

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE. Manufacturer does not warrant

against damages or defects arising out of improper or abnormal use

of handling of the Product; against defects or damages arising from

improper installation, against defects in products or components not

manufactured by Manufacturer, or against damages resulting from such

non-Manufacturer made products or components. This warranty shall

be cancelable by Manufacturer at its sole discretion if the product is

modiﬁ ed in any way without written authorization from Furman Sound.

This warranty also does not apply to Products upon which repairs have

been affected or attempted by persons other than pursuant to written

authorization by Manufacturer.

THIS WARRANTY IS EXCLUSIVE. The sole and exclusive obligation

of Manufacturer shall be to repair or replace the defective Product in

the manner and for the period provided above. Manufacturer shall

not have any other obligation with respect to the Products or any part

thereof, whether based on contract, tort, strict liability or otherwise.

Under no circumstances, whether based on this Limited Warranty

or otherwise, shall Manufacturer be liable for incidental, special, or

consequential damages. Manufacturer’s employees or representatives’

ORAL OR OTHER WRITTEN STATEMENTS DO NOT CONSTITUTE

WARRANTIES, shall not be relied upon by Purchaser, and are not a part

of the contract for sale or this limited warranty. This Limited Warranty

states the entire obligation of Manufacturer with respect to the Product.

If any part of this Limited Warranty is determined to be void or illegal, the

remainder shall remain in full force and effect.

Service

All equipment being returned for repair must have a Return

Authorization (R/A) Number. To get an R/A number, please call the

Furman Service Department at (707) 763-1010 ext 121, between

the hours of 8:00 am and 5:00 pm US Paciﬁ c Time. When returning

equipment for repair, please use the original packaging to ship the

product. Also, please enclose a note giving your name, address,

phone number, e-mail address, and a description of the problem.

Please display your R/A Number prominently on the front of all

packages.

Table des matières

Autres manuels Furman Distribution d'énergie CA

Furman

Furman Elite 15 Manuel utilisateur

Furman

Furman M-8 Series Manuel utilisateur

Furman

Furman PS-PRO E II Manuel utilisateur

Furman

Furman AC-215 A Manuel utilisateur

Furman

Furman PL-PLUS C Classic Series Manuel utilisateur

Furman

Furman IT-REFERENCE 20i Manuel utilisateur

Furman

Furman PL-8 C Classic Series Manuel utilisateur

Furman

Furman ITReference20 Manuel utilisateur

Furman

Furman PL-PRO D II Manuel utilisateur

Furman

Furman PST-10D Manuel utilisateur

Furman

Furman PRESTIGE P-6900 AR E Manuel utilisateur

Furman

Furman AR-2330D Manuel utilisateur

Furman

Furman ELITE-20 PF i Manuel utilisateur

Furman

Furman PL-PLUS C E Manuel utilisateur

Furman

Furman ITReference15 Manuel utilisateur

Furman

Furman CONTRACTOR Series Manuel utilisateur

Furman

Furman IT-20 II Manuel utilisateur

Furman

Furman PST-8D Manuel utilisateur

Furman

Furman Elite-16 PF E Manuel utilisateur

Furman

Furman IT-REFERENCE 7i Manuel utilisateur

Furman

Furman SPR-20i Manuel utilisateur

Furman

Furman IT-1210 Manuel utilisateur

Furman

Furman PL-PRO C Manuel utilisateur

Furman

Furman Elite15PF Manuel utilisateur

Manuels Distribution d'énergie CA populaires d'autres marques

PS Audio

PS Audio PowerPlay 8500 Manuel utilisateur

Elgar

Elgar CW 2501P Manuel utilisateur

Panamax

Panamax M5300-PM Manuel utilisateur

Ring Powering

Ring Powering RINV500 PowerSource Manuel utilisateur

ABB

ABB System pro E power Manuel

Heath

Heath Heathkit HL-2200 Manuel utilisateur

Panamax

Panamax Powermax PM8-EX Manuel utilisateur

Abtus

Abtus PWR-DA09C/P Manuel utilisateur

Belkin

Belkin PureAV PF30L Manuel utilisateur

EasyFocus

EasyFocus SGR-UPS5011 Manuel utilisateur

Panamax

Panamax VT1512-IP Manuel utilisateur

socomec

socomec ATyS p Manuel utilisateur

Panamax

Panamax M8DBS-EX Manuel utilisateur

Panamax

Panamax M5400-EX Manuel utilisateur

Chroma

Chroma 61501 Manuel utilisateur

Unika

Unika PC-USB Series Manuel utilisateur

BC Acoustique

BC Acoustique EX001-EU Guide de configuration

Liebert

Liebert MPX Manuel utilisateur
