EN INSTALLATION INSTRUCTIONS
FR INSTRUCTIONS D’INSTALLATION
ES INSTRUCCIONES DE INSTALLACIÓN
PROFESSIONAL GAS
COOKTOP
PLAQUE DE CUISSON GAZ
PROFESSIONNELLE
PLACA DE COCCIÓN
PROFESIONAL DE GAS
Dear Customer,
Thank you for purchasing a Fulgor Milano product. Fulgor Milano is
committed to excellence and our signature technologies provide you with
professional tools for your kitchen. One of our central philosophies is
continuous investment in research that is rooted in developing life enhancing
technology. Our goal is to deliver products that are worthy of your family
recipes and that will breathe life into your kitchen, the heart of your home.
We invite you to enjoy your new Fulgor Milano product with same amount
of care and attention that we have put into creating it.
Your Life | Our Passion
EN
1
TABLE OF CONTENTS PAGE
1 - Special Warnings 2
Before Starting Installation 2
Cooktop Installed over Oven Installation 2
2 - Product Dimensions and Cutout Requirements 3
Important Preparation Suggestions 3
Mobile Home Installation 6
3 - Cooktop Installation 7
4 - Gas Requirement 9
Gas Connection 10
Pressure Testing 12
Pressure Test Method 12
5 - Electrical Requirements 13
General Information 13
Electrical Connection 13
Electrical Requirements 13
6 - Conversion for LP or NG Gas 15
Converting Appliance for Use with LP Gas 15
Replace injector on (one ring flame or stacked
burners) 15
Replace injectors on (two rings flame burner) 15
Converting Appliances for Use with NG Gas 16
Pressure regulator conversion 16
Injectors position 17
Low Flame Adjustment 19
Electric gas ignition 20
The Burner Flames 20
IMPORTANT: Save these instructions for the local electrical
inspector use.
INSTALLER: Please leave this manual with owner for future
reference.
OWNER: Please keep this manual for future reference.
Pay attention to these symbols present in this manual:
DANGER
You can be killed or seriously injured if you don’t
IMMEDIATELY follow instructions.
WARNING
• This is the safety alert symbol. This symbol alerts you to
potential hazards that can kill or hurt you and others.
• You can be killed or seriously injured if you don’t follow
these instructions.
READ AND SAVE THESE INSTRUCTIONS.
To installer:
Leave these instructions with the appliance.
To customer:
Retain these instructions for future reference.
WARNING
• If the information in this manual is not followed exactly,
a fire or explosion may result in personal injury or
death.
• Do not store or use gasoline or other flammable
vapours and liquids in the vicinity of this or any other
appliance.
EN
2
1 - Special Warnings
IMPORTANT
Please read all instructions before using this appliance.
Proper installation is your responsibility. Have a qualified technician install this cooktop.
IMPORTANT
• Observe all governing codes and ordinances.
• Write down the model and serial numbers before
installing the cook top. Both numbers are on the serial
rating plate located on bottom of cooktop box.
Before Starting Installation
• Check location where cooktop will be installed. The
location should be away from strong drafty areas, such
as windows, doors and strong heating vents or fans.
• Electrical grounding is required. See “Electrical
Requirements”
• Assure that electrical installation is adequate and in
conformance with National Electrical Code, ANSI/NFPA
70 - latest edition**, or Canadian Electrical Code, part
1 C22.1 (latest edition)*** and all local codes and
ordinances.
• Assure that gas connection conforms with local codes and
ordinances. In the absence of local codes, installations
must conform with American National Standard, National
Fuel Gas Code ANSI Z223/NFPA 54 - latest edition**
The Natural Gas and Propane Installation Code, CSA
149.1 or CSA B149.2 latest edition***.
Copies of the standards listed may be obtained from:
** National Fire Protection Association One Batterymarch
Park Quincy, Massachusetts 02269
*** CSA International 8501 East Pleasant Valley Rd.
Cleveland, OH 44131-5575
NOTE: This cooktop is manufactured for use with Natural
gas or Propane.
To convert to LP (propane) or NG (natural gas),
see instruction in the gas conversion kit provided
in literature package. Proper gas supply connection
must be available. See gas supply requirements.
WARNING
BEFORE CONNECTING THE APPLIANCE ON THE
GAS LINE SUPPLY, ENSURE THAT ITS GAS SETTING IS
APPROPRIATE.
THE TYPE OF GAS ADJUSTED AND SHIPPED FROM
THE FACTORY IS INDICATED ON THE RATING PLATE
LOCATED ON BOTTOM OF THE BURNER BOX.
Cooktop Installed over Oven Installation
Only certain specified cooktop and oven models are
approved for cooktop over oven installations.
Cooktops approved for this type of installation will have an
approval label located on the outside of the burner box.
If you do not find this label, contact your dealer to confirm
that cooktop is approved.
The label on the bottom of your cooktop lists the cooktop
and oven combinations that are approved for this type of
installation.
EN
3
2 - Product Dimensions and Cutout Requirements
Important Preparation Suggestions
1. Chamfer all exposed edges of decorative laminate to prevent damage from chipping.
2. Radius corners of cutout and file to Insure smooth edges and prevent corner cracking. Recommend 1/4”or 3/8” diameter drill
In each corner.
3. Rough edges, inside corners which have not been rounded and forced fits can contribute to cracking of the countertop
laminate.

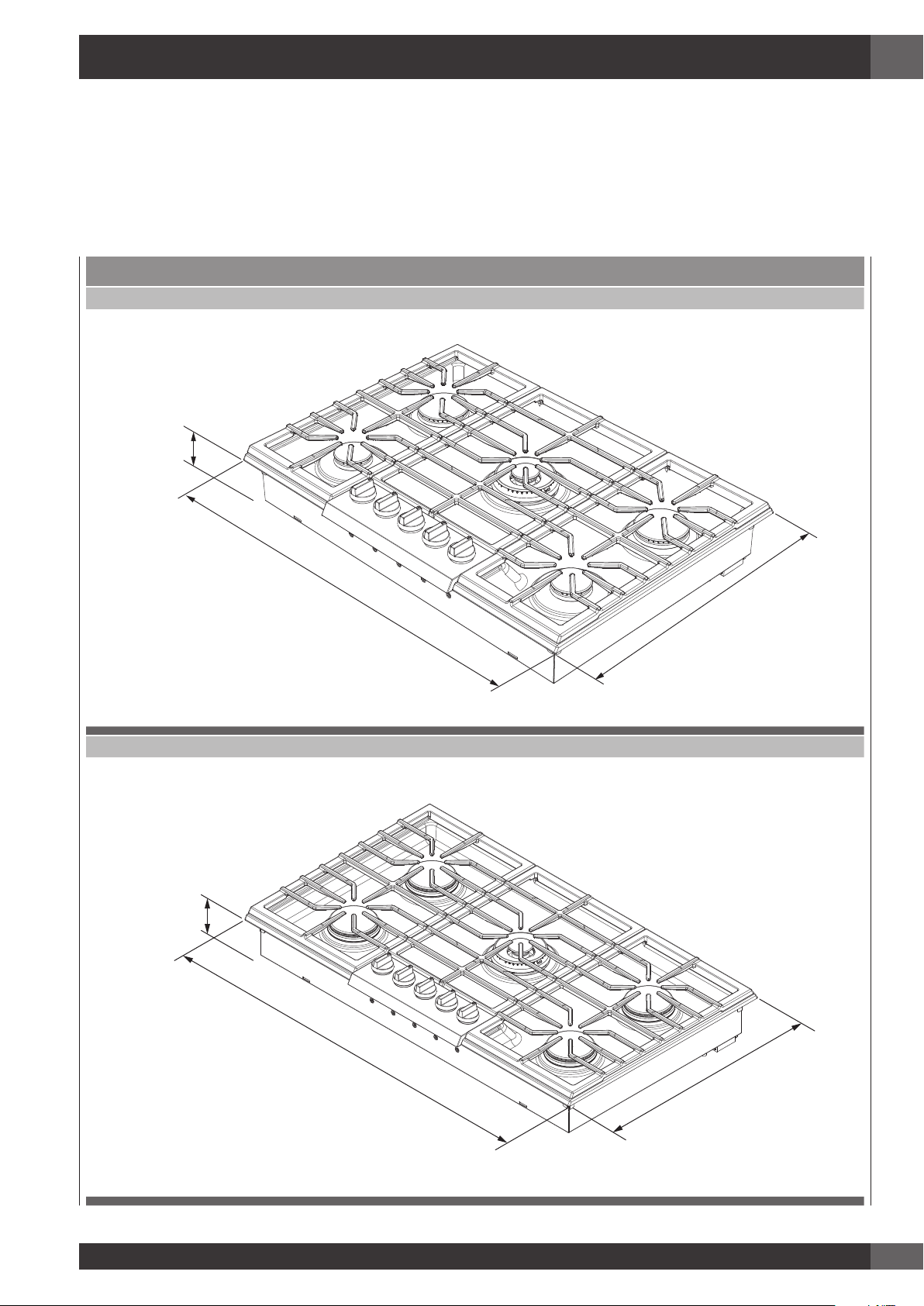

PRODUCT DIMENSIONS
30”
30” (762)
21” (533)
3 - 7/16”
(87)
36”
36” (914)
3 - 7/16”
(87)
21” (533)
EN
4
5 - 11/16 “ (14,4 cm)
7 - 5/8 “ (19,3 cm)
COUTOUT DIMENSIONS
CUT OUT
WIDTH A B C D
30” MIN 28-1/2 [72.4 cm]
MAX 28-11/16” [72.9 cm] MIN 19-9/16” [49.7 cm]
MAX 19-3/4” [50.2 cm] MIN 2” (5.0 cm) MIN 3 1/2” (9.0 cm)
36” MIN 34-1/2” [87.6 cm]
MAX 34-11/16 ” [88.1 cm] MIN 19-9/16” [49.7 cm]
MAX 19-3/4” [50.2 cm] MIN 2” (5.0 cm) MIN 3 1/2” (9.0 cm)
EN
5
CUTOUT REQUIREMENTS
A13” (33 cm) Depth of unprotected overhead cabinets.
B30” (76.2 cm) MIN. (Model 30“).
36” (91.4 cm) MIN. (Model 36”).
C18” (47.7 cm) MIN. Height from countertop to nearest cabinet on either side of unit.
D36” (91 cm ) MIN. (see Note* Clearance from countertop to unprotected overhead surface. )
E5” (12.7 cm) min Clearance from cut out to side wall on the left and right of the unit.
FFrom the back corner of cut-out to hole center 2-9/32” (5.8 cm).
GFrom the right corner of cut-out to hole center 2-19/32” (6.6 cm).
HFrom the back corner of cut-out to hole center 1-1/4” (3.2 cm). Opening with oven under cooktop.
IFrom the top of countertop to hole center 5-1/8” (12.9 cm). Opening with oven under cooktop.
LElectric outlet from bottom of counter top and adjacent to the cabinet side 12” (30.5 cm).
-Hole 1-1/5” (3 cm).
* NOTE:
- If cabinet has a drawer, a 5-1/4”(13,35 cm) depth clearance from the top of the countertop to the top of the drawer (or
other obstruction) in base cabinet is required. The drawer depth may need to be shortened to avoid interfering with the
regulator.
- 24” (61 cm) min. clearance if bottom of wood or metal cabinets is protected by not less than 1/4” (0.6 cm) ame
retardant millboard covered with not less than No. 28 MSG sheet steel 0.015” (0.04 cm) stainless steel, or 0.024”
(0.06 cm) aluminium or 0.020” (0.05 cm) copper. 30” (76.2 cm) min. clearance between top of cooking platform and
bottom of unprotected wood or metal cabinet.
EN
6
We recommend to that you consider the minimum dimension
of cut-out size in the case of new installation.
WARNING
The appliance should not be installed with a ventilation
system that blows air downward toward the range.
This type of ventilation system may cause ignition and
combustion problems with the gas cooking appliance
resulting in personal injury or unintended operation.
Mobile Home Installation
The installation of this cooktop must conform to the
Manufactured Home Construction and Safety Standards,
Title 24 CFR, Part 3280 (formerly the Federal Standard for
Mobile Home Construction and Safety;
Title 24 HUD part 280); or when such standard is
not applicable, the Standard for Manufactured Home
Installations (Manufactured Home Sites, Communities and
Setups), ANSI A225.1 - latest edition, or with local codes.
In Canada, the installation of this cooktop must conform
with the current standards CAN/CSA-Z240 - latest edition,
or with local codes.
IMPORTANT
• For solid surface material installations such as Surel™
and Corian®, consult with solid surface manufacturer.
Apply heat reflective tape such as Scotch® Aluminum
Foil Tape #425 or #427 around the cutout so that it
folds over on the top and sides.
• DO NOT WRAP THE TAPE UNDERNEATH THE
COOKTOP.
• Be sure the tape extends beyond the outermost flange
of the cooktop. All corners should be covered with
tape.

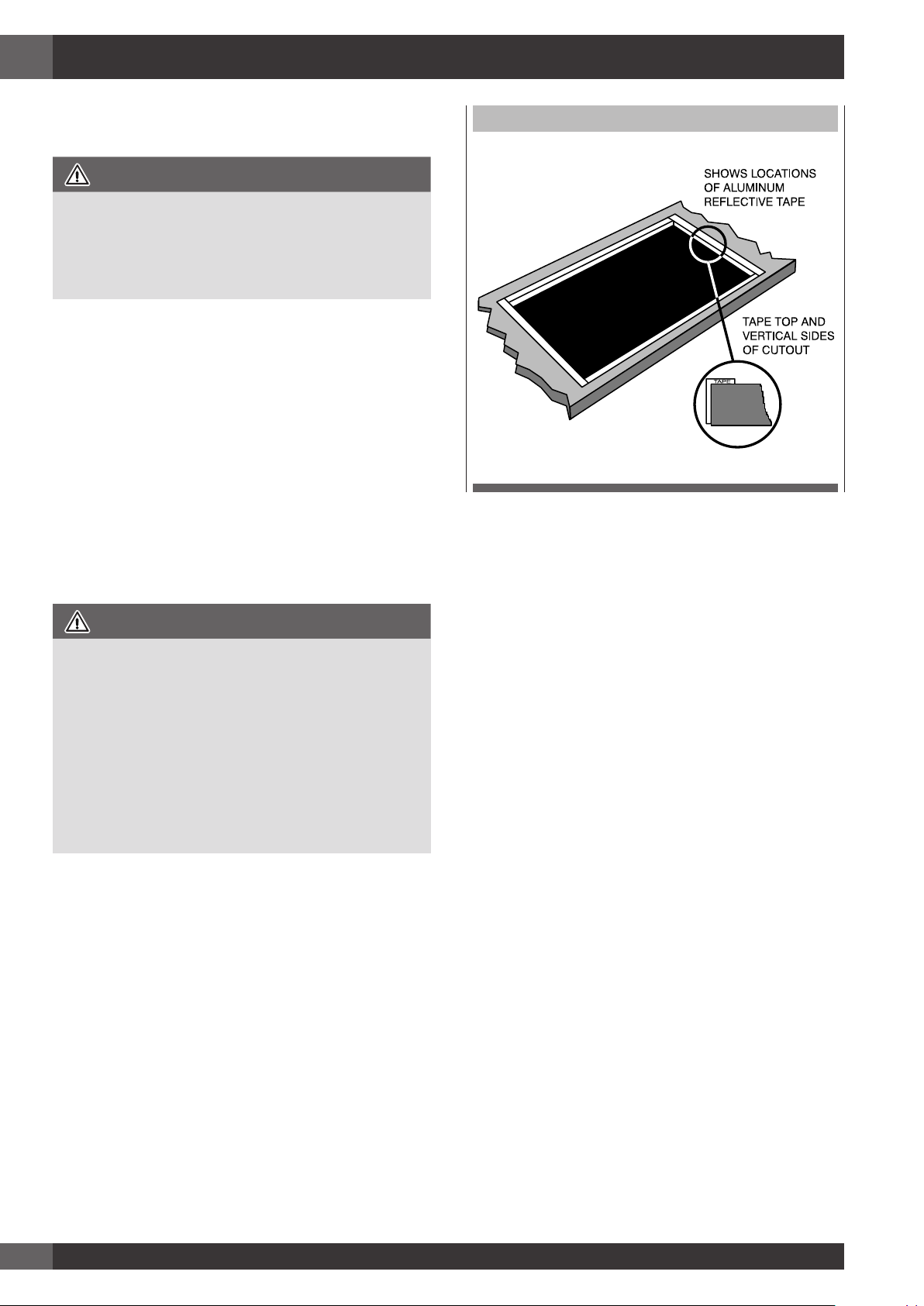

SOLID SURFACE COUNTERTOP INSTALLATION
