PRIMERGY Econel30

System configurator and order-information guide

Contents

Instructions

Configuration diagram

Configurator

0System software

IBasic unit

II Processor

III Memory

IV Graphics

VAccessible drives

VI Hard disk drives

VII SCSI Controller

VIII Disk array

IX Communikation/Network

XMiscellaneous

XI Country specific power cord

Change report

PRIMERGY Server

November 2003

System configurator and order-information guide

PRIMERGY Econel30 Status 2003-10-28

Instructions

This document contains basic product and configuration information that will enable you to configure your system via

PC-/ System-Architect.

Only these tools will ensure a fast and proper configuration of your PRIMERGY server or your complete

PRIMERGY Rack system.

You can configure your individual PRIMERGY server in order to adjust your specific requirements.

The System configurator is divided into several chapters that are identical to the current price list and PC-/ System-Architect.

Please follow the lines. If there is a junction, you can choose which way or component you would like to take. Go through

the configurator by following the lines from the top to the bottom.

Section III Memory, example

There are X memory slots which can be equipped with XXX MB.

It is permissible to make up to X passes through the memory upgrade options.

S26361-XXX-XXX S26361-XXX-XXX

Memory XXX MB Memory XXX MB

X times

max. X times per system max. X times per system

In one chapter you can only select as many components (here 4x) as the arrow indicates.

Please note that there are information symbols which indicate necessary information.

Further information in the internet see:

http://www.primergy.com

(internet)

http://extranet.fujitsu-siemens.com/primergy

(extranet)

Prices and availability see price list and PC-/ System-Architect.

Subject to change and errors excepted.

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 2 of 11

System configurator and order-information guide

PRIMERGY Econel30 Status 2003-10-28

Configuration diagram for "PRIMERGY Econel30" system unit

SIDE VIEW

FRONT VIEW

System unit ( I )

Pentium 4 / Celeron

Standard

Power supply

Processor ( II ) Memory ( III ) 5.25"x1.6" DVD

Extension slots

5.25"x1.6"

Graphics ( IV )

SCSI Controller ( VII )

Disk array

Communication/Network ( IX )

5.25"x1.6"

Miscellaneous ( X )

3.5"x1" Floppy disk

AGP short

Accessible drives (V)

PCI 32-Bit / 33MHz, long Hard disks ( VI )

PCI 32-Bit / 33MHz, long IDE/SCSI - 3.5"x1"

PCI 32-Bit / 33MHz, long

IDE/SCSI - 3.5"x1"

PCI 32-Bit / 33MHz, long IDE/SCSI - 3.5"x1"

PCI 32-Bit / 33MHz, long

Recommendation of HD extension

Number of HDs

No 1

No 2

No 3 1)*

No 4 1)*

onb. = onboard MA = Master

Ch = Channel SL = Slave

All needed cables are enclosed.

Depending on the number and type of HDs, the chart above shows the connection of HDs

to the on-board IDE Controller, to the IDE RAID cards and to the SCSI controller card respectively.

1) * A second RAID Controller can only later be ordered as -L part number.

onb. MA

1.RAID MA Ch2 ID 1 (opt.)

2.RAID MA Ch1 ID 2 (opt.)

onb. MA onb. MA RAID MA Ch1

- -

- - -

MIXED

IDE MIXED

IDE

Standard

IDE

onb. MA

Standard

IDE or

RAID

IDE

RAID MA Ch1 RAID MA Ch1

HD-Bays

-onb. SL RAID MA Ch2 -onb. SL

RAID MA Ch2 RAID MA Ch2 2.RAID MA Ch2 ID 3 (opt.)

1 2 1-43

Bank 1

Bank 2

PCI-Bus

RAID

IDE SCSI

1.RAID MA Ch1 ID 0 (std.)

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 3 of 11

System configurator and order-information guide

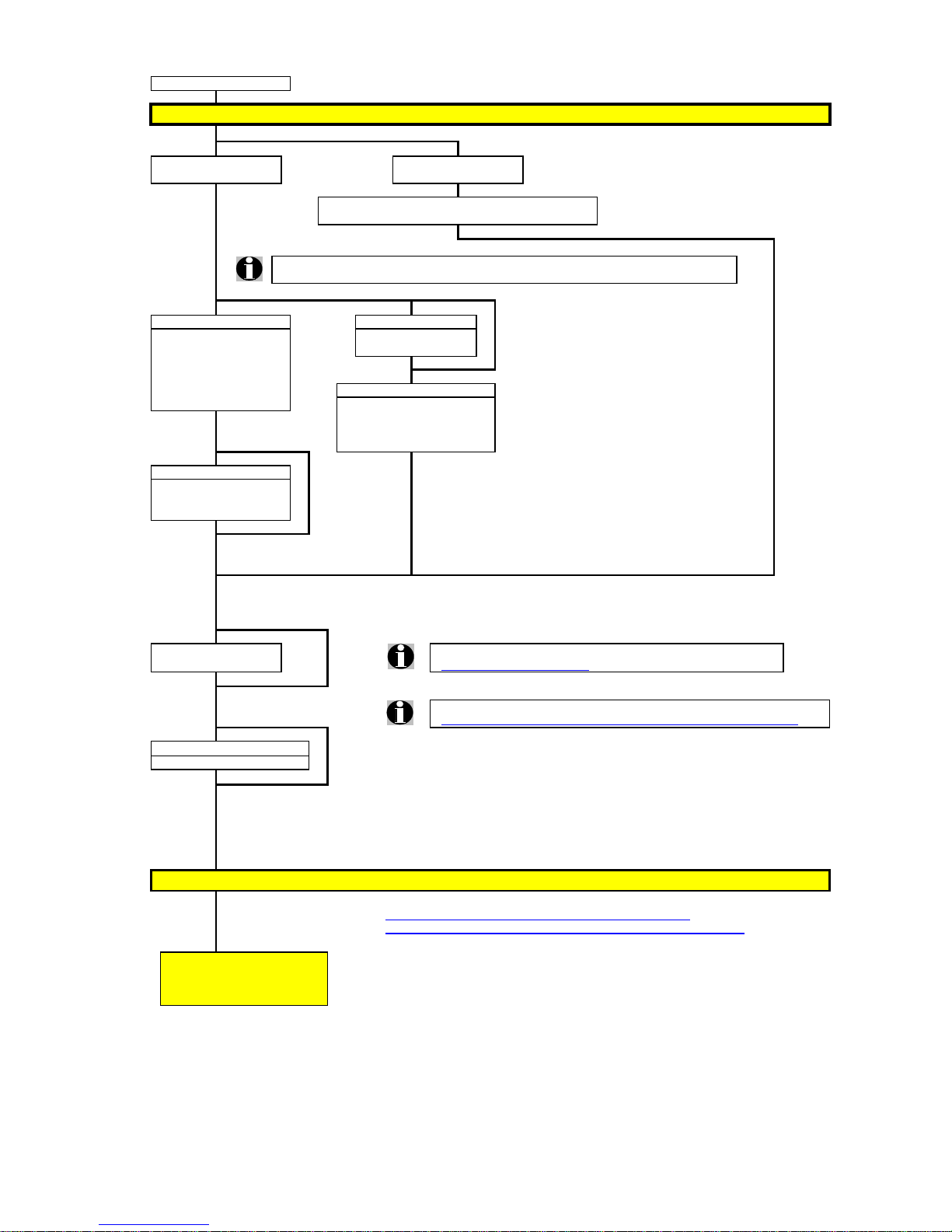

Start "PRIMERGY Econel30"

PRIMERGY Econel30 Status 2003-10-28

SW Configurator

mit OEM-Software ohne OEM-Software

für PRIMERGY-Server für PRIMERGY-Server

Bis auf OEM-SW von Vmware und F5 ist die Verwendung

von OEM-Betriebssystem- Software später nicht mehr erlaubt.

For all SW products listed below please refer to the corresponding software configurator accessible

via the Extranet under "PC Configurations, Configurator for PRIMERGY SW", URL see below.

MS - Software: W **) PRIMECLUSTER *)

- NT 4.0 Server - Clustering

- Small Business Server 2000 - Load Balancing

- Windows 2000 Server

- Windows Server 2003,

Web Edition (only English) Linux - Software: **)

Standard Edition - SuSE Linux Enterprise Server: S

- SuSE Professional Linux

- Red Hat Enterprise Linux

- Red Hat Professional Linux

CITRIX-Software for NT: W1

- Multiuser SW MetaFrame

LoadBalancing

Additional User Licences

easyMirror for Linux *) Pay attention to release information on datasheet under

NT 4, WIN 2000 ****)

http://www.primecluster.com

**) Pay attention to release and order information in PRINCE -> Operating System

http://vil.mch.fsc.net/vil/pc/vil/primergy/overview/prince/index_en.htm

Backup-Software: U

- ARCserve for NT

You'll find single software configurators and release lists (OS-matrix / system management / security) under following addresses:

for internal users:

http://vil.mch.fsc.net/vil/oec/special/primergy/index_en.htm

for partners:

http://vilpart.fujitsu-siemens.de/vil/oec/special/primergy/index_en.htm

Continue with PRIMERGY

HW configurator

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 4 of 11

System configurator and order-information guide

Start "Econel30"

PRIMERGY Econel30 Status 2003-10-28

Section IBasic unit

System unit consisting of:

* Housing including power supply

* Systemboard with

- Ultra DMA-100 Controller on-board (for 2x 2 drives)

- 7 slots:1x AGP, 6x PCI

* 1 drive bay 3.5" (occupied by 1 floppy disk 3.5"/ 1.44MB)

* 3 bays 5.25" for accessible drives (one is occupied by 1 DVD)

* 4 bays for IDE/SCSI HDs (internal)

* Audio on-board

* AGP-graphics card ATI Rage128 (16MB) in AGP slot

* LAN (Intel) on-board

* all cables included

* PS/2 wheelmouse

S26361-K831-V360

IDE Grundeinheit V360

- Celeron Prozessor 2.6GHz

128KB SLC, inkl. Kühlkörper

- 256MB DDR-RAM PC2100

- 1x 40 GB IDE HD

S26361-K831-V310 S26361-K831-V320 S26361-K831-V340 S26361-K831-V350

IDE Basic unit V310 IDE Basic unit V320 IDE Basic unit V340 IDE Basic unit V350

- Pentium 4 processor 2.4GHz - Pentium 4 processor 2.4GHz - Pentium 4 processor 2.4GHz - Pentium 4 processor 2.4GHz

512KB SLC, incl. heat sink 512KB SLC, incl. heat sink 512KB SLC, incl. heat sink 512KB SLC, incl. heat sink

- 256MB DDR-RAM PC2100 - 256MB DDR-RAM PC2100 - 512MB DDR-RAM PC2100 - 512MB DDR-RAM PC2100

- 1x 40 GB IDE HD - 1x 80 GB IDE HD - 1x 80 GB IDE HD - 1x 120 GB IDE HD

S26361-K831-V311 S26361-K831-V321 S26361-K831-V331 S26361-K831-V341

SCSI Basic unit V311 SCSI Basic unit V321 SCSI Basic unit V331 SCSI Basic unit V341

- Pentium 4 processor 2.4GHz - Pentium 4 processor 2.4GHz - Pentium 4 processor 2.4GHz - Pentium 4 processor 2.4GHz

512KB SLC, incl. heat sink 512KB SLC, incl. heat sink 512KB SLC, incl. heat sink 512KB SLC, incl. heat sink

- SCSI Controller (D1305) - SCSI Controller (D1305) - SCSI Controller (D1305) - SCSI Controller (D1305)

- 256MB DDR-RAM PC2100 - 256MB DDR-RAM PC2100 - 512MB DDR-RAM PC2100 - 512MB DDR-RAM PC2100

- 1x 36GB SCSI HD - 1x 73GB SCSI HD - 1x 36GB SCSI HD - 1x 73GB SCSI HD

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 5 of 11

System configurator and order-information guide

PRIMERGY Econel30 Status 2003-10-28

Section II Processor

Included in the basic unit!

Section III Memory

There are 2 memory slots. They can be equiped with 256MB, 512MB, 1GB.

Mix and match is possible. One memory slot is occupied!

S26361-F2580-E256 S26361-F2580-E512 S26361-F2580-E513

Memory 256MB DDR-RAM PC2100 Memory 512MB DDR-RAM PC2100 Memory 1GB DDR-RAM PC2100

ECC unbuffered ECC unbuffered ECC unbuffered

consisting of one module consisting of one module consisting of one module

occupies one slot occupies one slot occupies one slot

max. 1xper system max. 1xper system max. 1xper system

Section IV Graphics

Graphics Controller ATI Rage128 16MB is included in

the basic unit (occupies AGP slot). Other graphic

cards only possible by PCI bus in Customizing.

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 6 of 11

System configurator and order-information guide

PRIMERGY Econel30 Status 2003-10-28

Section VRemovable Media Drives

There is 1 drive bay 3.5" occupied by 1 floppy disk 3.5"/ 1.44MB and

3x 5.25" bays for accessible drives.

S26361-F3008-E1

CD-RW / DVD drive

1x 48/24/48/16 IDE

only W2K and Linux

1.6 * 5.25", anthracite bezel

max. 1x per system

S26361-F2238-E3

Tape drive SLR 100

50GB, 5MB/s, U2W SCSI

Connector: HD68

without cable

incl. description (Ger/US)

data and cleaning cartridge

1.6 * 5.25", anthracite bezel

max. 1x per system

S26361-F2233-E3 S26361-F2848-E3 S26361-F2849-E3

Tape drive DAT DDS4 Tape drive DDS Gen5 Tape drive VXA-2

S26361-F2233-E31 (only for OBDR) 36GB, 3MB/s, U2W SCSI 80GB, 6MB/s, U2W SCSI

DDS4 for One buttom dis. Recovery Connector: HD68 Connector: HD68

20GB, 2.8MB/s, U2W SCSI without cable without cable

Connector: HD68 incl. description (Ger/US) incl. description (Ger/US)

without cable data and cleaning cartridge data and cleaning cartridge

incl. description (Ger/US) 1.6 * 5.25", anthracite bezel 1.6 * 5.25", anthracite bezel

1.6 * 5.25", anthracite bezel max. 1x per system max. 1x per system

max. 1x per system

Section VI Hard disk drives

One hard disk drive is in the basic unit included

A. Hard Disks for IDE Basic Units

S26361-F2263-E40 S26361-F2263-E80 S26361-F2263-E120

Hard disk 40GB DMA 100 Hard disk 80GB DMA 100 Hard disk 120GB DMA 100

3x fitting height 1" fitting height 1" fitting height 1"

occupies 3.5" drive bay occupies 3.5" drive bay occupies 3.5" drive bay

max. 3x per system max. 3x per system max. 3x per system

If you install more than 2 IDE Hard Disks, an IDE-RAID Controller (S26361-F2567-E2) is needed.

At a RAID controller only drive assemblies with same capacity may be attached.

B. Hard Disks for SCSI Basic Units

S26361-F2824-E136 S26361-F2824-E173

Hard disk 36GB U 160 SCSI Hard disk 73GB U 160 SCSI

3x fitting height 1" fitting height 1"

occupies 3.5" drive bay occupies 3.5" drive bay

max. 3x per system max. 3x per system

SCSI Basic Unit or

SCSI Controller are

needed for Backup

Drives.

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 7 of 11

System configurator and order-information guide

PRIMERGY Econel30 Status 2003-10-28

Section VII SCSI Controller

There are 7 slots (max. 340 mm): 1x AGP (ocuppied by AGP graphics card), 6x PCI long

A. SCSI Controller for backup drives

S26361-F2644-E3

SCSI Controller UW SCSI Controllers only for backup drives

with LSI Chip 53C1000R In SCSI Basic Units not necessary

1 channel LVD,

for internal backup drive

max. 160MB/s; with cable

64/66 PCI, min 166mm,

PCI standard profile

int: HD68 LVD, ext:

SW:

max. 1x per system

B. SCSI Controller for external peripheral devices

S26361-F2399-E1

SCSI 160 Controller

Adaptec SCSI Card 29160

1 channel: LVD + Fast/ Ultra (decoupl.)

LVD connect. for HD, without cable

Fast/Ultra connect. for acc. drives

64/66 (32/33) PCI, min 180 mm, hp

int: Fast 50 pins or Ultra HD68

+ LVD HD68; ext: HD68(LVD)

SW:

max. 1 per system

Section VIII Disk array

S26361-F2567-E2 In RAID-modus you need 2 IDE RAID Controller for the connection

IDE RAID Controller of 4 hard disk drives!

Promise Fasttrak 100 LP

2-channel IDE RAID Controller

max. 100MB/s, with cable A second IDE RAID Controller can only later be ordered as -L part number.

1 HD per channel max. It may be mounted only after installation of the operating system.

32/66 PCI, min. 180mm

int.: 2 x ATA 100 UDMA

ext.:

SW:

max. 1x per system

IDE RAID Controller are only released for

IDE Basic Units!

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 8 of 11

System configurator and order-information guide

PRIMERGY Econel30 Status 2003-10-28

Section IX Communication / Network

S26361-F2643-E1

Fast Ether. Contr. 10/100TX

Intel Pro 100 Server Adapter

AFT under NT, W2k also with

on-board LAN, WOL, load bal.

32/33 Bit PCI, min 120 mm

ext: for RJ45-connector

SW: VLAN, Fast Etherchannel

max. 1x per system

freigegeben.

S26361-F2730-E1 S26361-F2732-E1 S26361-F2839-E1

Gigabit Ethernet Contr. 1000TX Gigabit Ethernet Contr. 1000SX Gigabit Ethernet Contr. 1000TX

Intel Pro/1000 XT Server Adapter Intel Pro/1000 XF Server Adapter Intel Pro/1000 MT Adapter

Adapter Teaming Support Adapter Teaming Support PCI 32 (33/66MHz), min 122 mm

PCI-X (PCI64/66), min 163 mm PCI-X (PCI64/66), min 163 mm ext: for RJ45-plug, Cat 5

ext: for RJ45-connector, Cat 5 ext: for Duplex SC-connector connection with Cat 5 cabling

connection with Cat 5 cabling SW: VLAN, Fast Etherchannel

SW: VLAN, Fast Etherchannel SW: VLAN, Fast Etherchannel max. 2x per system

max. 2x per system max. 2x per system

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 9 of 11

System configurator and order-information guide

PRIMERGY Econel30 Status 2003-10-28

Section XMiscellaneous

Section XI Country pack

Power cord for floorstand versions for following countries:

1,8 m, grey

T26139-Y1740-E10 D, A, B, F, NL, FIN, N, S, E, P, RUS, TR

T26139-Y1742-E10 USA, Canada

T26139-Y1743-E10 Switzerland

T26139-Y1744-E10 UK, IR

T26139-Y1745-E10 Italy

T26139-Y1746-E10 Denmark

T26139-Y3850-E10 Option "no powercord"

Keyboards for following countries:

S26381-K397-E110 USA / international

S26381-K397-E120 Germany

S26381-K397-E140 France

S26381-K397-E155 Sweden / Finland

S26381-K397-E165 United Kingdom

S26381-K397-E180 Spain

S26381-K397-E185 Italy

Other options and Peripherals

For other options refer to the section "Product-specific options

These options are supplied loose with the shipment.

For suitable peripherals for this product refer to the section "Peripherals/communication"

End PRIMERGY Econel30

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 10 of 11

Table des matières

Autres manuels Fujitsu Serveur

Fujitsu

Fujitsu PRIMERGY RX1330 M4 Instructions d'utilisation et d'installation

Fujitsu

Fujitsu PRIMERGY RX200 S7 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY RX300 S5 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY TX200 S2 Guide rapide

Fujitsu

Fujitsu PRIMEQUEST 2400E3 Instructions d'utilisation et d'entretien

Fujitsu

Fujitsu PRIMERGY TX1310 M1 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY RX300 S7 Manuel utilisateur

Fujitsu

Fujitsu SPARC Enterprise T5440 Server Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY TX100 S3 Manuel utilisateur

Fujitsu

Fujitsu SE310 Manuel utilisateur

Fujitsu

Fujitsu SPARC ENTERPRISE T5220 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY CX270 S1 Manuel utilisateur

Fujitsu

Fujitsu PRIMEQUEST 480 Manuel technique

Fujitsu

Fujitsu SPARC Enterprise T5120 Manuel d'installation et d'exploitation

Fujitsu

Fujitsu PRIMERGY RX2530 M1 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY TX2550 M4 Manuel utilisateur

Fujitsu

Fujitsu BX630 - PRIMERGY - S2 Dual Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY BX600 S2 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY CX400 M6 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY RX1330 M1 Manuel utilisateur

Fujitsu

Fujitsu SPARC Enterprise M5000 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY BX960 S1 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY BX620 S6 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY RX800 S2 Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur
