Fujitsu AS*B24LDC Series Manuel utilisateur

R410A

D1D_AS004E/03

2010.02.10

1. WALL MOUNTED

TYPE :

AS B24LDC

INDOOR UNIT

- (01 - 01) -

WALL MOUNTED TYPE

AS B24LD

WALL MOUNTED TYPE

AS B24LD

MODEL : AS B24LDC

FEATURES

1. FEATURE

Energy saving Rank A

Original plasma air cleaning unit effectively cleans the air in the room.

Super quiet

ALL DC

Large air flow and quiet

operation by new air

flow path

V-PAM technology makes a compressor more powerful.

V P

More compact compared with conventional model Front view Back view

Air flow mode can be set in 4 steps and more detailed air flow setting is possible.

High efficiency

layout

New 3-row heat

exchange system

V-P

V-PAM control

DC scroll compressor

aDC fan motor

DC fan motor

Dirty Air

Clean Air

Pet odor and the smell of

cigarette smoke are

removed by decomposition

by weak ozone O3.

Clean Air

Activated charcoal

bacteria eliminating &

deodorizing filter

Polyphenol filter

(Grapefruit seed extract)

Earth conductor

Plasma filter generates

ions and ozone.

Electric pole

Electrostatic

filter

Dirty Air

Negatively-charged dust, etc. are attracted

to the earth section and are collected by a

bacteria eliminating & deodorizing filter.

Plasma air filter mechanism

Washable filter

Restored to the same performance

as when new each time it is washed.

Plasma unit

Mounts a plasma air cleaning unit.Minute dust

particles are collected by an electrostatic filter and odor

is suppressed by decomposition of foul odors by very

weak ions. Since a filter with a lower ventilation

resistance than in the past is used, high dust collection

design simultaneously cleans in the air in the room.

Europe energy saving Rank A achieved

- (01 - 02) -

WALL MOUNTED TYPE

AS B24LD

WALL MOUNTED TYPE

AS B24LD

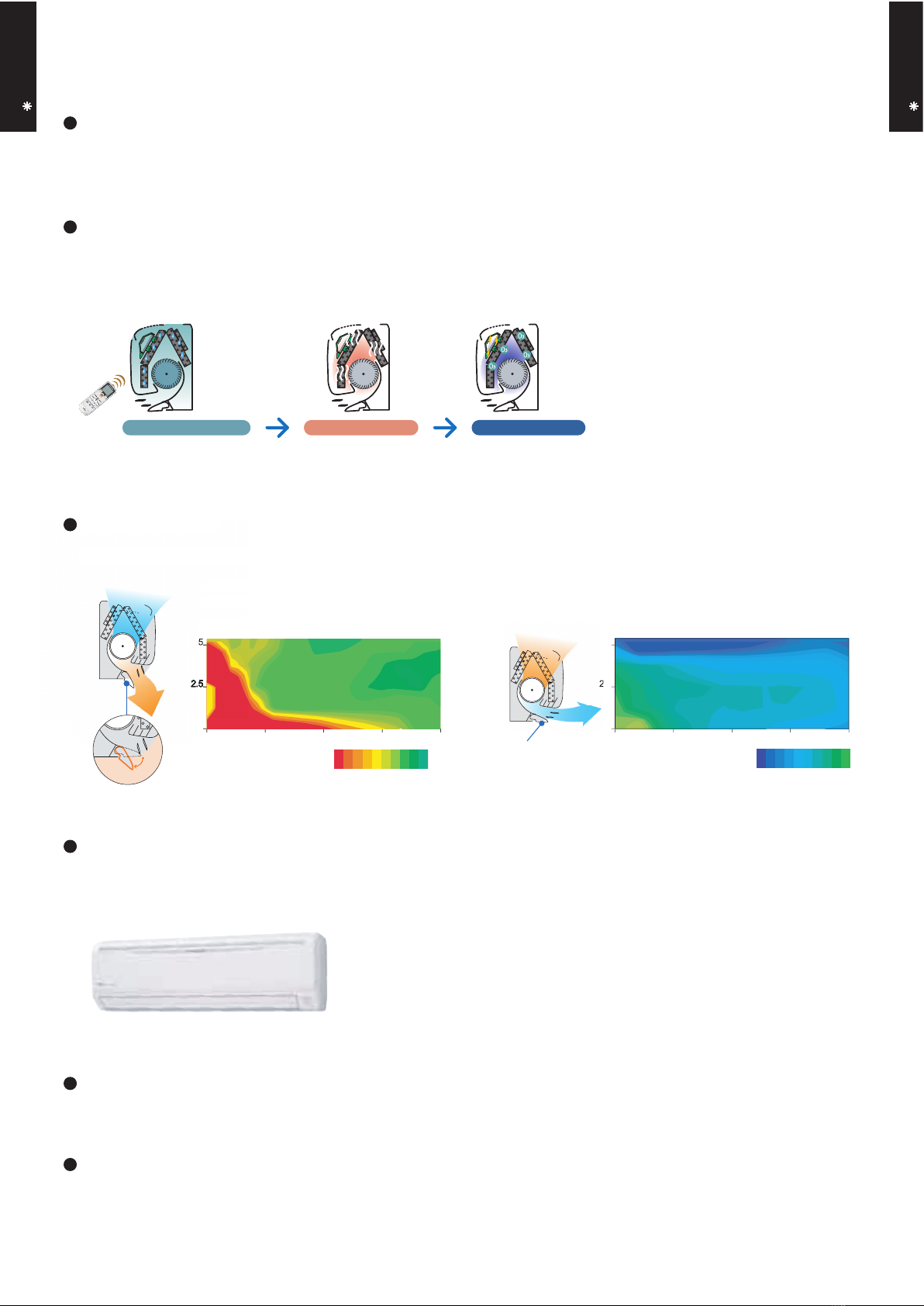

Easy maintenance

Easy maintenance and always clean. Troublesome maintenance has been made easy.

Since the front panel is easy to remove, maintenance is also easy.

Inner drying operation and plasma effect

This model is equipped with an inner drying function. After the power is turned off, the dry operation starts

inside the air conditioner. The plasma air cleaning unit eliminates bacteria, deodorizes, and keeps

the interior of the air conditioner clean by generating ozone and ions.

Power diffuser

Adoption of large power diffuser

Compact design

998mm width compact design

Low outdoor air temperature cooling correspondence

Corresponds to cooling operation at -10

°C

outdoor air temperature

New model

(unit:mm)

H320 x W998 x D228

2.52.5

0 3 6 9 12(m)

Outside air conditions: 2 oC 60%

( C)

Operation contents: Heating,

Set temperature (Max set temp)

30 o

C, Air flow Hi,

Air direction downward and front

“Strong vertical air flow” provides

powerful floor level heating.

Power diffuser

(full open)

“Healthy horizontal air flow” does not blow

cool air directly at the occupants in the room.

2.5

0 3 6 9 12(m)

Corresponds to maximum 30m long piping

2933 32 31 30

Outside air conditions: 35 oC 40%

( C)

Operation contents: Cooling,

Set temperature (Min set temp)

18 o

C, Air flow Hi,

Air direction downward and front

1815 16 17

2.5

46o

Bacteria grows in beading,

and it causes bad odor.

Drying operation for

approx. fifteen minutes.

Ozone bacteria eliminating operation

for approx. fifteen minutes.

“Inner drying operation” and

“ozone bacteria eliminating

operation” keep the inside

of the air conditioner clean

at all times. That’s why air

from the air conditioner is

always clean and high

efficiency is realized.

After operation ends,

start approximately

30 minutes speed

cleaning operation

by merely pressing

the COIL DRY

button.

Removes moisture. Bacteria elimination

Covered with beading.

- (01 - 03) -

WALL MOUNTED TYPE

AS B24LD

WALL MOUNTED TYPE

AS B24LD

FEATURES

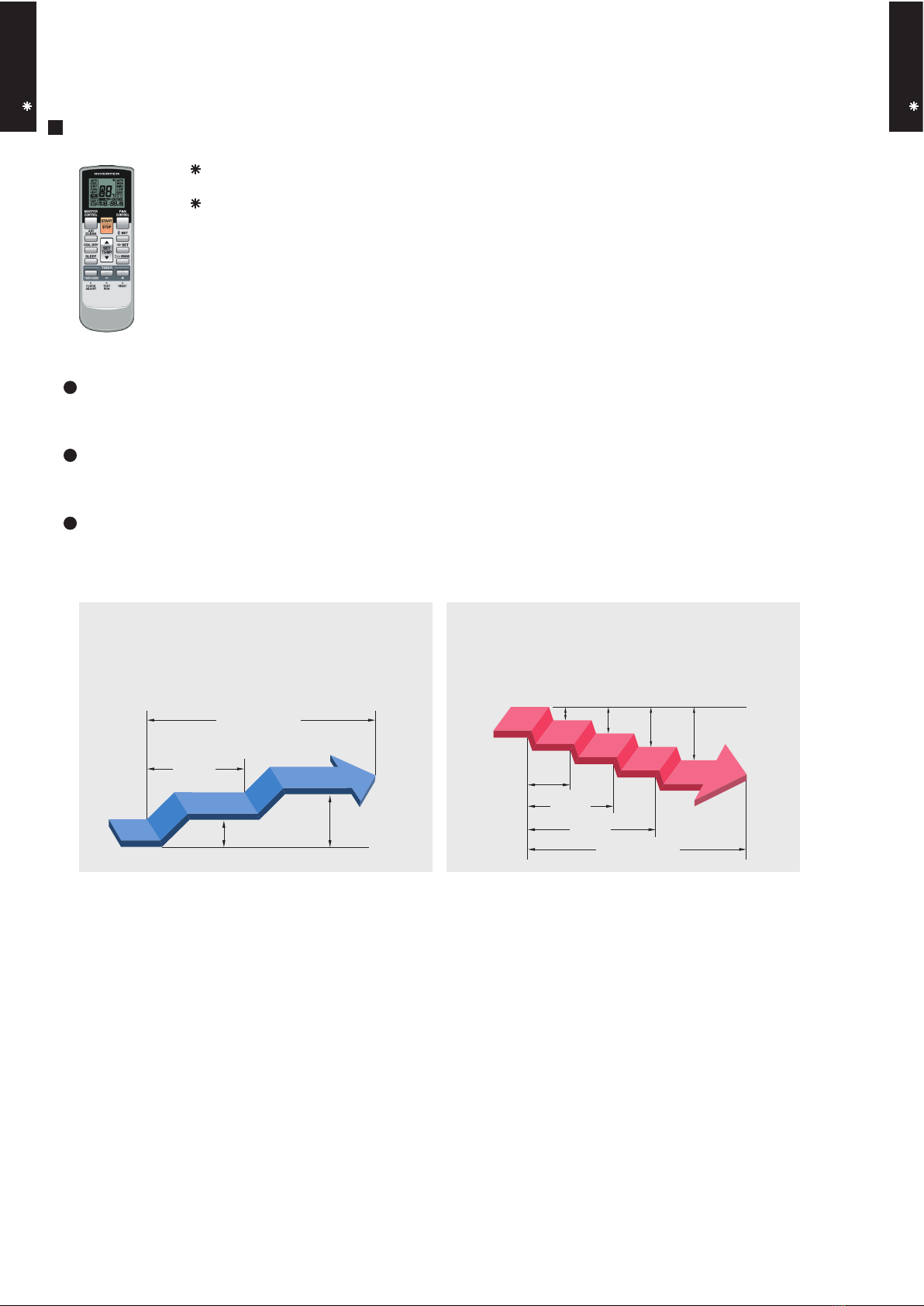

Four kinds of timer setup (ON / OFF / PROGRAM / SLEEP) are possible.

Four kinds of timers. Easy operation.

Select from four different timer programs (On/Off/Program/Sleep).

Built-in timers

The program timer operates the ON and OFF timer once within a 24 hour period.

Program timer

The sleep timer function automatically corrects the temperature thermostat setting according to the

time setting to prevent excessive cooling and heating while sleeping.

Sleep timer

2-1. WIRELESS REMOTE CONTROLLER

REMOTE CONTROLLER

Cooling operation/dry operation

60min.

1 °C 2 °C

When the sleep timer is set, the set temperature

automatically rises 1 °C every hour. The set

temperature can rise up to a maximum of 2 °C.

Heating operation

When the sleep timer is set, the set temperature

automatically drops 1 °C every 30 minutes. The

set temperature can drop to a maximum of 4 °C.

1 °C

30min.

60min.

90min.

2 °C 3 °C 4 °C

Timer setting

- (01 - 04) -

WALL MOUNTED TYPE

AS B24LD

WALL MOUNTED TYPE

AS B24LD

Display panel

FUNCTIONS

SPECIFICATION

SIZE (H x W x D mm) 176 x 56 x 18

WEIGHT ( g ) 110

ACCESSORY Holder

TIMER SET ( / ) button

SET button (Horizontal)

TEST RUN button

This button is used when installing the

conditioner, and should not be used un-

der normal conditions, as it will cause the

air conditioner’s thermostat function to op-

erate incorrectly.

If this button is pressed during normal op-

eration, the unit will switch to test opera-

tion mode, and the Indoor Unit’s OPERA-

TION Indicator Lamp and TIMER Indicator

Lamp will begin to flash simultaneously.

To stop the test operation mode, press the

START/STOP button to stop the air condi-

tioner.

CLOCK ADJUST button

Remote Control Unit Display

Transmit Indicator

Clock Display

Operating Mode Display

Timer Mode Display

Fan Speed Display

Temperature SET Display

SLEEP button

MASTER CONTROL button

/ )

SET TEMP. button (

COIL DRY button

Signal Transmitter

TIMER MODE button

FAN CONTROL button

START/STOP button

SET button (Vertical)

SWING button

RESET button

AIR CLEAN Display

SLEEP Display

SWING Display

COIL DRY Display

AIR CLEAN button

20 22

- (01 - 05) -

WALL MOUNTED TYPE

AS B24LD

WALL MOUNTED TYPE

AS B24LD

3. SPECIFICATIONS

WALL MOUNTED

INVERTER HEAT PUMP

AS B24LDC

230V 50Hz

198 - 264V 50Hz

Cooling A

Heating A

kW 7.10

BTU/h 24,200

kW 0.9 - 8.0

BTU/h 3,100 - 27,300

kW 8.10

BTU/h 27,600

kW 0.9 - 10.6

BTU/h 3,100 - 36,200

2.21

0.11 - 2.62

2.24

0.11 - 3.68

9.7

9.8

17.5

3.21

3.62

kW 5.54

l/h (pints/h) 3.0 (5.3)

High 1170

Med 970

Low 785

Quiet 685

High 1170

Med 970

Low 785

Quiet 685

Cross flow fan × 1

W 42

High 49

Med 43

Low 38

Quiet 33

High 48

Med 42

Low 37

Quiet 33

Dimensions (H × W × D)

Main : 378 × 832 × 26.6

Sub : 84 × 832 × 13.3

Main : 1.2, Sub : 1.4

Main : 2 × 18, Sub : 1 × 4

Copper

Aluminium

Polystyrene

White

320 × 998 × 228

319 × 1090 × 429

14 (30.8)

18 (39.6)

6.35 ( 1/4 in.)

15.88 ( 5/8 in.)

Flare

°C 18 to 32

%RH 80 or less

°C 30 or less

Wireless

PVC

mm Outer diameter : 28 / Inner diameter : 16

Note :

Specifications are based on the following conditions.

Cooling : Indoor temperature of 27°CDB/19°CWB. and outdoor temperature of 35°CDB/24°CWB.

Heating : Indoor temperature of 20°CDB/15°CWB. and outdoor temperature of 7°CDB/6°CWB.

Pipe length : 7.5 m, Height difference : 0 m. (Outdoor unit - Indoor unit)

Heating

Size

Liquid

Gas

Method

Cooling

Net

Gross

Net

Gross

Model name

EER

COP

Moisture removal

Cooling

Heating

Operation range

kg(lb.)

Connection pipe

Size

Dimensions

(H × W × D)

Remote controller type

Drain pipe

Material

Weight

Heat exchanger type

Enclosure

Fin pitch

Rows × Stages

Pipe type

Fin type

Material

Colour

kW/kW

Cooling

Heating

Cooling

Heating

Cooling

Fan

Airflow

rate

Current

Cooling

SENSIBLE CAPACITY

POWER FACTOR

Type × Q'ty

Motor output

Heating

Rated

Max

Rated

Max

Input power

Cooling

Heating

Rated

Min-Max

Power source

Available voltage range

Capacity

Cooling

Heating

European energy label

Type

Rated

Min-Max

Rated

Min-Max

Rated

Min-Max

Cooling

Heating

Sound pressure level

dB(A)

- (01 - 06) -

WALL MOUNTED TYPE

AS B24LD

WALL MOUNTED TYPE

AS B24LD

4. DIMENSIONS

MODEL : AS B24LD

(Unit : mm)

998 228

320

MOUNTING POSITION

5 cm or over

Wall hook bracket

6 cm or over

5 cm or over

150 cm or over

(Wall cap)

230 cm or over

- (01 - 07) -

WALL MOUNTED TYPE

AS B24LD

WALL MOUNTED TYPE

AS B24LD

5. WIRING DIAGRAMS

MODEL : AS B24LD

TO OUTDOOR UNIT

BLUE

YELLOW

WHITE

BLACK

RED

PINK

BLUE

YELLOW

ORANGE

RED

PINK

BLUE

YELLOW

ORANGE

RED

PINK

BLUE

YELLOW

ORANGE

RED

WHITE

RED

WHITE

BLACK

RED

WHITE

BLACK

WHITE

BLACK

RED

BLUE

RED

YELLOW

WHITE

YELLOW

GREEN

RED

BLUE

CN19

AIR CLEAN UNIT

SWITCH

TM2

TM1

TM4

CN11 CN6 CN1

CN2 CN5

CN201

CN8

CN14

CN3

CN10

THERMAL

FUSE 102

1 2 3

TERMINAL

MSTEP MOTOR

( UP / DOWN )

STEP MOTOR

( DIFFUSER )

FAN MOTOR

F M

TEST

PIPE TEMP.

THERMISTOR

ROOM TEMP.

THERMISTOR

INDICATO

PCB ASSY

REMOTE CONTROL

UNIT (OPTION)

BLACK

WHITE

RED

STEP MOTOR

( RIGHT / LEFT )

CN16

CN13

EX.OUT

(OPTION)

EX.IN

(OPTION)

CONTROOL BOARD

- (01 - 08) -

WALL MOUNTED TYPE

AS B24LD

WALL MOUNTED TYPE

AS B24LD

6. CAPACITY TABLE

6-1. COOLING CAPACITY

MODEL : AS B24LD

°CDB

°CWB

TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI

5.26 4.97 1.05 5.86 5.00 1.07 6.06 5.43 1.07 6.46 5.45 1.09 6.66 5.88 1.09 7.05 5.86 1.10 7.45 6.24 1.11

6.26 5.61 1.75 6.98 5.64 1.78 7.22 6.13 1.79 7.69 6.15 1.80 7.93 6.65 1.81 8.41 6.62 1.83 8.88 7.05 1.85

6.00 5.21 1.94 6.68 5.24 1.97 6.91 5.70 1.98 7.36 5.71 2.00 7.59 6.17 2.01 8.05 6.15 2.03 8.50 6.55 2.05

5.61 4.67 2.13 6.25 4.70 2.17 6.46 5.11 2.18 6.89 5.13 2.20 7.10 5.54 2.21 7.53 5.51 2.23 7.95 5.87 2.25

5.06 4.08 2.15 5.64 4.10 2.18 5.83 4.46 2.19 6.22 4.47 2.21 6.41 4.83 2.22 6.79 4.81 2.25 7.18 5.13 2.27

4.73 3.72 2.16 5.27 3.74 2.20 5.45 4.07 2.21 5.81 4.08 2.23 5.99 4.41 2.24 6.35 4.39 2.27 6.71 4.67 2.29

AFR : Air Flow Rate (m

/min)

TC : Total Capacity (kW)

SHC : Sensible Heat Capacity (kW)

PI : Power Input (kW)

AFR

18.3

Indoor temperature

Outdoor temperature

°CDB

- (01 - 09) -

WALL MOUNTED TYPE

AS B24LD

WALL MOUNTED TYPE

AS B24LD

6-2. HEATING CAPACITY

MODEL : AS B24LD

TC PI TC PI TC PI TC PI TC PI

5.93 2.69 5.78 2.74 5.64 2.80 5.50 2.85 5.36 2.91

7.04 2.94 6.87 3.00 6.70 3.06 6.53 3.12 6.37 3.18

7.92 3.09 7.73 3.15 7.54 3.22 7.36 3.28 7.17 3.34

9.15 3.30 8.94 3.37 8.72 3.43 8.50 3.50 8.28 3.57

10.41 3.52 10.16 3.59 9.91 3.67 9.67 3.74 9.42 3.81

11.13 3.42 10.87 3.49 10.60 3.56 10.34 3.63 10.07 3.70

11.53 3.42 11.25 3.49 10.98 3.56 10.71 3.64 10.43 3.71

11.16 2.97 10.90 3.04 10.63 3.10 10.37 3.16 10.10 3.22

AFR: Air Flow Rate (m3/min)

TC : Total Capacity (kW)

PI : Power Input (kW)

AFR

°CDB

18.3

-16

-11

-7

Outdoor temperature

-2

°CDB

°CWB

-15

-10

Indoor temperature

-5

Table des matières

Autres manuels Fujitsu Climatiseur

Fujitsu

Fujitsu ASYG30LMTA Manuel de service

Fujitsu

Fujitsu Inverter Halcyon ASU24RLQ Manuel utilisateur

Fujitsu

Fujitsu Halcyon ASU18T Manuel utilisateur

Fujitsu

Fujitsu ASYA07LGC Manuel utilisateur

Fujitsu

Fujitsu 9363005011 Manuel utilisateur

Fujitsu

Fujitsu ASG18UI-KM Manuel utilisateur

Fujitsu

Fujitsu AOYG24LFC Manuel utilisateur

Fujitsu

Fujitsu ASUH30LPAS Manuel utilisateur

Fujitsu

Fujitsu ARHG24LMLA Manuel de service

Fujitsu

Fujitsu ASYG07KMCF Manuel utilisateur

Fujitsu

Fujitsu AUYG18LVLB Manuel de service

Fujitsu

Fujitsu AKT7F Manuel utilisateur

Fujitsu

Fujitsu ARC72LHTA Manuel de service

Fujitsu

Fujitsu ASU7RLF1 Mode d'emploi

Fujitsu

Fujitsu AU*G12LVLB Manuel d'utilisation original

Fujitsu

Fujitsu ARTG65LHTA Manuel utilisateur

Fujitsu

Fujitsu AOU42RGLX Manuel de service

Fujitsu

Fujitsu AirStage ARXA030GLEH Manuel utilisateur

Fujitsu

Fujitsu AirStage ARXC072GTEH Manuel utilisateur

Fujitsu

Fujitsu Inverter Halcyon ASU24CL1 Manuel utilisateur

Fujitsu

Fujitsu ASTG34KMTA Manuel utilisateur

Fujitsu

Fujitsu AUXG24KVLA Manuel utilisateur

Fujitsu

Fujitsu ASUH30LPAS Manuel de service

Fujitsu

Fujitsu GENERAL ABHG36KRTA Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur
