Fujitsu ABYA36LCT Manuel utilisateur

SPLIT TYPE

AIR CONDITIONER

CEILING TYPE (50Hz)

Indoor unit Outdoor unit

ABYA36LCT

ABYA45LCT

ABYA54LCT

AOYD36LATT

AOYD45LATT

AOYD54LATT

CONTENTS

SPECIFICATIONS

. . . . . . . . . . . . . . . . . . . .

DIMENSIONS

. . . . . . . . . . . . . . . . . . . . . . .

REFRIGERANT SYSTEM DIAGRAM

. . . . .

CIRCUIT DIAGRAM

. . . . . . . . . . . . . . . . . . .

ERROR DETECTION

. . . . . . . . . . . . . . . . .

6INDOOR PCB CIRCUIT DIAGRAM

. . . . . .

. . . .

10OUTDOOR PCB CIRCUIT DIAGRAM

PARTS (INDOOR UNIT)

. . . . . . . . . . . . . .

PARTS (OUTDOOR UNIT)

. . . . . . . . . . . .

ACCESSORIES

. . . . . . . . . . . . . . . . . . . . .

www.enindel.com

H x W x DOUTDOOR UNIT

DIMENSIONS

Gross / Net

OUTDOOR UNIT

WEIGHT

POWER SOURCE

Cooling

RUNNING

CURRENT Heating

INPUT WATTS Cooling

Heating

E.E.R. Cooling

Heating

Cooling

Heating

STARTING CURRENT

MOISTURE REMOVAL

AIRCIRCULATION

OUTDOOR

FAN MOTOR

Discrimination

High speed

INDOOR

UNIT Middle speed

Low speed

Upper fan

Lower fan

Discrimination

OUTDOOR

UNIT

(cool / heat)

TYPE Cooling & Heating

INDOOR UNIT ABYA36LCT ABYA45LCT

OUTDOOR UNIT AOYD36LATT AOYD45LATT

ABYA54LCT

AOYD54LATT

COOLING CAPACITY

HEATING CAPACITY

INDOOR UNIT H x W x D 240 x 1,660 x 700 mm

1,290 x 900 x 330 mm

INDOOR UNIT Gross / Net 58 kg / 46 kg 60 kg / 48 kg

117 kg / 107 kg

4.3 A

4.4 A

2.84 kW

2.87 kW

3.52 kW/kW

3.90 kW/kW

5.8 A 6.9 A

3.89 kW 4.65 kW

3.88 kW 4.67 kW

3.21 kW/kW 3.01 kW/kW

3.61 kW/kW 3.43 kW/kW

10.0 A 10.0 A

4.5 L/hr 5.0 L/hr

6,200 m3/h 6,900 m3/h

10.0 A

MAXIMUM CURRENT 8.9 A 9.9 A7.9 A

3.0 L/hr

6,200 m3/h

AIRCIRCULATION INDOOR 2,100 m3/h 2,300 m3/h1,900 m3/h

6,200 m3/h 6,900 m3/h 6,900 m3/h

400 V 50 Hz 3 4 W

1,100 r.p.m.

910 r.p.m.

750 r.p.m.

MFH-45RV

1,200 r.p.m.

1,360/1,340 r.p.m.

1,000 r.p.m. 1,150 r.p.m.

830 r.p.m. 950 r.p.m.

Quiet 650 r.p.m. 680 r.p.m. 790 r.p.m.

MFE-54TV

800 / 750 r.p.m. 800 / 850 r.p.m.

780 r.p.m. 900 / 780 r.p.m. 900 / 850 r.p.m.

10.0 kW 12.5 kW 14.0 kW

11.2 kW 14.0 kW 16.0 kW

ELECTRICAL DATA

TYPE

DISCRIMINATION

WEIGHT (with oil)

REFRIGERANT TYPE R410A

Hermetic type, Inverter,

4 poles, 3 phase,

DC motor, Twin Rotary

808 677 80

25.6 kg

PRECHARGED REFRIGERANT

3,450 g

COMPRESSOR AND REFRIGERANT

2008.11.25 1

SPECIFICATIONS

MAX PIPE LENGTH 75 m

MAX PIPE HEIGHT 30 m

Pipe length 30 m 3,450 g

FULL CHARGE

45 m 4,200 g

60 m 4,950 g

75 m 5,700 g

ADDITIONAL CHARGE 50 g/m

NOISE LEVEL

High speed 47 dB

INDOOR

UNIT

Middle speed 43 dB

Low speed

Cooling

Heating

37 dB

49 dB 51 dB

45 dB 48 dB

39 dB 42 dB

Quiet 32 dB 34 dB 38 dB

OUTDOOR

UNIT

51 dB 54 dB 55 dB

53 dB 54 dB 56 dB

www.enindel.com

DIMENSIONS

1,660 240

700

1,600

130 300

(Unit : mm)

INDOOR UNIT

2008.11.25 2

www.enindel.com

2008.11.25 3

31 12330900

1290

OUTDOOR UNIT

(unit : mm)

650

400

370

air flow

www.enindel.com

REFRIGERANT

SYSTEM DIAGRAM

2008.10.27

Thermistor (Compressor)

Compressor

4-Way Valve

Pressure

Check Valve

Pressure

Sensor

Muffler

Strainer Strainer

Expansion

Valve

Strainer 3-Way Valve

3-Way Valve

Accumulator

Refrigerant Pipe

9.52mm (3/8")

Refrigerant Pipe

15.88mm (5/8")

Thermistor (Discharge) Thermistor (Room)

Heat

Exchanger

Heat

Exchanger

Thermistor (Pipe)

Thermistor (Heat Exchanger Med)

Thermistor (Heat Exchanger Out)

Thermistor (Outdoor)

Cool

Refrigerant direction

Heat

OUTDOOR UNIT INDOOR UNIT

www.enindel.com

TERMINAL

CN22

ORANGE

YELLOW

GREEN

RED

BROWN

GREEN

BLUE

YELLOW

ORANGE

RED

BROWN

BLACK

WHITE

RED

BLACK

WHITE

RED

BLACK

BLUE

WHITE

BLACK

BROWN

BLUE

WHITE

RED

BLUE

RED

ORANGE

YELLOW

WHITE

YELLOW

WHITE

RED

PURPLE

ORANGE

YELLOW

BLUE

BLACK

WHITE

RED

BLACK

WHITE GREEN

BLACK

WHITE

RED

WHITE

RED

CN23

CN7

CN24 CN25 CN26

W6 CN20 CN21 CN104

CN27

CN16

CN9

CN102 CN103 CN17 CN81 CN82 CN18 CN19

CN101

W1 W3 W4

CN630

W300 W301 W302

TM505

TM504 TM502

TM302

TM501

TM301

TM300

TM500

CN200

W206

TM202

TM201

TM200

TM203 TM204 TM205

W700

W702

W703

W701

CN801

CN803

TM801

TM802

TM803

W800

TM804

TM805

TM806

CN802

1 2 3 4 5 6 7 8 9

1 2 34 5 6 7 8 9

1 2 34 5 6 7 8

1 2 34 5 6

1 2 3

1 2 34 5 6

1 2 3

1 2

1 2 12

123123

1 2 3 4 5

123 4 5

EARTH

1 2 3 L1 L2 L3 N

COMPRESSOR

THERMISTOR

( HEATSINK INV. TEMP. )

CAPACITOR

PCB ASSY

REACTOR

x 3

EV FM FM

4WV

THERMISTOR

( HEAT EXCHANGER MID. )

THERMISTOR

( HEATSINK P.F.C. TEMP. )

THERMISTOR

( DISCHARGE TEMP. )

THERMISTOR

( HEAT EXCHANGER OUT. )

THERMISTOR

( OUTDOOR TEMP. )

THERMISTOR

( COMPRESSOR TEMP. )

PRESSURE SENSOR

REACTOR ( FAN )

SOLENOID VALVE COIL

EXPANSION VALVE COIL

FAN MOTOR 1

( UPPER )

FAN MOTOR 2

( LOWER )

OPTION ( CONNECTOR )

5A - 250V

FUSE

3.15A - 250V

FUSE

10A - 250V

FUSE

CONTROLLER PCB ASSY ( MAIN PCB )

INVERTER PCB ASSY

P. F. C. PCB ASSY

POWER SUPPLY PCB ASSY

TERMINAL

POWER SOURCE

2008.11.25 5

INDOOR UNIT

OUTDOOR UNIT

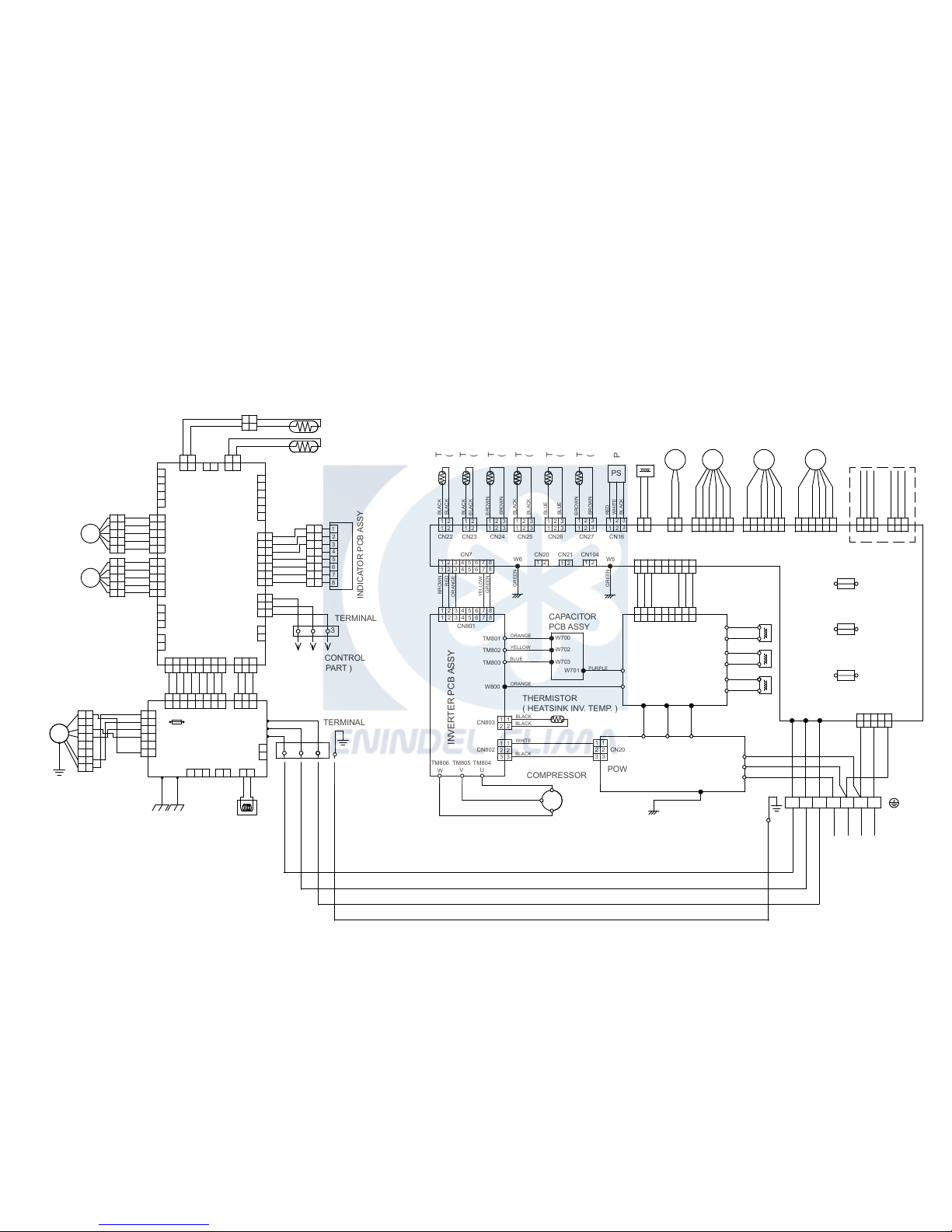

CIRCUIT DIAGRAM

ORANGE

RED

BROWN

WHITE

BLUE

PURPLE

GRAY

RED

WHITE

BLACK

RED

WHITE

BLACK

YELLOW

WHITE

BLACK

RED

BROWN

GREEN

GREEN /

YELLOW

GRAY

WHITE

YELLOW

ORANGE

RED

BROWN

WHITE

YELLOW

ORANGE

RED

BROWN

BLACK

GRAY

123 4 5678

1212 1 2

123 4 5678

12 3 4 5 6 7 8

123

12 3

123

12 3

123 4 567 8

12 3 1212

12 1 2

CN5 CN7 CN8

CN4 CN1

CN104 CN101

W105

W102

W101

CN102 CN103 CN108

CN106

CN105

E101 E102

CN6 CN14 CN13

CN10 CN9 CN11 CN12

CN3

F101

FUSE

3.15A 250V

F M

FAN MOTOR

STEP

MOTOR

STEP

MOTOR

ROOM THERMISTOR

PIPE THERMISTOR

INDICATOR PCB ASSY

TERMINAL

COIL

1 2 3

123

TO REMOTE CONTROL

( OPTION PART )

POWER

SUPPLY

PCB ASSY

CONTROLLER

PCB ASSY

( MAIN PCB )

WHITE

CN2

www.enindel.com

BLACK

GRAY

BLACK

GRAY

ORANGE

BROWN

RED

YELLOW

WHITE

BLUE

PURPLE

GRAY

BROWN

RED

ORANGE

YELLOW

WHITE

BROWN

RED

ORANGE

YELLOW

WHITE

UL1015 AWG20 WHITE

UL1015 AWG22 BROWN

UL1015 AWG22 YELLOW

UL1015 AWG22 WHITE

UL1015 AWG22 BLACK

UL1015 AWG22 RED

UL1430 AWG26 GRAY

UL1430 AWG28 WHITE

UL1430 AWG28 BLUE

UL1430 AWG28 PURPLE

UL1430 AWG28 GRAY

UL1430 AWG28 ORANGE

UL1430 AWG28 RED

UL1430 AWG28 BROWN

UL1430 AWG28 RED

UL1430 AWG28 ORANGE

UL1430 AWG28 YELLOW

UL1430 AWG28 WHITE

UL1430 AWG28 BROWN

UL1430 AWG28 RED

UL1430 AWG28 ORANGE

UL1430 AWG28 YELLOW

UL1430 AWG28 WHITE

UL1430 AWG22 BLACK

UL1430 AWG22 RED

UL1430 AWG22 WHITE

UL1015 AWG16

GREEN

UL1015 AWG16

GREEN

UL1015 AWG20 BLACK

UL1015 AWG20 WHITE

UL1015 AWG20 RED

W101 W102 W105

E101

E102

TERMINAL BOARD

DC FAN MOTOR

DRAIN PUMP

E I B OUT

E I B I N

NORMAL COIL

( REACTOR ASSY )

RLEY41-22

22mH - 2.2A

POWER DRIVE

DC SUPPLY

FRESH AIR

THERMISTOR ( ROOM TEMP. )

THERMISTOR ( PIPE - M I D. TEMP. )

CN201

JC25-08HG

WHITE

TERMINAL BOARD

LOUVER

U - V

LOUVER

L - R

1 2 3

REMOTE CONTROL UNIT

( OPTION PARTS )

EARTH WIRE

FLOAT SWITCH

CN8

B02B-XASK-1-A

WHITE

CN7

B02B-XAYK-1-A

YELLOW

CN5

B02B-XAKK-1-A

BLACK

CN8-1

CN8-2

CN7-1

CN7-2

CN5-1

CN5-2

CN13

B07B-PASK-1

WHITE

CN13-1

CN13-2

CN13-3

CN13-4

CN13-5

CN13-6

CN13-7

CN14

B03B-XAKK-1-A

BLACK

CN14-1

CN14-2

CN14-3

CN6

B02B-PAMK-1

GREEN

CN6-1

CN6-2

CN10

B02B-PAOK-1

ORANGE

CN10-1

CN10-2

CN11

B05B-XASK-1-A

WHITE

CN12

B05B-XARK-1-A

RED

CN9

B03B-XARK-1-A

RED

CN11-1

CN11-2

CN11-3

CN11-4

CN11-5

CN12-1

CN12-2

CN12-3

CN12-4

CN12-5

CN9-1

CN9-2

CN9-3

CN1-1

CN1-2

CN1-3

CN1

B03B-PASK-1

WHITE

CN4

B08B-PASK-1

WHITE

CN4-1

CN4-2

CN4-3

CN4-4

CN4-5

CN4-6

CN4-7

CN4-8

CN3

B06B-PASK-1

WHITE

CN3-1

CN3-2

CN3-3

CN3-4

CN3-5

CN3-6

CN2

B5P-SHF-1AA

WHITE

CN2-1

CN2-2

CN2-3

CN2-4

CN2-5

CN104

B08B-PASK-1

WHITE

CN104-1

CN104-2

CN104-3

CN104-4

CN104-5

CN104-6

CN104-7

CN104-8

CN101

B03B-PASK-1

WHITE

CN101-1

CN101-2

CN101-3

CN105

B5P6-VH-B

WHITE

CN105-6

CN105-5

CN105-4

CN105-3

CN105-2

CN105-1

CN106

B2P3-VH-B-E

BLUE

CN106-1

CN106-2

CN103

B2B-XH-AM

WHITE

CN103-1

CN103-2

CN102

B3B-XH-AM

WHITE

CN102-1

CN102-2

CN102-3

CN108

B2P3-VH-B

WHITE

CN108-1

CN108-2

F M

2(N)

OUTDOOR UNIT

EMI FILTER

ZCAT1518-0730

2 TURN

EMI FILTER

ATFC-25-15-12

2 TURN

TEST

INDICATOR PCB ASSEMBLY

K04GN-0700HSE-D0

CN201-1

CN201-2

CN201-3

CN201-4

CN201-5

CN201-6

CN201-7

CN201-8

POWER SUPPLY PCB ASSEMBLY

K06AL-0805HSE-P0

CONTROLLER PCB ASSEMBLY

( MAIN PCB )

ABYA36LCT : K06AK-0805HSE-C1

ABYA45LCT : K06AK-0804HSE-C1

ABYA54LCT : K06AK-0803HSE-C1

INVERTER UNIT

ABYA36LCT : EZ-0080DHSE

ABYA45LCT : EZ-0080CHSE

ABYA54LCT : EZ-0080BHSE

INDOOR PCB CIRCUIT DIAGRAM

2008.11.10 6

EMI FILTER

ZCAT1518-0730

2 TURN

www.enindel.com

I C1

uPD78F0536

42 52

AVDD

AVREF

VDD0

VDD1

I C

RST

P00 P34

P01 P35

P02

P03

P10

P11

P12

P13

P14

P15

P16

P17

P20

P21

P22

P23

P24

P25

P30

P31

P32

P33

XT1

XT2

P36

P40

P41

P42

P43

P44

P45

P46

P47

P50

P51

P52

P53

P54

P55

P56

P57

P64

P65

P66

P67

P70

P71

P72

P73

P74

P75

AGND

GND0

GND1

JM6

0R0

JM5

0R0

R56

100K

<1/10W>

C27

0.1

<F>

C38

0.1 <F>

I C7

S80842

VDD

OUT GND

NC 5V

R41 1.0K

<1/10W>

R43

10K

<1/10W>

R44

10K

<1/10W>

C26

0.01

<F>

C25

10/

50V

R52

10K

<1/10W> INDICATOR

CN13

B07B-PASK-1

R49 - R51

10K <1/10W> x 3

THERMISTOR ( PIPE-MID. TEMP. )

CN5

B02B-XAKK-1-A

THERMISTOR ( PIPE-ENT. TEMP. )

CN7

B02B-XAYK-1-A

THERMISTOR ( ROOM TEMP. )

CN8

B02B-XASK-1-A

R59

10K

<1/10W>

R60

49.9K

<1/10W>

R61

49.9K

<1/10W>

C29

0.1

<F>

C30

0.1

<F>

C34

0.1

<F>

R57

1.0K

<1/10W>

R58

1.0K

<1/10W>

R62

1.0K

<1/10W>

FLOAT SWITCH

CN9

B03B-XARK-1-A

R46

1.0K

<1/10W>

C31

0.01

<F>

R45

10K

<1/10W>

C8 - C10

0.1 <F> x 3

R4 - R6

1.0K <1/10W> x 3

R1 - R3

10K <1/10W> x 3

JM1

JM2

JM3

C28

0.1

<F>

C33

0.1

<F>

C32

100/

6.3V

CUSTOM CODE

HEATING FAN DELAY

12V

+C2

10/

50V

0.01

<F>

1SS355

I C8

NJM7812

1SS355

I C2

NJM7805

13.5V

5V C1

10/

50V

1 3

R19

R20

R22

R21

1.0K <1/10W> x 4

R15 - R18

10K <1/10W> x 4

C4 - C7

0.01 <F> x 4

DTC124EKA

R70

10K

<1/10W>

C37

0.1

<F>

1000P <R> x 3

C35 C12 C11

R67 1.0K

<1/10W>

1.0K <1/10W> X 3R63

R64

R65

10K <1/10W> x 3

R66

R32

R23

R24

13.5V

R26

10K

<1/10W> R25

1.0K

<1/10W>

C14

1000P

<R>

C16

0.01

<F>

R29

390

<1/10W>

R28

10K

<1/10W>

DTC124EKA

C15

0.01

<F>

C17

0.01

<F>

C18

0.01

<B>

R27

330

<1/10W>

R31

10K

<1/10W>

R34

1.0K

<1/10W>

R30

10K

<1/10W>

R33

10K

<1/10W>

DTC124EKA

BZ1

PKM13EPYH-4000-A0

R36

0R0

R35

1.0K

<1/10W>

13.5V

R47

390

<1/10W>

B Z

GND

I C4

uLN2003ADR

13.5V

C36

0.47

<F>

5.00MHz

<FCR5.0MC5T>

13.5V I C3

uLN2003ADR

SW1

CFS-0402MC

R11 - R14

10K <1/10W> x 4

R7 - R10

1.0K <1/10W> x 4

C19 - C22

0.1 <F> x 4

C13

0.1

<F>

R37

10K

<1/10W>

R40

10K

<1/10W>

I C5

BR93L56RF-WE2

D I

VCC

GND

I 1

I 2

I 3

I 4

I 5

I 6

I 7

R55

10K

<1/10W>

12V

D1FS4A

12V

R48

10K

<1/10W>

R53

28K

<1/10W>

R54

15.4K

<1/10W>

I C6-1

BA10393F-E2

I C6-2

BA10393F-E2

DAN217U

1 2

C23

0.01

<F> C24

1000P

<R>

R42

<1/10W>

CN14

B03B-XAKK-1-A

REMOTE CONTROL UNIT

CN11

B05B-XASK-1-A

LOUVER ( UP / DOWN )

CN12

B05B-XARK-1-A

LOUVER ( RHIGT / LEFT )

CN10

B02B-PAOK-1

HEATER

CN6

B02B-PAMK-1

FRESH AIR

CN4

B08B-PASK-1

POWER DRIVE

CN3

B06B-PASK-1

SP PCB

CN2

B5P-SHF-1AA

TEST

CN1

B03B-PASK-1

DC SUPLLY

2008.11.25 7

INDOOR UNIT

CONTROLLER PCB ASSEMBLY

ABYA36LCT : K06AK-0805HSE-C1

ABYA45LCT : K06AK-0804HSE-C1

ABYA54LCT : K06AK-0803HSE-C1

www.enindel.com

13.5V

F101

BET 3.15A - 250V

FH101

FH102

VA101

470V

<TNR>

W101

BLACK

W102

WHITE

VA102

470V

<TNR>

SA101

RA-362M

E101

GREEN

I C26-10

I C26-14

5V 15V

I C104

TLP621

<GB>

R116

1.0K

<1/4W>

CN104

B08B-PASK-1

POWER DRIVE

SERIAL I N

SERIAL I NT

SERIAL ON

DRAIN PUMP

DC FAN-OUT

DC FAN-FEEDBACK

EX. SIGNAL-OUT

EX. SIGNAL-I N

3 2

I C103

TLP621

<GB>

C117

100/

25V

R117

820

<1/4W>

R114

4.7K

<1/10W>

R115

6.8K

<1/4W>

15V

340V

15V

CN105

B5P6-VH-B

DC FAN MOTOR

VA103

0.01

<F>

W105

RED

SERIAL

I C 1 0 5

H I 2 0 0 2 R 2

5 4 3 2 1

101418

15V

340V

C108

4700P

<FNS>

R104

330K

<2W> D102

1SR139-600

R103

62K

<RS-2W>

D108

D2FL20U

T101

ZFT22B03

R111

10K

<1/10W>

C113

1000/

25V

C114

0.01

<KH>

C115

0.01

<KH>

K102

G5NB-1A 13.5V

RC101

120/

0.2

CN106

B2P3-VH-B-E

DRAIN PUMP

IC26-10

IC26-14

C116

0.01

<B>

R112

330

<1/10W>

L102

BLm18

<A601>

I C101

TLP621

<GB>

L103

BLm18

<A601>

K101

G5NB-1A

13.5V

R113

330

<1/10W>

CN103

B2B-XH-AM

E I B OUT

E I B I N

CN102

B3B-XH-AM

IC26-14 IC26-10

8765 4 3 2 1

13.5V

C120

0.1

<F>

C121

0.1

<F>

DC SUPPLY

CN101

B03B-PASK-1

C101

0.22

<LE>

LF101

ELF20N018A

D101

D3SB60

C118

0.01

<KH>

E102

GREEN

C107

270/

450V

C109

220P/

2.0kV

<ECKE>

R105

<RS-2W>

R106

1.5

<RS-2W>

Q102

2SC1815

Q101

2SC5354

R107

100

<1/10W>

D107

RD16M

<B1>

C112

330/

25V

R110

10K

<1/10W>

D106

D1FL20U

C110 0.047 <ECQB>

D103

D1FL20U

D104

MTZJ5.1B

R109

330

<1/4W>

C111

100/

25V

D105

D1FL20U

R108

100

<1/2W>

C104

0.22

<LE>

C105

0.01

<YE>

C106

0.01

<YE>

PFC5000-0702F

x 2

2008.11.10 8

INDOOR UNIT

POWER SUPPLY PCB ASSEMBLY

K06AL-0805HSE-P0

C119

0.01

<KH>

CN108

B2P3-VH-B

NORMAL COIL

www.enindel.com

PHA201

P I C-37143TH5

JM201

C201

0.1

<F>

C202

10/

16V

SW201

EVQPAG04K

CN201

08 / 08 JC / XMR

1430 L=300

R201 - R203

330 <1/4W> x 3

D207 EBR3864X <RED>

D205 EMPG3863X <GREEN>

D206 EMAA3863X <ORANGE>

OPERATION

TIMER

LOUVER

REMOTE SIGNAL

GND

MANUAL AUTO SWITCH

BROWN

RED

ORANGE

YELLOW

WHITE

BLUE

PURPLE

GRAY

TO MAIN PCB

VCC

OUT

GND

MANUAL AUTO SWITCH

2008.11.10 9

INDOOR UNIT

INDICATOR PCB ASSEMBLY

K04GN-0700HSE-D0

www.enindel.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Fujitsu Climatiseur

Fujitsu

Fujitsu ABYG-LRTA Series Manuel utilisateur

Fujitsu

Fujitsu ASU12RLS3 Manuel utilisateur

Fujitsu

Fujitsu 30RLXEH Manuel utilisateur

Fujitsu

Fujitsu AUXB07GALH Manuel utilisateur

Fujitsu

Fujitsu ASTG30KMTC Manuel utilisateur

Fujitsu

Fujitsu AS G07LUCA Series Manuel d'utilisation original

Fujitsu

Fujitsu ASTA09LCC Manuel utilisateur

Fujitsu

Fujitsu ABY45LBAG Manuel utilisateur

Fujitsu

Fujitsu ARYG12LLTB Manuel utilisateur

Fujitsu

Fujitsu ASYG07KGTF Manuel utilisateur

Fujitsu

Fujitsu Inverter Halcyon ASU9RMLQ Manuel utilisateur

Fujitsu

Fujitsu AO G09KBTB Series Manuel d'utilisation original

Fujitsu

Fujitsu ABY14FBBJ Manuel utilisateur

Fujitsu

Fujitsu AUY18L Manuel utilisateur

Fujitsu

Fujitsu ASYG30KMTA Manuel utilisateur

Fujitsu

Fujitsu AU*F12LA Manuel utilisateur

Fujitsu

Fujitsu AOYR14LCL Manuel d'utilisation original

Fujitsu

Fujitsu AOU9RLF Manuel utilisateur

Fujitsu

Fujitsu ASYG09KMCB Manuel d'utilisation original

Fujitsu

Fujitsu Inverter ASTB24LDC Manuel utilisateur

Fujitsu

Fujitsu Inverter Halcyon ASU9RL Manuel utilisateur

Fujitsu

Fujitsu GENERAL ASH12RMACW Manuel utilisateur

Fujitsu

Fujitsu AUXG07-22KVLA Manuel de service

Fujitsu

Fujitsu ARYG30LHTBP Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur
