Issue August 2005

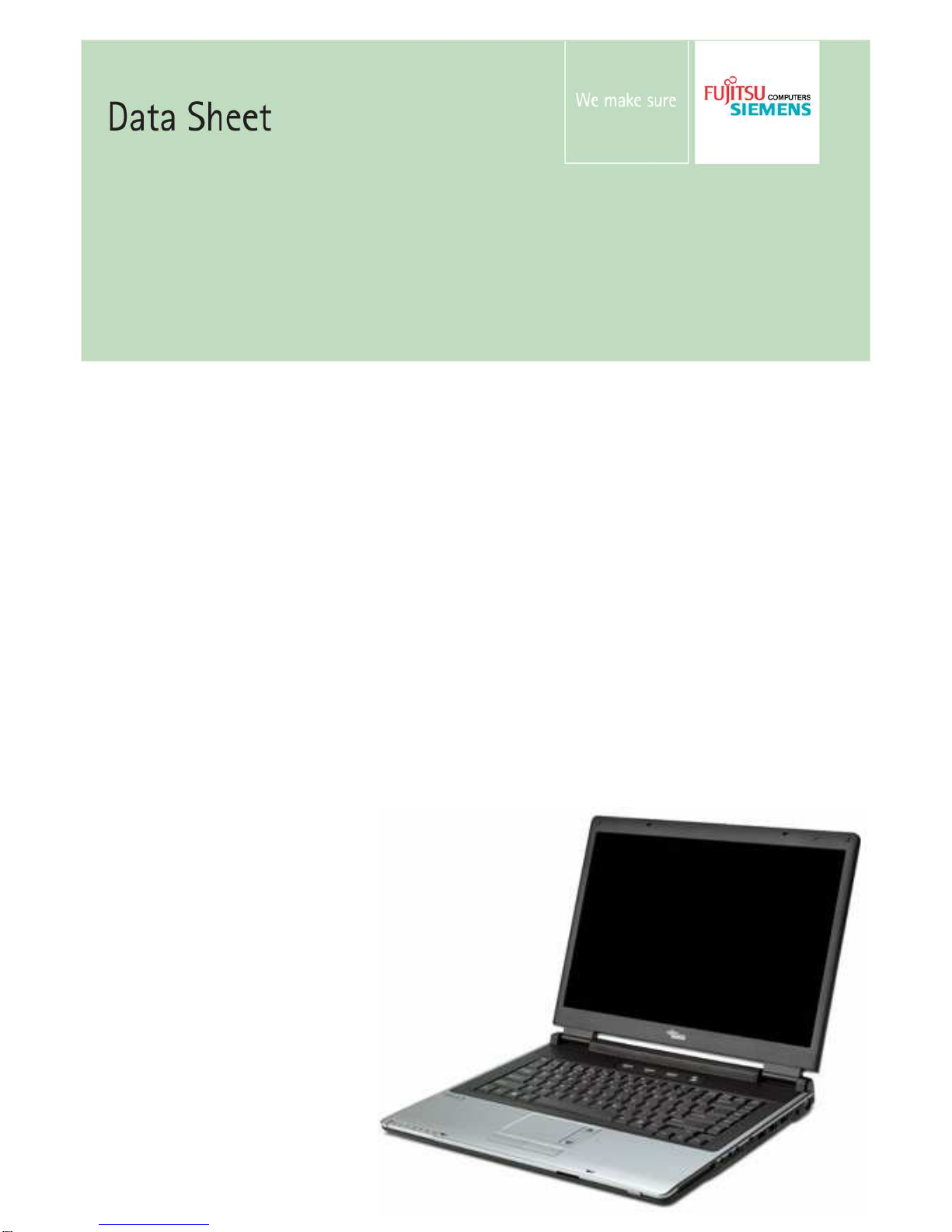

AMILO A1650G

Back to University Batch

With Mobile AMD Processor - Preliminary

Pages 3

The AMILO A1650G notebook offers all-round mobile computing with an excellent price/performance ratio. Strong

graphics and a Widescreen display, as well as an AMD Turion

64 Mobile Technology Processor are all combined into

an amazing visual experience. The preinstalled software enables you to start working, playing, surfing the Internet or

watching a film at once. Connect all sorts of devices to the notebook using one of the 3 USB 2.0 ports, IEEE 1394

Firewire, the 3-in-1 cardreader or the S-Video out. The integrated WLAN connects you to your network from any place

as long as you are in reach of an Access point without having to deal with any cables. The fan noise can be reduce to

only 25dB using a special “Silent Mode”.

Features

AMD mobile technology with Turion

64 Mobile

Technology ML30

Enjoy the viewing quality of the wide 15.4” WXGA LCD

display

Connect your notebook to external storage devices

and video equipment through the IEEE 1394 port

offering transfer rates of up to 400Mbits/sec

ATI Mobility Radeon Xpress 200 with up to 128 MB

shared memory supporting Pixel Shader V2.0

Reducing the fan noise to a minimum by using “Silent

Mode”,

Memory card slot for Multimedia Card, Secure Digital

Card and MemoryStick

512 MB DDR SDRAM in 2 SO-DIMM slots

Windows XP Home and Application Software

Data Sheet PreliminaryIssue: August 2005AMILO A1650G Page 2 / 3

All rights, including rights created by patent grant or registration of a utility model or design as well

as rights of technical modifications are reserved. Delivery subject to availability. Designations may

be trademarks, the use of which by third parties for their own purposes may violate the rights of the

trademark owners.

Published by

Fujitsu Siemens Computers

http://www.fujitsu-siemens.com/

Company stamp

Operating system

Windows XP Home, Recovery CD is included

Fujitsu Siemens Computers recommends Microsoft®

Windows® XP.

Application Software

a) Works 8.0 or

b) Works 8.0 with Office Trial Student & Teacher Edition

Magix Media Suite (optional)

Sipgate (optional)

Norton Internet Security 2005 or Norman Anti-Virus

DVD Playing & Burning Software

InterVideo WinDVD

Nero burning ROM 6

Driver & Utility CD including

Drivers, Online Manual, Adobe Acrobat Reader

Quick Touch application button utility

Internet Service Providers – country specific

Manual, Safety Guide and Warranty Guide

System, processors, architecture

Chipset: Northbridge: ATI RS480

Southbridge: ATI SB400

CPU: Mobile AMD Turion™ Mobile Technology

ML30 / 35W / 64 Bit / 1.6 GHz / 1024 KB

Memory

2x 256MB DDR 333 SDRAM, (DDR 333 MHz)

2 SO-DIMM memory slots (no memory on board)

Storage devices / drives

HDD: 60 or 80 GB IDE hard disk

ODD: Multi format DVD burner with double layer support

CD 24x / CD-R 24x / CD-RW 20x / DVD 8x / DVD+R 8x

DVD-R 8x / DVD+RW 8x / DVD-RW 6x

DVD+R DL 4x/ DVD-R DL 4x

Display:

Crystal View

15.4” TFT WXGA, 1280 x 800 pixel

Compliance with standards

ISO 13406-2 class II

ACPI functions

S1 LCD off

S3 stand by

S4 hibernate

S5 soft off

Graphics:

ATI MOBILITY Radeon Xpress 200

Up to 128MB RAM shared memory

I/O Interfaces

1x IEEE1394

4x USB 2.0 ports

1x S-Video

1x CRT, 1x modem

1x LAN

3 in 1 flash card port SD/MS/MMC

1x type II PC Card slot (32 bit CardBus support)

1x line in, 1x headphone out shared with SPDIF, 1x

microphone in,

1x power supply

Communications

- Built-in 56K, V.92 international modem

- 10/100 Mbps LAN

- integrated Wireless LAN (IEEE 802.11b/g) solution:

- Industry standard wireless LAN security

support

- Speeds up to 54 Mbps

For use in BE, CH, DK, DE, EE, FI, FR, EL, IE, IS, IT, LI,

LV, LT, LU, MT, NL, NO, PL, AT, PT, SE, SK, ES, CZ, HU,

UK, CY, NL

Audio

AC97 codec, 2 built-in speakers, built-in

microphone, microphone in, headphone out shared with

S/PDIF support

1x volume regulator (per function key and per wheel)

Launch Keys

3 Launch Keys located on top of the keyboard enabling the

user to launch the following applications:

WLAN

Internet browser

Fan control/silent mode

Hot Keys

The notebook uses hotkeys or key combinations for:

Fn-F1 help hotkey

Fn-F2 puts the computer in sleep mode

Fn-F3 display toggle, switches display output between

display screen and external monitor or to dual

view

Fn-F4 screen blank, turns the display screen backlight

off to save power

Fn-F5 speaker on/off

Fn-F6 volume down

Fn-F7 volume up

Fn-F8 screen brightness down

Fn-F9 screen brightness up

Fn-F10 WLAN on/off

Fn-PgUp home

Fn-PgDn end

Pointing device & control buttons

Touchpad with a left and right mouse button

Power button / lid switch

Status indicators

The notebook has 7 status icons:

Wireless communication, Caps lock, Num Lock, standby,

Media activity (ODD/HDD), power status, charge

Security

Supervisor password

Kensington lock support

Data Sheet PreliminaryIssue: August 2005AMILO A1650G Page 3 / 3

All rights, including rights created by patent grant or registration of a utility model or design as well

as rights of technical modifications are reserved. Delivery subject to availability. Designations may

be trademarks, the use of which by third parties for their own purposes may violate the rights of the

trademark owners.

Published by

Fujitsu Siemens Computers

http://www.fujitsu-siemens.com/

Company stamp

Power system

Li-Ion battery, 6 cells, 3.6V / 2200mAh

approximately 2:30 hrs battery runtime, depending on

usage

Dynamic charge supported, ACPI 2.0 supported

External universal AC adapter: 110 – 264 V AC, 47 – 63

Hz, output: 65 W/90W with 20 V

Dimensions and weight

359 mm (W) x 273 mm (D) x 34 (H)mm

3.20 kg

(with 15.4” WXGA, Li-Ion battery, HDD, DVD drive)

Operating conditions

Operational: 5°C to 35°C (ambient temperature)

20% to 85% relative humidity, non-condensing

AC input 110 - 264 V, 47 - 63 Hz

Warranty

Country specific terms

Options

AC adapter

USB Floppy Drive

Carrying cases

) Battery life may vary depending on product model, configuration, applications, power management settings and features utilized.

Recharge time varies depending on usage.

) Weight may vary depending on actual configuration
