FujiFilm XF56mmF1.2 R Fiche technique

DIGITAL CAMERA

XF56mmF1.2 R

SIMPLE MANUAL

-For Repair Centers without the Lens Repair Training-

WARNING

zTHE COMPONENTS IDENTIFIED WITH THE MARK “ ” IN THE SCHEMATIC DIAGRAM

AND THE PARTS LIST ARE CRITICAL FOR SAFETY.

zREPLACE THOSE COMPONENTS ONLY WITH THE COMPONENTS SPECIFIED IN THE

SCHEMATIC DIAGRAM AND THE PARTS LIST.

zIF YOU USE PARTS NOT SPECIFIED, IT CAN RESULT IN A FIRE AND AN ELECTRICAL

SHOCK.

Ref.No.: ZM01118-600

Released on 20 Feb 2014

Confidential: FUJIFILM Service Center Use Only

XF56mmF1.2 R Simple Manual

-For Repair Centers without the Lens Repair Training-

SAFETY CHECK-OUT

During repair and safety checking, conduct the followings.

1. Check if there are unsoldered or poorly

soldered connections. Check the entire

board surface for solder splasher and

bridges.

2. Check the inter-board wiring to ensure that

no wires are “pinched” or contact high-

wattage resistors.

3. Look for unauthorized replaced parts,

particularly transistors that were installed in

a previous repair. Point this out to a

customer and recommend replacing with

authorized parts.

4. Look for parts which, though functioning,

signs of deterioration. Point this out to a

customer and recommend replacing with

new parts.

5. Check the B + voltage to see if it is the

correct value.

6. Check leakage current see if exposed parts

are insulated from power supply before

returning a camera to a customer.

CAUTION:

FOR PROTECTION

AGAINST FIRE HAZARD,

REPLACE ONLY WITH

SAME TYPE 2.5 AMPERES

125V/250V FUSE.

ATTENTION:

AFIN D’ASSURER UNE

PROTECTION

PERMANENTE CONTRE

LES RISQUES D'INCENDIE,

REMPLACER

UNIQUEMENT PAR UN

FUSIBLE DE MEME, TYPE

2.5 AMPERES, 125/250

VOLTS.

WARNING:

TO AVOID THE ELECTRIC

SHOCK, BE CAREFUL TO

TOUCH THE PARTS.

RISK OF FIRE-

REPLACE FUSE

S MARKED

2.5A 125V

WARNING!

HIGH VOLTAGE

Confidential: FUJIFILM Service Center Use Only

XF56mmF1.2 R Simple Manual

-For Repair Centers without the Lens Repair Training-

CONTENTS

1. List of Jigs······································································································ 4

2. Inspection······································································································· 5

3. Parts List·······································································································13

4. Appendix·······································································································15

Confidential: FUJIFILM Service Center Use Only

XF56mmF1.2 R Simple Manual

-For Repair Centers without the Lens Repair Training-

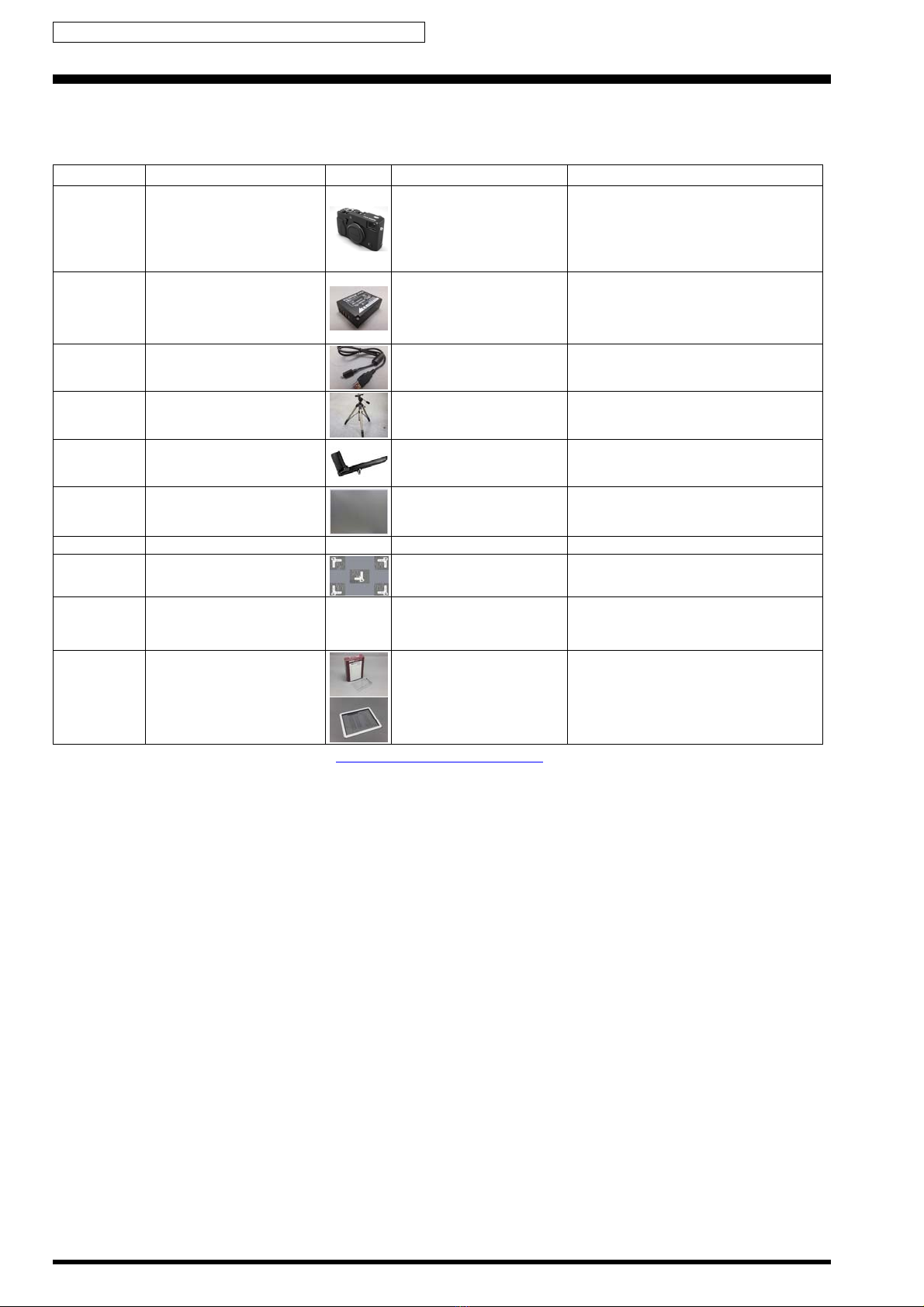

1. List of Jigs

1-1. Inspection

Parts No. Name Image Comment Remarks

---- FUJIFILM X-Pro1

• MAIN PWB Initialize

• LENS Repair Firmware

Ver3.45 Download

• Lens Set Serial

• LENS Firmware Update

• Resolution Inspection

Standard camera

Prepare the product.

* Do not use the user's X-Pro1 camera body

for lens repair. Always use a standard

camera (product).

FZ09206-100

FZ09206-200

FZ09206-300

BATTERY PACK NP-W126J

BATTERY PACK NP-W126U

BATTERY PAC K NP-W126W

This is bundled to the product (X-Pro1)

---- USB cable This is bundled to the product (X-Pro1)

---- Tripod Commercially available item

---- Hand Grip HG-XPro1 Commercially available item

ZJ00254-100 Gray Chart (Reflective type) Common with the 8mmVTR/FinePix 700

---- SD CARD ---- To check Inspection SD recording

ZJ02018-100 XF60 CIPA Resolution Chart Resolution Inspection Common with the XF60mmF2.4 R Macro

ZJ02286-100 XF56MM RESOLUTION

CHECK SOFTWARE ---- Resolution Inspection New jig *1

ZJ01898-100

ZJ01899-100

DUST CHART

DUST CHART 2 Lens dust for inspection

*1: Please download them from Web server (https://cs-support-eid.fujifilm.co.jp).

Confidential: FUJIFILM Service Center Use Only

XF56mmF1.2 R Simple Manual

-For Repair Centers without the Lens Repair Training-

2. Inspection

2-1. Inspection and Factory Settings

Sequence

Item Mode

Preparations for adjustment

(measurement points, subject, other)

Method of adjustment

(VRs, waveforms, required values)

Measuring

equipment

and jigs

1 Appearance check (1) Check lens visually and by

touching.

* Check parts replaced.

(1) There are no noticeable

scratches, cracks, or smudges,

or noticeable abnormalities with

coating.

There is no mistaken lettering,

noticeably out of place, or

abnormal coloring.

2 Appearance check (1) Check lens visually and by

touching.

* All of exterior.

* Check the lens compared to the

condition when you received it.

(1) • There are no defects in parts.

• There is no looseness in

screws.

• There is no leak of oil.

• There is no extra glue.

• There are no rough edges on

surface that could hurt

fingers.

• Be sure the letter “H” on the

name plate comes under the

indicator.

• There are no noticeable gaps

or unevenness compared to a

product.

• There are no stains and

smudges.

3 Lens attach and

release check

(1) Attach the lens to a camera

(2) Remove the lens.

(3) Attach the lens again.

(1) Lens can be attached smoothly.

(2) Lens can be removed smoothly.

Standard

camera

X-Pro1

4 Focus operation

check

P mode

Focus

mode [M]

(1) Turn the camera on.

(2) Turn the Focus ring.

(3) Focus moving noise.

(4) Focus operation.

(1) Check the LCD monitor.

(2) Check if the zoom moves

smoothly.

(3) Check if there is no abnormal

noise.

(4) Check if the zoom moves

smoothly.

Standard

camera

X-Pro1

Confidential: FUJIFILM Service Center Use Only

XF56mmF1.2 R Simple Manual

-For Repair Centers without the Lens Repair Training-

Sequence

Item Mode

Preparations for adjustment

(measurement points, subject, other)

Method of adjustment

(VRs, waveforms, required values)

Measuring

equipment

and jigs

5 Aperture operation

check

A(Aperture

Priority)

(1) Turn the Aperture ring.

(2) Set the aperture to the [f/16].

(3) Press the shutter button halfway

(S1).

(4) Turn aperture a 1/3-step in the

direction of [f/1.2].

(5) Press the shutter button halfway

(S1).

(6) Repeat (4) to (5) until aperture

position reaches [f/1.2] (23

positions in all).

(1) Check if there is no abnormal

noise.

Check if the zoom moves

smoothly.

Check if there is clicking, and

there is no stopping other than

at defined positions.

(2) Check if the Aperture value is

displayed.

(3) Check if there is no abnormal

noise (aperture blades).

Check if the zoom moves

smoothly (aperture blades).

Check if aperture blades open

with the smallest setting seen

from the front.

(4) Check if each aperture value is

displayed on the monitor.

(5) Check if there is no abnormal

noise (aperture blades).

Check if the zoom moves

smoothly (aperture blades).

Check if aperture blades open

with a little wider than (3) (or

(5)) seen from the front.

Standard

camera

X-Pro1

6 Shooting check P mode

Focus

mode[S]

(1) Set an SD card to the camera.

(2) Shoot a subject with appropriate

brightness and at an

appropriate distance.

(3) Set the camera to Playback

mode.

(3) Check if there is no noticeable

abnormality with exposure.

Standard

camera

X-Pro1

* If a customer points out other things, check the thing additionally compared to a product.

Confidential: FUJIFILM Service Center Use Only

XF56mmF1.2 R Simple Manual

-For Repair Centers without the Lens Repair Training-

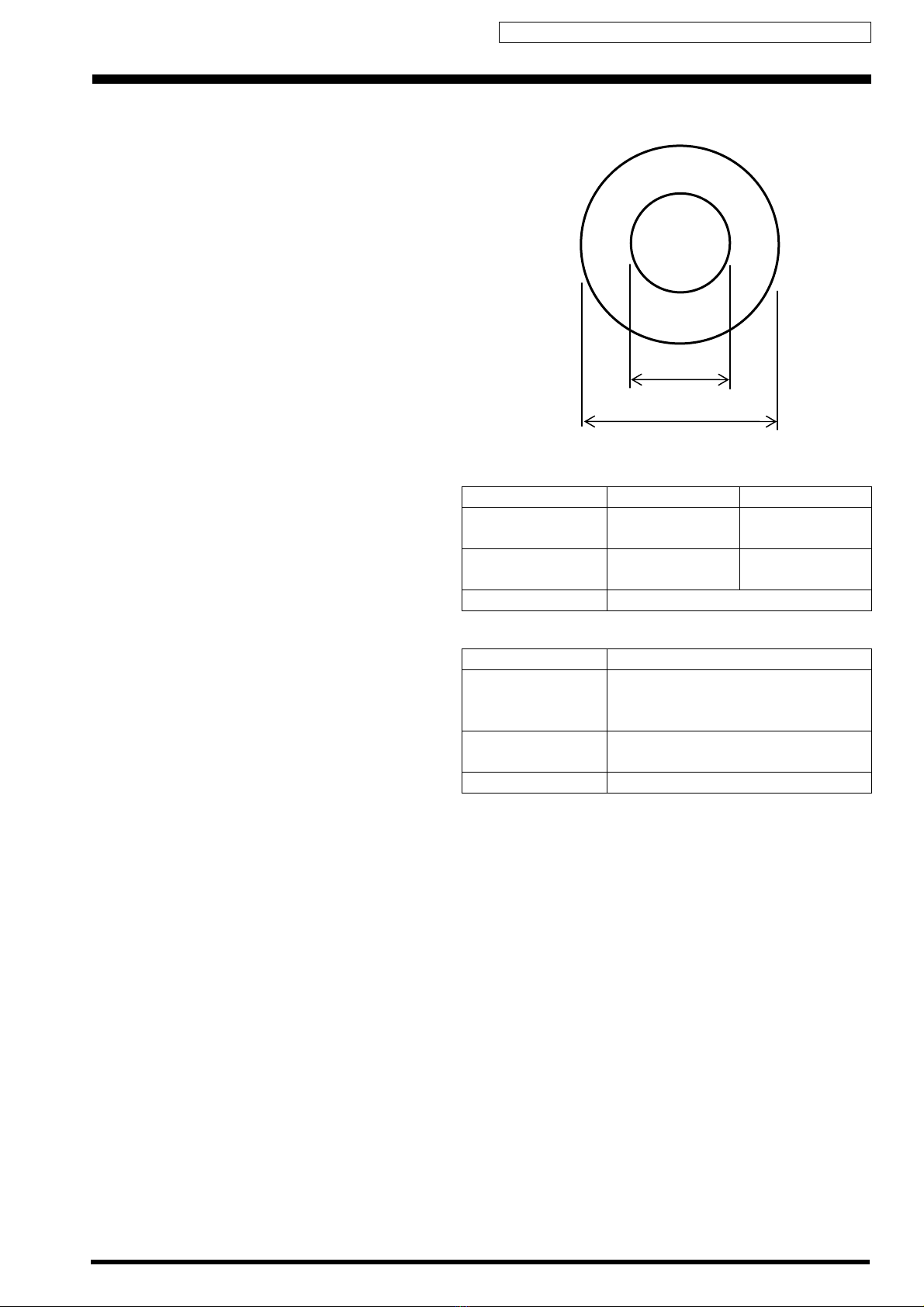

2-2. Lens Dust Check

(1) Prepare a DUST CHART (ZJ01898-100) o

DUST CHART2 (ZJ01899-100).

(2) Wiped off dusts of lens surface.

(3) Compared to “DUST CHART”, measure the

sizes of dusts.

(4) Determine pass or fail referring to Figure. 1

and Table 1.

D/2

Figure. 1

[Specification of front lens]

A range(Center) B range(Outside)

0.15mm or less ~

0.1mm or more Out of spec Less than 2

Less than 0.1mm ~

0.08mm or more Less than 2 Including range A,

Less than 3.

Less than 0.08mm OK

[Specification of rear side lens]

A/B range

0.2mm or less ~

0.15mm or more

Less than 2.

However, it must not be in a noticeable

position.

Less than 0.15mm ~

0.1mm or more Less than 3

Less than 0.1mm OK

Table. 1

Confidential: FUJIFILM Service Center Use Only

XF56mmF1.2 R Simple Manual

-For Repair Centers without the Lens Repair Training-

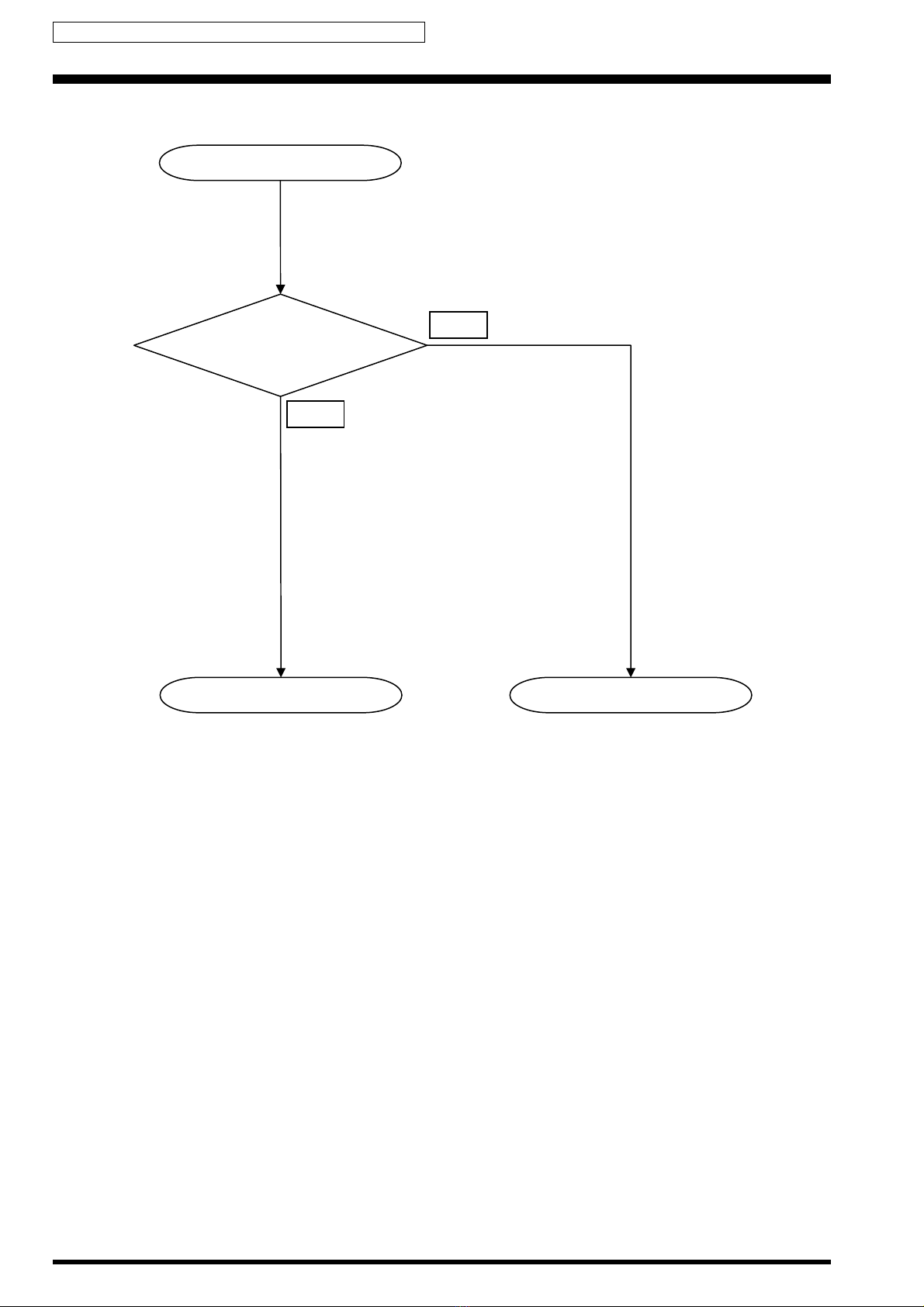

2-3. Resolution Inspection

Resolution Inspection

FAIL

Resolution Inspection Start

Resolution Inspection End Repair operation flo

PASS

* Be sure there are no problems

with repair work

Confidential: FUJIFILM Service Center Use Only

XF56mmF1.2 R Simple Manual

-For Repair Centers without the Lens Repair Training-

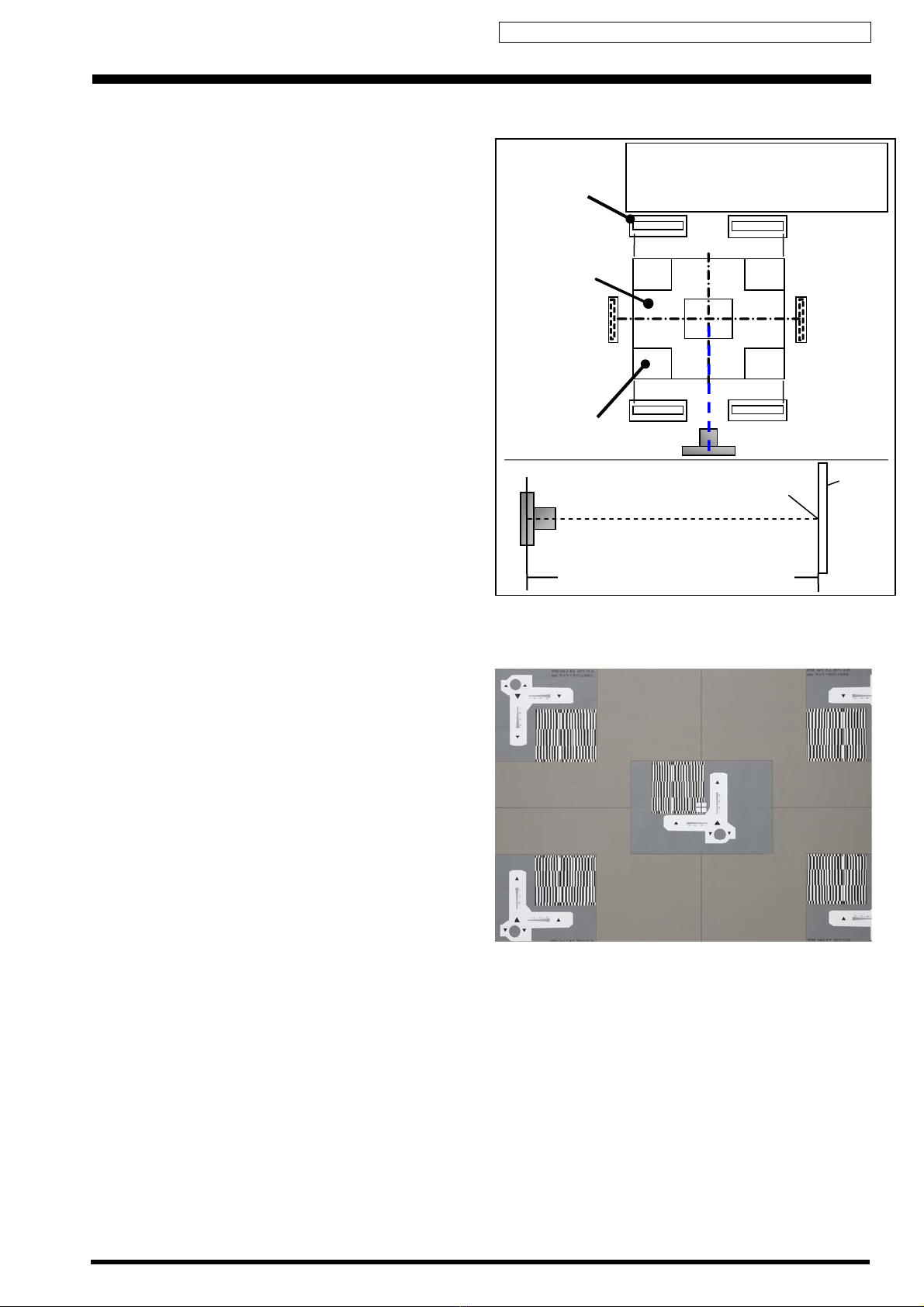

[Settings for Resolution Inspection]

(1) Cut XF60 CIPA Resolution Chart (ZJ02018-

100) like figure 2, and stick it on a Gray Chart

of 917mm X 606.9mm.

(2) Referring to figure 1 on the right, prepare a

camera and the resolution chart.

(3) Light the resolution chart to make the

luminance of chart surface 500-850 lx at the

center of the chart and 0 to +400 lx in the

periphery compared to the center.

[Example]

In case that the luminance of center is 600LX,

the luminance of the periphery should be set to

600 ~ 1000LX.

Figure. 1

Light source

Resolution Chart

ZJ02018-100

Brightness of the resolution chart

Center: 500～850LX

Periphery: 0～+400LX

(Compared to the center)

The center of the chart

Chart

Gray Chart

ZJ00254-100

From imaging plane 2205 ± 3mm

[Preparation of Resolution Inspection]

(1) Set an SD card to the camera.

(2) Turn the camera on.

(3) Carry out the reset of camera from MENU.

(4) Set the camera as follows:

1. Focus mode: S

2. Shutter speed: A

3. Aperture value: F1.2

4. Self-timer: 2sec

5. Other: Default

(5) Fix the camera on a tripod, and point it to the

resolution chart.

(6) Set the resolution chart with the angle of vie

of LCD like figure 2.

(7) Take an image.

(8) Turn the camera off. Figure. 2

(9) Take the camera from the tripod.

(10) Take out battery and SD card.

(11) Close the cover of battery.

Confidential: FUJIFILM Service Center Use Only

XF56mmF1.2 R Simple Manual

-For Repair Centers without the Lens Repair Training-

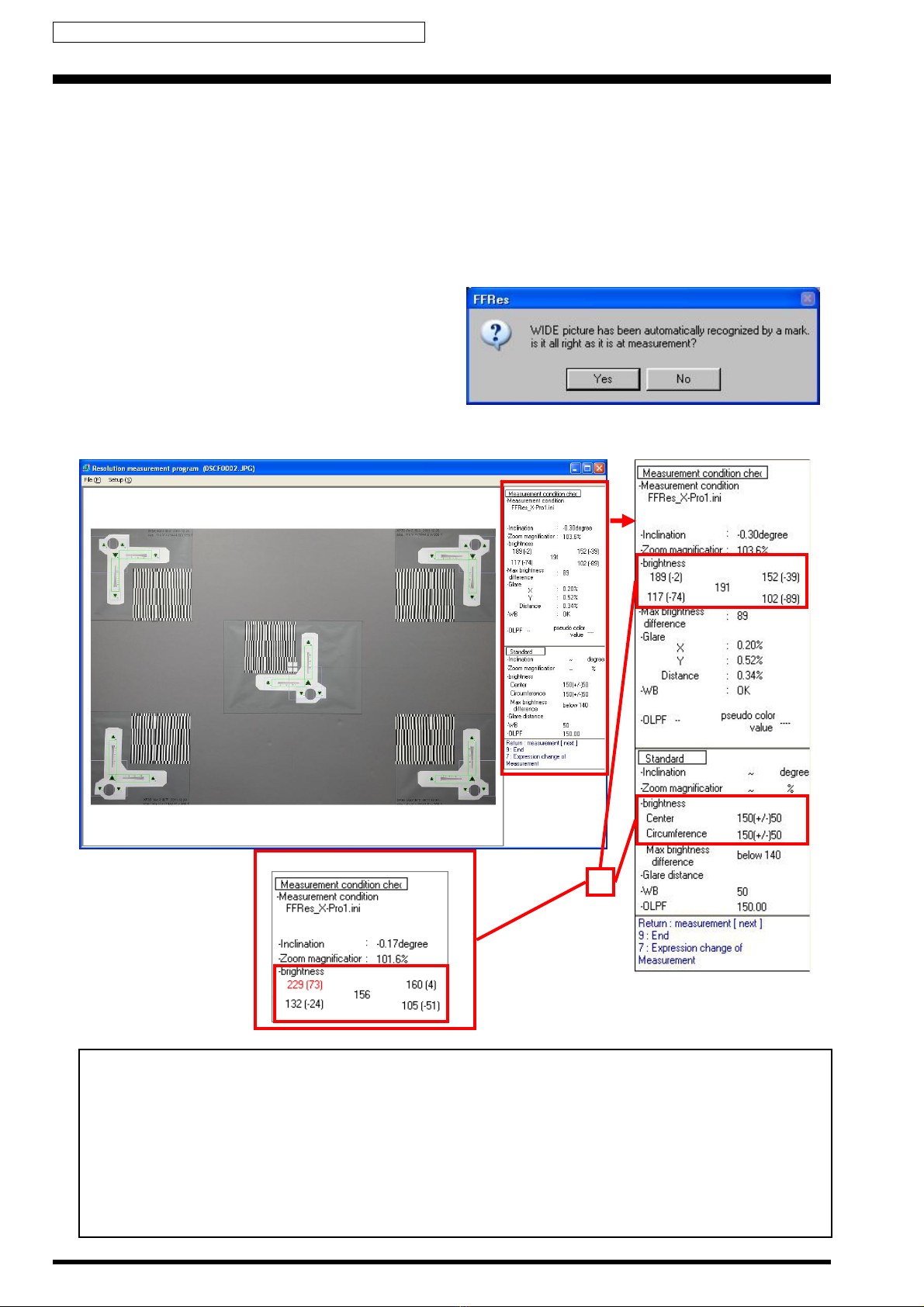

[Resolution Inspection]

(1) Download the software from the WEB and install the software to the PC.

We have uploaded the “XF56MM RESOLUTION CHECK SOFTWARE (ZJ02286-100.zip)” on our website:

(https://cs-support-eid.fujifilm.co.jp).

(2) Decompress the “ZIP type” file of “ZJ02286-100”.

(3) Copy the “FFRes_XF56mm” folder to the “C” drive on the PC.

(4) Copy shot images in the SD card to “FFRes_XF56mm” folder.

(5) Launch FFRes.exe.

(6) Use [File]-[Picture reading] to open shot images.

(7) When the window shown on the right appears,

click [Yes].

Figure. 3

(8) The screen below will appear. If there is no error (in red) in [brightness] in [Measurement condition check] on the right,

press the [Enter] key to start measurement.

* Example error display

value

•

If brightness for [Measurement condition check] shows an error (in red).

o the followings and shoot the chart again so that brightness in [Measurement condition check] becomes a

within the [Standard] brightnessrange.

Adjust the position of the light source (lighting).

Adjust the camera’s exposure compensation.

egarding exposure and lighting

Be sure that the illuminances where measured in each of center and periphery are well-balanced. (refer to

ettings for Resolution Check>)

Adjust overall image’s brightness level by using the camera’s exposure compensation.

Autres manuels pour XF56mmF1.2 R

Table des matières

Autres manuels FujiFilm Objectif de l'appareil photo

FujiFilm

FujiFilm XT20sx4.7 BRM exceed series Manuel utilisateur

FujiFilm

FujiFilm FUJINON GF120mmF4 R LM OIS WR Macro Manuel utilisateur

FujiFilm

FujiFilm FUJINON ZK Cabrio Series Manuel utilisateur

FujiFilm

FujiFilm FUJINON GF110mmF2 R LM WR Manuel utilisateur

FujiFilm

FujiFilm YF4A-SA2B Manuel utilisateur

FujiFilm

FujiFilm FUJION GF80mmF1.7 R WR Manuel utilisateur

FujiFilm

FujiFilm FUJINON GF250mmF4 R LM OIS WR Manuel utilisateur

FujiFilm

FujiFilm XF16mmF2.8 R WR Manuel utilisateur

FujiFilm

FujiFilm GF55mmF1.7 R WR Manuel utilisateur

FujiFilm

FujiFilm XF16-80mmF4 R OIS WR Manuel utilisateur

FujiFilm

FujiFilm YV4.3X2.8SA-2 Manuel utilisateur

FujiFilm

FujiFilm FUJINON ZK Cabrio Series Manuel utilisateur

FujiFilm

FujiFilm XF56mmF1.2 R Manuel utilisateur

FujiFilm

FujiFilm FUJINON XF100-400mm Manuel utilisateur

FujiFilm

FujiFilm XF100-400 mm F4.5-5.6 R LM OIS WR Manuel utilisateur

FujiFilm

FujiFilm FUJINON GF23mmF4 R LM WR Manuel utilisateur

FujiFilm

FujiFilm FUJINON UA46x13.5 BERD-U1 Manuel utilisateur

FujiFilm

FujiFilm PL 19-90 Cabrio Manuel utilisateur

FujiFilm

FujiFilm GF50mmF3.5 R LM WR Manuel utilisateur

FujiFilm

FujiFilm XF18-55mmF2.8-4 R LM OIS Manuel utilisateur

FujiFilm

FujiFilm FUJINON Manuel utilisateur

FujiFilm

FujiFilm HTs18x4.2BERM Manuel utilisateur

FujiFilm

FujiFilm GF50mmF3.5 R LM WR Manuel utilisateur

FujiFilm

FujiFilm XF50mmF2 R WR Manuel utilisateur

Manuels Objectif de l'appareil photo populaires d'autres marques

THORLABS

THORLABS ELL15 Manuel utilisateur

FUJICA

FUJICA ZC1000 Manuel utilisateur

Tamron

Tamron A09 Manuel

Sony

Sony SEL-55210 Manuel utilisateur

Sony

Sony VCL-HG2037 Manuel utilisateur

Honeywell

Honeywell HLM25V6F12 Manuel utilisateur

Sony

Sony VCL-ST30 Manuel utilisateur

Canon

Canon FD 35 - 70 mm Manuel utilisateur

Sony

Sony SAL-85F14Z - 85mm f1.4 Carl Zeiss Planar T Coated Telephoto... Manuel utilisateur

ARRI

ARRI Lenses Manuel utilisateur

Panasonic

Panasonic LUMIX G X Vario 45-175mm f/4.0-5.6 Manuel utilisateur

Nikon

Nikon AF-S VR 24-120 f/3.5-5.6G IF-ED Manuel utilisateur

Rokinon

Rokinon DS50M-C Manuel utilisateur

Olympus

Olympus M.Zuiko Digital ES 300mm f4.0 IS PRO Manuel utilisateur

Sony

Sony VCL-DE07T Manuel utilisateur

Canon

Canon FD Lens Manuel

Tamron

Tamron A036 Manuel utilisateur

Samsung

Samsung 20-50mm F3.5-5.6 ED II Manuel utilisateur
