FujiFilm HTs18x4.2BERM Manuel utilisateur

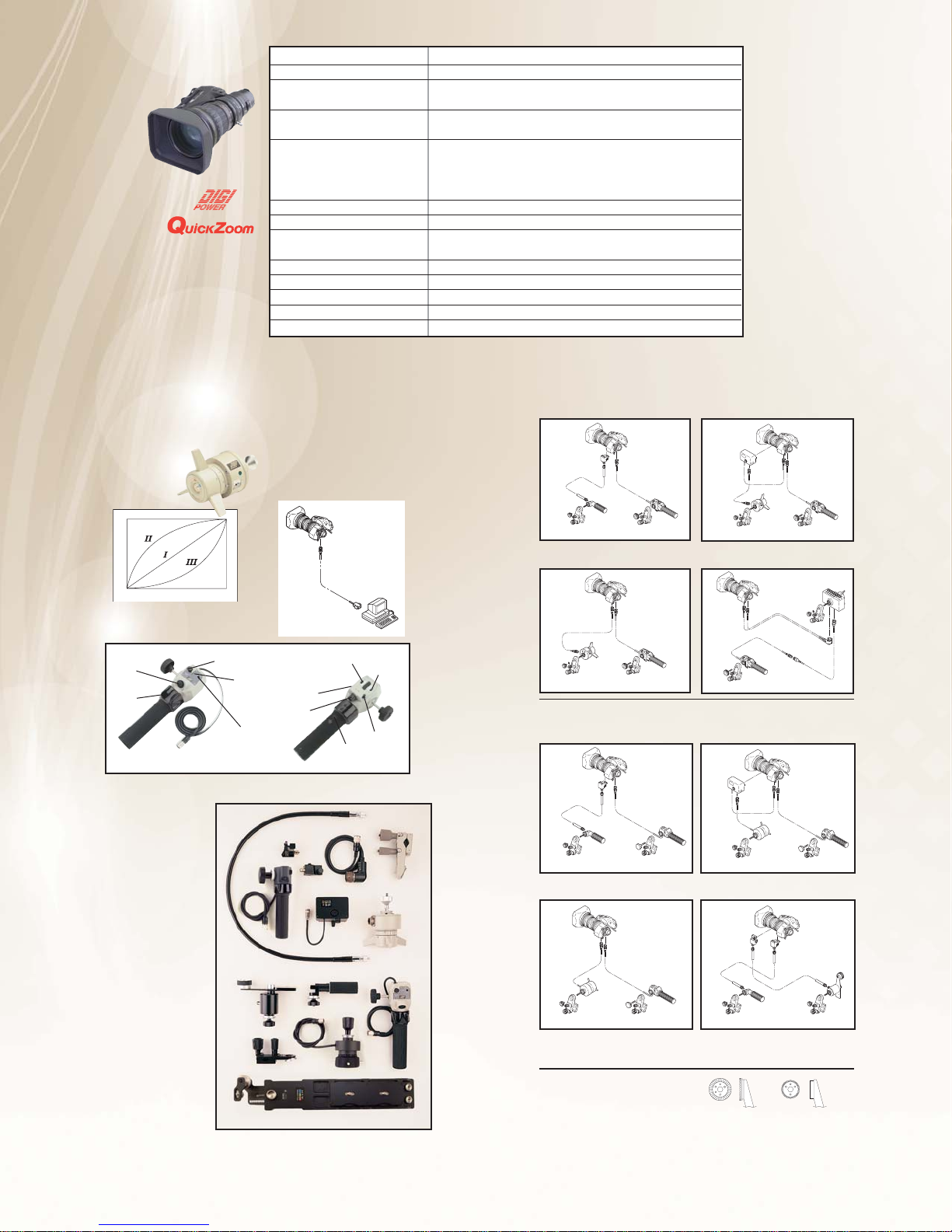

HD & SD ENG FEATURES

ACCESSORIES: HD & SD ENG/EFP

THREE-MODE FINE

FOCUS

By shifting the sensitivity from

the wide side to the telephoto

side of the focus range, this

control provides more precise

focusing

for studio

or sports

productions.

A. CFC-990

Flex Cable

B. FMM-3B/6B

Manual Module

C. ZMM-6

Manual Module

D. EBF-1 Focus Cable

E. MCA-6

F. ERD-20A-A02

Zoom Demand

G. FSP-13G

Focus Positional

Module

H. EPD-4A-E02

I. CZH-14

Focus Handle

J. CFH-11

Focus Handle

K. MCA-7

Mounting Clamp

EPD-20A-A01/A02

Focus Demand

M. ERD-10A-D01

Zoom Demand

N. ALH-117A-02A

Support for

HA36x /A36x

HA42x

ROTATING CONTROL ANGLEMOD

INFINITY

CONVENTIONAL

TYPE

9 PIN CONNECTOR

SA-206-A-005

SERIAL DIGITAL

REMOTE CONTROL

BY PC

Remote control of zoom, focus

and iris for Digipower lenses is

possible via serial digital link,

providing accurate positioning

for virtual studio and other

applications requiring digital

precision.

A. B.

F. G.

VTR

Switch

Zoom Speed

Control Knob

One Shot

Preset

Indicator

One Shot

Preset Switch

Quickzoom

Switch

Return

Switch

Quickzoom

Switch

Reverse

Switch

Focus/Iris

Control Select

Switch

Focus/Iris

Control Knob

Thumb

Ring

*New Digital features only available on ERM/ERD-M/S.

ERD-10A-D01

DIGI ZOOM DEMAND*

Note: ERD-20A-A02 (F) and EPD-20A-A02 (L)

replace the ERD-T22 and EPD-2CA.

STANDARD REAR CONTROL KITS

FMM-6B

FMM-3B 12 PIN

ERD-10A-D01

MCA-7 MCA-6B

CFH-11

CFC-12-990

FMM-6B

FMM-3B

CFC-12-990

MCA-7 MCA-7

CZH-14

CFH-11

CFC-12-990

ZMM-6

SS-13A Servo Focus/Servo Zoom

For use with ERD type lenses.

*Specify camera type

**FMM-3C for use on HA36x, HA42x and HA25x

FMM-6B

FMM-3B

12 PIN

ERD-20A-A02

MCA-7MCA-7

CFH-11

CFC-12-990

3 PIN

FSP-13G

12 PIN

ERD-20A-A02

MCA-7

EPD-21A-A01/A02

MCA-7

12 PIN

ERD-20A-A02

MCA-7 MCA-7

EPD-21A-A01/A02

MM-11 Manual Focus/Manual Zoom

Not available on HA42x, HA36x and A36x

MS-11 Manual Focus/Servo Zoom SS-11 Servo Focus/Servo Zoom

Not available on HA42x, HA36x and A36

12 PIN

ERD-10A-D01

MCA-6BMCA-6B

EPD-4A-E02

EBF-1

FSP-13G

EBF-1

12 PIN

3 PIN

ERD-10A-D01

EPD-4A-E02

MCA-6B MCA-6B

12 PIN

ERD-10A-D01

ESB-6A-D12

SE-210A-R15

MCA-6B

EEC-13

MS-11D Manual Focus/Servo Zoom

For use with RM/ZM type lenses.

SS-13D Servo Focus/Servo Zoom

For use with RD/ZD type lenses.

SS-11D Servo Focus/Servo Zoom

For use with RM/ZM type lenses.

SS-14S Servo Focus/Servo Zoom

For use with RD/ZD type lenses.

DIGI POWER REAR CONTROL KITS

MOUNTING SYSTEM

Fujinon has replaced the “cone”

shaped mounting system with the

“tooth” system. The cone type may

still be ordered as a special order.

New Style

MCA-7

Old Style

MCA-1A

(Discontinued)

** FMM-6B

FMM-3C

** FMM-6B

FMM-3C

** FMM-6B

FMM-3C

HTs18x4.2BERM

LENS HTs18x4.2BERM

Zoom Ratio / Format 18X / 1/3"

Focal Length 4.2 to 76 mm

(2X) 8.4 to 152 mm

Maximum Relative 1:1.4 (4.2 ~ 76 mm)

Aperture (2X) 1:2.8 (152 mm)

Angular Field of View

16:9 Aspect Ratio

(2X)

M.O.D. from Image Plane 0.84 m

M.O.D. from Front of Lens 0.60 m

Object Dimensions

at M.O.D.

Filter Size ø 82 mm P=0.75

Dia ø x Length (w/o Hood) ø85 x 206.6 mm

Weight (w/o Hood) 1.58 kg

Options 16 Bit Encoder

Features Inner Focus / Quick Zoom / Zoom Limit

4.2 mm63° 49’ x 39° 35’

76 mm3° 56’ x 2° 13’

8.4 mm34° 35’ x 19° 51’

152 mm1° 52’ x 1° 6’

5.5 mm741 x 417 mm

100 mm43 x 24 mm

Extender

For Sales Contact Information go to

www.Fujinon.com
